1p3b
;Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants ;

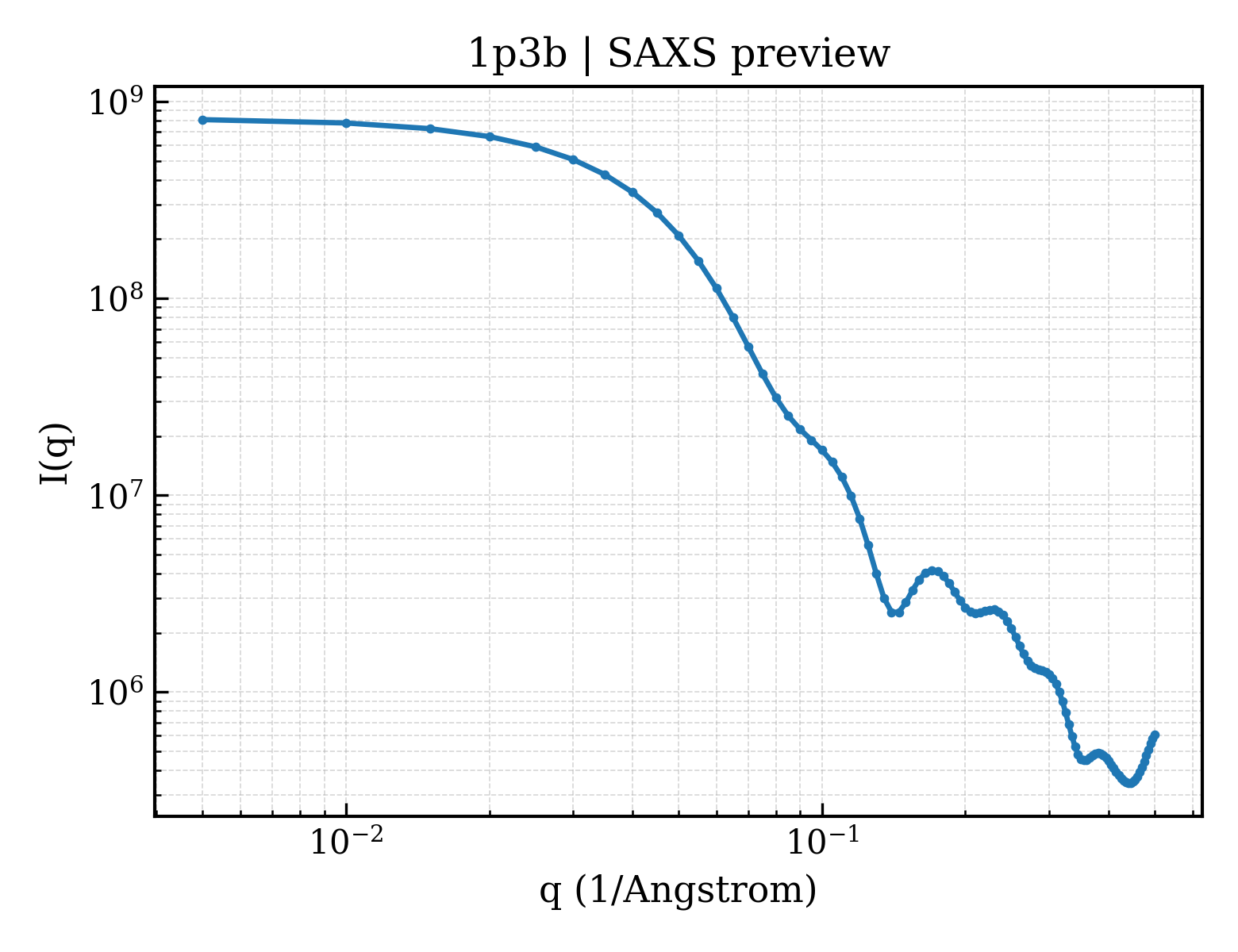

SAXS 散射曲线 SAXS Profile

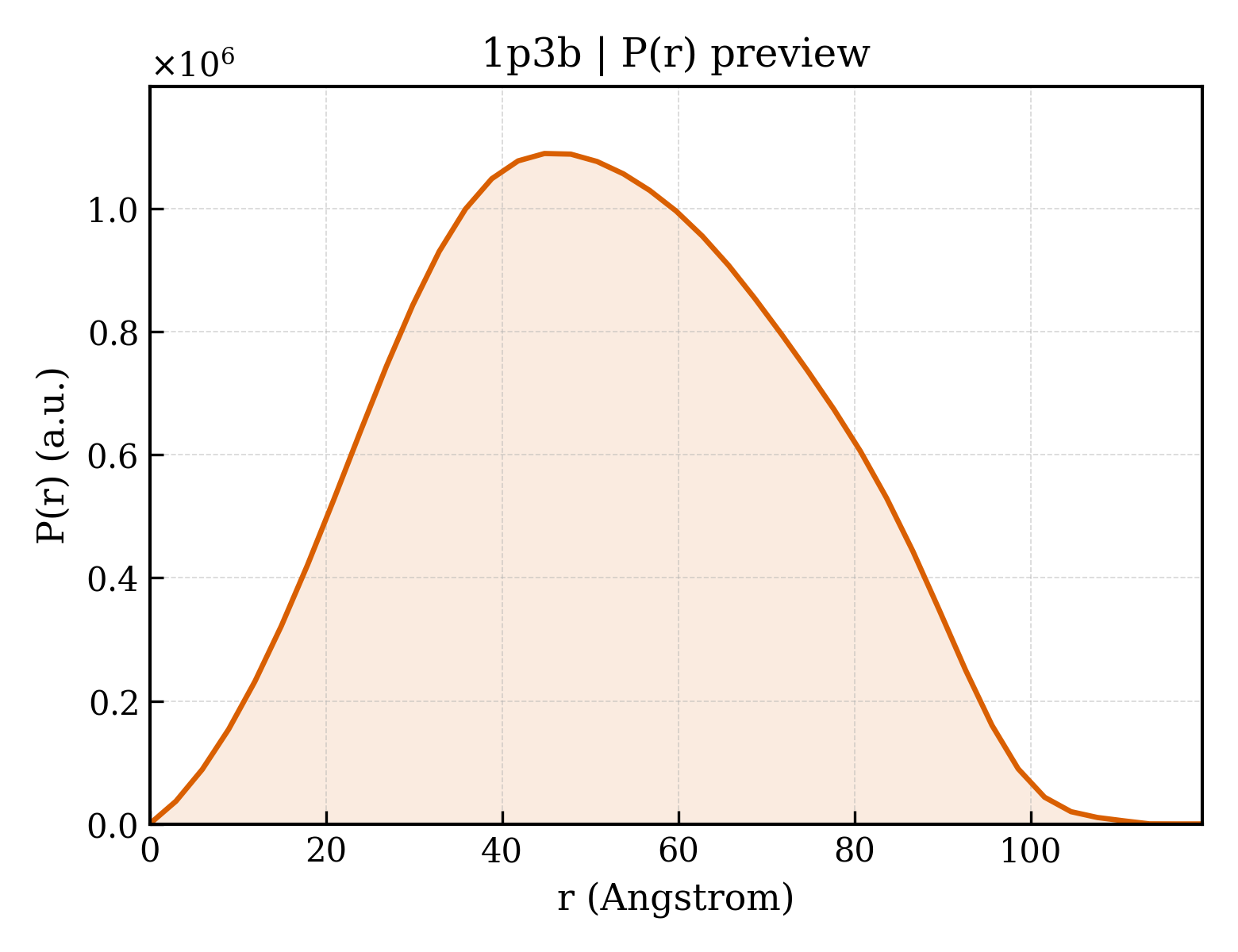

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1p3b |
| 沉积日期 deposition_date | 2003-04-17 |
| 结构标题 title | ;Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants ; |
| 关键词 keywords | Sin mutants, Nucleosome Core Particle, chromatin, protein/DNA interaction, STRUCTURAL PROTEIN-DNA COMPLEX; STRUCTURAL PROTEIN/DNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 39.84 Å |
| 回转半径 Rg (电子) rg_electron | 37.15 Å |
| 零角强度 I(0) i0 | 819861000.00 |
| 分子量 molecular_weight | 175410.0 kDa |
| 排除体积 excluded_volume | 194910 ų |
| 包络体积 envelope_volume | 286090 ų |
| 水化壳体积 shell_volume | 62383 ų |
| 包络直径 envelope_diameter | 118.6 Å |
| 壳层 Rg shell_rg | 44.83 Å |
| 包络 Rg envelope_rg | 36.64 Å |
| 形状 Rg shape_rg | 36.98 Å |
| 总 Rg total_rg | 37.86 Å |
| 总原子数 total_atoms | 11967 |
| 残基数 n_residues | 1048 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 119.5 Å |
| Rg (实空间) rg_real | 39.58 Å |
| Rg 误差 (实空间) rg_real_error | 0.84 Å |
| I(0) (实空间) i0_real | 8.1990e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.3520e+07 |
| Rg (倒空间) rg_reciprocal | 39.75 Å |
| I(0) (倒空间) i0_reciprocal | 820000000.0000 |
| 解质量估计 total_estimate | 0.9078 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 44.8 Å |
| 偏度 Skewness skewness | 0.086 |
| 峰度 Kurtosis kurtosis | -0.700 |
| 角度范围 angular_range | — – 0.2000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 69260000.0000 |
| 实空间数据点数 n_real_points | 41 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.910 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (6)
6. 折叠分类 (SCOP + CATH) 16 domains
SCOP 2.08 (8 domains)
| 结构域编号 domain_id | d1p3ba_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
| 结构域编号 domain_id | d1p3bb_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
| 结构域编号 domain_id | d1p3bc_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
| 结构域编号 domain_id | d1p3bd_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
| 结构域编号 domain_id | d1p3be_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
| 结构域编号 domain_id | d1p3bf_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
| 结构域编号 domain_id | d1p3bg_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
| 结构域编号 domain_id | d1p3bh_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.22 — Histone-fold |
| 超家族 Superfamily superfamily | a.22.1 — Histone-fold |
| 家族 Family family | a.22.1.1 — Nucleosome core histones |
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 1p3bA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
| 结构域编号 domain_id | 1p3bB00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
| 结构域编号 domain_id | 1p3bC00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
| 结构域编号 domain_id | 1p3bD00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
| 结构域编号 domain_id | 1p3bE00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
| 结构域编号 domain_id | 1p3bF00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
| 结构域编号 domain_id | 1p3bG00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
| 结构域编号 domain_id | 1p3bH00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 20 — Histone, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Histone, subunit A |
