9dgg

ncPRC1RYBP bound to unmodified nucleosome

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

Xenopus laevis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA (187-MER) × 1 DNA (187-MER) × 1 Polycomb complex protein BMI-1 × 1 （P35226） E3 ubiquitin-protein ligase RING2 × 1 （Q99496） ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–136； UniProt 1–136

Histone H4

Xenopus laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （P84233） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA (187-MER) × 1 DNA (187-MER) × 1 Polycomb complex protein BMI-1 × 1 （P35226） E3 ubiquitin-protein ligase RING2 × 1 （Q99496） ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103

Histone H2A type 1

Xenopus laevis

UniProt P06897

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2B 1.1 × 2 （P02281） DNA (187-MER) × 1 DNA (187-MER) × 1 Polycomb complex protein BMI-1 × 1 （P35226） E3 ubiquitin-protein ligase RING2 × 1 （Q99496） ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1_XENLA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–130； UniProt 1–130 Author chain G； PDBConstruct 1–130； UniProt 1–130

Histone H2B 1.1

Xenopus laevis

UniProt P02281

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） DNA (187-MER) × 1 DNA (187-MER) × 1 Polycomb complex protein BMI-1 × 1 （P35226） E3 ubiquitin-protein ligase RING2 × 1 （Q99496） ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B11_XENLA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–126； UniProt 1–126 Author chain H； PDBConstruct 1–126； UniProt 1–126

Polycomb complex protein BMI-1

Homo sapiens

UniProt P35226

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA (187-MER) × 1 DNA (187-MER) × 1 E3 ubiquitin-protein ligase RING2 × 1 （Q99496） ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BMI1_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain K； PDBConstruct 1–326； UniProt 1–326

E3 ubiquitin-protein ligase RING2

Homo sapiens

UniProt Q99496

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA (187-MER) × 1 DNA (187-MER) × 1 Polycomb complex protein BMI-1 × 1 （P35226） ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RING2_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain L； PDBConstruct 1–336； UniProt 1–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dgg
Deposition date deposition_date	2024-09-02
Structure title title	ncPRC1RYBP bound to unmodified nucleosome
Keywords keywords	DNA complex protein, NUCLEAR PROTEIN-DNA complex; NUCLEAR PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9dgg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9dgg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

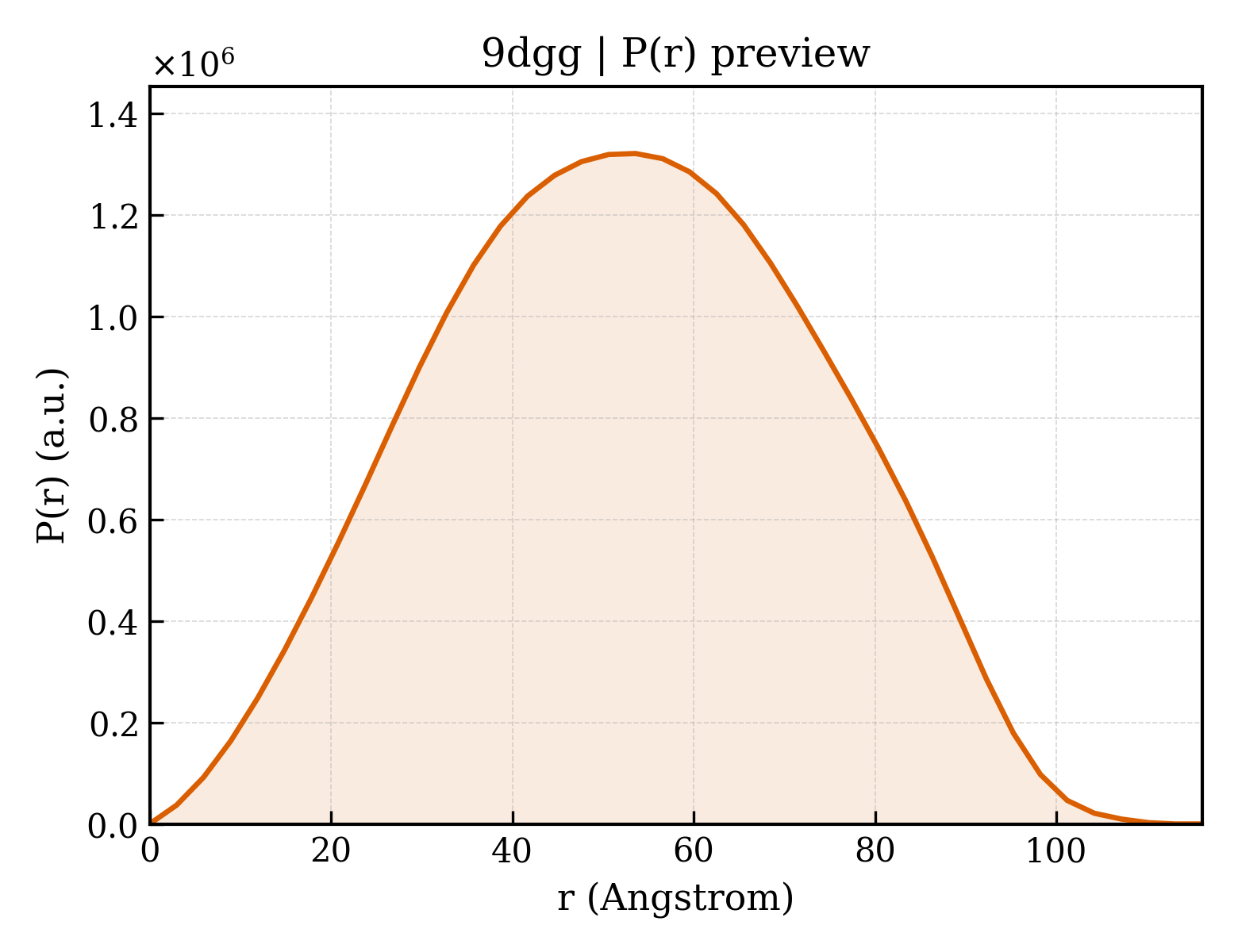

9dgg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.26 Å
Rg (electron density)	37.92 Å
Total Rg	38.58 Å
Atom count	13339
Residues	1245
Excluded volume	219330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9dgg__assembly_1__model_1`	12-meric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Histone H3.2
Molecular weight formula_weight	15435.1 kDa
Mutation mutation	G103A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	13339

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1
Molecular weight formula_weight	14093.4 kDa
Mutation mutation	G100R
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MSGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESAKSAKSK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B 1.1
Molecular weight formula_weight	13979.3 kDa
Mutation mutation	S33T
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MPEPAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA (187-MER)
Molecular weight formula_weight	57982.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCGCGACACCGGCACTGGAACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGGGGATCGGGCATCACCCGAT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA (187-MER)
Molecular weight formula_weight	57488.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCGGGTGATGCCCGATCCCCTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTTCCAGTGCCGGTGTCGCGAT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Polycomb complex protein BMI-1
Molecular weight formula_weight	37006.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MHRTTRIKITELNPHLMCVLCGGYFIDATTIIECLHSFCKTCIVRYLETSKYCPICDVQVHKTRPLLNIRSDKTLQDIVYKLVPGLFKNEMKRRRDFYAAHPSADAANGSNEDRGEVADEDKRIITDDEIISLSIEFFDQNRLDRKVNKDKEKSKEEVNDKRYLRCPAAMTVMHLRKFLRSKMDIPNTFQIDVMYEEEPLKDYYTLMDIAYIYTWRRNGPLPLKYRVRPTCKRMKISHQRDGLTNAGELESDSGSDKANSPAGGIPSTSSCLPSPSTPVQSPHPQFPHISSTMNGTSNSPSGNHQSSFANRPRKSSVNGSSATSSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	E3 ubiquitin-protein ligase RING2
Molecular weight formula_weight	37706.4 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MSQAVQTNGTQPLSKTWELSLYELQRTPQEAITDGLEIVVSPRSLHSELMCPICLDMLKNTMTTKECLHRFCADCIITALRSGNKECPTCRKKLVSKRSLRPDPNFDALISKIYPSRDEYEAHQERVLARINKHNNQQALSHSIEEGLKIQAMNRLQRGKKQQIENGSGAEDNGDSSHCSNASTHSNQEAGPSNKRTKTSDDSGLELDNNNAAMAIDPVMDGASEIELVFRPHPTLMEKDDSAQTRYIKTSGNATVDHLSKYLAVRLALEELRSKGESNQMNLDTASEKQYTIYIATASGQFTVLNGSFSLELVSEKYWKVNKPMELYYAPTKEHK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.98 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	205635
