3ixs

Ring1B C-terminal domain/RYBP C-terminal domain Complex

Method: X-RAY DIFFRACTION D_max: 137.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase RING2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 223–333	Fragment：C-terminal Domain (UNP residues 223-333) Mutation：N306D	RING1 and YY1-binding protein × 1 （Q8N488） EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 223–333	Fragment：C-terminal Domain (UNP residues 223-333) Mutation：N306D	RING1 and YY1-binding protein × 1 （Q8N488） EDO 1,2-ETHANEDIOL × 1 NHE 2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 223–333	Fragment：C-terminal Domain (UNP residues 223-333) Mutation：N306D	RING1 and YY1-binding protein × 1 （Q8N488） EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 223–333	Fragment：C-terminal Domain (UNP residues 223-333) Mutation：N306D	RING1 and YY1-binding protein × 1 （Q8N488） EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
5	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain I； UniProt 223–333	Fragment：C-terminal Domain (UNP residues 223-333) Mutation：N306D	RING1 and YY1-binding protein × 1 （Q8N488）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
6	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain K； UniProt 223–333	Fragment：C-terminal Domain (UNP residues 223-333) Mutation：N306D	RING1 and YY1-binding protein × 1 （Q8N488）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3IXS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2H0D Structure of a Bmi-1-Ring1B Polycomb group ubiquitin ligase complex Deposited 2006-05-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 15–114（100 aa） Fragment：residues 15-114	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290 K；20 mM Tris, 500 mM NaCl, 1 mM EDTA, 1.5 mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 2.50 Å R-free 0.244
3GS2 Ring1B C-terminal domain/Cbx7 Cbox Complex Deposited 2009-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 223–333（111 aa） Fragment：C-terminal domain, residues 223-333 Chain C 223–333（111 aa） Fragment：C-terminal domain, residues 223-333	Mutation：N306D Mutation：N306D	SO4 SULFATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；25% PEG MME 550, 0.1 M MES, 0.01 M zinc sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.243
3GS2 Ring1B C-terminal domain/Cbx7 Cbox Complex Deposited 2009-03-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 223–333（111 aa） Fragment：C-terminal domain, residues 223-333	Mutation：N306D	SO4 SULFATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；25% PEG MME 550, 0.1 M MES, 0.01 M zinc sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.243
3GS2 Ring1B C-terminal domain/Cbx7 Cbox Complex Deposited 2009-03-26	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 223–333（111 aa） Fragment：C-terminal domain, residues 223-333	Mutation：N306D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；25% PEG MME 550, 0.1 M MES, 0.01 M zinc sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.243
3H8H Structure of the C-terminal domain of human RNF2/RING1B; Deposited 2009-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 220–330（111 aa） Fragment：RESIDUES 220-330	Not recorded	2PE NONAETHYLENE GLYCOL × 1 GOL GLYCEROL × 1 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；289 K；2 M AMMONIUM SULPHATE, 2% PEG 400, 0.1 M HEPES, PH 7.5, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 289K	Resolution 2.00 Å R-free 0.244
3H8H Structure of the C-terminal domain of human RNF2/RING1B; Deposited 2009-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 220–330（111 aa） Fragment：RESIDUES 220-330	Not recorded	2PE NONAETHYLENE GLYCOL × 2 GOL GLYCEROL × 2 SO4 SULFATE ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；289 K；2 M AMMONIUM SULPHATE, 2% PEG 400, 0.1 M HEPES, PH 7.5, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 289K	Resolution 2.00 Å R-free 0.244
3H8H Structure of the C-terminal domain of human RNF2/RING1B; Deposited 2009-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 220–330（111 aa） Fragment：RESIDUES 220-330	Not recorded	2PE NONAETHYLENE GLYCOL × 2 GOL GLYCEROL × 2 SO4 SULFATE ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；289 K；2 M AMMONIUM SULPHATE, 2% PEG 400, 0.1 M HEPES, PH 7.5, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 289K	Resolution 2.00 Å R-free 0.244
3H8H Structure of the C-terminal domain of human RNF2/RING1B; Deposited 2009-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 220–330（111 aa） Fragment：RESIDUES 220-330	Not recorded	2PE NONAETHYLENE GLYCOL × 2 GOL GLYCEROL × 2 SO4 SULFATE ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；289 K；2 M AMMONIUM SULPHATE, 2% PEG 400, 0.1 M HEPES, PH 7.5, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 289K	Resolution 2.00 Å R-free 0.244
3RPG Bmi1/Ring1b-UbcH5c complex structure Deposited 2011-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–116（116 aa） Fragment：UNP Residues 1-116	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；40% MPD, 0.1 M MES pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.243
3RPG Bmi1/Ring1b-UbcH5c complex structure Deposited 2011-04-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–116（116 aa） Fragment：UNP Residues 1-116	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；40% MPD, 0.1 M MES pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.243
4R8P Crystal structure of the Ring1B/Bmi1/UbcH5c PRC1 ubiquitylation module bound to the nucleosome core particle Deposited 2014-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain L 2–116（115 aa） Fragment：Residues 2-116 of Ring1B and Residues 2-148 of UbcH5c Chain N 2–116（115 aa） Fragment：Residues 2-116 of Ring1B and Residues 2-148 of UbcH5c	Not recorded	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions Modified micro batch under oil；pH 7.5；294 K；25 mM HEPES pH 7.5, 80 mM NH4NO3, 3 % PEG2000-MME, Modified micro batch under oil, temperature 294K	Resolution 3.28 Å R-free 0.245
4S3O PCGF5-RING1B-UbcH5c complex Deposited 2015-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–116（116 aa） Fragment：RING domain, UNP residues 1-116	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；13.5% PEG 550 MME, 10 mM TCEP, 0.1 M MES pH 6.5, 100 mM KCl, VAPOR DIFFUSION, temperature 277K	Resolution 2.00 Å R-free 0.237
4S3O PCGF5-RING1B-UbcH5c complex Deposited 2015-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–116（116 aa） Fragment：RING domain, UNP residues 1-116	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；13.5% PEG 550 MME, 10 mM TCEP, 0.1 M MES pH 6.5, 100 mM KCl, VAPOR DIFFUSION, temperature 277K	Resolution 2.00 Å R-free 0.237
7ND1 First-in-class small molecule inhibitors of Polycomb Repressive Complex 1 (PRC1) RING domain Deposited 2021-01-29	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 10–116（107 aa）	Not recorded	ZN ZINC ION × 4 U9E 3-(2-chlorophenyl)-4-ethyl-5-(1~{H}-indol-4-yl)-1~{H}-pyrrole-2-carboxylic acid × 1	SOLUTION NMR NMR measurement conditions pH 6.8；303.3 K；Ionic strength (raw mmCIF value) 150；Pressure 1 NMR sample composition 0.12 mM [U-2H; U-13C; U-15N; CH3 ILV] Ring1B-BMI1, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
8GRM Cryo-EM structure of PRC1 bound to H2AK119-UbcH5b-Ub nucleosome Deposited 2022-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain N 16–116（101 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.05 Å
8PP7 human RYBP-PRC1 bound to mononucleosome Deposited 2023-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain L 1–336（336 aa） Chain N 1–336（336 aa）	Not recorded	ZN ZINC ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.91 Å
9DBY ncPRC1RYBP bound to singly modified H2AK119Ub nucleosome Deposited 2024-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain L 1–336（336 aa）	Not recorded	ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9DDE ncPRC1RYBP bound to H2AK119Ub/H1.4 chromatosome Deposited 2024-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: 15-meric	Chain L 1–336（336 aa）	Not recorded	ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9DGG ncPRC1RYBP bound to unmodified nucleosome Deposited 2024-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain L 1–336（336 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.98 Å
9V6Q Cryo-EM structure of two cPRC1 complexes bound to opposite faces of an endogenous 147-bp mono-nucleosome Deposited 2025-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain L 1–336（336 aa） Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 4.60 Å
9V6S Cryo-EM structure of a single cPRC1 complex engaged on one face of an endogenous 147-bp mononucleosome Deposited 2025-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.00 Å
9V6X Cryo-EM structure of the cPRC1 complex bound to an endogenous 184-bp mono-nucleosome Deposited 2025-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 4.00 Å
9V8L Cryo-EM structure of the cPRC1-di-nucleosome (loose) complex Deposited 2025-05-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 6.60 Å
9V9H Cryo-EM structure of the cPRC1-di-nucleosome (tight) complex Deposited 2025-05-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain T 1–336（336 aa） Chain V 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 4.50 Å
9V9P Cryo-EM structure of the cPRC1-di-nucleosome (CBX7) complex Deposited 2025-06-01	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain U 1–336（336 aa） Chain W 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.40 Å
9V9Q Cryo-EM structure of the cPRC1-UbcH5c E3-E2 complex bound to the H2BK120ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.80 Å
9V9R Cryo-EM structure of the ncPRC1.1-UbcH5c E3-E2 complex bound to the H2BK120ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.20 Å
9V9U Cryo-EM structure of the ncPRC1.4 complex containing two RNF2-BMI1 bound to the H2AK119ubH2BK120ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: 16-meric	Chain L 1–336（336 aa） Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.70 Å
9V9V Cryo-EM structure of the ncPRC1.4 complex containing one RNF2-BMI1 and one RYBP bound to the H2AK119ubH2BK120ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.80 Å
9V9X Cryo-EM structure of the ncPRC1.4 complex containing one RNF2-BMI1 bound to the H2AK119ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.30 Å
9V9Y Cryo-EM structure of the ncPRC1.4 complex containing one RNF2-BMI1 and one RYBP bound to the H2AK119ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain N 1–336（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.20 Å

24 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RING2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–111； UniProt 223–333 Author chain C； PDBConstruct 1–111； UniProt 223–333 Author chain E； PDBConstruct 1–111； UniProt 223–333 Author chain G； PDBConstruct 1–111； UniProt 223–333 Author chain I； PDBConstruct 1–111； UniProt 223–333 Author chain K； PDBConstruct 1–111； UniProt 223–333

RING1 and YY1-binding protein

Homo sapiens

UniProt Q8N488

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 145–179	Fragment：C-terminal domain (UNP residues 145-179)	E3 ubiquitin-protein ligase RING2 × 1 （Q99496） EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 145–179	Fragment：C-terminal domain (UNP residues 145-179)	E3 ubiquitin-protein ligase RING2 × 1 （Q99496） EDO 1,2-ETHANEDIOL × 1 NHE 2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 145–179	Fragment：C-terminal domain (UNP residues 145-179)	E3 ubiquitin-protein ligase RING2 × 1 （Q99496） EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 145–179	Fragment：C-terminal domain (UNP residues 145-179)	E3 ubiquitin-protein ligase RING2 × 1 （Q99496） EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
5	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 145–179	Fragment：C-terminal domain (UNP residues 145-179)	E3 ubiquitin-protein ligase RING2 × 1 （Q99496）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234
6	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 145–179	Fragment：C-terminal domain (UNP residues 145-179)	E3 ubiquitin-protein ligase RING2 × 1 （Q99496）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；32% PEG 1750, 0.125 M lithium sulfate, 10% ethylene glycol, 50 mM CHES, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.234

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3IXS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8PP6 human RYBP-PRC1 bound to H2AK118ub1 nucleosome Deposited 2023-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain K 1–228（228 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å
9DBY ncPRC1RYBP bound to singly modified H2AK119Ub nucleosome Deposited 2024-08-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric	Chain M 1–228（228 aa）	Not recorded	ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9DDE ncPRC1RYBP bound to H2AK119Ub/H1.4 chromatosome Deposited 2024-08-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: 15-meric	Chain M 1–228（228 aa）	Not recorded	ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9DG3 ncPRC1RYBP Delta-linker mutant bound to singly modified H2AK119Ub nucleosome Deposited 2024-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain M 1–228（228 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.46 Å
9V9S Cryo-EM structure of the ncPRC1.1 complex bound to the H2AK119ubH2BK120ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain L 1–228（228 aa） Chain N 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.80 Å
9V9T Cryo-EM structure of the ncPRC1.6 complex bound to the H2AK119ubH2BK120ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain L 1–228（228 aa） Chain N 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.90 Å
9V9V Cryo-EM structure of the ncPRC1.4 complex containing one RNF2-BMI1 and one RYBP bound to the H2AK119ubH2BK120ub-modified nucleosome Deposited 2025-06-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain L 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.80 Å
9V9W Cryo-EM structure of the ncPRC1.4 complex containing two RYBP bound to the H2AK119ub-modified nucleosome Deposited 2025-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain L 1–228（228 aa） Chain N 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.00 Å
9V9Y Cryo-EM structure of the ncPRC1.4 complex containing one RNF2-BMI1 and one RYBP bound to the H2AK119ub-modified nucleosome Deposited 2025-06-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain L 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.20 Å
9V9Z Cryo-EM structure of the ncPRC1.4 complex containing one RYBP bound to the H2AK119ub-modified nucleosome Deposited 2025-06-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain N 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.00 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RYBP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–37； UniProt 145–179 Author chain D； PDBConstruct 3–37； UniProt 145–179 Author chain F； PDBConstruct 3–37； UniProt 145–179 Author chain H； PDBConstruct 3–37； UniProt 145–179 Author chain J； PDBConstruct 3–37； UniProt 145–179 Author chain L； PDBConstruct 3–37； UniProt 145–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

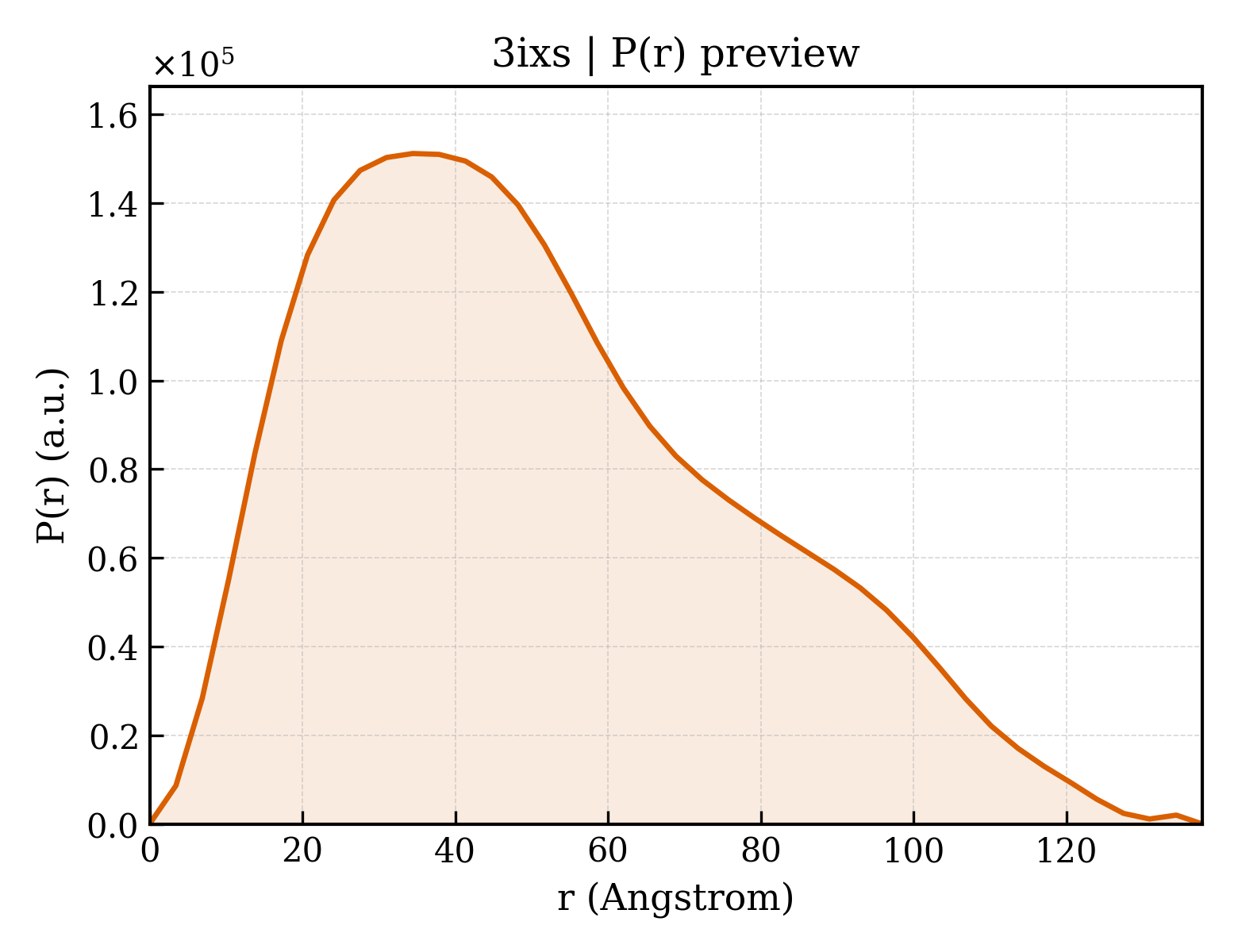

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ixs
Deposition date deposition_date	2009-09-04
Structure title title	Ring1B C-terminal domain/RYBP C-terminal domain Complex
Keywords keywords	;RING1B, RYBP, polycomb, e3-ligase, chromosomal protein, transcription regulation, chromatin regulator, transcription repressor, Ligase, Metal-binding, Nucleus, Phosphoprotein, Repressor, Transcription, Ubl conjugation pathway, Zinc-finger, Apoptosis, DNA-binding, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.98 Å
Radius of gyration Rg (electron density) rg_electron	40.55 Å
Forward intensity I(0) i0	125616000.00
Molecular weight molecular_weight	92316.0 kDa
Excluded volume excluded_volume	116580 Å³
Envelope volume envelope_volume	161610 Å³
Hydration-shell volume shell_volume	36687 Å³
Envelope diameter envelope_diameter	146.2 Å
Shell Rg shell_rg	40.84 Å
Envelope Rg envelope_rg	40.62 Å
Shape Rg shape_rg	40.56 Å
Total Rg total_rg	40.57 Å
Total atoms total_atoms	6502
Residues n_residues	812
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	137.8 Å
Rg (real space) rg_real	40.65 Å
Rg uncertainty (real space) rg_real_error	1.61 Å
I(0) (real space) i0_real	1.2560e+08
I(0) uncertainty (real space) i0_real_error	2.4760e+06
Rg (reciprocal space) rg_reciprocal	40.24 Å
I(0) (reciprocal space) i0_reciprocal	125600000.0000
Solution quality estimate total_estimate	0.7771
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.5 Å
Skewness Skewness skewness	0.557
Kurtosis Kurtosis kurtosis	-0.426
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13430000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.684; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.554; Smooth: 0.493

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase RING2
Molecular weight formula_weight	12614.2 kDa
EC 编号 ec_number	6.3.2.-
Mutation mutation	N306D
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K
Atom count atom_count	6935

ASEIELVFRPHPTLMEKDDSAQTRYIKTSGNATVDHLSKYLAVRLALEELRSKGESNQMNLDTASEKQYTIYIATASGQFTVLDGSFSLELVSEKYWKVNKPMELYYAPTK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	RING1 and YY1-binding protein
Molecular weight formula_weight	4107.7 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L

GTRPRLKNVDRSTAQQLAVTVGNVTVIITDFKEKTRS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID
Molecular weight formula_weight	207.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	421

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	3ixsA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	3ixsC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	3ixsE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	3ixsG00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	3ixsI00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	3ixsK00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.894 Å
Unit-cell length b length_b	56.549 Å
Unit-cell length c length_c	100.352 Å
Unit-cell angle α angle_alpha	100.88 °
Unit-cell angle β angle_beta	90.61 °
Unit-cell angle γ angle_gamma	100.49 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	40.676 Å
R factor r_factor	0.2045
R_work r_work	0.2030
R_free r_free	0.2339

fit	/app/data/saxs_computation/ix/3ixs/3ixs.fit
pddf	/app/data/pr_computation/ix/3ixs/3ixs.pr.out
profile	/app/data/saxs_computation/ix/3ixs/3ixs.dat

Ring1B C-terminal domain/RYBP C-terminal domain Complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase RING2

State in the Current Structure

Other States of the Same Protein in the Database

RING1 and YY1-binding protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
