9v9s

Cryo-EM structure of the ncPRC1.1 complex bound to the H2AK119ubH2BK120ub-modified nucleosome

Method: ELECTRON MICROSCOPY D_max: 116.9 Å Quality: GOOD

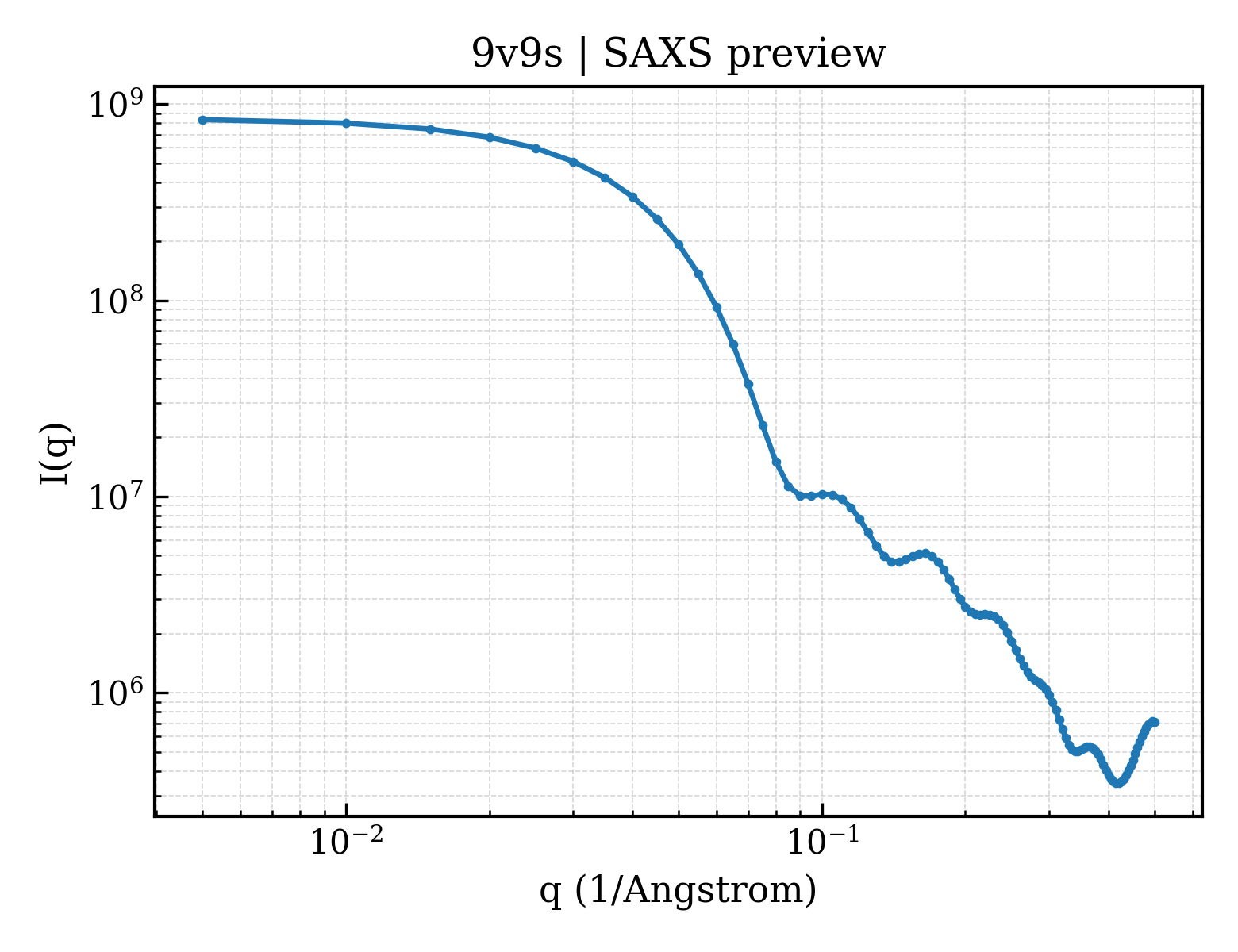

SAXS Profile

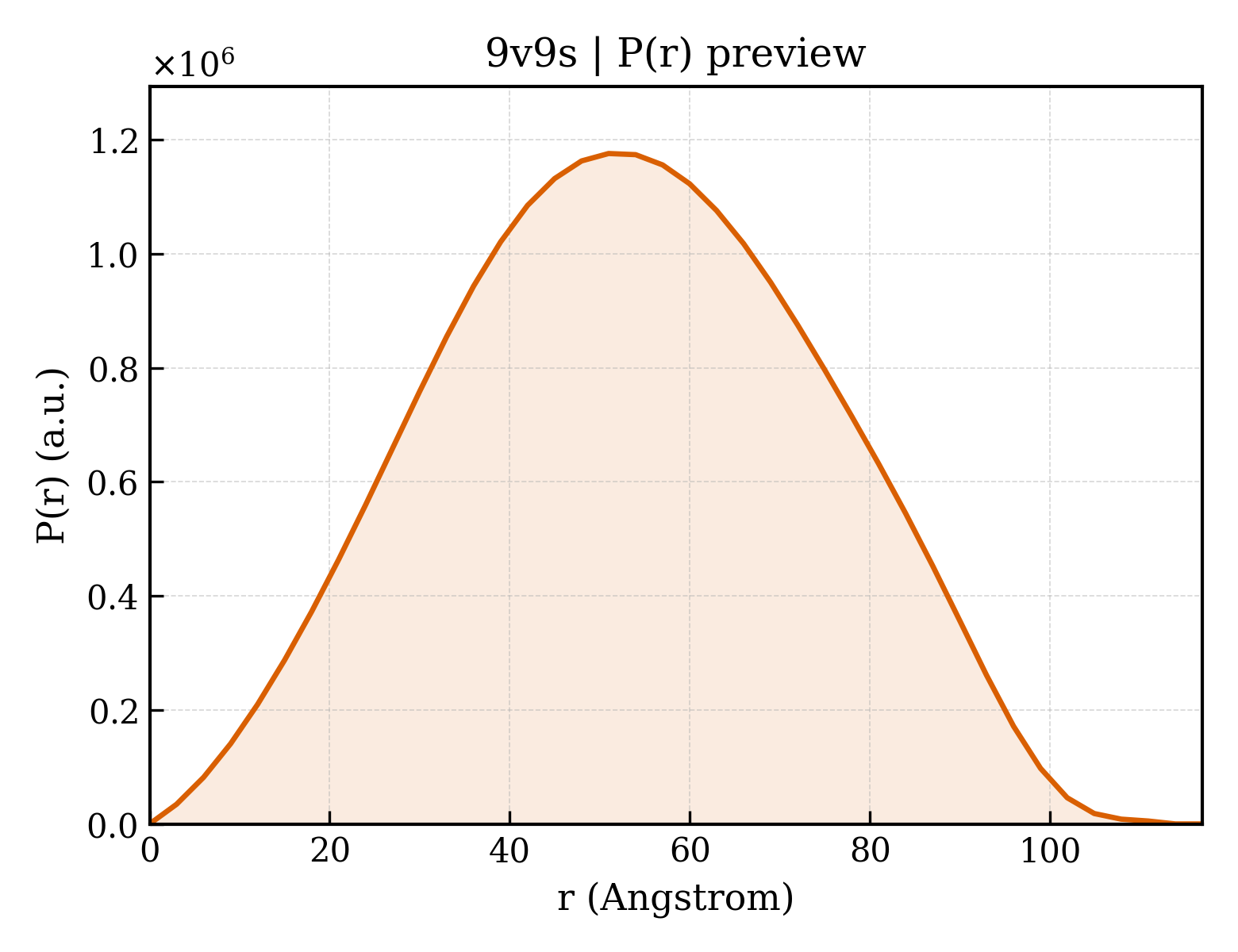

P(r) Distribution

▼

1. Structure Basics

entry_id	9v9s
deposition_date	2025-06-02
title	Cryo-EM structure of the ncPRC1.1 complex bound to the H2AK119ubH2BK120ub-modified nucleosome
keywords	nucleosome modification, transcriptional regulation, GENE REGULATION; GENE REGULATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	40.67 Å
rg_electron	38.39 Å
i0	844830000.00
molecular_weight	186000.0 kDa
excluded_volume	211430 Å³
envelope_volume	330220 Å³
shell_volume	69752 Å³
envelope_diameter	121.0 Å
shell_rg	46.07 Å
envelope_rg	37.41 Å
shape_rg	38.26 Å
total_rg	39.05 Å
total_atoms	12748
n_residues	1220
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	116.9 Å
rg_real	40.42 Å
rg_real_error	0.57 Å
i0_real	8.4480e+08
i0_real_error	1.1850e+07
rg_reciprocal	40.67 Å
i0_reciprocal	845100000.0000
total_estimate	0.8938
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	51.0 Å
skewness	0.012
kurtosis	-0.621
angular_range	— – 0.1950 Å⁻¹
current_alpha	0.0000
highest_alpha	44870000.0000
n_real_points	40
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.715

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (9)

Entity 1 polymer

description	RING1 and YY1-binding protein
formula_weight	24863.6 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	L,N
atom_count	12748

MTMGDKKSPTRPKRQAKPAADEGFWDCSVCTFRNSAEAFKCSICDVRKGTSTRKPRINSQLVAQQVAQQYATPPPPKKEKKEKVEKQDKEKPEKDKEISPSVTKKNTNKKTKPKSDILKDPPSEANSIQSANATTKTSETNHTSRPRLKNVDRSTAQQLAVTVGNVTVIITDFKEKTRSSSTSSSTVTSSAGSEQQNQSSSGSESTDKGSSRSSTPKGDMSAVNDESF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Histone H3
formula_weight	15435.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,E

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 3 polymer

description	Histone H4
formula_weight	11394.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 4 polymer

description	Histone H2A
formula_weight	14083.4 kDa
mutation	K119C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,G

MSGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKCTESSKSAKSK

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 5 polymer

description	Histone H2B
formula_weight	13913.2 kDa
mutation	K121C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,H

MPDPAKSAPAAKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTCYTSAK

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 6 polymer

description	Ubiquitin
formula_weight	8622.9 kDa
mutation	G76C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	K,O

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 7 polymer

description	DNA (122-MER)
formula_weight	37436.8 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	I

CGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCA

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 8 polymer

description	DNA (123-MER)
formula_weight	38181.3 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	J

TGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCGA

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 9 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.80 Å
resolution_method	—
num_particles	15468

fit	/app/data/saxs_computation/v9/9v9s/9v9s.fit
pddf	/app/data/pr_computation/v9/9v9s/9v9s.pr.out
profile	/app/data/saxs_computation/v9/9v9s/9v9s.dat
