9v9w

Cryo-EM structure of the ncPRC1.4 complex containing two RYBP bound to the H2AK119ub-modified nucleosome

Method: ELECTRON MICROSCOPY D_max: 119.9 Å Quality: EXCELLENT

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9v9w
deposition_date	2025-06-02
title	Cryo-EM structure of the ncPRC1.4 complex containing two RYBP bound to the H2AK119ub-modified nucleosome
keywords	nucleosome modification, transcriptional regulation, GENE REGULATION; GENE REGULATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	40.94 Å
rg_electron	38.58 Å
i0	899750000.00
molecular_weight	190550.0 kDa
excluded_volume	215730 Å³
envelope_volume	339890 Å³
shell_volume	71070 Å³
envelope_diameter	119.6 Å
shell_rg	46.53 Å
envelope_rg	37.65 Å
shape_rg	38.45 Å
total_rg	39.26 Å
total_atoms	13048
n_residues	1230
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

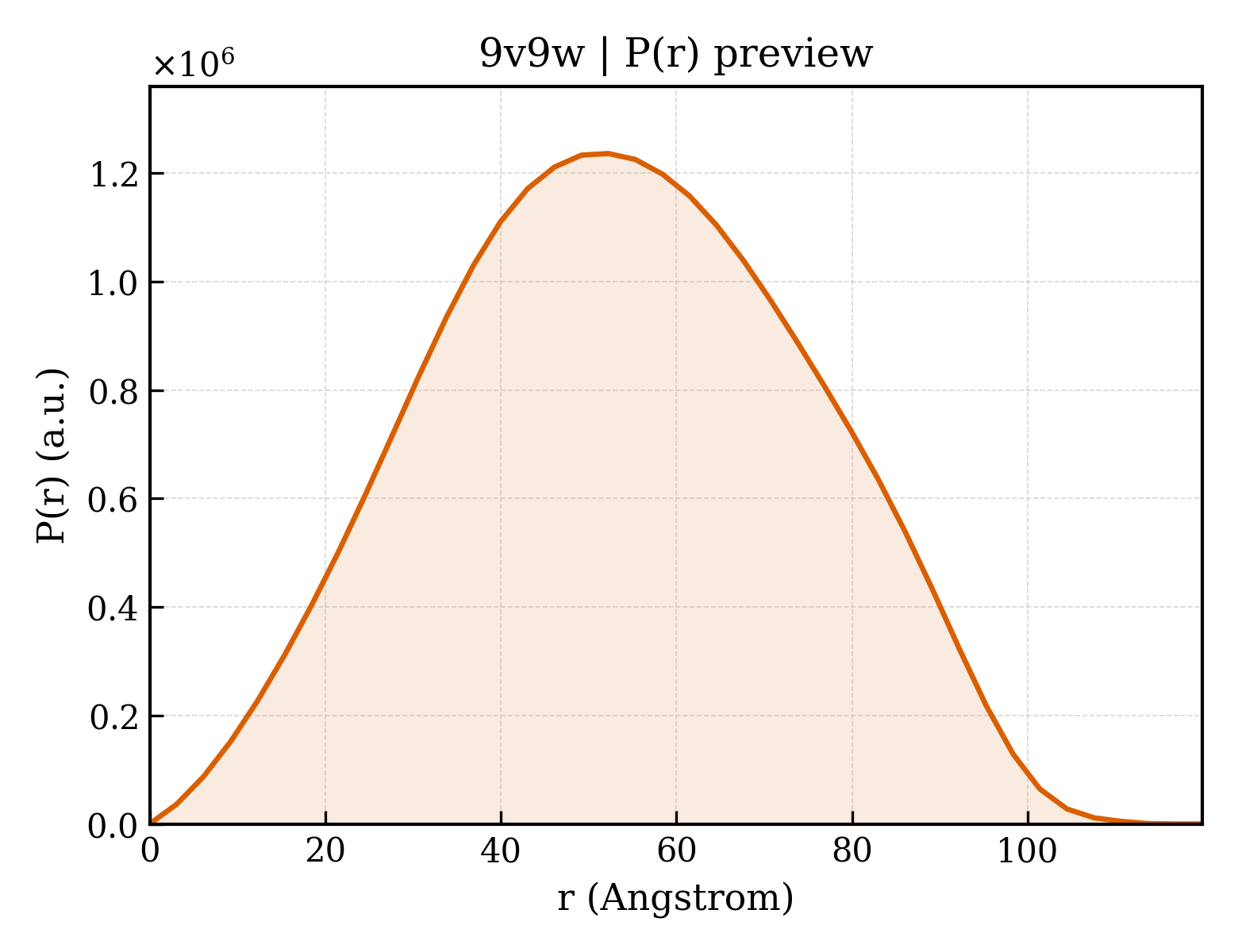

3. P(r) Analysis (GNOM)

dmax	119.9 Å
rg_real	40.68 Å
rg_real_error	0.77 Å
i0_real	8.9970e+08
i0_real_error	1.5030e+07
rg_reciprocal	40.94 Å
i0_reciprocal	900000000.0000
total_estimate	0.9041
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	52.3 Å
skewness	0.016
kurtosis	-0.636
angular_range	— – 0.1950 Å⁻¹
current_alpha	0.0000
highest_alpha	52620000.0000
n_real_points	40
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.888

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (9)

Entity 1 polymer

description	RING1 and YY1-binding protein
formula_weight	24863.6 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	L,N
atom_count	13048

MTMGDKKSPTRPKRQAKPAADEGFWDCSVCTFRNSAEAFKCSICDVRKGTSTRKPRINSQLVAQQVAQQYATPPPPKKEKKEKVEKQDKEKPEKDKEISPSVTKKNTNKKTKPKSDILKDPPSEANSIQSANATTKTSETNHTSRPRLKNVDRSTAQQLAVTVGNVTVIITDFKEKTRSSSTSSSTVTSSAGSEQQNQSSSGSESTDKGSSRSSTPKGDMSAVNDESF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Histone H3
formula_weight	15435.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,E

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 3 polymer

description	Histone H4
formula_weight	11394.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 4 polymer

description	Histone H2A
formula_weight	14083.4 kDa
mutation	K119C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,G

MSGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKCTESSKSAKSK

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 5 polymer

description	Histone H2B
formula_weight	13939.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,H

MPDPAKSAPAAKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 6 polymer

description	DNA (131-MER)
formula_weight	40237.6 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	I

CGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGA

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 7 polymer

description	DNA (131-MER)
formula_weight	40628.9 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	J

TCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCG

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 8 polymer

description	Ubiquitin
formula_weight	8622.9 kDa
mutation	G76C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	K,O

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 9 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.00 Å
resolution_method	—
num_particles	92536

fit	/app/data/saxs_computation/v9/9v9w/9v9w.fit
pddf	/app/data/pr_computation/v9/9v9w/9v9w.pr.out
profile	/app/data/saxs_computation/v9/9v9w/9v9w.dat
