9v9u

Cryo-EM structure of the ncPRC1.4 complex containing two RNF2-BMI1 bound to the H2AK119ubH2BK120ub-modified nucleosome

Method: ELECTRON MICROSCOPY D_max: 135.3 Å Quality: GOOD

SAXS Profile

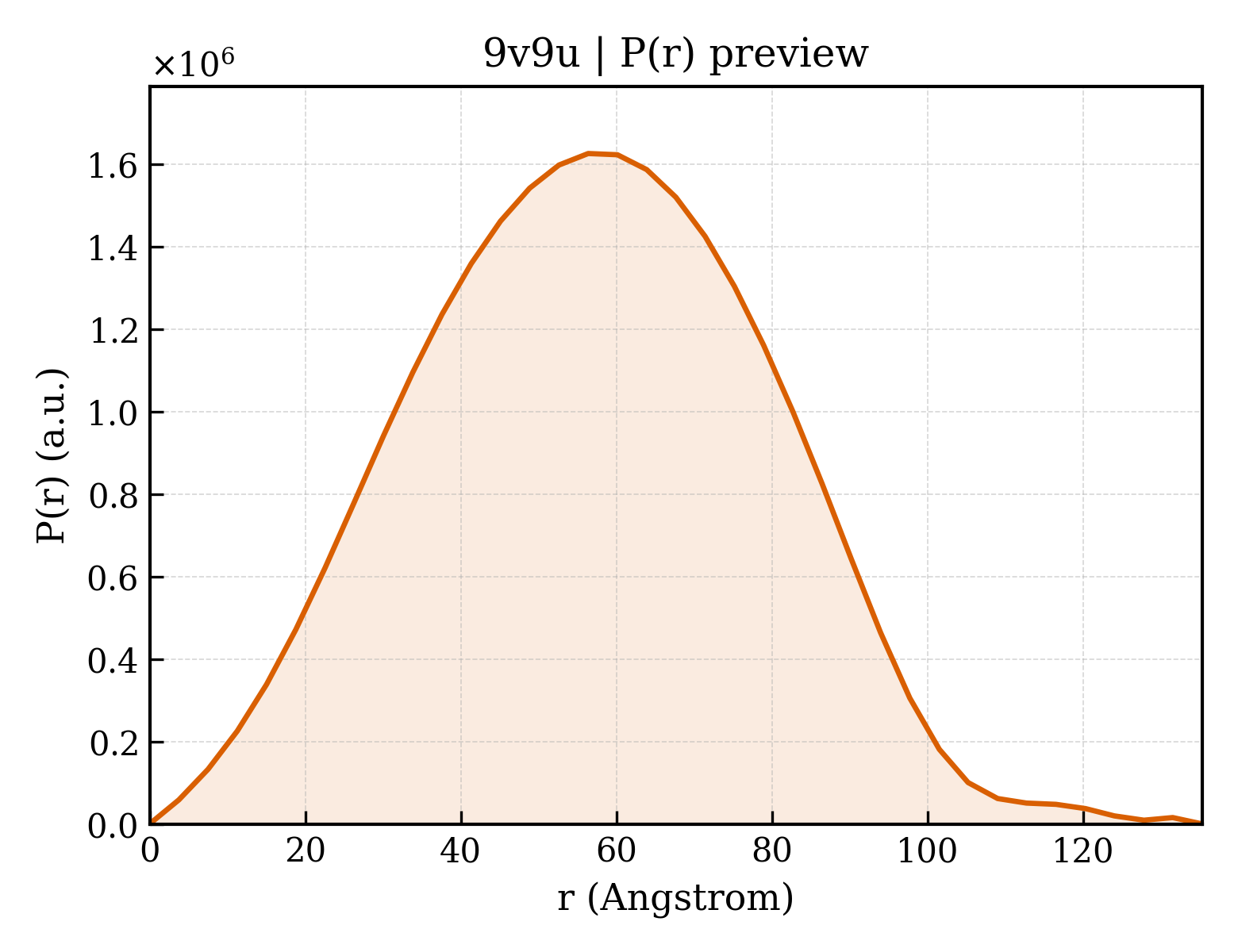

P(r) Distribution

▼

1. Structure Basics

entry_id	9v9u
deposition_date	2025-06-02
title	Cryo-EM structure of the ncPRC1.4 complex containing two RNF2-BMI1 bound to the H2AK119ubH2BK120ub-modified nucleosome
keywords	nucleosome modification, transcriptional regulation, GENE REGULATION; GENE REGULATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	43.42 Å
rg_electron	42.21 Å
i0	1221550000.00
molecular_weight	232090.0 kDa
excluded_volume	267490 Å³
envelope_volume	417820 Å³
shell_volume	80610 Å³
envelope_diameter	144.9 Å
shell_rg	48.92 Å
envelope_rg	41.45 Å
shape_rg	42.15 Å
total_rg	42.64 Å
total_atoms	15920
n_residues	1587
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	135.3 Å
rg_real	43.12 Å
rg_real_error	0.71 Å
i0_real	1.2220e+09
i0_real_error	1.9470e+07
rg_reciprocal	43.42 Å
i0_reciprocal	1222000000.0000
total_estimate	0.8809
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	56.4 Å
skewness	0.069
kurtosis	-0.372
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	94310000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.868; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.891

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (10)

Entity 1 polymer

description	Histone H3
formula_weight	15435.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,E
atom_count	15920

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 2 polymer

description	Histone H4
formula_weight	11394.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 3 polymer

description	Histone H2A
formula_weight	14083.4 kDa
mutation	K119C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,G

MSGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKCTESSKSAKSK

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 4 polymer

description	Histone H2B
formula_weight	13913.2 kDa
mutation	K121C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,H

MPDPAKSAPAAKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTCYTSAK

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 5 polymer

description	DNA (132-MER)
formula_weight	40499.8 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	I

TGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCGA

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 6 polymer

description	DNA (132-MER)
formula_weight	40980.1 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	J

TCGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCA

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 7 polymer

description	Polycomb complex protein BMI-1
formula_weight	37006.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	M,K

MHRTTRIKITELNPHLMCVLCGGYFIDATTIIECLHSFCKTCIVRYLETSKYCPICDVQVHKTRPLLNIRSDKTLQDIVYKLVPGLFKNEMKRRRDFYAAHPSADAANGSNEDRGEVADEDKRIITDDEIISLSIEFFDQNRLDRKVNKDKEKSKEEVNDKRYLRCPAAMTVMHLRKFLRSKMDIPNTFQIDVMYEEEPLKDYYTLMDIAYIYTWRRNGPLPLKYRVRPTCKRMKISHQRDGLTNAGELESDSGSDKANSPAGGIPSTSSCLPSPSTPVQSPHPQFPHISSTMNGTSNSPSGNHQSSFANRPRKSSVNGSSATSSG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 8 polymer

description	E3 ubiquitin-protein ligase RING2
formula_weight	37706.4 kDa
ec_number	2.3.2.27
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	N,L

MSQAVQTNGTQPLSKTWELSLYELQRTPQEAITDGLEIVVSPRSLHSELMCPICLDMLKNTMTTKECLHRFCADCIITALRSGNKECPTCRKKLVSKRSLRPDPNFDALISKIYPSRDEYEAHQERVLARINKHNNQQALSHSIEEGLKIQAMNRLQRGKKQQIENGSGAEDNGDSSHCSNASTHSNQEAGPSNKRTKTSDDSGLELDNNNAAMAIDPVMDGASEIELVFRPHPTLMEKDDSAQTRYIKTSGNATVDHLSKYLAVRLALEELRSKGESNQMNLDTASEKQYTIYIATASGQFTVLNGSFSLELVSEKYWKVNKPMELYYAPTKEHK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 9 polymer

description	Ubiquitin
formula_weight	8622.9 kDa
mutation	G76C
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	O,P

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 10 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	8

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.70 Å
resolution_method	—
num_particles	14333

fit	/app/data/saxs_computation/v9/9v9u/9v9u.fit
pddf	/app/data/pr_computation/v9/9v9u/9v9u.pr.out
profile	/app/data/saxs_computation/v9/9v9u/9v9u.dat
