7yi4

Cryo-EM structure of Rpd3S complex bound to H3K36me3 nucleosome in close state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcriptional regulatory protein SIN3

Saccharomyces cerevisiae S288C

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Histone deacetylase RPD3 × 1 （P32561） Chromatin modification-related protein EAF3 × 2 （Q12432） Transcriptional regulatory protein RCO1 × 2 （Q04779） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 Histone H3 × 2 （A0A310TTQ1） ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIN3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1536； UniProt 1–1536

Histone deacetylase RPD3

Saccharomyces cerevisiae S288C

UniProt P32561

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Transcriptional regulatory protein SIN3 × 1 （P22579） Chromatin modification-related protein EAF3 × 2 （Q12432） Transcriptional regulatory protein RCO1 × 2 （Q04779） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 Histone H3 × 2 （A0A310TTQ1） ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPD3_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–433； UniProt 1–433

Chromatin modification-related protein EAF3

Saccharomyces cerevisiae S288C

UniProt Q12432

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Transcriptional regulatory protein SIN3 × 1 （P22579） Histone deacetylase RPD3 × 1 （P32561） Transcriptional regulatory protein RCO1 × 2 （Q04779） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 Histone H3 × 2 （A0A310TTQ1） ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EAF3_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–401； UniProt 1–401 Author chain E； PDBConstruct 1–401； UniProt 1–401

Transcriptional regulatory protein RCO1

Saccharomyces cerevisiae S288C

UniProt Q04779

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Transcriptional regulatory protein SIN3 × 1 （P22579） Histone deacetylase RPD3 × 1 （P32561） Chromatin modification-related protein EAF3 × 2 （Q12432） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 Histone H3 × 2 （A0A310TTQ1） ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCO1_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–684； UniProt 1–684 Author chain F； PDBConstruct 1–684； UniProt 1–684

Histone H4

Xenopus laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Transcriptional regulatory protein SIN3 × 1 （P22579） Histone deacetylase RPD3 × 1 （P32561） Chromatin modification-related protein EAF3 × 2 （Q12432） Transcriptional regulatory protein RCO1 × 2 （Q04779） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 Histone H3 × 2 （A0A310TTQ1） ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain H； PDBConstruct 1–102； UniProt 2–103 Author chain L； PDBConstruct 1–102； UniProt 2–103

Histone H2A

Xenopus laevis

UniProt Q6AZJ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Transcriptional regulatory protein SIN3 × 1 （P22579） Histone deacetylase RPD3 × 1 （P32561） Chromatin modification-related protein EAF3 × 2 （Q12432） Transcriptional regulatory protein RCO1 × 2 （Q04779） Histone H4 × 2 （P62799） Histone H2B 1.1 × 2 （P02281） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 Histone H3 × 2 （A0A310TTQ1） ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6AZJ8_XENLA
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain I； PDBConstruct 1–129； UniProt 2–130 Author chain M； PDBConstruct 1–129； UniProt 2–130

Histone H2B 1.1

Xenopus laevis

UniProt P02281

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Transcriptional regulatory protein SIN3 × 1 （P22579） Histone deacetylase RPD3 × 1 （P32561） Chromatin modification-related protein EAF3 × 2 （Q12432） Transcriptional regulatory protein RCO1 × 2 （Q04779） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 Histone H3 × 2 （A0A310TTQ1） ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B11_XENLA
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain J； PDBConstruct 1–122； UniProt 5–126 Author chain N； PDBConstruct 1–122； UniProt 5–126

Histone H3

Xenopus laevis

UniProt A0A310TTQ1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	Transcriptional regulatory protein SIN3 × 1 （P22579） Histone deacetylase RPD3 × 1 （P32561） Chromatin modification-related protein EAF3 × 2 （Q12432） Transcriptional regulatory protein RCO1 × 2 （Q04779） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Wisdom 601 DNA (167-MER) × 1 Wisdom 601 DNA (167-MER) × 1 ZINC ION × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A310TTQ1_XENLA
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain G； PDBConstruct 1–135； UniProt 2–136 Author chain K； PDBConstruct 1–135； UniProt 2–136

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7yi4
Deposition date deposition_date	2022-07-14
Structure title title	Cryo-EM structure of Rpd3S complex bound to H3K36me3 nucleosome in close state
Keywords keywords	Dynamic Histone Modifications, Gene Regulation, Histone Deacetylase Complex; GENE REGULATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7yi4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7yi4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

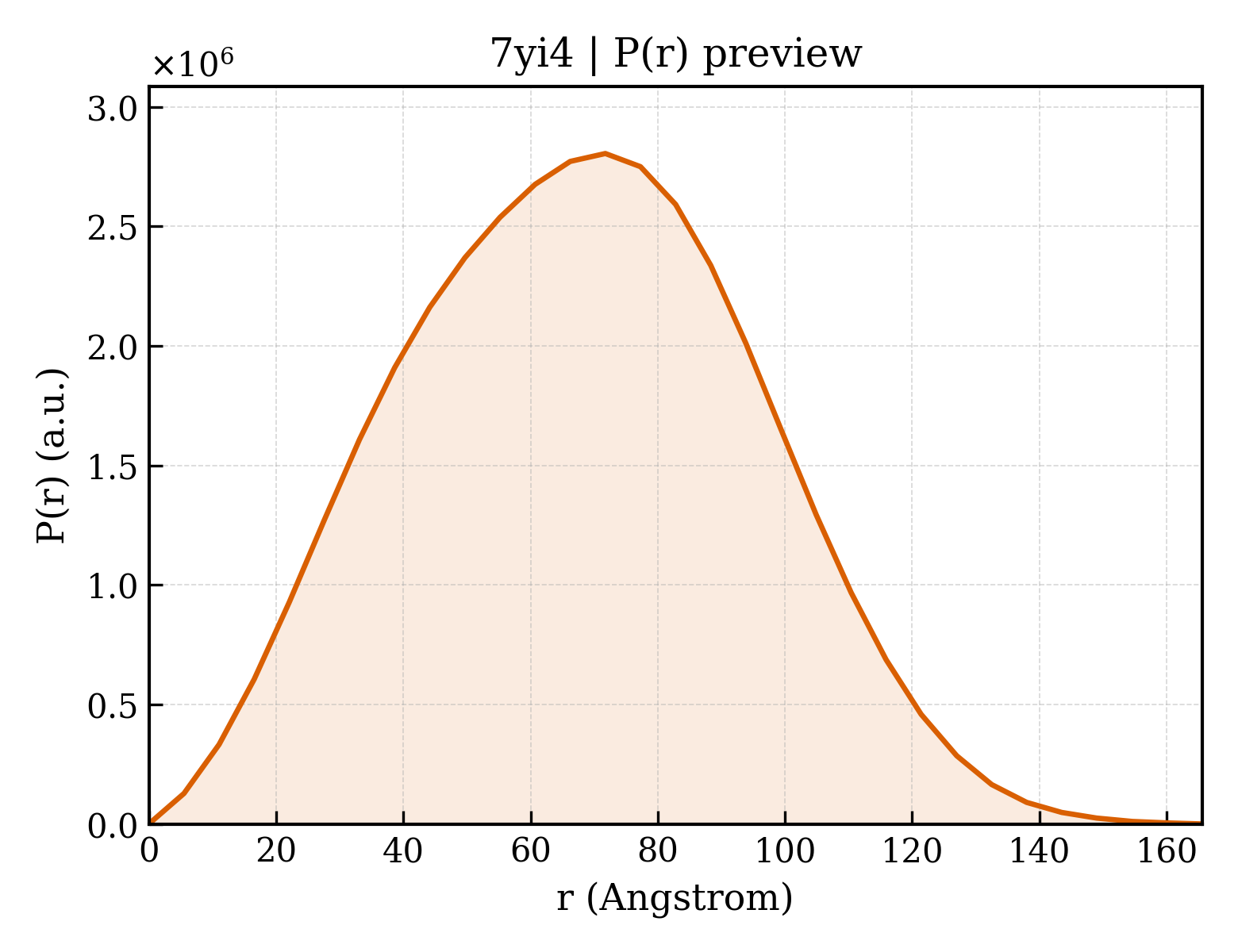

7yi4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.90 Å
Rg (electron density)	51.32 Å
Total Rg	51.60 Å
Atom count	25351
Residues	2659
Excluded volume	432740 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7yi4__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Transcriptional regulatory protein SIN3
Molecular weight formula_weight	175047.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	25351

MSQVWHNSNSQSNDVATSNDATGSNERNEKEPSLQGNKPGFVQQQQRITLPSLSALSTKEEDRRDSNGQQALTSHAAHILGYPPPHSNAMPSIATDSALKQPHEYHPRPKSSSSSPSINASLMNAGPAPLPTVGAASFSLSRFDNPLPIKAPVHTEEPKSYNGLQEEEKATQRPQDCKEVPAGVQPADAPDPSSNHADANDDNNNNENSHDEDADYRPLNVKDALSYLEQVKFQFSSRPDIYNLFLDIMKDFKSQAIDTPGVIERVSTLFRGYPILIQGFNTFLPQGYRIECSSNPDDPIRVTTPMGTTTVNNNISPSGRGTTDAQELGSFPESDGNGVQQPSNVPMVPSSVYQSEQNQDQQQSLPLLATSSGLPSIQQPEMPAHRQIPQSQSLVPQEDAKKNVDVEFSQAISYVNKIKTRFADQPDIYKHFLEILQTYQREQKPINEVYAQVTHLFQNAPDLLEDFKKFLPDSSASANQQVQHAQQHAQQQHEAQMHAQAQAQAQAQAQVEQQKQQQQFLYPASGYYGHPSNRGIPQQNLPPIGSFSPPTNGSTVHEAYQDQQHMQPPHFMPLPSIVQHGPNMVHQGIANENPPLSDLRTSLTEQYAPSSIQHQQQHPQSISPIANTQYGDIPVRPEIDLDPSIVPVVPEPTEPIENNISLNEEVTFFEKAKRYIGNKHLYTEFLKILNLYSQDILDLDDLVEKVDFYLGSNKELFTWFKNFVGYQEKTKCIENIVHEKHRLDLDLCEAFGPSYKRLPKSDTFMPCSGRDDMCWEVLNDEWVGHPVWASEDSGFIAHRKNQYEETLFKIEEERHEYDFYIESNLRTIQCLETIVNKIENMTENEKANFKLPPGLGHTSMTIYKKVIRKVYDKERGFEIIDALHEHPAVTAPVVLKRLKQKDEEWRRAQREWNKVWRELEQKVFFKSLDHLGLTFKQADKKLLTTKQLISEISSIKVDQTNKKIHWLTPKPKSQLDFDFPDKNIFYDILCLADTFITHTTAYSNPDKERLKDLLKYFISLFFSISFEKIEESLYSHKQNVSESSGSDDGSSIASRKRPYQQEMSLLDILHRSRYQKLKRSNDEDGKVPQLSEPPEEEPNTIEEEELIDEEAKNPWLTGNLVEEANSQGIIQNRSIFNLFANTNIYIFFRHWTTIYERLLEIKQMNERVTKEINTRSTVTFAKDLDLLSSQLSEMGLDFVGEDAYKQVLRLSRRLINGDLEHQWFEESLRQAYNNKAFKLYTIDKVTQSLVKHAHTLMTDAKTAEIMALFVKDRNASTTSAKDQIIYRLQVRSHMSNTENMFRIEFDKRTLHVSIQYIALDDLTLKEPKADEDKWKYYVTSYALPHPTEGIPHEKLKIPFLERLIEFGQDIDGTEVDEEFSPEGISVSTLKIKIQPITYQLHIENGSYDVFTRKATNKYPTIANDNTQKGMVSQKKELISKFLDCAVGLRNNLDEAQKLSMQKKWENLKDSIAKTSAGNQGIESETEKGKITKQEQSDNLDSSTASVLPASITTVPQDDNIETTGNTESSDKGAKIQ

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Histone deacetylase RPD3
Molecular weight formula_weight	48962.0 kDa
EC 编号 ec_number	3.5.1.98
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MVYEATPFDPITVKPSDKRRVAYFYDADVGNYAYGAGHPMKPHRIRMAHSLIMNYGLYKKMEIYRAKPATKQEMCQFHTDEYIDFLSRVTPDNLEMFKRESVKFNVGDDCPVFDGLYEYCSISGGGSMEGAARLNRGKCDVAVNYAGGLHHAKKSEASGFCYLNDIVLGIIELLRYHPRVLYIDIDVHHGDGVEEAFYTTDRVMTCSFHKYGEFFPGTGELRDIGVGAGKNYAVNVPLRDGIDDATYRSVFEPVIKKIMEWYQPSAVVLQCGGDSLSGDRLGCFNLSMEGHANCVNYVKSFGIPMMVVGGGGYTMRNVARTWCFETGLLNNVVLDKDLPYNEYYEYYGPDYKLSVRPSNMFNVNTPEYLDKVMTNIFANLENTKYAPSVQLNHTPRDAEDLGDVEEDSAEAKDTKGGSQYARDLHVEHDNEFY

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Chromatin modification-related protein EAF3
Molecular weight formula_weight	45266.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,E

MVDLEQEFALGGRCLAFHGPLMYEAKILKIWDPSSKMYTSIPNDKPGGSSQATKEIKPQKLGEDESIPEEIINGKCFFIHYQGWKSSWDEWVGYDRIRAYNEENIAMKKRLANEAKEAKKSLLEQQKKKKLSTSLGGPSNGGKRKGDSRSNASISKSTSQSFLTSSVSGRKSGRSSANSLHPGSSLRSSSDQNGNDDRRRSSSLSPNMLHHIAGYPTPKISLQIPIKLKSVLVDDWEYVTKDKKICRLPADVTVEMVLNKYEHEVSQELESPGSQSQLSEYCAGLKLYFDKCLGNMLLYRLERLQYDELLKKSSKDQKPLVPIRIYGAIHLLRLISVLPELISSTTMDLQSCQLLIKQTEDFLVWLLMHVDEYFNDKDPNRSDDALYVNTSSQYEGVALGM

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Transcriptional regulatory protein RCO1
Molecular weight formula_weight	78951.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,F

MDTSKKDTTRSPSHSNSSSPSSSSLSSSSSKEKKRPKRLSSQNVNYDLKRRKIITSEGIERSFKNEHSNLAVEDNIPEEEPKELLEKDSKGNIIKLNEPSTISEDSKVSVTGLPLNKGPSEKIKRESLWNYRKNLGGQSNNSEMTLVPSKRFTQVPKNFQDLNRNDLKTFLTENMTEESNIRSTIGWNGDIINRTRDREPESDRDNKKLSNIRTKIILSTNATYDSKSKLFGQNSIKSTSNASEKIFRDKNNSTIDFENEDFCSACNQSGSFLCCDTCPKSFHFLCLDPPIDPNNLPKGDWHCNECKFKIFINNSMATLKKIESNFIKQNNNVKIFAKLLFNIDSHNPKQFQLPNYIKETFPAVKTGSRGQYSDENDKIPLTDRQLFNTSYGQSITKLDSYNPDTHIDSNSGKFLICYKCNQTRLGSWSHPENSRLIMTCDYCQTPWHLDCVPRASFKNLGSKWKCPLHSPTKVYKKIHHCQEDNSVNYKVWKKQRLINKKNQLYYEPLQKIGYQNNGNIQIIPTTSHTDYDFNQDFKITQIDENSIKYDFFDKIYKSKMVQKRKLFQFQESLIDKLVSNGSQNGNSEDNMVKDIASLIYFQVSNNDKSSNNKSASKSNNLRKLWDLKELTNVVVPNELDSIQFNDFSSDEIKHLLYLKKIIESKPKEELLKFLNIENPENQSE

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Histone H4
Molecular weight formula_weight	11263.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,L

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Histone H2A
Molecular weight formula_weight	13978.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,M

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSAKSK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Histone H2B 1.1
Molecular weight formula_weight	13524.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,N

AKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Wisdom 601 DNA (167-MER)
Molecular weight formula_weight	51308.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	O

CTGGAGAATCCCGGTCTGCAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGCATGTATTGAACAGCGACC

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	synthetic construct

Entity 9 Entity 9 polymer

Description description	Wisdom 601 DNA (167-MER)
Molecular weight formula_weight	51798.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P

GGTCGCTGTTCAATACATGCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTGCAGACCGGGATTCTCCAG

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	synthetic construct

Entity 10 Entity 10 polymer

Description description	Histone H3
Molecular weight formula_weight	15346.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,K

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	synthetic construct

Entity 11 Entity 11 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	5

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.96 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	87742

Cryo-EM structure of Rpd3S complex bound to H3K36me3 nucleosome in close state

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcriptional regulatory protein SIN3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone deacetylase RPD3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Chromatin modification-related protein EAF3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Transcriptional regulatory protein RCO1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2A

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2B 1.1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

7yi4__assembly_1__model_1

7yi4__assembly_1__model_1 | I(q)

7yi4__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
