8ruq

Borealin N-terminus in complex with H3.T3p-nucleosome

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

Xenopus laevis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Histone H3 × 1 （A0A310TTQ1） DNA (147-MER) × 1 DNA (147-MER) × 1 Borealin × 1 （Q53HL2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 2–136

Histone H4

Xenopus laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3.2 × 1 （P84233） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Histone H3 × 1 （A0A310TTQ1） DNA (147-MER) × 1 DNA (147-MER) × 1 Borealin × 1 （Q53HL2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103

Histone H2A

Xenopus laevis

UniProt Q6AZJ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3.2 × 1 （P84233） Histone H4 × 2 （P62799） Histone H2B 1.1 × 2 （P02281） Histone H3 × 1 （A0A310TTQ1） DNA (147-MER) × 1 DNA (147-MER) × 1 Borealin × 1 （Q53HL2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6AZJ8_XENLA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–129； UniProt 2–130 Author chain G； PDBConstruct 1–129； UniProt 2–130

Histone H2B 1.1

Xenopus laevis

UniProt P02281

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3.2 × 1 （P84233） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H3 × 1 （A0A310TTQ1） DNA (147-MER) × 1 DNA (147-MER) × 1 Borealin × 1 （Q53HL2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B11_XENLA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–122； UniProt 5–126 Author chain H； PDBConstruct 1–122； UniProt 5–126

Histone H3

Xenopus laevis

UniProt A0A310TTQ1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3.2 × 1 （P84233） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） DNA (147-MER) × 1 DNA (147-MER) × 1 Borealin × 1 （Q53HL2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A310TTQ1_XENLA
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–135； UniProt 2–136

Borealin

Homo sapiens

UniProt Q53HL2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 9 DNA 2	Histone H3.2 × 1 （P84233） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） Histone H3 × 1 （A0A310TTQ1） DNA (147-MER) × 1 DNA (147-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BOREA_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain L； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ruq
Deposition date deposition_date	2024-01-31
Structure title title	Borealin N-terminus in complex with H3.T3p-nucleosome
Keywords keywords	CPC, nucleosome, cell cycle, chromosome segregation, histone modification, cryoEM; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ruq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ruq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

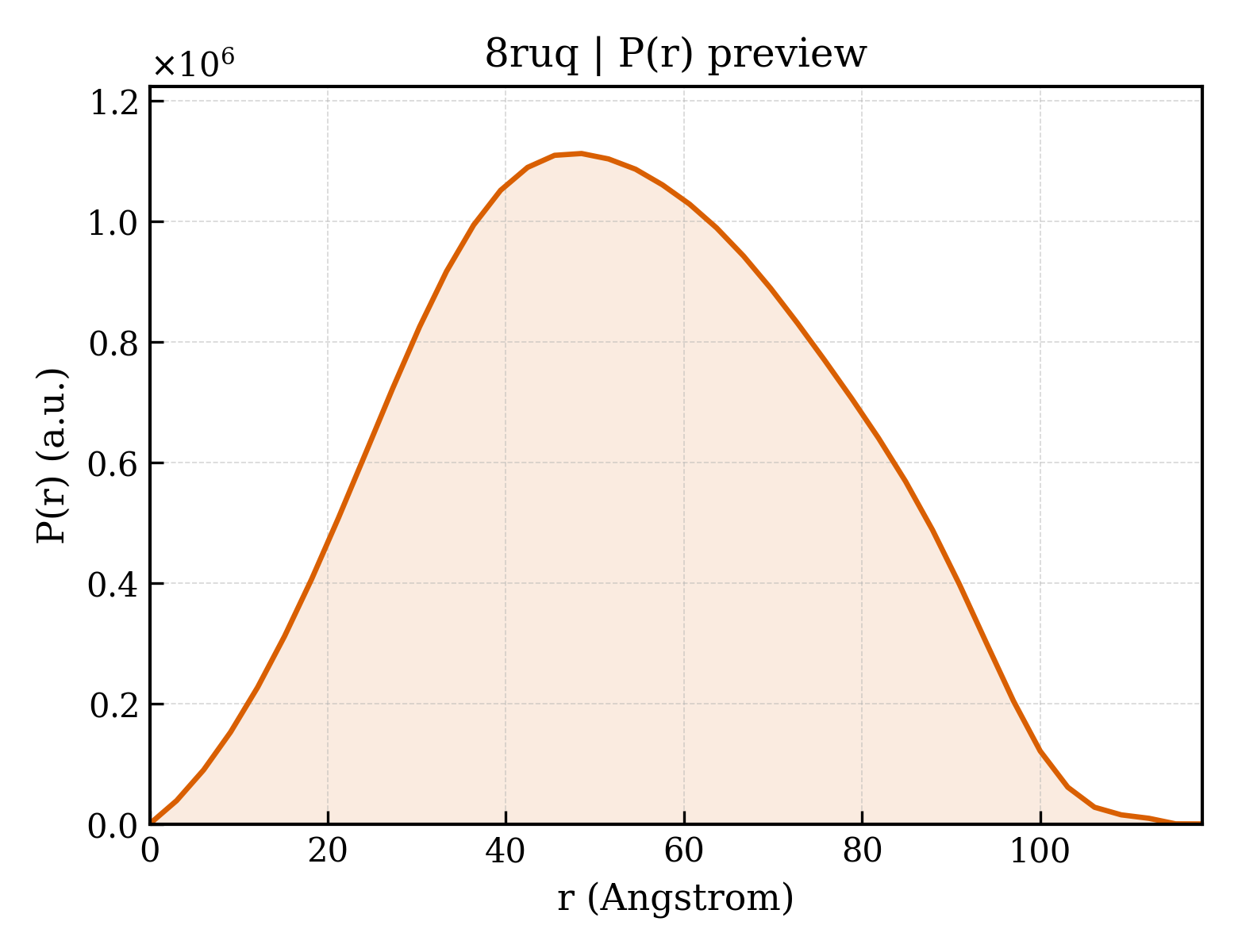

8ruq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.01 Å
Rg (electron density)	38.25 Å
Total Rg	38.95 Å
Atom count	21818
Residues	1078
Excluded volume	197290 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ruq__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Histone H3.2
Molecular weight formula_weight	15303.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	21818

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	13978.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSAKSK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B 1.1
Molecular weight formula_weight	13524.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

AKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Histone H3
Molecular weight formula_weight	15383.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	47128.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGAT

Source Source

Source organism organism	unidentified
NCBI taxonomy ID ncbi_taxonomy_id	32644
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	46709.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGAT

Source Source

Source organism organism	unidentified
NCBI taxonomy ID ncbi_taxonomy_id	32644
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Borealin
Molecular weight formula_weight	9138.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MAPRKGSSRVAKTNSLRRRKLASFLKDFDREVEIRIKQIESDRQNLLKEVDNLYNIEILRLPKALREMNWLDYFAL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.29 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	1180547
