9qaj

Structure of the nucleosome-bound human BCL7A

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

Xenopus laevis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） 601 DNA × 1 601 DNA × 1 Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05） Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 2–136 Author chain E； PDBConstruct 1–135； UniProt 2–136

Histone H4

Xenopus laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （P84233） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） 601 DNA × 1 601 DNA × 1 Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05） Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–102； UniProt 2–103 Author chain F； PDBConstruct 1–102； UniProt 2–103

Histone H2A

Xenopus laevis

UniProt Q6AZJ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2B 1.1 × 2 （P02281） 601 DNA × 1 601 DNA × 1 Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05） Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6AZJ8_XENLA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–119； UniProt 2–120 Author chain G； PDBConstruct 1–119； UniProt 2–120

Histone H2B 1.1

Xenopus laevis

UniProt P02281

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） 601 DNA × 1 601 DNA × 1 Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05） Isoform 2 of B-cell CLL/lymphoma 7 protein family member A × 2 （Q4VC05）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B11_XENLA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–125； UniProt 2–126 Author chain H； PDBConstruct 1–125； UniProt 2–126

Isoform 2 of B-cell CLL/lymphoma 7 protein family member A

Homo sapiens

UniProt Q4VC05

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B 1.1 × 2 （P02281） 601 DNA × 1 601 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BCL7A_HUMAN
Isoform	Q4VC05-2
PDB entities	7, 8
Chains and sequence ranges	Author chain K； PDBConstruct 1–14； UniProt 1–14 Author chain M； PDBConstruct 1–14； UniProt 1–14 Author chain L； PDBConstruct 1–16； UniProt 15–30 Author chain N； PDBConstruct 1–16； UniProt 15–30

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qaj
Deposition date deposition_date	2025-02-28
Last revision last_revision	2025-04-23
Structure title title	Structure of the nucleosome-bound human BCL7A
Keywords keywords	Nucleosome, acidic patch, BCL7A, arginine anchor, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qaj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9qaj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

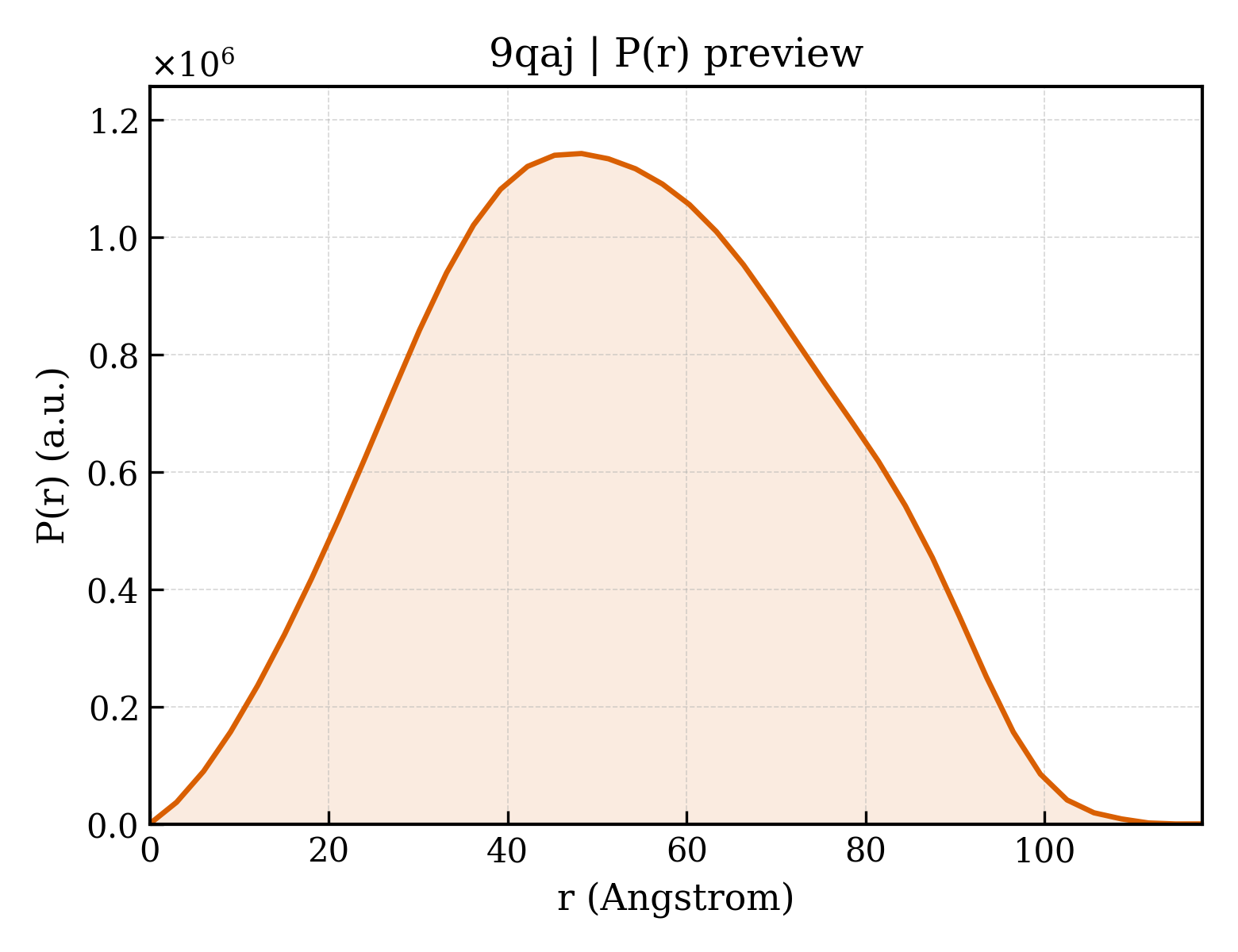

9qaj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.16 Å
Rg (electron density)	37.50 Å
Total Rg	38.18 Å
Atom count	12144
Residues	1086
Excluded volume	197250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qaj__assembly_1__model_1`	14-meric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Histone H3.2
Molecular weight formula_weight	15303.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	12144

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11263.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	12941.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B 1.1
Molecular weight formula_weight	13848.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

PEPAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	601 DNA
Molecular weight formula_weight	44991.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTGAT

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	601 DNA
Molecular weight formula_weight	44520.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCGAT

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Isoform 2 of B-cell CLL/lymphoma 7 protein family member A
Molecular weight formula_weight	1567.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,M

MSGRSVRAETRSRA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Isoform 2 of B-cell CLL/lymphoma 7 protein family member A
Molecular weight formula_weight	1906.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,N

KDDIKRVMAAIEKVRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.95 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	563788
