SAXSdb — 8g86

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3

Xenopus laevis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （P02281） nMatn1 DNA (top stand) × 1 nMatn1 DNA (bottom strand) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 2–136 Author chain E； PDBConstruct 1–135； UniProt 2–136

Histone H4

Xenopus laevis laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3 × 2 （P84233） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （P02281） nMatn1 DNA (top stand) × 1 nMatn1 DNA (bottom strand) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–102； UniProt 2–103 Author chain F； PDBConstruct 1–102； UniProt 2–103

Histone H2A

Xenopus laevis

UniProt Q6AZJ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2B × 2 （P02281） nMatn1 DNA (top stand) × 1 nMatn1 DNA (bottom strand) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6AZJ8_XENLA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–129； UniProt 2–130 Author chain G； PDBConstruct 1–129； UniProt 2–130

Histone H2B

Xenopus laevis

UniProt P02281

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） nMatn1 DNA (top stand) × 1 nMatn1 DNA (bottom strand) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B11_XENLA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–122； UniProt 5–126 Author chain H； PDBConstruct 1–122； UniProt 5–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8g86
Deposition date deposition_date	2023-02-17
Structure title title	Human Oct4 bound to nucleosome with human nMatn1 sequence (focused refinement of nucleosome)
Keywords keywords	Oct4, Nucleosome, Histone, nMatn1 DNA, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8g86__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8g86__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

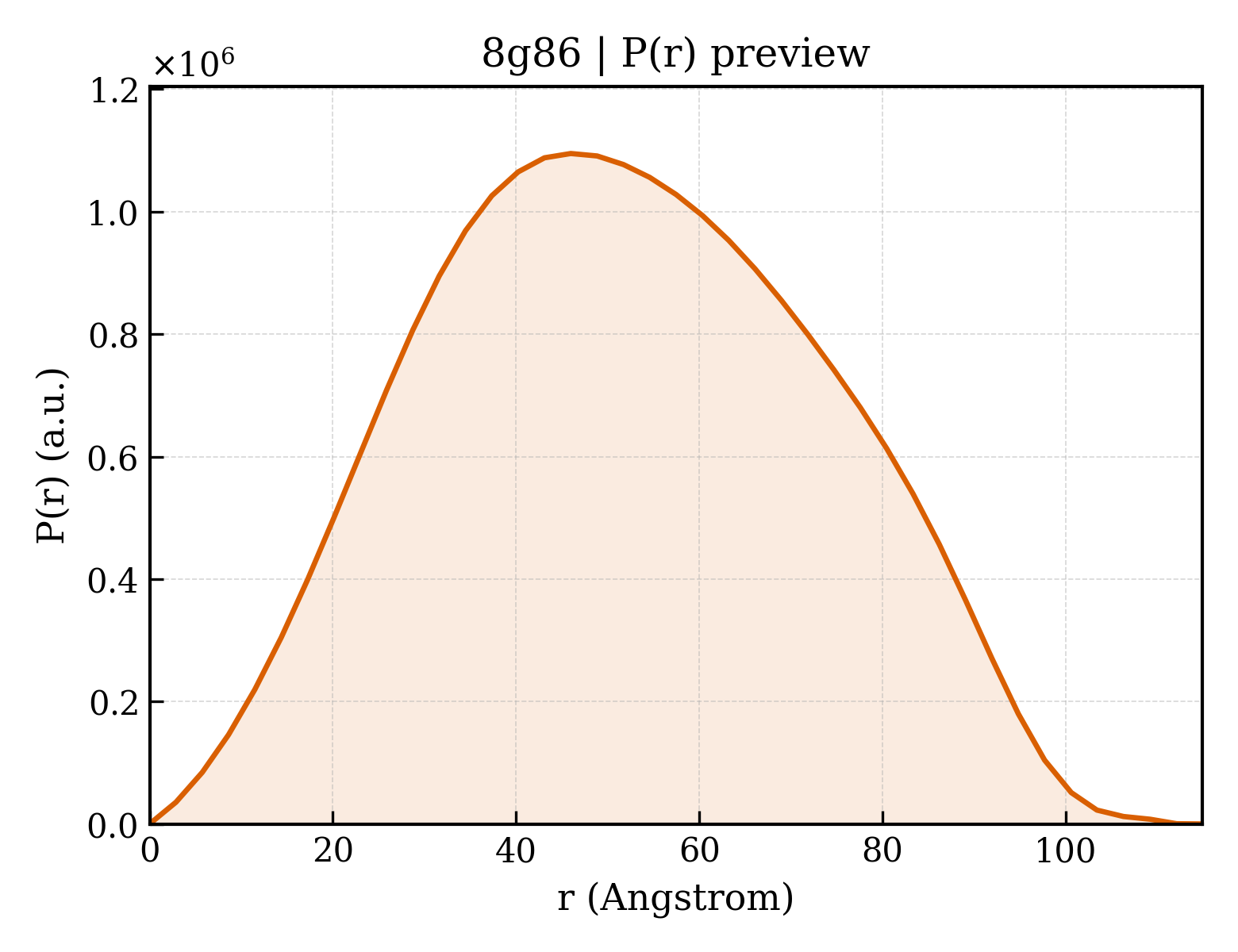

8g86__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.82 Å
Rg (electron density)	37.04 Å
Total Rg	37.76 Å
Atom count	11972
Residues	1049
Excluded volume	194970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8g86__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone H3
Molecular weight formula_weight	15303.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	11972

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11263.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis laevis
NCBI taxonomy ID ncbi_taxonomy_id	443947
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	13978.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSAKSK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B
Molecular weight formula_weight	13524.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

AKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	nMatn1 DNA (top stand)
Molecular weight formula_weight	56933.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ACATGCACACATGCTAATATATGCACACAATGCACACAGGTTAATATATACACATACACACACATGCACACACACGTGCACACATATATGCACATGCATGCACACACGTATATGCACACACATGCACATGCATGCGCACATAGTCACACACATGCACACATTAGCATATGCATACACATACATGCA

Entity 6 Entity 6 polymer

Description description	nMatn1 DNA (bottom strand)
Molecular weight formula_weight	57889.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

TGCATGTATGTGTATGCATATGCTAATGTGTGCATGTGTGTGACTATGTGCGCATGCATGTGCATGTGTGTGCATATACGTGTGTGCATGCATGTGCATATATGTGTGCACGTGTGTGTGCATGTGTGTGTATGTGTATATATTAACCTGTGTGCATTGTGTGCATATATTAGCATGTGTGCATGT

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	450000

Human Oct4 bound to nucleosome with human nMatn1 sequence (focused refinement of nucleosome)
