SAXSdb — 5xm0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.3

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain A； UniProt 1–136 Chain E； UniProt 1–136	Not recorded	Histone H4 × 2 （P62806） Histone H2A type 1-B × 2 （C0HKE1） Histone H2B type 3-A × 2 （Q9D2U9） DNA (146-MER) × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.87 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5XM0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8PKI Cryo-EM structure of NR5A2-nucleosome complex SHL+5.5 Deposited 2023-06-26	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric	Chain A 1–136（136 aa） Chain E 1–136（136 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.58 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	H33_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–139； UniProt 1–136 Author chain E； PDBConstruct 4–139； UniProt 1–136

Histone H4

Mus musculus

UniProt P62806

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain B； UniProt 1–103 Chain F； UniProt 1–103	Not recorded	Histone H3.3 × 2 （P84244） Histone H2A type 1-B × 2 （C0HKE1） Histone H2B type 3-A × 2 （Q9D2U9） DNA (146-MER) × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.87 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5XM0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1F66 2.6 A CRYSTAL STRUCTURE OF A NUCLEOSOME CORE PARTICLE CONTAINING THE VARIANT HISTONE H2A.Z Deposited 2000-06-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–102（102 aa） Chain F 1–102（102 aa）	Not recorded	MN MANGANESE (II) ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.60 Å R-free 0.249
2WP2 Structure of Brdt bromodomain BD1 bound to a diacetylated histone H4 peptide. Deposited 2009-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 2–21（20 aa） Fragment：RESIDUES 2-21	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；15 MG/ML BRDT-BD1 PROTEIN WAS MIXED WITH H4-ACK5/K8 PEPTIDE IN A 1:20 MOLAR RATIO. CRYSTALLIZATION WAS BY THE HANGING DROP VAPOUR DIFFUSION METHOD FROM 2.4 M AMMONIUM SULFATE, 0.1 M HEPES PH 7.	Resolution 2.37 Å R-free 0.261
2WP2 Structure of Brdt bromodomain BD1 bound to a diacetylated histone H4 peptide. Deposited 2009-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Q 2–21（20 aa） Fragment：RESIDUES 2-21	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；15 MG/ML BRDT-BD1 PROTEIN WAS MIXED WITH H4-ACK5/K8 PEPTIDE IN A 1:20 MOLAR RATIO. CRYSTALLIZATION WAS BY THE HANGING DROP VAPOUR DIFFUSION METHOD FROM 2.4 M AMMONIUM SULFATE, 0.1 M HEPES PH 7.	Resolution 2.37 Å R-free 0.261
4AU7 The structure of the Suv4-20h2 ternary complex with histone H4 Deposited 2012-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 18–26（9 aa） Fragment：RESIDUES 18-26	Non-standard monomer：Yes (specific site not provided by mmCIF)	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；PROTEIN WAS CRYSTALLIZED FROM 9% PEG 3350, 0.1 M HEPES PH 6.5	Resolution 2.07 Å R-free 0.240
4DOW Structure of mouse ORC1 BAH domain bound to H4K20me2 Deposited 2012-02-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 15–26（12 aa） Fragment：UNP residues 15-26	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；0.2 M sodium bromide, 25% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.95 Å R-free 0.257
4DOW Structure of mouse ORC1 BAH domain bound to H4K20me2 Deposited 2012-02-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 15–26（12 aa） Fragment：UNP residues 15-26	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；0.2 M sodium bromide, 25% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.95 Å R-free 0.257
5B1L The mouse nucleosome structure containing H3t Deposited 2015-12-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.35 Å R-free 0.243
5B1M The mouse nucleosome structure containing H3.1 Deposited 2015-12-08	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.34 Å R-free 0.259
5XM1 The mouse nucleosome structure containing H2A, H2B type3-A, H3mm7, and H4 Deposited 2017-05-12	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 3.45 Å R-free 0.254
7DBH The mouse nucleosome structure containing H3mm18 Deposited 2020-10-20	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7VBM The mouse nucleosome structure containing H3mm18 aided by PL2-6 scFv Deposited 2021-08-31	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å
8PKI Cryo-EM structure of NR5A2-nucleosome complex SHL+5.5 Deposited 2023-06-26	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric	Chain B 1–103（103 aa） Chain F 1–103（103 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.58 Å

10 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	H4_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–106； UniProt 1–103 Author chain F； PDBConstruct 4–106； UniProt 1–103

Histone H2A type 1-B

Mus musculus

UniProt C0HKE1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain C； UniProt 1–130 Chain G； UniProt 1–130	Not recorded	Histone H3.3 × 2 （P84244） Histone H4 × 2 （P62806） Histone H2B type 3-A × 2 （Q9D2U9） DNA (146-MER) × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.87 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5XM0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5XM1 The mouse nucleosome structure containing H2A, H2B type3-A, H3mm7, and H4 Deposited 2017-05-12	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain C 1–130（130 aa） Chain G 1–130（130 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 3.45 Å R-free 0.254
7DBH The mouse nucleosome structure containing H3mm18 Deposited 2020-10-20	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain C 1–130（130 aa） Chain G 1–130（130 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7VBM The mouse nucleosome structure containing H3mm18 aided by PL2-6 scFv Deposited 2021-08-31	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain C 1–130（130 aa） Chain G 1–130（130 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	H2A1B_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 4–133； UniProt 1–130 Author chain G； PDBConstruct 4–133； UniProt 1–130

Histone H2B type 3-A

Mus musculus

UniProt Q9D2U9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts	Chain D； UniProt 1–126 Chain H； UniProt 1–126	Not recorded	Histone H3.3 × 2 （P84244） Histone H4 × 2 （P62806） Histone H2A type 1-B × 2 （C0HKE1） DNA (146-MER) × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.87 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5XM0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1U35 Crystal structure of the nucleosome core particle containing the histone domain of macroH2A Deposited 2004-07-20	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain D 1–126（126 aa） Chain H 1–126（126 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；potassium chloride, manganese chloride, potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 3.00 Å R-free 0.260
2F8N 2.9 Angstrom X-ray structure of hybrid macroH2A nucleosomes Deposited 2005-12-02	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain D 1–125（125 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；34 to 37.5mM KCl and 40-45mM MnCl2, 5mM Potassium Cacodylate, Sample concentration: 8-12 mg/ml, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.90 Å R-free 0.269
5B1L The mouse nucleosome structure containing H3t Deposited 2015-12-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain D 1–126（126 aa） Chain H 1–126（126 aa）	Not recorded	CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.35 Å R-free 0.243
5B1M The mouse nucleosome structure containing H3.1 Deposited 2015-12-08	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain D 1–126（126 aa） Chain H 1–126（126 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 2.34 Å R-free 0.259
5XM1 The mouse nucleosome structure containing H2A, H2B type3-A, H3mm7, and H4 Deposited 2017-05-12	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain D 1–126（126 aa） Chain H 1–126（126 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride	Resolution 3.45 Å R-free 0.254
7DBH The mouse nucleosome structure containing H3mm18 Deposited 2020-10-20	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain D 1–126（126 aa） Chain H 1–126（126 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7VBM The mouse nucleosome structure containing H3mm18 aided by PL2-6 scFv Deposited 2021-08-31	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain D 1–126（126 aa） Chain H 1–126（126 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.40 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	H2B3A_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 4–129； UniProt 1–126 Author chain H； PDBConstruct 4–129； UniProt 1–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5xm0
Deposition date deposition_date	2017-05-12
Structure title title	The mouse nucleosome structure containing H2A, H2B type3-A, H3.3, and H4
Keywords keywords	nucleosome, chromatin, DNA-Protein complex, STRUCTURAL PROTEIN-DNA complex; STRUCTURAL PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.94 Å
Radius of gyration Rg (electron density) rg_electron	37.26 Å
Forward intensity I(0) i0	818112000.00
Molecular weight molecular_weight	174940.0 kDa
Excluded volume excluded_volume	194250 Å³
Envelope volume envelope_volume	287100 Å³
Hydration-shell volume shell_volume	62522 Å³
Envelope diameter envelope_diameter	122.7 Å
Shell Rg shell_rg	44.90 Å
Envelope Rg envelope_rg	36.72 Å
Shape Rg shape_rg	37.09 Å
Total Rg total_rg	37.98 Å
Total atoms total_atoms	11938
Residues n_residues	1043
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

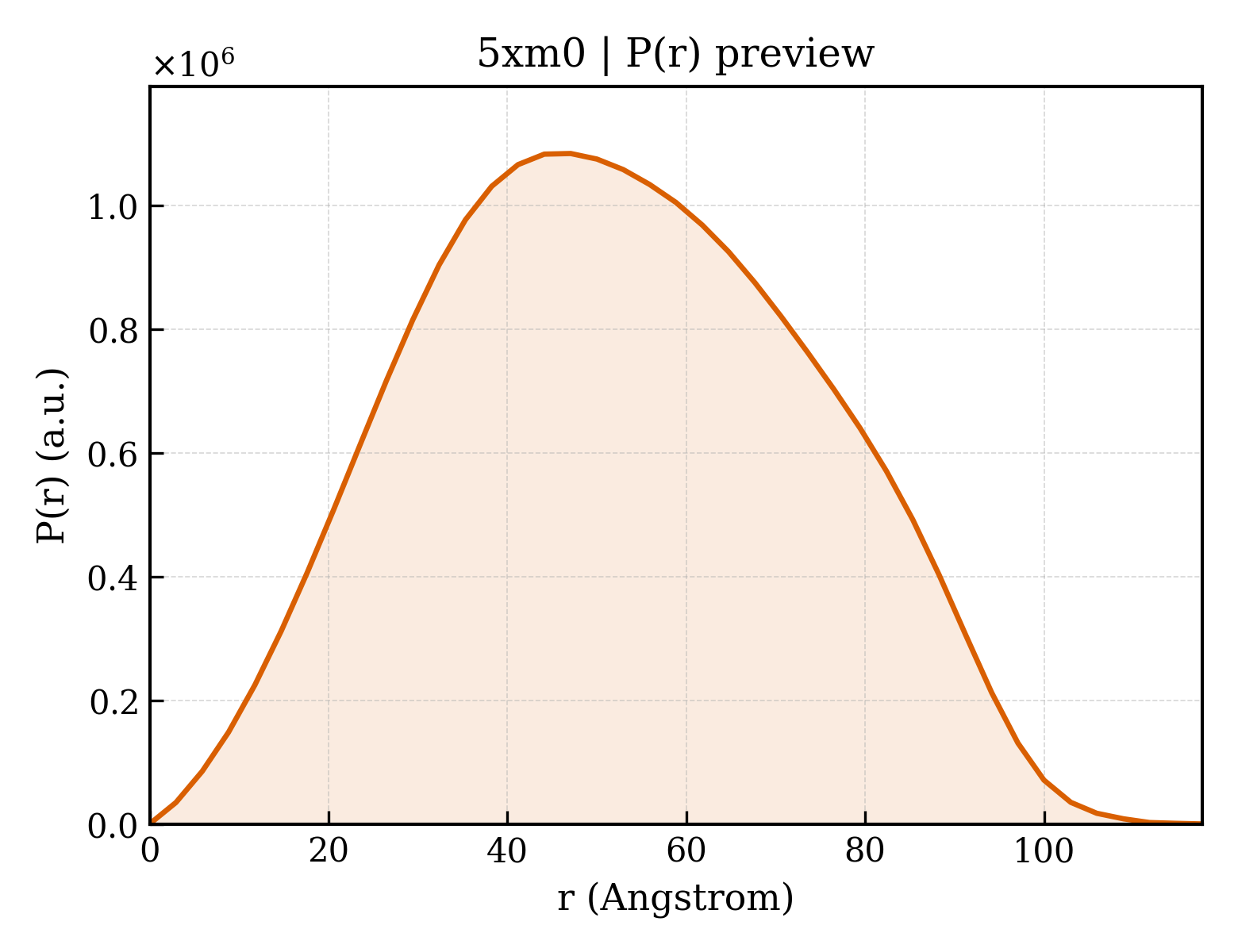

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	117.7 Å
Rg (real space) rg_real	39.77 Å
Rg uncertainty (real space) rg_real_error	0.92 Å
I(0) (real space) i0_real	8.1810e+08
I(0) uncertainty (real space) i0_real_error	1.3430e+07
Rg (reciprocal space) rg_reciprocal	39.94 Å
I(0) (reciprocal space) i0_reciprocal	818300000.0000
Solution quality estimate total_estimate	0.9001
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	47.1 Å
Skewness Skewness skewness	0.084
Kurtosis Kurtosis kurtosis	-0.699
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	65930000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.980; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.772

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone H3.3
Molecular weight formula_weight	15643.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	11950

GSHMARTKQTARKSTGGKAPRKQLATKAARKSAPSTGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSAAIGALQEASEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11676.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

GSHMSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1-B
Molecular weight formula_weight	14447.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

GSHMSGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Histone H2B type 3-A
Molecular weight formula_weight	14307.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

GSHMPEPSRSTPAPKKGSKKAITKAQKKDGKKRKRGRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIASEASRLAHYNKRSTITSREVQTAVRLLLPGELAKHAVSEGTKAVTKYTSSK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	DNA (146-MER)
Molecular weight formula_weight	45053.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I,J

ATCAATATCCACCTGCAGATTCTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCTGAATTCAGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGAATCTGCAGGTGGATATTGAT

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli DH5alpha

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	12

▼

7. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d5xm0b_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d5xm0c_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d5xm0d_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d5xm0f_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d5xm0g_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d5xm0h_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

CATH v4.4 (8 domains)

Domain ID domain_id	5xm0A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	5xm0B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	5xm0C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	5xm0D00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	5xm0E00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	5xm0F00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	5xm0G00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	5xm0H00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

▶

8. Citations (1)

▶

Unit-cell length a length_a	106.523 Å
Unit-cell length b length_b	110.095 Å
Unit-cell length c length_c	182.264 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.874 Å
Low-resolution limit resolution_low	48.904 Å
R factor r_factor	0.2208
R_work r_work	0.2189
R_free r_free	0.2553

fit	/app/data/saxs_computation/xm/5xm0/5xm0.fit
pddf	/app/data/pr_computation/xm/5xm0/5xm0.pr.out
profile	/app/data/saxs_computation/xm/5xm0/5xm0.dat

The mouse nucleosome structure containing H2A, H2B type3-A, H3.3, and H4

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.3

State in the Current Structure

Other States of the Same Protein in the Database

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

Histone H2A type 1-B

State in the Current Structure

Other States of the Same Protein in the Database

Histone H2B type 3-A

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 water

7. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
