1u35

Crystal structure of the nucleosome core particle containing the histone domain of macroH2A

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.1

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	alpha-satellite DNA × 2 Hist1h4i protein × 2 （Q5T006） H2A histone family × 2 （O75367） histone 3, H2ba × 2 （Q9D2U9） water × 10	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H31_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 0–135 Author chain E； PDBConstruct 1–136； UniProt 0–135

Hist1h4i protein

Mus musculus

UniProt Q5T006

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	alpha-satellite DNA × 2 Histone H3.1 × 2 （P68433） H2A histone family × 2 （O75367） histone 3, H2ba × 2 （Q9D2U9） water × 10	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5T006_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 10–112 Author chain F； PDBConstruct 1–103； UniProt 10–112

H2A histone family

Homo sapiens

UniProt O75367

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	alpha-satellite DNA × 2 Histone H3.1 × 2 （P68433） Hist1h4i protein × 2 （Q5T006） histone 3, H2ba × 2 （Q9D2U9） water × 10	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2AY_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 1–120； UniProt 1–120 Author chain G； PDBConstruct 1–120； UniProt 1–120

histone 3, H2ba

Mus musculus

UniProt Q9D2U9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	alpha-satellite DNA × 2 Histone H3.1 × 2 （P68433） Hist1h4i protein × 2 （Q5T006） H2A histone family × 2 （O75367） water × 10	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9D2U9_MOUSE
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain D； PDBConstruct 1–126； UniProt 1–126 Author chain H； PDBConstruct 1–126； UniProt 1–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1u35
Deposition date deposition_date	2004-07-20
Structure title title	Crystal structure of the nucleosome core particle containing the histone domain of macroH2A
Keywords keywords	Nucleosome, NCP, Histone fold, Histone variant, macroH2A, structural protein-DNA COMPLEX; structural protein/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1u35__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1u35__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

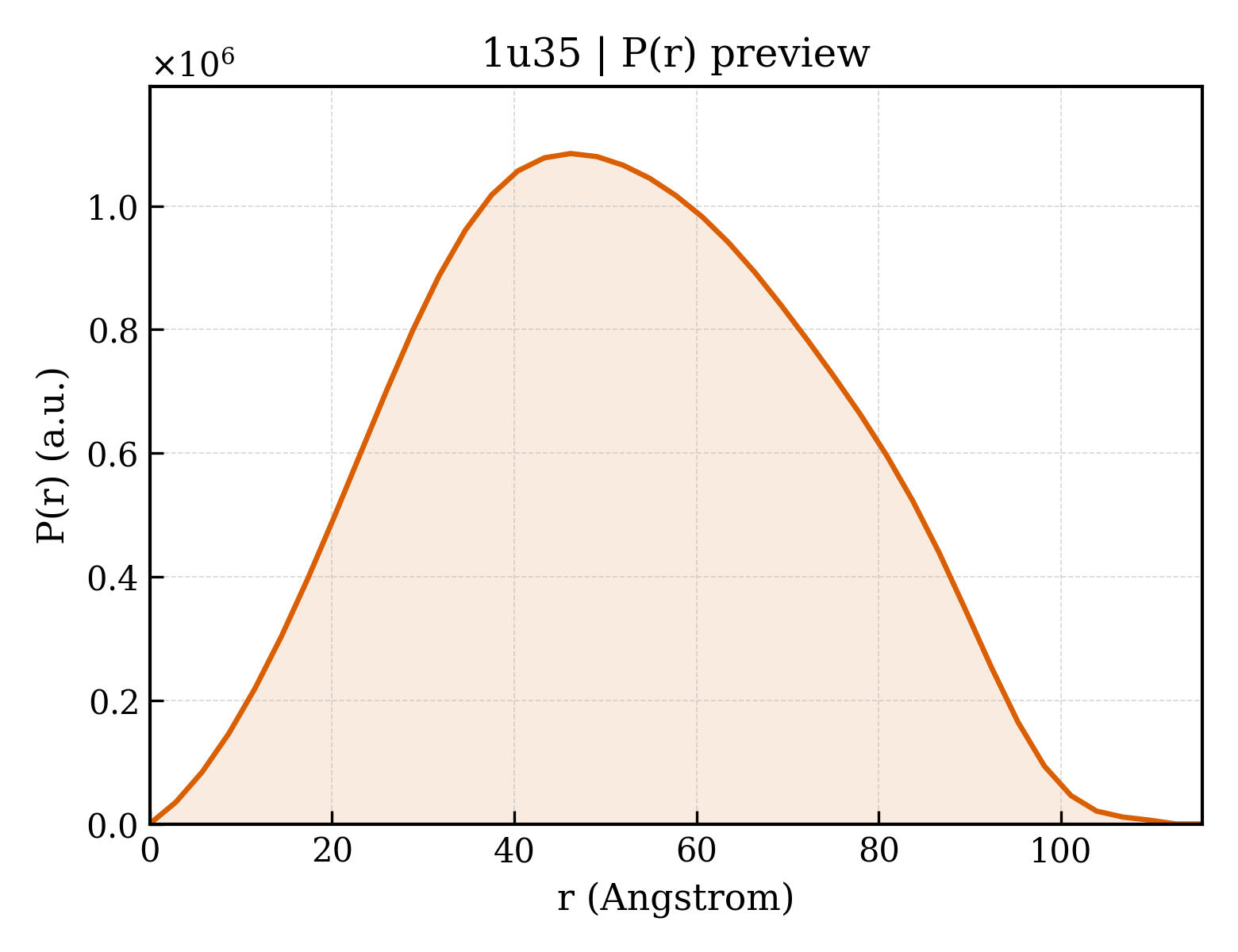

1u35__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.84 Å
Rg (electron density)	37.09 Å
Total Rg	37.79 Å
Atom count	11948
Residues	1049
Excluded volume	194940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1u35__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	alpha-satellite DNA
Molecular weight formula_weight	45054.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I,J
Atom count atom_count	12053

ATCAATATCCACCTGCAGATTCTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCGGAATTCCGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGAATCTGCAGGTGGATATTGAT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H3.1
Molecular weight formula_weight	15437.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Hist1h4i protein
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	H2A histone family
Molecular weight formula_weight	12984.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MSSRGGKKKSTKTSRSAKAGVIFPVGRMLRYIKKGHPKYRIGVGAPVYMAAVLEYLTAEILELAVNAARDNKKGRVTPRHILLAVANDEELNQLLKGVTIASGGVLPNIHPELLAKKRGS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	histone 3, H2ba
Molecular weight formula_weight	14025.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MPEPSRSTPAPKKGSKKAITKAQKKDGKKRKRGRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIASEASRLAHYNKRSTITSREVQTAVRLLLPGELAKHAVSEGTKAVTKYTSSK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	105

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1u35a1
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d1u35b_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d1u35c1
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d1u35d1
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d1u35e1
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d1u35f_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d1u35g_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d1u35h_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

CATH v4.4 (8 domains)

Domain ID domain_id	1u35A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1u35B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1u35C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1u35D00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1u35E00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1u35F00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1u35G00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1u35H00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

▶

Unit-cell length a length_a	105.505 Å
Unit-cell length b length_b	109.598 Å
Unit-cell length c length_c	175.989 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2060
R_free r_free	0.2604

Crystal structure of the nucleosome core particle containing the histone domain of macroH2A

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Hist1h4i protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

H2A histone family

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

histone 3, H2ba

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1u35__assembly_1__model_1

1u35__assembly_1__model_1 | I(q)

1u35__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

7. Citations (1)
