SAXSdb — 4l1p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA polymerase-associated protein RTF1 homolog

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 353–484	Fragment：UNP residues 353-484	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；Trisodium citrate, PEG 3000, pH 5.5, vapor diffusion, sitting drop, temperature 293K	Resolution 2.12 Å R-free 0.240
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 353–484	Fragment：UNP residues 353-484	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；Trisodium citrate, PEG 3000, pH 5.5, vapor diffusion, sitting drop, temperature 293K	Resolution 2.12 Å R-free 0.240

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4L1P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2BZE NMR Structure of human RTF1 PLUS3 domain. Deposited 2005-08-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 228–359（132 aa） Fragment：PLUS3, RESIDUES 228-359	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 200；Pressure 1.0 NMR sample composition 90% WATER/10% D2O	Resolution not provided
2DB9 Solution structure of the plus-3 domain of human KIAA0252 protein Deposited 2005-12-15	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 307–442（136 aa） Fragment：Plus-3 domain, Residues 8-143	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 0.73mM plus-3 domain U-15N,13C; 20mM d-Tris-HCl(pH 7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
3U1U Crystal structure of RNA polymerase-associated protein RTF1 homolog Plus-3 domain Deposited 2011-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 347–482（136 aa） Fragment：unp residues 347-482 Chain B 347–482（136 aa） Fragment：unp residues 347-482	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 4 GOL GLYCEROL × 1 UNX UNKNOWN LIGAND × 23	X-RAY DIFFRACTION X-ray crystallization conditions sitting drop vapor diffusion；pH 5.5；291 K；25% PEG-3350, 0.2M ammonium sulfate, 0.1M sodium cacodylate, pH 5.5, sitting drop vapor diffusion, temperature 291K	Resolution 1.80 Å R-free 0.235
3U1U Crystal structure of RNA polymerase-associated protein RTF1 homolog Plus-3 domain Deposited 2011-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 347–482（136 aa） Fragment：unp residues 347-482 Chain B 347–482（136 aa） Fragment：unp residues 347-482	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 4 GOL GLYCEROL × 1 UNX UNKNOWN LIGAND × 23	X-RAY DIFFRACTION X-ray crystallization conditions sitting drop vapor diffusion；pH 5.5；291 K；25% PEG-3350, 0.2M ammonium sulfate, 0.1M sodium cacodylate, pH 5.5, sitting drop vapor diffusion, temperature 291K	Resolution 1.80 Å R-free 0.235
4L1U Crystal Structure of Human Rtf1 Plus3 Domain in Complex with Spt5 CTR Phosphopeptide Deposited 2013-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 353–484（132 aa） Fragment：Plus3, UNP residues 353-484	Not recorded	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；Sodium acetate, Ammonium sulfate, pH 4.2, vapor diffusion, sitting drop, temperature 293K	Resolution 2.42 Å R-free 0.226
4L1U Crystal Structure of Human Rtf1 Plus3 Domain in Complex with Spt5 CTR Phosphopeptide Deposited 2013-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 353–484（132 aa） Fragment：Plus3, UNP residues 353-484	Not recorded	SO4 SULFATE ION × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；Sodium acetate, Ammonium sulfate, pH 4.2, vapor diffusion, sitting drop, temperature 293K	Resolution 2.42 Å R-free 0.226
4L1U Crystal Structure of Human Rtf1 Plus3 Domain in Complex with Spt5 CTR Phosphopeptide Deposited 2013-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 353–484（132 aa） Fragment：Plus3, UNP residues 353-484	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；Sodium acetate, Ammonium sulfate, pH 4.2, vapor diffusion, sitting drop, temperature 293K	Resolution 2.42 Å R-free 0.226
4L1U Crystal Structure of Human Rtf1 Plus3 Domain in Complex with Spt5 CTR Phosphopeptide Deposited 2013-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 353–484（132 aa） Fragment：Plus3, UNP residues 353-484	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；Sodium acetate, Ammonium sulfate, pH 4.2, vapor diffusion, sitting drop, temperature 293K	Resolution 2.42 Å R-free 0.226
4L1U Crystal Structure of Human Rtf1 Plus3 Domain in Complex with Spt5 CTR Phosphopeptide Deposited 2013-06-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 353–484（132 aa） Fragment：Plus3, UNP residues 353-484	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；Sodium acetate, Ammonium sulfate, pH 4.2, vapor diffusion, sitting drop, temperature 293K	Resolution 2.42 Å R-free 0.226
4L1U Crystal Structure of Human Rtf1 Plus3 Domain in Complex with Spt5 CTR Phosphopeptide Deposited 2013-06-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 353–484（132 aa） Fragment：Plus3, UNP residues 353-484	Not recorded	SO4 SULFATE ION × 7 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；Sodium acetate, Ammonium sulfate, pH 4.2, vapor diffusion, sitting drop, temperature 293K	Resolution 2.42 Å R-free 0.226
6TED Structure of complete, activated transcription complex Pol II-DSIF-PAF-SPT6 uncovers allosteric elongation activation by RTF1 Deposited 2019-11-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 21 PDB declaration: 24-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；2 microliters applied to both sides of grid. Sample incubated on grid for 10s prior to blotting. Blotting for 8.5s.	Resolution 3.10 Å
7UNC Pol II-DSIF-SPT6-PAF1c-TFIIS complex with rewrapped nucleosome Deposited 2022-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 29 PDB declaration: 32-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7UND Pol II-DSIF-SPT6-PAF1c-TFIIS-nucleosome complex (stalled at +38) Deposited 2022-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 33-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8A3Y Structure of mammalian Pol II-DSIF-SPT6-PAF1-TFIIS-hexasome elongation complex Deposited 2022-06-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 27 PDB declaration: 30-meric	Chain R 353–600（248 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9EGX RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-hexasome, bp +27 Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 29 PDB declaration: 32-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9EGY RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-nucleosome, bp +27 Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9EGZ RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, bp +27 Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 12 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9EH0 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, 30 bp upstream Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9EH1 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, 20 bp upstream Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain R 353–600（248 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9EH2 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-FACT nucleosome upstream Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9RZE State 2 MAP 3 RNA Pol II activated elongation complex with SETD2 bound to proximal upstream H3 Deposited 2025-07-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.53 Å
9S0U State 3 MAP 3 RNA Pol II activated elongation complex with SETD2 bound to distal upstream H3 Deposited 2025-07-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.72 Å
9S3G State 1 MAP3 RNA Pol II activated elongation complex with SETD2 and upstream hexasome Deposited 2025-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric	Chain R 1–710（710 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.40 Å

17 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RTF1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–138； UniProt 353–484 Author chain B； PDBConstruct 7–138； UniProt 353–484

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4l1p
Deposition date deposition_date	2013-06-03
Structure title title	Crystal Structure of Human Rtf1 Plus3 domain
Keywords keywords	Tutor, Plus3, Peptide binding protein, Spt5 CTR binding, Transcription, Paf1 complex, Rtf1, ORF association region, Chromatin; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.04 Å
Radius of gyration Rg (electron density) rg_electron	21.12 Å
Forward intensity I(0) i0	16281300.00
Molecular weight molecular_weight	30474.0 kDa
Excluded volume excluded_volume	38238 Å³
Envelope volume envelope_volume	47249 Å³
Hydration-shell volume shell_volume	19025 Å³
Envelope diameter envelope_diameter	68.2 Å
Shell Rg shell_rg	26.91 Å
Envelope Rg envelope_rg	21.21 Å
Shape Rg shape_rg	21.10 Å
Total Rg total_rg	21.99 Å
Total atoms total_atoms	4283
Residues n_residues	259
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

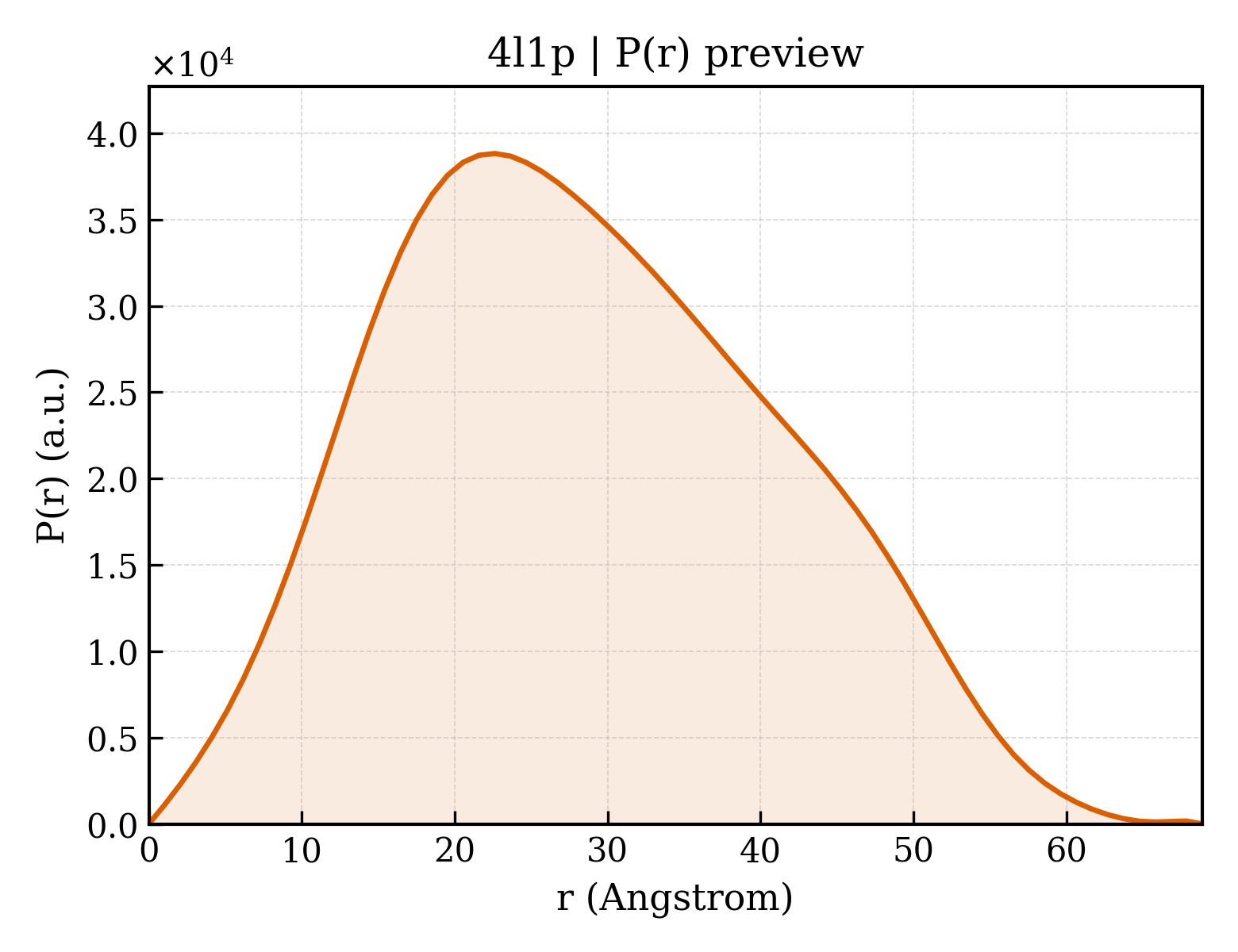

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	68.9 Å
Rg (real space) rg_real	22.01 Å
Rg uncertainty (real space) rg_real_error	0.41 Å
I(0) (real space) i0_real	1.6280e+07
I(0) uncertainty (real space) i0_real_error	2.0100e+05
Rg (reciprocal space) rg_reciprocal	22.02 Å
I(0) (reciprocal space) i0_reciprocal	16280000.0000
Solution quality estimate total_estimate	0.9074
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.6 Å
Skewness Skewness skewness	0.254
Kurtosis Kurtosis kurtosis	-0.612
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3798000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.993

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RNA polymerase-associated protein RTF1 homolog
Molecular weight formula_weight	15920.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A
Atom count atom_count	4354

GDITHMVSLPEELNRVRLSRHKLERWCHMPFFAKTVTGCFVRIGIGNHNSKPVYRVAEITGVVETAKVYQLGGTRTNKGLQLRHGNDQRVFRLEFVSNQEFTESEFMKWKEAMFSAGMQLPTLDEINKKELSIKEALN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	71

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4l1pa1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.21 — Plus3-like
Family Family family	b.34.21.1 — Plus3

Domain ID domain_id	d4l1pa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d4l1pb1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.21 — Plus3-like
Family Family family	b.34.21.1 — Plus3

Domain ID domain_id	d4l1pb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	4l1pA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	200 — Plus-3 domain

Domain ID domain_id	4l1pB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	200 — Plus-3 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	33.636 Å
Unit-cell length b length_b	68.025 Å
Unit-cell length c length_c	116.972 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.120 Å
Low-resolution limit resolution_low	29.158 Å
R factor r_factor	0.2084
R_work r_work	0.2059
R_free r_free	0.2400

fit	/app/data/saxs_computation/l1/4l1p/4l1p.fit
pddf	/app/data/pr_computation/l1/4l1p/4l1p.pr.out
profile	/app/data/saxs_computation/l1/4l1p/4l1p.dat
