9rze

State 2 MAP 3 RNA Pol II activated elongation complex with SETD2 bound to proximal upstream H3

Method: ELECTRON MICROSCOPY Dmax: 253.1 Å Quality: EXCELLENT

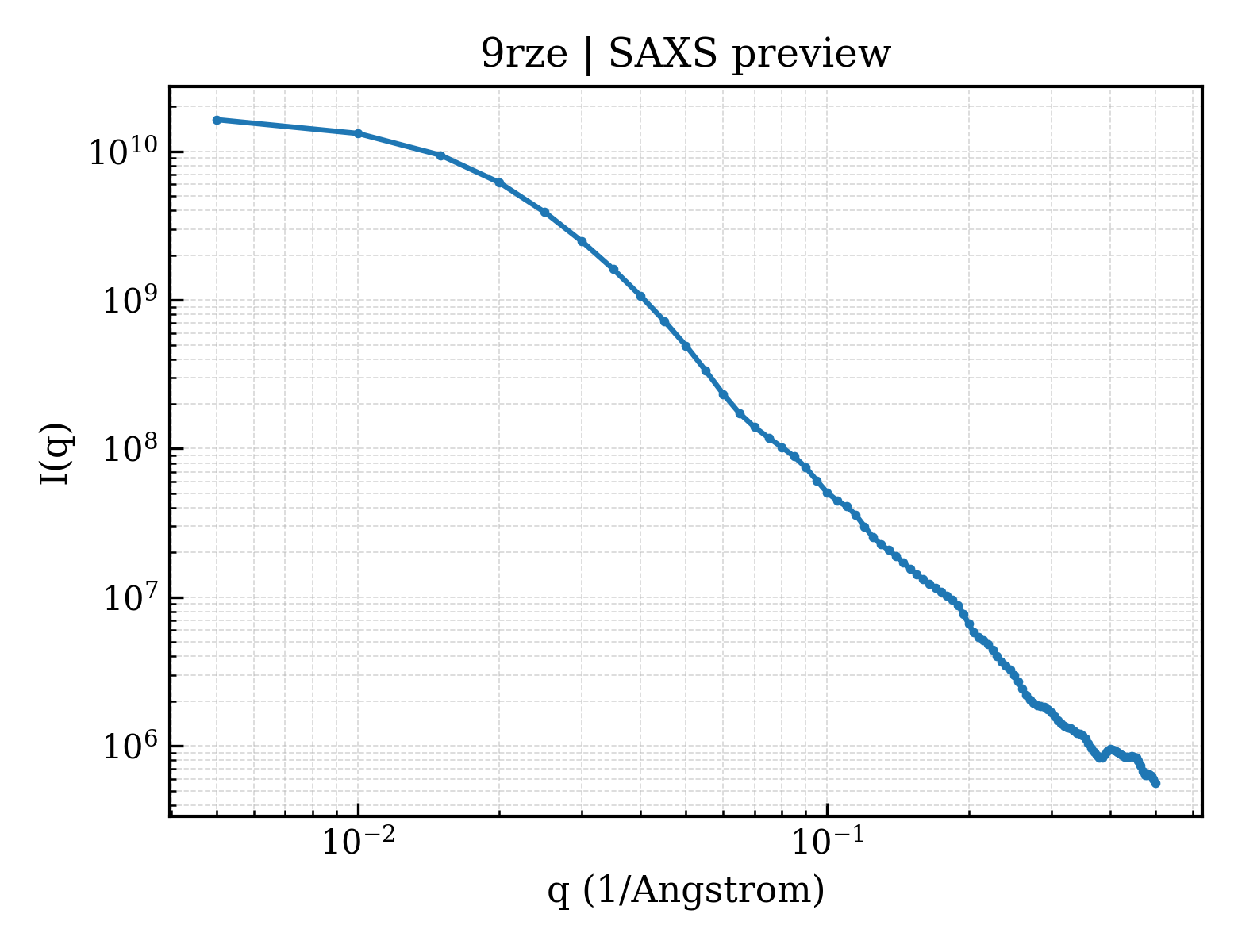

SAXS Profile

SAXS profile for 9rze

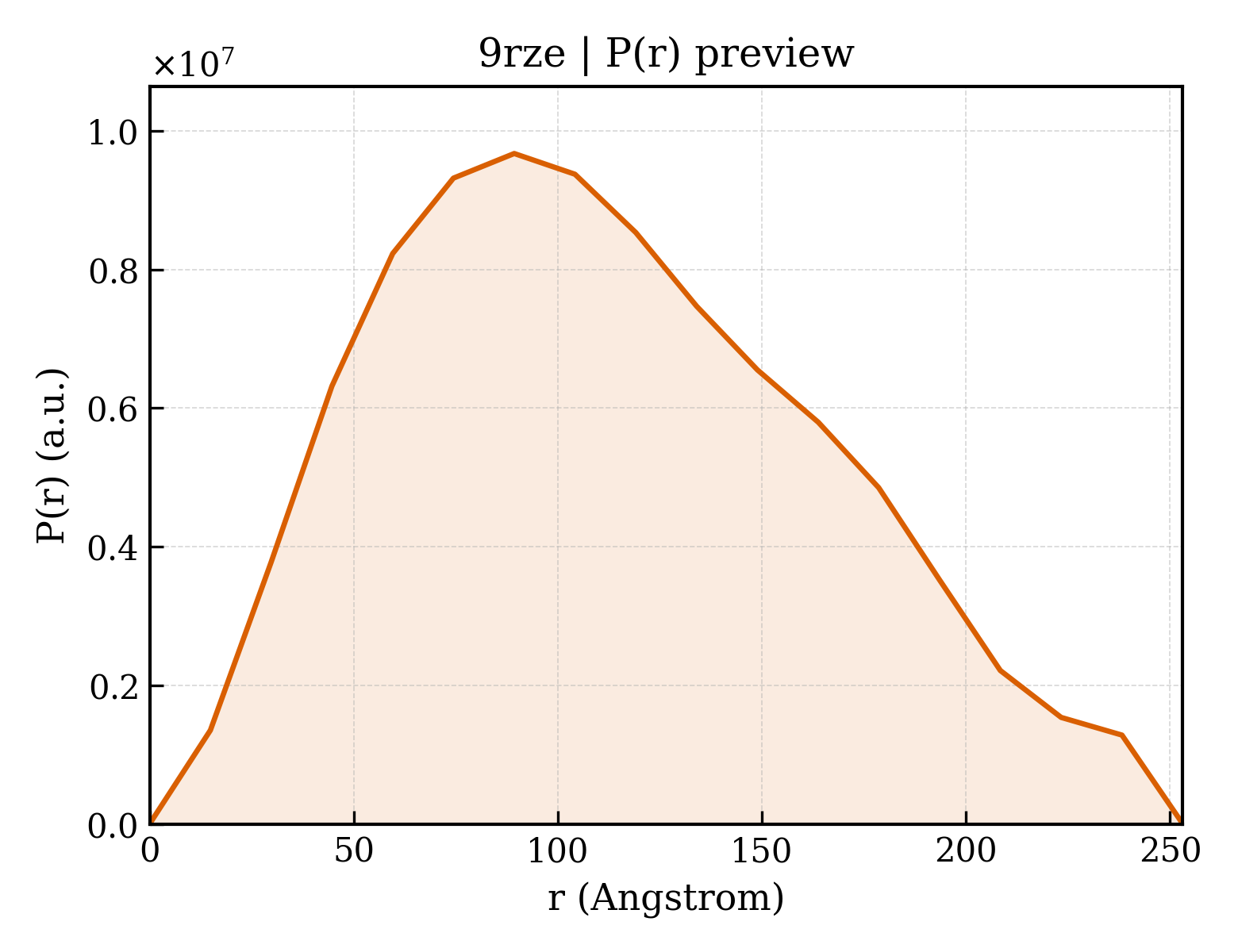

P(r) Distribution

P(r) distribution for 9rze

1. Structure Basics

entry_id9rze
deposition_date2025-07-15
titleState 2 MAP 3 RNA Pol II activated elongation complex with SETD2 bound to proximal upstream H3
keywordsRNA Pol II Activated elongation complex Co-transcriptional H3K36me3 SETD2, TRANSCRIPTION; TRANSCRIPTION
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier92.83
rg_electron91.45
i017583400000.00
molecular_weight1042500.0 kDa
excluded_volume1269900 ų
envelope_volume2238500 ų
shell_volume217730 ų
envelope_diameter351.3
shell_rg79.21
envelope_rg90.24
shape_rg91.36
total_rg91.64
total_atoms72793
n_residues8551
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax253.1
rg_real87.15
rg_real_error1.01
i0_real1.6800e+10
i0_real_error3.4170e+08
rg_reciprocal88.68
i0_reciprocal17350000000.0000
total_estimate0.9184
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary89.3
skewness0.345
kurtosis-0.589
angular_range— – 0.0850 −1
current_alpha0.6008
highest_alpha832900000.0000
n_real_points18
gnom_version4.1.3
quality_criteria AN1: 0.001; Oscil: 0.993; Stabil: 0.987; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.001
