6le9

The Human Telomeric Nucleosome Displays Distinct Structural and Dynamic Properties

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 1-K × 2 （O60814） Human Telomeric DNA (145-MER) × 1 Human Telomeric DNA (145-MER) × 1 MANGANESE (II) ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H31_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–96； UniProt 41–136 Author chain E； PDBConstruct 1–96； UniProt 41–136

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.1 × 2 （P68431） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 1-K × 2 （O60814） Human Telomeric DNA (145-MER) × 1 Human Telomeric DNA (145-MER) × 1 MANGANESE (II) ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–87； UniProt 17–103 Author chain F； PDBConstruct 1–87； UniProt 17–103

Histone H2A type 1-B/E

Homo sapiens

UniProt P04908

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2B type 1-K × 2 （O60814） Human Telomeric DNA (145-MER) × 1 Human Telomeric DNA (145-MER) × 1 MANGANESE (II) ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1B_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–105； UniProt 15–119 Author chain G； PDBConstruct 1–105； UniProt 15–119

Histone H2B type 1-K

Homo sapiens

UniProt O60814

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Human Telomeric DNA (145-MER) × 1 Human Telomeric DNA (145-MER) × 1 MANGANESE (II) ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1K_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–95； UniProt 32–126 Author chain H； PDBConstruct 1–95； UniProt 32–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6le9
Deposition date deposition_date	2019-11-24
Structure title title	The Human Telomeric Nucleosome Displays Distinct Structural and Dynamic Properties
Keywords keywords	Telomeric DNA, Nucleosome Core Particle, DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6le9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6le9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

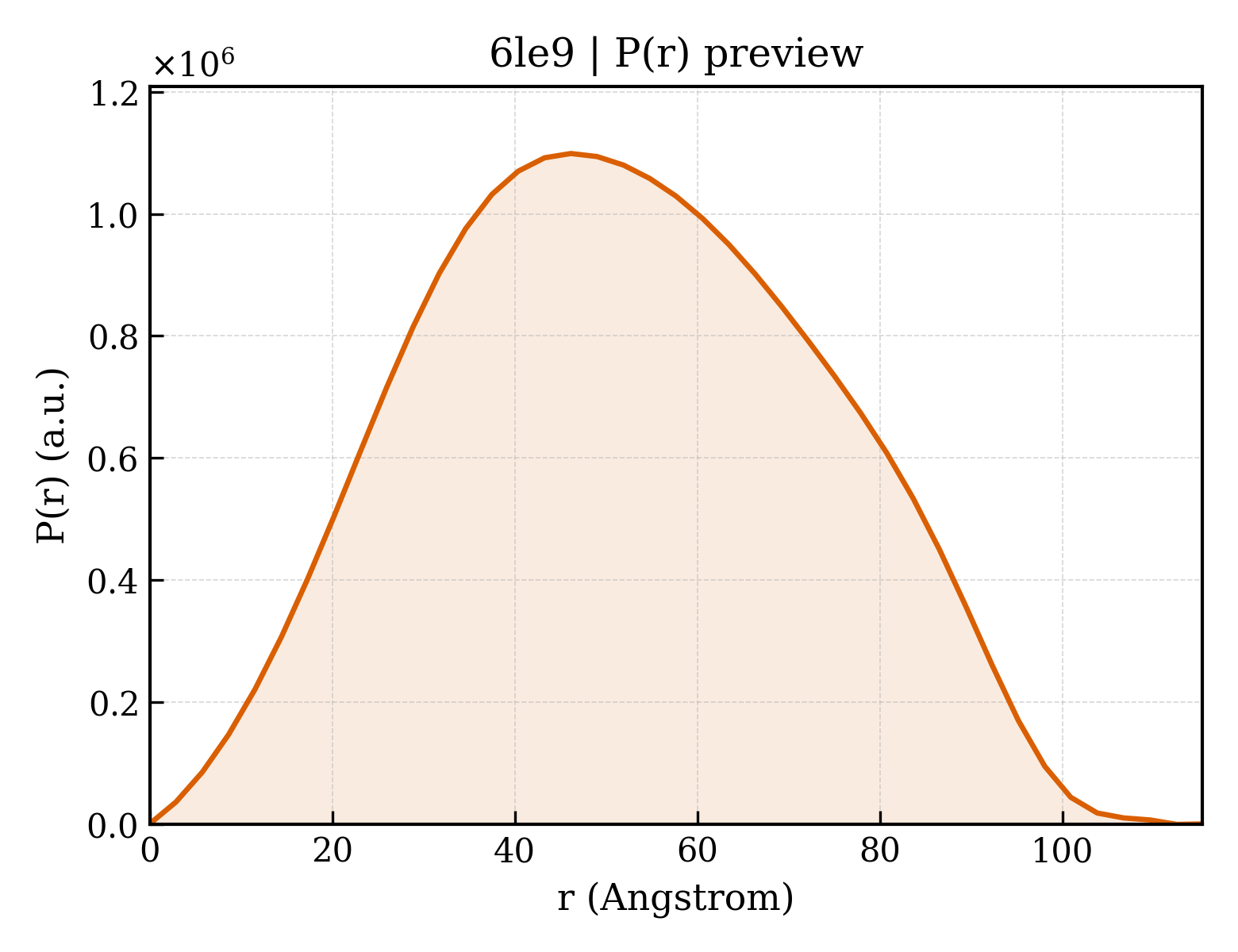

6le9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.79 Å
Rg (electron density)	37.01 Å
Total Rg	37.74 Å
Atom count	11925
Residues	1043
Excluded volume	194010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6le9__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Histone H3.1
Molecular weight formula_weight	11269.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	11925

RYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	9990.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

KRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1-B/E
Molecular weight formula_weight	11508.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

AKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B type 1-K
Molecular weight formula_weight	10607.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

RSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Human Telomeric DNA (145-MER)
Molecular weight formula_weight	43478.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAACCCTAAGAT

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Human Telomeric DNA (145-MER)
Molecular weight formula_weight	46024.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTTAGGGTGAT

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d6le9a_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6le9b_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6le9c_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6le9d_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6le9e_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6le9f_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6le9g_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

Domain ID domain_id	d6le9h_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.1 — Nucleosome core histones

CATH v4.4 (6 domains)

Domain ID domain_id	6le9B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6le9C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6le9D00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6le9F00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6le9G00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6le9H00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

▶

Unit-cell length a length_a	106.455 Å
Unit-cell length b length_b	109.388 Å
Unit-cell length c length_c	176.376 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	49.000 Å
R factor r_factor	0.2402
R_work r_work	0.2381
R_free r_free	0.2805

The Human Telomeric Nucleosome Displays Distinct Structural and Dynamic Properties

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2A type 1-B/E

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2B type 1-K

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

6le9__assembly_1__model_1

6le9__assembly_1__model_1 | I(q)

6le9__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 polymer

Polymer Polymer

Source Source

Entity 7 Entity 7 non-polymer

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

CATH v4.4 (6 domains)

7. Citations (1)
