9s3g

State 1 MAP3 RNA Pol II activated elongation complex with SETD2 and upstream hexasome

Method: ELECTRON MICROSCOPY Dmax: 218.3 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9s3g

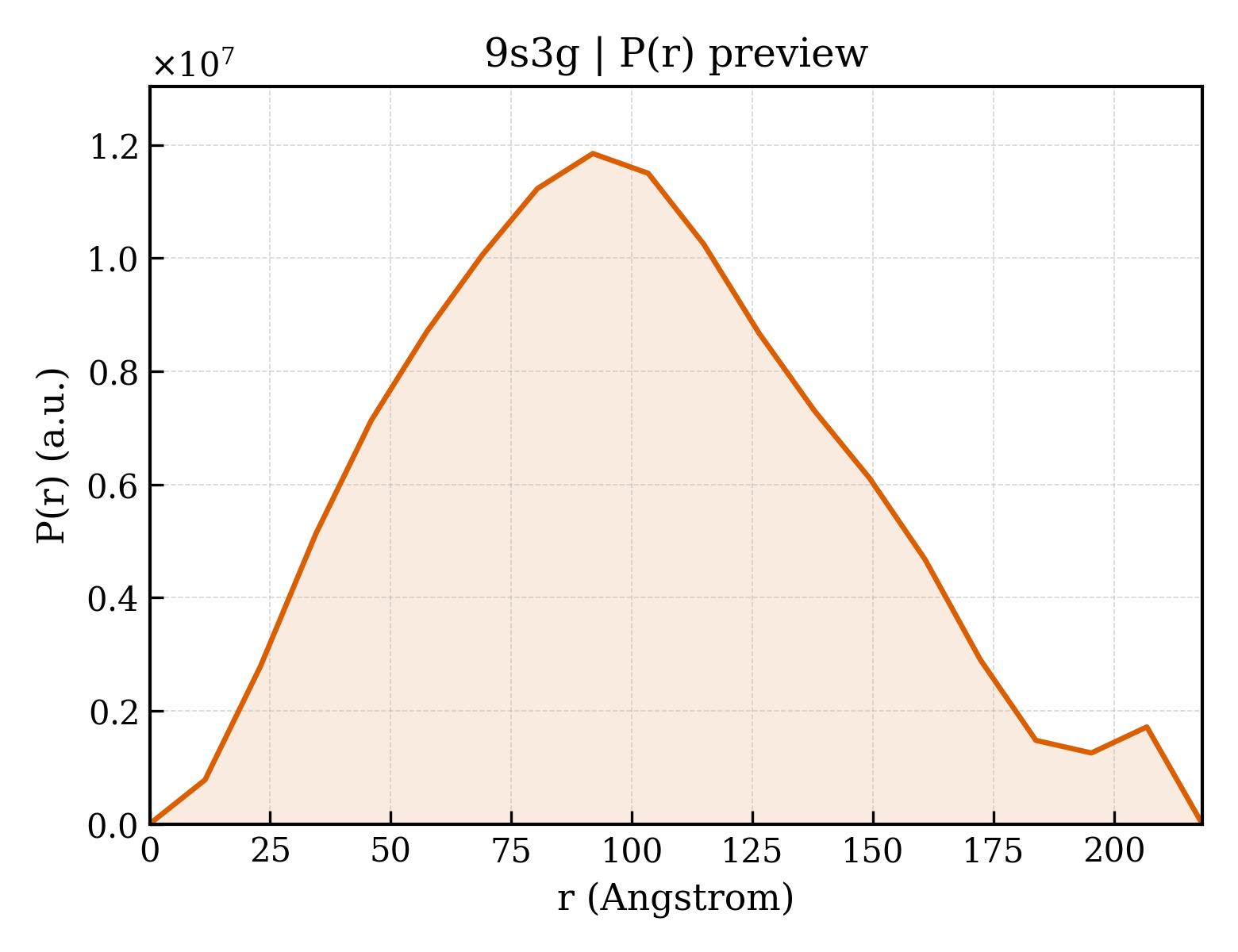

P(r) Distribution

P(r) distribution for 9s3g

1. Structure Basics

entry_id9s3g
deposition_date2025-07-24
last_revision2025-11-12
titleState 1 MAP3 RNA Pol II activated elongation complex with SETD2 and upstream hexasome
keywordsRNA Pol II Activated elongation complex Co-transcriptional H3K36me3 SETD2, TRANSCRIPTION; TRANSCRIPTION
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier80.07
rg_electron80.57
i016949500000.00
molecular_weight1074000.0 kDa
excluded_volume1331200 ų
envelope_volume2127200 ų
shell_volume221240 ų
envelope_diameter292.0
shell_rg78.06
envelope_rg79.74
shape_rg80.65
total_rg80.26
total_atoms75297
n_residues9142
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax218.3
rg_real76.31
rg_real_error0.77
i0_real1.6390e+10
i0_real_error2.7300e+08
rg_reciprocal79.18
i0_reciprocal16910000000.0000
total_estimate0.9048
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary91.9
skewness0.293
kurtosis-0.406
angular_range— – 0.0950 −1
current_alpha0.1800
highest_alpha891000000.0000
n_real_points20
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.973; Stabil: 0.985; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.017

4. Crystallography & Experiment

5. Entities & Polymer Info (34)

6. Citations (1)

7. Files & Curves (10)
