Cryo-EM structures of RNF168/UbcH5c-Ub in complex with H2AK13Ub nucleosomes determined by activity-based chemical trapping strategy (adjacent H2AK13/15 dual-monoubiquitination)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 1 （P04908） Histone H2B type 1-K × 2 （O60814） Histone H2A type 1-B/E × 1 （P04908） DNA (143-MER) × 1 DNA (143-MER) × 1 Ubiquitin-conjugating enzyme E2 D3 × 1 （P61077） E3 ubiquitin-protein ligase RNF168 × 1 （Q8IYW5） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–97； UniProt 39–135 Author chain E； PDBConstruct 1–97； UniProt 39–135

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H2A type 1-B/E × 1 （P04908） Histone H2B type 1-K × 2 （O60814） Histone H2A type 1-B/E × 1 （P04908） DNA (143-MER) × 1 DNA (143-MER) × 1 Ubiquitin-conjugating enzyme E2 D3 × 1 （P61077） E3 ubiquitin-protein ligase RNF168 × 1 （Q8IYW5） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–82； UniProt 21–102 Author chain F； PDBConstruct 1–82； UniProt 21–102

Histone H2A type 1-B/E

Homo sapiens

UniProt P04908

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2B type 1-K × 2 （O60814） DNA (143-MER) × 1 DNA (143-MER) × 1 Ubiquitin-conjugating enzyme E2 D3 × 1 （P61077） E3 ubiquitin-protein ligase RNF168 × 1 （Q8IYW5） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1B_HUMAN
Isoform	—
PDB entities	3, 5
Chains and sequence ranges	Author chain C； PDBConstruct 1–105； UniProt 15–119 Author chain G； PDBConstruct 1–108； UniProt 11–118

Histone H2B type 1-K

Homo sapiens

UniProt O60814

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 1 （P04908） Histone H2A type 1-B/E × 1 （P04908） DNA (143-MER) × 1 DNA (143-MER) × 1 Ubiquitin-conjugating enzyme E2 D3 × 1 （P61077） E3 ubiquitin-protein ligase RNF168 × 1 （Q8IYW5） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1K_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–94； UniProt 32–125 Author chain H； PDBConstruct 1–94； UniProt 32–125

Ubiquitin-conjugating enzyme E2 D3

Homo sapiens

UniProt P61077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 1 （P04908） Histone H2B type 1-K × 2 （O60814） Histone H2A type 1-B/E × 1 （P04908） DNA (143-MER) × 1 DNA (143-MER) × 1 E3 ubiquitin-protein ligase RNF168 × 1 （Q8IYW5） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UB2D3_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain K； PDBConstruct 1–147； UniProt 1–147

E3 ubiquitin-protein ligase RNF168

Homo sapiens

UniProt Q8IYW5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 1 （P04908） Histone H2B type 1-K × 2 （O60814） Histone H2A type 1-B/E × 1 （P04908） DNA (143-MER) × 1 DNA (143-MER) × 1 Ubiquitin-conjugating enzyme E2 D3 × 1 （P61077） ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RN168_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain L； PDBConstruct 1–113； UniProt 1–113

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8x7k
Deposition date deposition_date	2023-11-24
Structure title title	Cryo-EM structures of RNF168/UbcH5c-Ub in complex with H2AK13Ub nucleosomes determined by activity-based chemical trapping strategy (adjacent H2AK13/15 dual-monoubiquitination)
Keywords keywords	RNF168, nucleosome, H2AK13/15 ubiquitination, NUCLEAR PROTEIN, NUCLEAR PROTEIN-DNA complex; NUCLEAR PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8x7k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

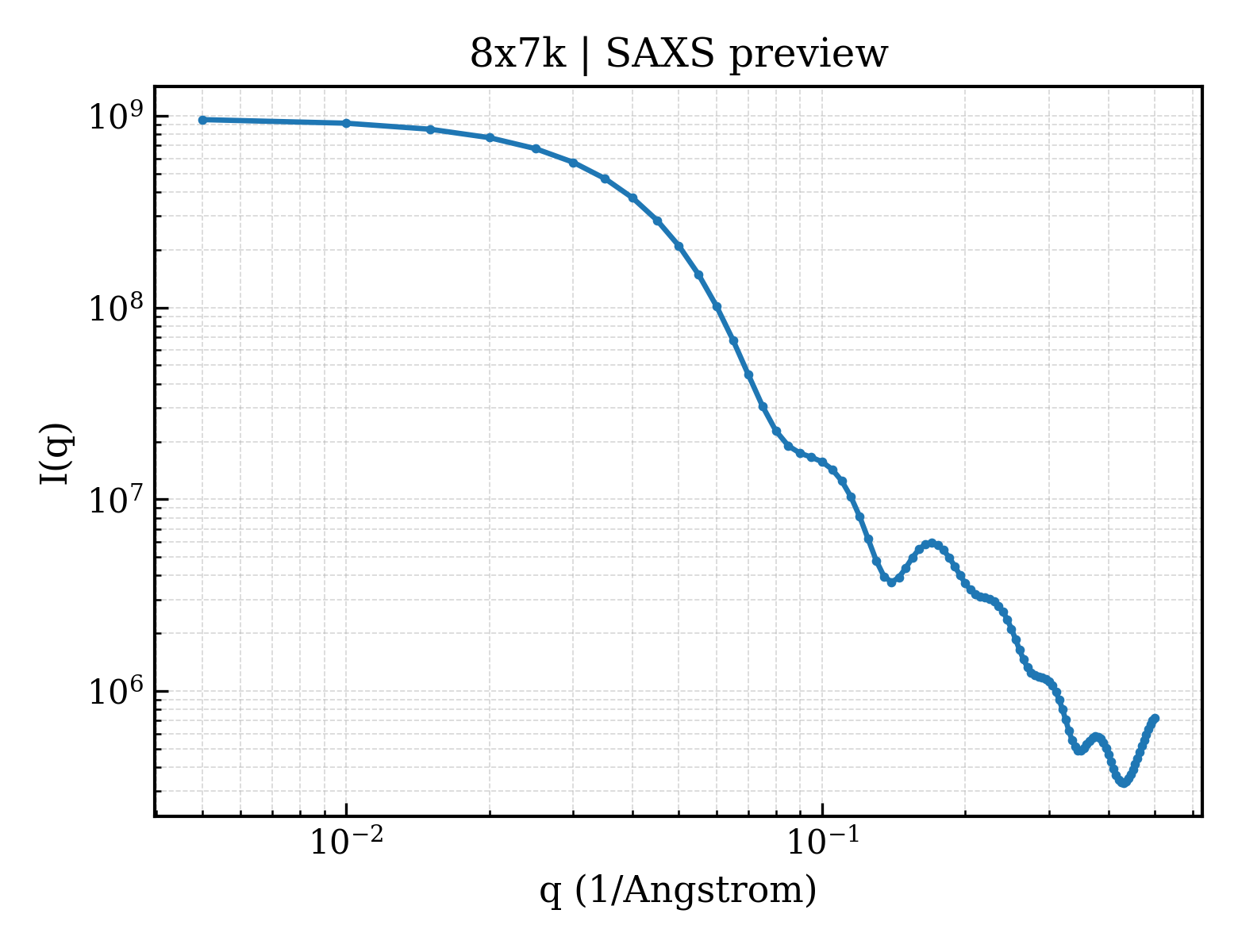

8x7k__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

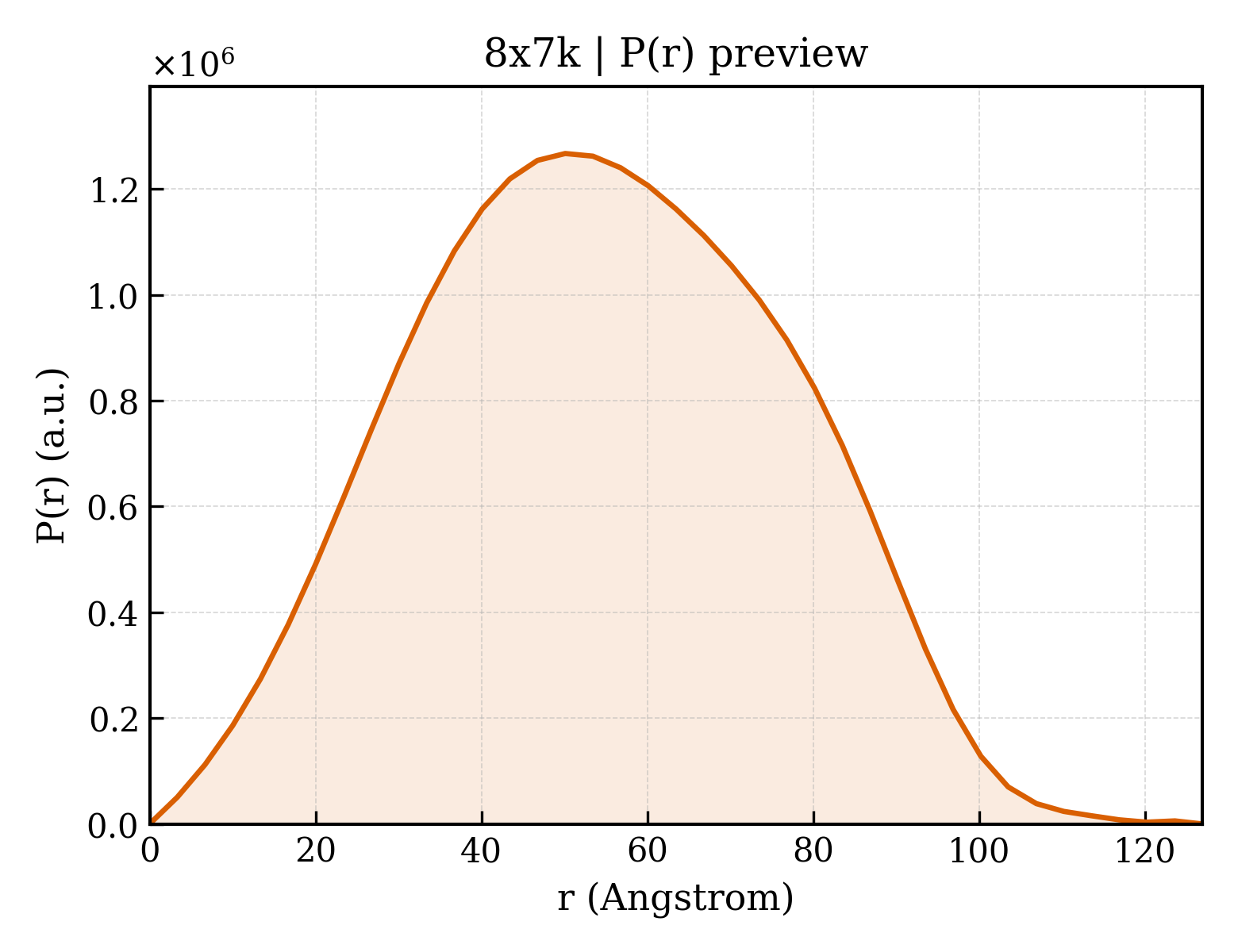

8x7k__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.57 Å
Rg (electron density)	39.52 Å
Total Rg	40.08 Å
Atom count	13387
Residues	1240
Excluded volume	220010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8x7k__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Histone H3.2
Molecular weight formula_weight	11401.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	13387

PHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVGLFEDTNLSAIHAKRVTIMPKDIQLARRIRGER

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	9352.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

KVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1-B/E
Molecular weight formula_weight	11482.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

ACTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B type 1-K
Molecular weight formula_weight	10478.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

RSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Histone H2A type 1-B/E
Molecular weight formula_weight	11807.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA (143-MER)
Molecular weight formula_weight	44359.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

CAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	DNA (143-MER)
Molecular weight formula_weight	43919.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

GAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Ubiquitin-conjugating enzyme E2 D3
Molecular weight formula_weight	16657.9 kDa
EC 编号 ec_number	2.3.2.23,2.3.2.24
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MALKRINKELSDLARDPPAQSSAGPVGDDMFHWQATIMGPNDSPYQGGVFFLTIHFPTDYPFKPPKVAFTTRIYHPNINSNGSICLDILRSQWSPALTISKVLLSISSLLSDPNPDDPLVPEIARIYKTDRDKYNRISREWTQKYAM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	E3 ubiquitin-protein ligase RNF168
Molecular weight formula_weight	12987.1 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MALPKDAIPSLSECQCGICMEILVEPVTLPCNHTLCKPCFQSTVEKASLCCPFCRRRVSSWTRYHTRRNSLVNVELWTIIQKHYPRECKLRASGQESEEVADDYQPVRLLSKP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 10 Entity 10 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.27 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	147576
