1x23

Crystal structure of ubch5c

Method: X-RAY DIFFRACTION D_max: 104.0 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-conjugating enzyme E2 D3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–147	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES-Na, 10% iso-propanol, 20% PEG4000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.85 Å R-free 0.282
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–147	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES-Na, 10% iso-propanol, 20% PEG4000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.85 Å R-free 0.282
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–147	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES-Na, 10% iso-propanol, 20% PEG4000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.85 Å R-free 0.282
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 1–147	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1M HEPES-Na, 10% iso-propanol, 20% PEG4000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.85 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1X23	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FUH Solution Structure of the UbcH5c/Ub Non-covalent Complex Deposited 2006-01-26	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–147（146 aa） Fragment：UbcH5c	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 150mM NaCl；Pressure ambient NMR sample composition 1mM UbcH5c U-15N,13C 25mM sodium phosphate 150mM NaCl \| 90% H20 10% D20 NMR sample composition 1mM Ubiquitin U-15N,13C 25mM sodium phosphate 150mM NaCl \| 90% H20 10% D20 NMR sample composition 1mM UbcH5c U-15N,13C 1mM Ubiquitin 25mM sodium phosphate 150mM NaCl \| 90% H20 10% D20 NMR sample composition 1mM Ubiquitin U-15N,13C 1mM UbcH5c 25mM sodium phosphate 150mM NaCl \| 90% H20 10% D20 NMR sample composition 1mM UbcH5c U-15N,13C 1mM Ubiquitin 25mM sodium phosphate 150mM NaCl \| 100% D20 NMR sample composition 1mM Ubiquitin U-15N,13C 1mM UbcH5c 25mM sodium phosphate 150mM NaCl \| 100% D20	Resolution not provided
3L1Z Crystal structure of the U-BOX domain of human E4B ubiquitin ligase in complex with UBCH5C E2 ubiquitin conjugating enzyme Deposited 2009-12-14	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；4M sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.17 Å R-free 0.279
3L1Z Crystal structure of the U-BOX domain of human E4B ubiquitin ligase in complex with UBCH5C E2 ubiquitin conjugating enzyme Deposited 2009-12-14	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；4M sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.17 Å R-free 0.279
3RPG Bmi1/Ring1b-UbcH5c complex structure Deposited 2011-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–147（146 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；40% MPD, 0.1 M MES pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.243
3RPG Bmi1/Ring1b-UbcH5c complex structure Deposited 2011-04-26	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–147（146 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；40% MPD, 0.1 M MES pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.243
3UGB UbcH5c~Ubiquitin Conjugate Deposited 2011-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–147（147 aa） Fragment：unp residues 1-147	Mutation：C85S	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.2M tri-potassium citrate, 20% PEG 3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.252
4BVU Structure of Shigella effector OspG in complex with host UbcH5c- Ubiquitin conjugate Deposited 2013-06-28	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–147（147 aa）	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M TRIS PH 8.5, 20% ETOH	Resolution 2.70 Å R-free 0.291
4R8P Crystal structure of the Ring1B/Bmi1/UbcH5c PRC1 ubiquitylation module bound to the nucleosome core particle Deposited 2014-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain L 2–147（146 aa） Fragment：Residues 2-116 of Ring1B and Residues 2-148 of UbcH5c Chain N 2–147（146 aa） Fragment：Residues 2-116 of Ring1B and Residues 2-148 of UbcH5c	Not recorded	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions Modified micro batch under oil；pH 7.5；294 K；25 mM HEPES pH 7.5, 80 mM NH4NO3, 3 % PEG2000-MME, Modified micro batch under oil, temperature 294K	Resolution 3.28 Å R-free 0.245
4S3O PCGF5-RING1B-UbcH5c complex Deposited 2015-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 2–147（146 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；13.5% PEG 550 MME, 10 mM TCEP, 0.1 M MES pH 6.5, 100 mM KCl, VAPOR DIFFUSION, temperature 277K	Resolution 2.00 Å R-free 0.237
4S3O PCGF5-RING1B-UbcH5c complex Deposited 2015-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–147（146 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；13.5% PEG 550 MME, 10 mM TCEP, 0.1 M MES pH 6.5, 100 mM KCl, VAPOR DIFFUSION, temperature 277K	Resolution 2.00 Å R-free 0.237
5EGG Crystal structure of human ubiquitin-conjugating enzyme UBCH5C Deposited 2015-10-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；2% v/v Tacsimate pH 4.0, 0.1 M Sodium acetate trihydrate pH 4.6, 16% w/v Polyethylene glycol 3350	Resolution 1.76 Å R-free 0.253
5IFR Structure of the stable UBE2D3-UbDha conjugate Deposited 2016-02-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–147（146 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；200mM tripotassium citrate, 20% PEG 3350	Resolution 2.20 Å R-free 0.243
6CP0 SdcA in complex with the E2, UbcH5C Deposited 2018-03-13	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–147（147 aa）	Mutation：C85S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；1.5 M ammonium sulfate, 3% glycerol, 0.1 M HEPES pH 7.5	Resolution 3.01 Å R-free 0.261
6T7F RCR E3 ligase E2-Ubiquitin transthiolation intermediate Deposited 2019-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–147（146 aa）	Mutation：C21S, S22R, C107S, C111S	ZN ZINC ION × 6 LWZ 3,3-bis(sulfanyl)-~{N}-(1~{H}-1,2,3-triazol-4-ylmethyl)propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；0.85 M sodium citrate, 100 mM sodium chloride, 100 mM Tris-HCl pH 8.0	Resolution 2.58 Å R-free 0.256
7JZV Cryo-EM structure of the BRCA1-UbcH5c/BARD1 E3-E2 module bound to a nucleosome Deposited 2020-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: dodecameric	Chain A 2–147（146 aa）	Mutation：UbcH5c C85K	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7LYB Cryo-EM structure of the human nucleosome core particle in complex with BRCA1-BARD1-UbcH5c Deposited 2021-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain P 2–147（146 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.28 Å
8AMS Complex of human TRIM2 RING domain, UBCH5C, and Ubiquitin Deposited 2022-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–147（147 aa） Chain B 1–147（147 aa）	Not recorded	GOL GLYCEROL × 9 ZN ZINC ION × 4 PE8 3,6,9,12,15,18,21-HEPTAOXATRICOSANE-1,23-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.2 M sodium formate, 0.1 M bis-tris propane, 20% PEG 3350	Resolution 2.40 Å R-free 0.233
8SMW Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 1) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8SMX Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 2) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8SMY Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 3) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8SMZ Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (Class 4) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8SN0 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 5) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8SN1 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 6) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8SN2 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c (UbcH5c chemically conjugated to histone H2A) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8SN3 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 1) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8SN4 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 2) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8SN5 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 3) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8SN6 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 4) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8SN7 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 5) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8SN8 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 6) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8SN9 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c with backside ubiquitin (UbcH5c chemically conjugated to histone H2A) (class 1) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8SNA Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c with backside ubiquitin (UbcH5c chemically conjugated to histone H2A) (class 2) Deposited 2023-04-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain L 1–147（147 aa）	Mutation：C21I, C107A, C111D, L119K	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8U14 Cryo-EM structure of the human nucleosome core particle ubiquitylated at histone H2A lysine 15 in complex with RNF168-UbcH5c (class 2) Deposited 2023-08-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 2–147（146 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8UPF Cryo-EM structure of the human nucleosome core particle in complex with RNF168-UbcH5c Deposited 2023-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 2–147（146 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8UQ8 Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 2-residue linker Deposited 2023-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–147（146 aa）	Not recorded	CL CHLORIDE ION × 7 GOL GLYCEROL × 3 ZN ZINC ION × 2 NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (9.5 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 0.1 M HEPES, pH 7.5, 2.4 M NaCl	Resolution 2.34 Å R-free 0.236
8UQ8 Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 2-residue linker Deposited 2023-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain a 2–147（146 aa）	Not recorded	CL CHLORIDE ION × 14 GOL GLYCEROL × 2 ZN ZINC ION × 2 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (9.5 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 0.1 M HEPES, pH 7.5, 2.4 M NaCl	Resolution 2.34 Å R-free 0.236
8UQ9 Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 4-residue linker Deposited 2023-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–147（146 aa）	Not recorded	CL CHLORIDE ION × 17 GOL GLYCEROL × 3 ZN ZINC ION × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (8.8 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 0.1 M HEPES, pH 7.5, 2.4 M NaCl	Resolution 2.30 Å R-free 0.206
8UQ9 Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 4-residue linker Deposited 2023-10-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain a 2–147（146 aa）	Not recorded	CL CHLORIDE ION × 19 GOL GLYCEROL × 3 ZN ZINC ION × 2 NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (8.8 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 0.1 M HEPES, pH 7.5, 2.4 M NaCl	Resolution 2.30 Å R-free 0.206
8UQA Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 12-residue linker Deposited 2023-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain K 2–147（146 aa）	Mutation：C85K in UbcH5c	NA SODIUM ION × 3 ZN ZINC ION × 2 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (8.0 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 0.1 M HEPES, pH 7.5, 2.4 M NaCl	Resolution 2.05 Å R-free 0.231
8UQB Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 20-residue linker (crystallization condition 1) Deposited 2023-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–147（146 aa）	Mutation：C85K in UbcH5c	ZN ZINC ION × 2 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (12 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 50 mM BIS-TRIS propane, pH 7.0, 1 M NaCl	Resolution 2.48 Å R-free 0.260
8UQC Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 20-residue linker (crystallization condition 2) Deposited 2023-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–147（146 aa）	Mutation：C85K in UbcH5c	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (12 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 4% tacsimate, pH 6, 13.5% PEG3350	Resolution 2.61 Å R-free 0.252
8UQD Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 20-residue linker (condition 2. RING not modeled in density) Deposited 2023-10-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–147（146 aa）	Mutation：C85K in UbcH5c	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (12 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 4% tacsimate, pH 6, 13.5% PEG3350	Resolution 3.89 Å R-free 0.322
8UQE Crystal structure of RNF168 (RING)-UbcH5c fused to H2A-H2B via a 26-residue linker (RING not modeled in density) Deposited 2023-10-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–147（146 aa）	Mutation：S22R,C85K in UbcH5c	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；288 K；Crystals were obtained by mixing 2 microliters of the protein fusion (10 mg/mL) in 10 mM HEPES, pH 7.5, 600 mM NaCl, 1 mM TCEP and 2 microliters of the reservoir solution containing 0.1 M imidazole, pH 6.5, 1.0 M sodium acetate	Resolution 3.56 Å R-free 0.268
8X7I Cryo-EM structures of RNF168/UbcH5c-Ub in complex with H2AK13Ub nucleosomes determined by intein-based E2-Ub-NCP conjugation strategy Deposited 2023-11-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain K 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.27 Å
8X7J Cryo-EM structures of RNF168/UbcH5c-Ub/nucleosomes complex determined by activity-based chemical trapping strategy Deposited 2023-11-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain K 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
8X7K Cryo-EM structures of RNF168/UbcH5c-Ub in complex with H2AK13Ub nucleosomes determined by activity-based chemical trapping strategy (adjacent H2AK13/15 dual-monoubiquitination) Deposited 2023-11-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain K 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.27 Å
9IPU cryo-EM structure of the RNF168(1-193)/UbcH5c-Ub ubiquitylation module bound to H1.0-K63-Ub3 modified chromatosome Deposited 2024-07-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain K 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9LPK Structure of human PADI6-UHRF1-UBE2D3 complex Deposited 2025-01-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–147（147 aa） Chain E 1–147（147 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.03 Å
9V9Q Cryo-EM structure of the cPRC1-UbcH5c E3-E2 complex bound to the H2BK120ub-modified nucleosome Deposited 2025-06-02	Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain P 1–147（147 aa）	Mutation：C85S, S22R	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.80 Å
9V9R Cryo-EM structure of the ncPRC1.1-UbcH5c E3-E2 complex bound to the H2BK120ub-modified nucleosome Deposited 2025-06-02	Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain P 1–147（147 aa）	Mutation：C85S, S22R	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.20 Å

45 other PDB entries and 50 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UB2D3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–155； UniProt 1–147 Author chain B； PDBConstruct 9–155； UniProt 1–147 Author chain C； PDBConstruct 9–155； UniProt 1–147 Author chain D； PDBConstruct 9–155； UniProt 1–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

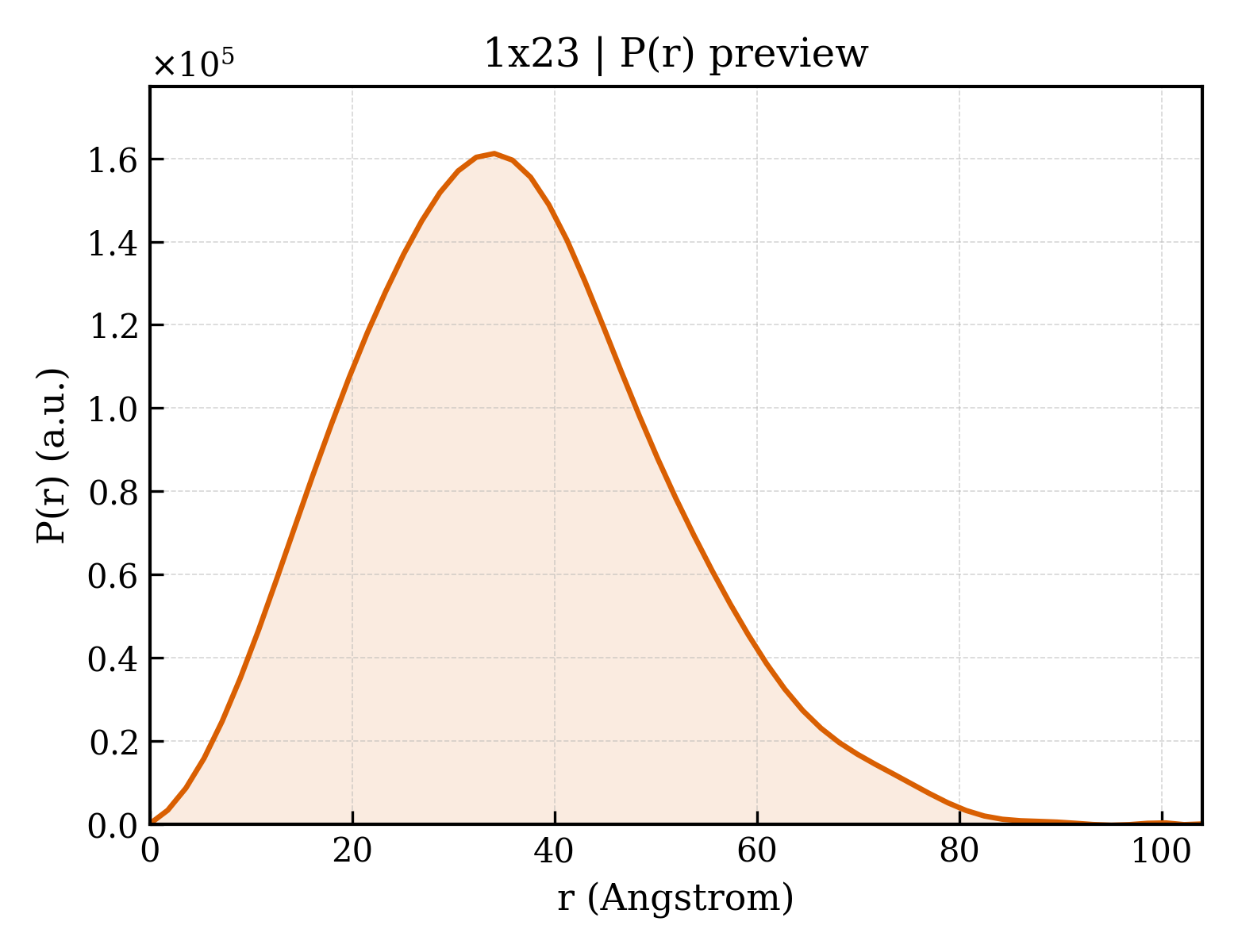

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x23
Deposition date deposition_date	2005-04-19
Structure title title	Crystal structure of ubch5c
Keywords keywords	Ubiquitin conjugating enzyme, Ubiquitin, E2, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.38 Å
Radius of gyration Rg (electron density) rg_electron	26.55 Å
Forward intensity I(0) i0	76130500.00
Molecular weight molecular_weight	69142.0 kDa
Excluded volume excluded_volume	86825 Å³
Envelope volume envelope_volume	107620 Å³
Hydration-shell volume shell_volume	33835 Å³
Envelope diameter envelope_diameter	92.4 Å
Shell Rg shell_rg	34.04 Å
Envelope Rg envelope_rg	26.75 Å
Shape Rg shape_rg	26.53 Å
Total Rg total_rg	27.40 Å
Total atoms total_atoms	4867
Residues n_residues	611
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	104.0 Å
Rg (real space) rg_real	27.33 Å
Rg uncertainty (real space) rg_real_error	1.19 Å
I(0) (real space) i0_real	7.6130e+07
I(0) uncertainty (real space) i0_real_error	1.3570e+06
Rg (reciprocal space) rg_reciprocal	27.34 Å
I(0) (reciprocal space) i0_reciprocal	76130000.0000
Solution quality estimate total_estimate	0.7350
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.1 Å
Skewness Skewness skewness	0.363
Kurtosis Kurtosis kurtosis	-0.144
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15070000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.530; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1x23a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d1x23a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1x23b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d1x23b3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1x23c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d1x23c3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1x23d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d1x23d3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1x23A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	1x23B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	1x23C00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	1x23D00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.998 Å
Unit-cell length b length_b	44.334 Å
Unit-cell length c length_c	97.584 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2038
R_work r_work	0.1995
R_free r_free	0.2822

Description description	Ubiquitin-conjugating enzyme E2 D3
Molecular weight formula_weight	17491.0 kDa
EC 编号 ec_number	6.3.2.19
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5544

Crystal structure of ubch5c

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-conjugating enzyme E2 D3

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (8 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	677

fit	/app/data/saxs_computation/x2/1x23/1x23.fit
pddf	/app/data/pr_computation/x2/1x23/1x23.pr.out
profile	/app/data/saxs_computation/x2/1x23/1x23.dat
