7jzv

Cryo-EM structure of the BRCA1-UbcH5c/BARD1 E3-E2 module bound to a nucleosome

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BRCA1,Ubiquitin-conjugating enzyme E2 D3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 10 DNA 2	BRCA1-associated RING domain protein 1 × 1 （Q99728） Histone H2A type 2-A × 2 （Q6FI13） Histone H2B type 1-K × 2 （O60814） Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Widom 601 153-bp × 1 Widom 601 153-bp × 1 ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A386IN42_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–105； UniProt 2–104

BRCA1,Ubiquitin-conjugating enzyme E2 D3

Homo sapiens

UniProt P61077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 10 DNA 2	BRCA1-associated RING domain protein 1 × 1 （Q99728） Histone H2A type 2-A × 2 （Q6FI13） Histone H2B type 1-K × 2 （O60814） Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Widom 601 153-bp × 1 Widom 601 153-bp × 1 ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UB2D3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 113–258； UniProt 2–147

BRCA1-associated RING domain protein 1

Homo sapiens

UniProt Q99728

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 10 DNA 2	BRCA1,Ubiquitin-conjugating enzyme E2 D3 × 1 （A0A386IN42,P61077） Histone H2A type 2-A × 2 （Q6FI13） Histone H2B type 1-K × 2 （O60814） Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Widom 601 153-bp × 1 Widom 601 153-bp × 1 ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BARD1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–115； UniProt 26–140

Histone H2A type 2-A

Homo sapiens

UniProt Q6FI13

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 10 DNA 2	BRCA1,Ubiquitin-conjugating enzyme E2 D3 × 1 （A0A386IN42,P61077） BRCA1-associated RING domain protein 1 × 1 （Q99728） Histone H2B type 1-K × 2 （O60814） Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Widom 601 153-bp × 1 Widom 601 153-bp × 1 ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A2A_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain N； PDBConstruct 5–133； UniProt 2–130 Author chain n； PDBConstruct 5–133； UniProt 2–130

Histone H2B type 1-K

Homo sapiens

UniProt O60814

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 10 DNA 2	BRCA1,Ubiquitin-conjugating enzyme E2 D3 × 1 （A0A386IN42,P61077） BRCA1-associated RING domain protein 1 × 1 （Q99728） Histone H2A type 2-A × 2 （Q6FI13） Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Widom 601 153-bp × 1 Widom 601 153-bp × 1 ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1K_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain O； PDBConstruct 1–125； UniProt 2–126 Author chain o； PDBConstruct 1–125； UniProt 2–126

Histone H3.2

Homo sapiens

UniProt Q71DI3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 10 DNA 2	BRCA1,Ubiquitin-conjugating enzyme E2 D3 × 1 （A0A386IN42,P61077） BRCA1-associated RING domain protein 1 × 1 （Q99728） Histone H2A type 2-A × 2 （Q6FI13） Histone H2B type 1-K × 2 （O60814） Histone H4 × 2 （P62805） Widom 601 153-bp × 1 Widom 601 153-bp × 1 ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain P； PDBConstruct 1–135； UniProt 2–136 Author chain p； PDBConstruct 1–135； UniProt 2–136

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 10 DNA 2	BRCA1,Ubiquitin-conjugating enzyme E2 D3 × 1 （A0A386IN42,P61077） BRCA1-associated RING domain protein 1 × 1 （Q99728） Histone H2A type 2-A × 2 （Q6FI13） Histone H2B type 1-K × 2 （O60814） Histone H3.2 × 2 （Q71DI3） Widom 601 153-bp × 1 Widom 601 153-bp × 1 ZINC ION × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain Q； PDBConstruct 1–102； UniProt 2–103 Author chain q； PDBConstruct 1–102； UniProt 2–103

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7jzv
Deposition date deposition_date	2020-09-02
Structure title title	Cryo-EM structure of the BRCA1-UbcH5c/BARD1 E3-E2 module bound to a nucleosome
Keywords keywords	Complex, Ubiquitin, Nucleosome, RING, ligase, LIGASE-DNA complex; LIGASE/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7jzv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7jzv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

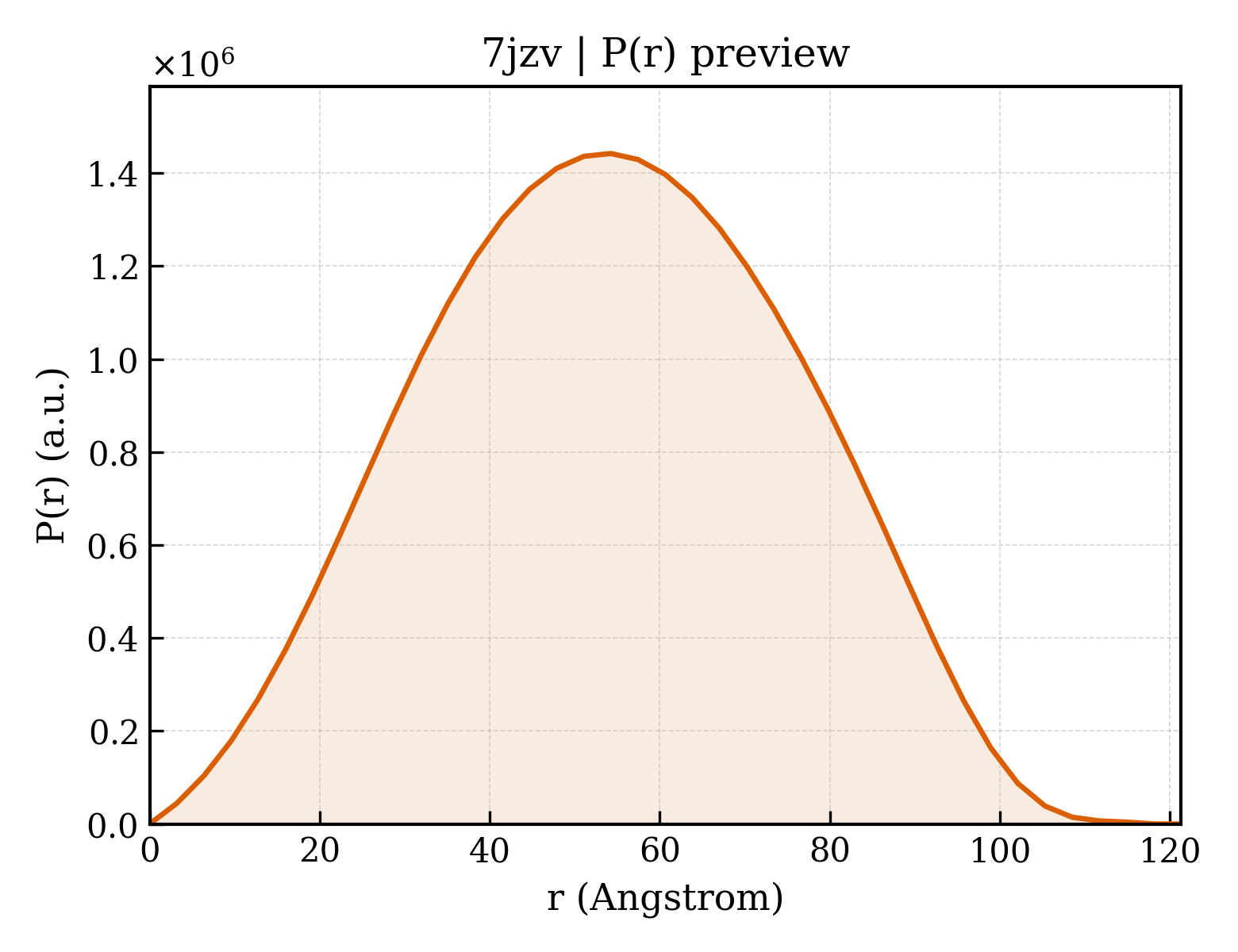

7jzv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.41 Å
Rg (electron density)	39.31 Å
Total Rg	39.90 Å
Atom count	14339
Residues	1371
Excluded volume	237820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7jzv__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	BRCA1,Ubiquitin-conjugating enzyme E2 D3
Molecular weight formula_weight	28974.5 kDa
EC 编号 ec_number	2.3.2.23,2.3.2.24,2.3.2.27
Mutation mutation	UbcH5c C85K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14339

GPDLSALRVEEVQNVINAMQKILECPICLELIKEPVSTKCDHIFCKFCMLKLLNQKKGPSQCPLCKNDITKRSLQESTRFSQLVEELLKIICAFQLDTGLEYANSGSGSGSGALKRINKELSDLARDPPAQCSAGPVGDDMFHWQATIMGPNDSPYQGGVFFLTIHFPTDYPFKPPKVAFTTRIYHPNINSNGSIKLDILRSQWSPALTISKVLLSICSLLCDPNPDDPLVPEIARIYKTDRDKYNRISREWTQKYAM

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	BRCA1-associated RING domain protein 1
Molecular weight formula_weight	12983.0 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEPDGRGAWAHSRAALDRLEKLLRCSRCTNILREPVCLGGCEHIFCSNCVSDCIGTGCPVCYTPAWIQDLKINRQLDSMIQLCSKLRNLLHDNELSDLKEDKPRKSLFNDAGNKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Histone H2A type 2-A
Molecular weight formula_weight	14310.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,n

GAMGSGRGKQGGKARAKAKSRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYMAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGKVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Histone H2B type 1-K
Molecular weight formula_weight	13790.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,o

PEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	Histone H3.2
Molecular weight formula_weight	15257.8 kDa
Mutation mutation	C110A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,p

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVGLFEDTNLAAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	Histone H4
Molecular weight formula_weight	11263.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q,q

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 7 Entity 7 polymer

Description description	Widom 601 153-bp
Molecular weight formula_weight	47457.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	X

ATCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGGAT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Widom 601 153-bp
Molecular weight formula_weight	46998.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	Y

ATCCTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGAT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	7jzvA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	7jzvA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

▶

Resolution resolution	3.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	21479
