8he5

RNA polymerase II elongation complex bound with Rad26 and Elf1, stalled at SHL(-3.5) of the nucleosome

Method: ELECTRON MICROSCOPY D_max: 209.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8he5
沉积日期 deposition_date	2022-11-07
结构标题 title	RNA polymerase II elongation complex bound with Rad26 and Elf1, stalled at SHL(-3.5) of the nucleosome
关键词 keywords	Transcription, RNA, DNA, Repair; TRANSCRIPTION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	77.52 Å
回转半径 Rg (电子) rg_electron	76.12 Å
零角强度 I(0) i0	8092610000.00
分子量 molecular_weight	694420.0 kDa
排除体积 excluded_volume	842110 Å³
包络体积 envelope_volume	1311800 Å³
水化壳体积 shell_volume	155020 Å³
包络直径 envelope_diameter	262.8 Å
壳层 Rg shell_rg	66.88 Å
包络 Rg envelope_rg	74.68 Å
形状 Rg shape_rg	76.03 Å
总 Rg total_rg	76.27 Å
总原子数 total_atoms	48360
残基数 n_residues	5576
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

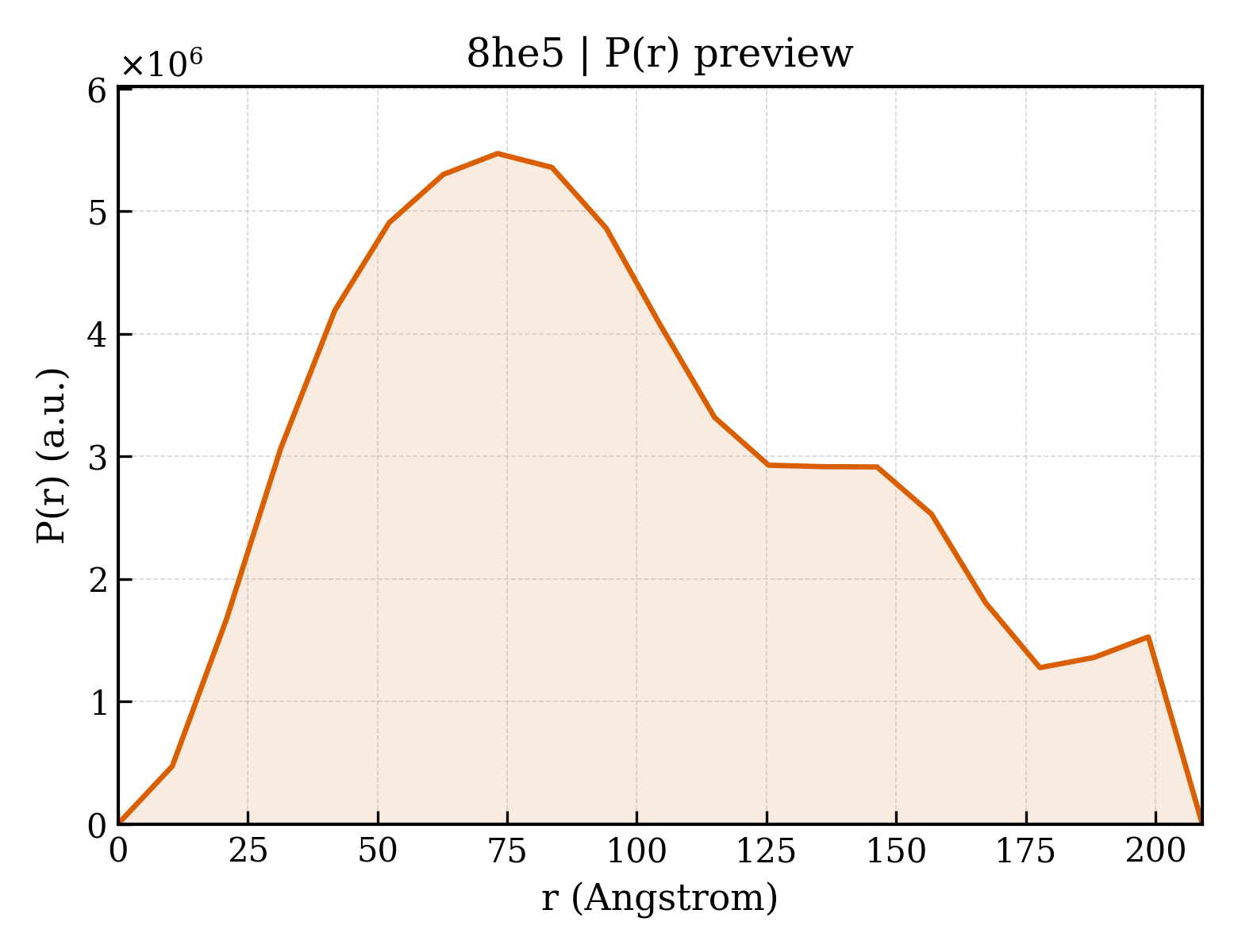

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	209.0 Å
Rg (实空间) rg_real	74.59 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	7.8710e+09
I(0) 误差 (实空间) i0_real_error	1.3170e+08
Rg (倒空间) rg_reciprocal	75.38 Å
I(0) (倒空间) i0_reciprocal	8046000000.0000
解质量估计 total_estimate	0.8685
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	73.2 Å
偏度 Skewness skewness	0.431
峰度 Kurtosis kurtosis	-0.648
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	0.1041
最高正则化参数 α highest_alpha	451300000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.840; Stabil: 0.969; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.107

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (23)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase subunit
分子量 formula_weight	194107.4 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	48360

MSQFPYSSAPLRSVKEVQFGLLSPEEIRAISVVKIEYPEIMDESRQRPREGGLNDPKLGSIDRNFKCQTCGEGMAECPGHFGHMELAKPVFHIGFIPKIKKVCECICMNCGKLLLDETNPTMAQAIRIRDPKKRFNAVWQLCKTKMVCEADAPVDEYSEQKVVSRGGCGNTQPVVRKDGMKLWGTWKKSGFSDRDAQPERKLLTPGEILNVFKHISPEDCFRLGFNEDYARPEWMIITVLPVPPPQVRPSIAMDETTQGQDDLTHKLSDILKANINVQKLEMDGSPQHIINEVEQLLQFHVATYMDNDIAGQPQALQKSGRPVKAIRARLKGKEGRLRGNLMGKRVDFSARTVISGDPNLELDQVGVPISIAKTLSYPETVTQYNIHRLTEYVRNGPNEHPGAKYVIRDNGDRIDLRYHKRAGDIVLQYGWKVERHLMDDDPVLFNRQPSLHKMSMMAHRVKVMPYSTFRLNLSVTSPYNADFDGDEMNLHVPQSEETRAELSQLCAVPLQIVSPQSNKPVMGIVQDTLCGVRKMTLRDTFIEYEQVMNMLFWVPSWDGVVPQPAILKPKPLWTGKQLLSIAIPSGIHLQRTDGGNSLLSPKDNGMLIVDGKVMFGVVDKKTVGSGGGGLIHTVMREKGPKICAELFGNIQKVVNYWLLHNGFSIGIGDAIADASTMKEITHAISSAKEQVQEIIYKAQHNELELKPGMTLRESFEGEVSRTLNDARDSAGRSAEMNLKDLNNVKQMVSAGSKGSFINIAQMSACVGQQMVEGKRIAFGFADRSLPHFTKDDFSPESKGFVENSYLRGLTPQEFFFHAMAGREGLIDTAVKTAETGYIQRRLVKALEDIMVHYDGTTRNSLGDIIQFLYGEDGLDGTQVERQTIDTIPGSDKAFHKRYYVDLMDEKNSIKPDVIEYAADILGDVELQKELNSEYEQLVSDRKFLREIVFVNGDHNWPLPVNLRRIIQNAQQIFHLDRAKASDLTIPEIIHGVRDLCKKLFVLRGENELIKEAQQNATSLFQCLVRARLATRRILEEFRLNRDAFEWVLGTIEAQFQRSLVHPGEMVGVIAAQSIGEPATQMTLNTFHYAGVSSKNVTLGVPRLKEILNVAKNIKTPALTVYLDREIALDIEKAKVIQSSIEYTTLKNVTSATEIYYDPDPTSTVIEEDFDTVEAYFSIPDEKVEETIDKQSPWLLRLELDRARMLDKQLTMNQVADKISEVFSDDLFVMWSEDNADKLIIRCRVIRDPKAMDEELEAEEDQMLKRIEAHMLDLIALRGIPGISKVYMVKHKVSVPDESGEYKNEELWALETDGINLAEVMAVPGVDSSRTYSNSFVEILSVLGIEATRSSLYKEILNVIAFDGSYVNYRHMALLVDVMTSRGYLMAITRHGINRADTGALMRCSFEETVEILFEAGAAAELDDCRGVSENVMLGQLAPMGTGAFDVMIDEKLLTSLPADYAPTMPLFKGKATQGSATPYDNNAQYDDEFNHDDVADVMFSPMAETGSGDDRSGGLTEYAGIQSPYQPTSPGLSATSPGFAPTSPGFAPTSPRYSPTSPGYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPTSPQYSPASPQYSPSRHSPNGESKEGE

Entity 2 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	139746.1 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSYDPYSIDDTITTEDCWTVISAFFEEKGLVSQQLDSFDEFMETSIQDLVWEEPRLILDQPAQHTNEKDNINKRYEIRFGKIYLSRPTMTEADGTTHAMFPQEARLRNLTYSSPVYLDMEKSMFTSIDDEGNPNATLDWQQVHEPIKDGVEEGNKVHIGKVPIMLRSKFCSLRTLDEVDLYKMKECPYDMGGYFVINGSEKVLIAQERSAANIVQVFKKAAPSPISHVAEIRSALEKGSRLISTMQIKLYGREDKGTGRTIKATLPYVKQDIPIVIVFRALGVVPDGEILQHICYDENDWQMLEMLKPCIEEGFVIQDKEVALDFIGRRGSAALGIRREKRIQYAKDILQKELLPHITQEEGFETRKTFFLGYMVNRLLLCALERKDQDDRDHFGKKRLDLAGPLLANLFRILFRKLTREIYRYMQRCIETDRDFNLNLAVKSTTITSGLKYSLATGNWGEQKKAMSSRAGVSQVLNRYTYSSTLSHLRRTNTPIGRDGKLAKPRQLHNTHWGLVCPAETPEGQACGLVKNLSLLSGISIGSPSEPIINFLEEWGMEPLEDYDPAQHTKSTRIFVNGVWTGIHRDPSMLVSTMRDLRRSGAISPEVSIIRDIREREFKIFTDVGRVYRPLFIVEDDESKDNKGELRITKEHIRKIQQGYDDDAMNDDSEEQEQDVYGWSSLVTSGVIEYVDGEEEETIMIAMTPEDLQTRSLEQKEIDLNDTAKRIKPEMSTSSHHTFTHCEIHPSMILGVAASIIPFPDHNQSPRNTYQSAMGKQAMGVFLTNYNVRMDTMANILYYPQKPLAKTQAMEYLKFRELPAGQNAIVAIACYSGYNQEDSMIMNQSSIDRGLFRSLFFRSYMDQEKRFGISIVEEFEKPTRATTLRLKHGTYEKLDEDGLIAPGVRVSGDDIIIGKTTPIPPDTEELGQRTKYHTKRDASTPLRSTENGIVDQVLLTTNQEGLKFVKVRMRTTKVPQIGDKFASRHGQKGTIGVTYRHEDMPFSAEGIVPDLIINPHAIPSRMTVAHLIECLLSKVGSIRGYEGDATPFTDLTVDAVSNLLRDNGYQSRGFEVMYNGHTGKKLMAQVFFGPTYYQRLRHMVDDKIHARARGPVQVLTRQPVEGRSRDGGLRFGEMERDCMIAHGAAGFLKERLMEASDAFRVHVCGICGLMSVIANLKKNQFECRSCKNKTNIYQLHIPYAAKLLFQELMAMNIAPRLYTERSGVSMRS

Entity 3 polymer

描述 description	RNA polymerase II third largest subunit B44, part of central core
分子量 formula_weight	34216.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSKEPKVNIINAQDDEVELMLSDVNLSLANSLRRTMLAEVPTLAIDLVEIKMNTSVLADEFISHRLGLIPLVSEDVEEMKYSRDCTCEDYCDECSVVLELSARHEGEEGTTDVYSSSLIKVSGPGNLNVGEPVRRDDYDQGILLCKLRNHQELNIRCIAKKGIAKEHAKWSPCSAIAFEYDPHNKLKHTDFWFEVDAKKEWPDSKYATWEEPPKPGEVFDYKAKPNRFYMTVETTGSLKANQVFSRGIKTLQEKLANVLFELENSRPANTTAYGGATAYGGQTVYGRETSYGGNTNYGDYNAPY

Entity 4 polymer

描述 description	RNA polymerase II subunit B32
分子量 formula_weight	20623.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MNVSTSTVGARRRRAKQQVDDEENATLLRLGPEFALKQYDHDGNEHDLIALSLSESRLLIREALKARSRARNGGVDIESSNGEIDDDELAKVTSGAVANGVVKKTLDYLNTFARFKDEETCTAVDQLLHNSSDCSVLHPFEIAQLSSLGCEDVDEAITLIPSLAAKKEVNLQRILDELNRLEDPYK

Entity 5 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC1
分子量 formula_weight	24962.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MEDNNRIISRLWRSFRTVKEMAADRGYFISQEEMDQSLEEFRSKICDSMGNPQRKLMSFLANPTPEALEKYSDLGTLWVEFCDEPSVGIKTMRNFCLRIQEKNFSTGIFIYQNNITPSANKMIPTVSPAIIETFQESDLVVNITHHELVPKHIRLSDGEKSQLLQRYKLKESQLPRIQREDPVARYLGLKRGQVVKIIRRSETSGRYASYRICL

Entity 6 polymer

描述 description	RNA polymerase subunit ABC23, common to RNA polymerases I, II, and III
分子量 formula_weight	17803.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MSEDEAFNEQTENFENFEDEHFSDDNFEDRSTQPEDYAVGVTADGRQIINGDGIQEVNGTIKAHRKRSNKELAILKEERTTTPYLTKYERARILGTRALQISMNAPVLVDIEGETDPLQIAMKELSQRKIPLVIRRYLPDGSYEDWGCDELIVDN

Entity 7 polymer

描述 description	RNA polymerase II subunit
分子量 formula_weight	18802.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MFFLKDLSLILTLHPSYFGPQMNQYLREKLLTDVEGTCTGQFGYIVTVLDGMNIDVGKGRIIPGSGSAEFEVKYRAVVWKPFKGEVVDAIVSNVSPIGFFADVGPLNVFVSTRLIPDNLVYNPSNSPPAYMSNDELITKGSKVRLKVVGTRTDVNEIYAIGSIKEDFLGAI

Entity 8 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC3
分子量 formula_weight	16249.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MSSALFDDIFTVQTVDNGRYNKVSRIIGISTTNSAIKLTLDINNEMFPVSQDDSLTVTLANSLSLDGEDESANFSKSWRPPKPTDKSLADDYDYVMFGTVYKFEEGDEDKIKVYVSFGGLLMCLEGGYKSLASLKQDNLYILIRR

Entity 9 polymer

描述 description	DNA-directed RNA polymerase subunit
分子量 formula_weight	13612.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MASFRFCLECNNMLYPKEDKENQRLLYSCRNCDYTELAEDPKVYRHELITNIGETAGIVDDIGQDPTLPRSDKECPECHSRDCVFFQSQQRRKDTNMTLFYVCLNCKKTFRDESE

Entity 10 polymer

描述 description	RNA polymerase subunit ABC10-beta, common to RNA polymerases I, II, and III
分子量 formula_weight	8554.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MIIPVRCFSCGKVVGDKWDAYLRLLEEGKQEGDALDELKLKRYCCRRMVLTHVDLIEKFLRYNPLEKKDFDS

Entity 11 polymer

描述 description	RNA polymerase II subunit B12.5
分子量 formula_weight	13832.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MNAPDRFELFILPDDVPKLKITPDSRVPNCIIIKFEREDHTLANLLREELALYPDVTFVAYKVEHPLFANFVMRLQTEEGTRPKQALERACASIINKLKTLDHKFNEEWNIKNFSLND

Entity 12 polymer

描述 description	RNA polymerase subunit ABC10-alpha
分子量 formula_weight	7862.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MSREGFVAPSGTDLAAAASGVAPNKHYGVKYTCGACAHNFSLNKSDPVRCKECGHRVIYKARTKRMIQFDAR

Entity 13 polymer

描述 description	Transcription elongation factor 1 homolog
分子量 formula_weight	12606.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

GPGMGKRKSSARKPAPKIKQKLETQFTCLFCNHDNSVVCTLDKKNSIGLLECKKCNLSFQAPINSLSQPIDIYSDWIDACEAVAEENADVNGDNFIENDGADREQDDDYDDEF

来源 Source

来源生物 organism	Komagataella phaffii
NCBI 分类编号 ncbi_taxonomy_id	460519
宿主生物 host_organism	Escherichia coli

Entity 14 polymer

描述 description	DNA (198-MER)
分子量 formula_weight	61381.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	N

GCTTACGTCAGTCTGGCCATCTTTGTGTTTGGTGTGTTTGGGTGGTGGCCGTTTTCGTTGTTTTTTTCTGTCTCGTGCCTGGTGTCTTGGGTGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTGAT

Entity 15 polymer

描述 description	DNA repair protein
分子量 formula_weight	125504.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

GPLGSHMNEEPDDLTSLGVELVGQDTLEHQIASMADTAMLERDKELELKRLEKTKSQIQKWQSKQRSLESKINSRNTKISERERFRKELKDIEENELKVLRDDLKEINTRLQETMKASSLKAKETLDEVEQLPNETKKDFLIRTGKITAFGSVNAFTQDNPEAPVEKSHQSLIAPGIDDDDDYVYPGEIEEIEEIETENESDDQAAIISSKKRKRARSIEHDDVYVNSDSTEDEYDTQTTRQSKDEIHNIDDGDDAFYNARLNAWVTKRSQKREVDANPDEEEWFKPHPTKQDAILDDDYRLPGDVYPALFDYQKTCVQWLWELYLQKVGGILGDEMGLGKTVQIISFIAGLHYTKKLNKPVIVVCPATVLRQWCNEFHRWWPPLRVVILHAIGTGLSGSRTSLQNEASIEKLLEEEEYGSTKSLASLKAESRVKELIDSVFTRGHVIITTYVGLRIYSKHLLKRDWGYAILDEGHKIRNPNSDISLTCKQLRTPNRVILSGTPIQNNLTELWSLFDFIFPGRLGTLPVFQNQFAIPINVGGYANATNLQVQVGYKCAVTLKDLISPYLLRRVKADVAKDLPKKSEMVLFCKLTAPQHALYEKFLRSDELSRILQGKRQVLYGIDILRKICNHPDLVDVHAKRRSKKDPTYGSASKSGKMQVVKKLLELWKSQGHKTLLFTQTRQMLDILESFLERLNAKGAEEEDFVPFKFLRMDGTTSIGVRQSLVDVFNNDPSYNVFLLTTRVGGLGVNLTGANRVIIYDPDWNPSTDVQARERAWRLGQKKDVTIYRLMIAGSIEEKIYHRQIFKQFLTNKILKDPKQRRFFKMNELQDLFTLGDPDEKGTETGDMFNGMEYNFKGTKPRHSQKLSNRERSEEPQDDLVKLAQINGVSGLQEFDGSKDEQMDSTSRQEEELMSGLFASSGVHSALQHDSIMDSTEPEQNEAELEARRIAAEAANSLRESRKLARKSKIGVPTWTGKFGSAGKILNKQRFRDNASGVSSSSILQSIRAKRDLDTKKKERPDFNNEDNDRKLLIRRINDFMLVQNGYKADSQTILNSFKEINNIILMRSMLKQICKWDSKEKVWILKDEYVE

来源 Source

来源生物 organism	Komagataella phaffii
NCBI 分类编号 ncbi_taxonomy_id	460519
宿主生物 host_organism	Escherichia coli

Entity 16 polymer

描述 description	;RNA (5'-R(PGPUPUPUPUPCPGPUPUPGPUPUPUPUPUPU)-3') ;
分子量 formula_weight	4969.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	P

GUUUUCGUUGUUUUUU

Entity 17 polymer

描述 description	DNA (198-MER)
分子量 formula_weight	60845.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T

ATCAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACACCCAAGACACCAGGCACGAGACAGCAAAAAACAACGAAAACGGCCACCACCCAAACACACCAAACACAAGAGCTAATTGACTGACGTAAGC

Entity 18 polymer

描述 description	Histone H3.1
分子量 formula_weight	15735.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,e

GSHMARTKQTARKSTGGKAPRKQLATKAARKSAPSTGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 19 polymer

描述 description	Histone H4
分子量 formula_weight	11676.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b,f

GSHMSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 20 polymer

描述 description	Histone H2A type 1-B/E
分子量 formula_weight	14447.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c,g

GSHMSGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 21 polymer

描述 description	Histone H2B type 1-J
分子量 formula_weight	14217.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d,h

GSHMPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 22 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	9

Entity 23 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	6.95 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	29751

fit	/app/data/saxs_computation/he/8he5/8he5.fit
pddf	/app/data/pr_computation/he/8he5/8he5.pr.out
profile	/app/data/saxs_computation/he/8he5/8he5.dat
