9e00

Cryo-EM structure of human DNMT3A2-DNMT3B3 complex bound to di-nucleosome

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 24 DNA 2	Histone H4 × 4 （P62805） Histone H2A × 4 Histone H2B × 4 DNA (321-MER) × 1 DNA (321-MER) × 1 Isoform 3 of DNA (cytosine-5)-methyltransferase 3B × 4 （Q9UBC3） DNA (cytosine-5)-methyltransferase 3A × 4 （Q9Y6K1） ZINC ION × 9 S-ADENOSYL-L-HOMOCYSTEINE × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 2–136 Author chain E； PDBConstruct 1–135； UniProt 2–136 Author chain M； PDBConstruct 1–135； UniProt 2–136 Author chain Q； PDBConstruct 1–135； UniProt 2–136

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 24 DNA 2	Histone H3.2 × 4 （Q71DI3） Histone H2A × 4 Histone H2B × 4 DNA (321-MER) × 1 DNA (321-MER) × 1 Isoform 3 of DNA (cytosine-5)-methyltransferase 3B × 4 （Q9UBC3） DNA (cytosine-5)-methyltransferase 3A × 4 （Q9Y6K1） ZINC ION × 9 S-ADENOSYL-L-HOMOCYSTEINE × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103 Author chain N； PDBConstruct 1–103； UniProt 1–103 Author chain R； PDBConstruct 1–103； UniProt 1–103

Isoform 3 of DNA (cytosine-5)-methyltransferase 3B

Homo sapiens

UniProt Q9UBC3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 24 DNA 2	Histone H3.2 × 4 （Q71DI3） Histone H4 × 4 （P62805） Histone H2A × 4 Histone H2B × 4 DNA (321-MER) × 1 DNA (321-MER) × 1 DNA (cytosine-5)-methyltransferase 3A × 4 （Q9Y6K1） ZINC ION × 9 S-ADENOSYL-L-HOMOCYSTEINE × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DNM3B_HUMAN
Isoform	Q9UBC3-3
PDB entities	7
Chains and sequence ranges	Author chain L； PDBConstruct 1–773； UniProt 1–770 Author chain V； PDBConstruct 1–773； UniProt 1–770 Author chain X； PDBConstruct 1–773； UniProt 1–770 Author chain Z； PDBConstruct 1–773； UniProt 1–770

DNA (cytosine-5)-methyltransferase 3A

Homo sapiens

UniProt Q9Y6K1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 24 DNA 2	Histone H3.2 × 4 （Q71DI3） Histone H4 × 4 （P62805） Histone H2A × 4 Histone H2B × 4 DNA (321-MER) × 1 DNA (321-MER) × 1 Isoform 3 of DNA (cytosine-5)-methyltransferase 3B × 4 （Q9UBC3） ZINC ION × 9 S-ADENOSYL-L-HOMOCYSTEINE × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DNM3A_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain K； PDBConstruct 1–689； UniProt 224–912 Author chain U； PDBConstruct 1–689； UniProt 224–912 Author chain W； PDBConstruct 1–689； UniProt 224–912 Author chain Y； PDBConstruct 1–689； UniProt 224–912

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9e00
Deposition date deposition_date	2024-10-17
Structure title title	Cryo-EM structure of human DNMT3A2-DNMT3B3 complex bound to di-nucleosome
Keywords keywords	DNMT3A2, DNMT3B3, DNA methylation, di-nucleosome, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9e00__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

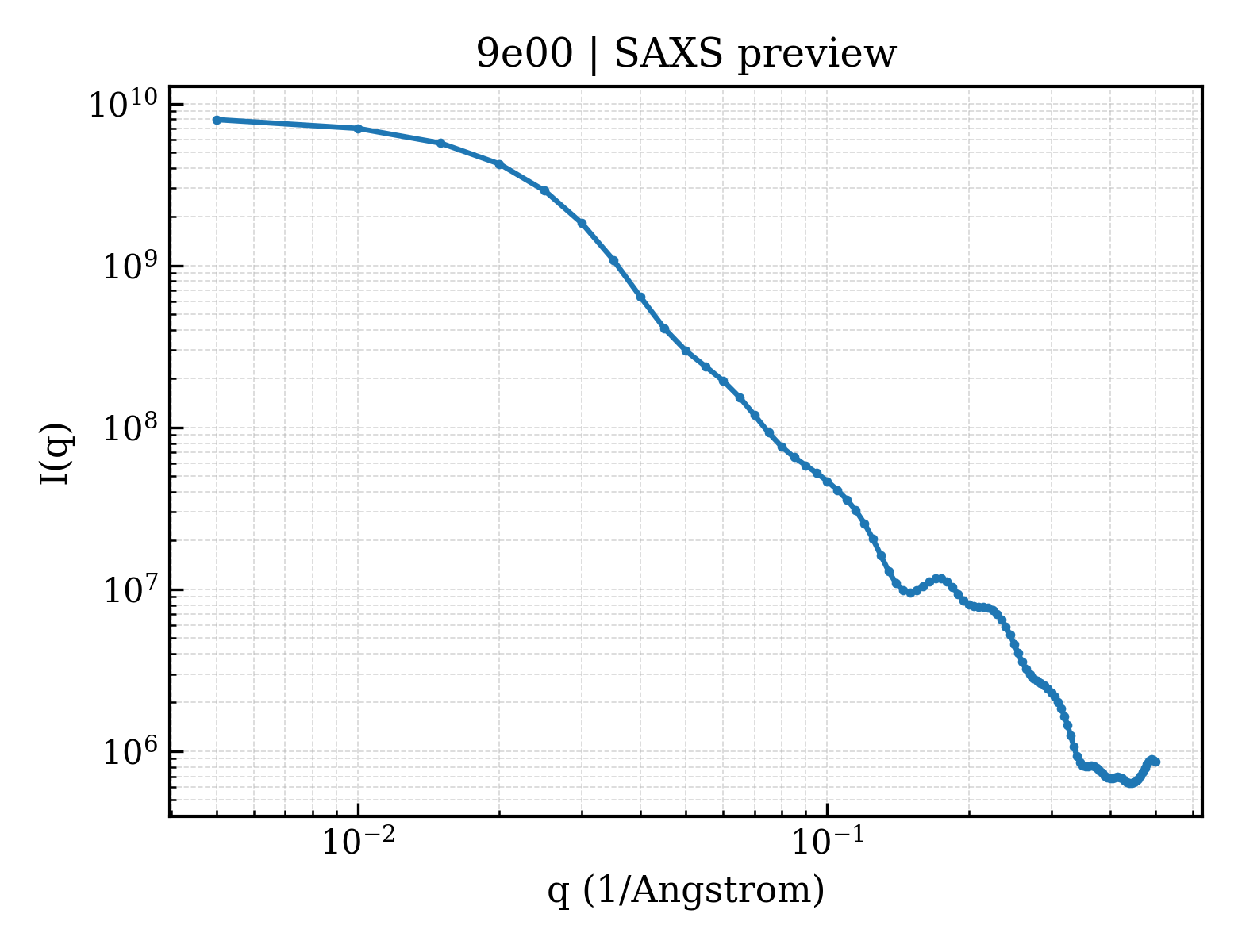

9e00__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9e00__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	70.59 Å
Rg (electron density)	70.35 Å
Total Rg	70.33 Å
Atom count	43873
Residues	4462
Excluded volume	739470 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9e00__assembly_1__model_1`	26-meric （26）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Histone H3.2
Molecular weight formula_weight	15303.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E,M,Q
Atom count atom_count	43873

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F,N,R

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	13978.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G,O,S

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSAKSK

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B
Molecular weight formula_weight	13655.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H,P,T

MAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA (321-MER)
Molecular weight formula_weight	99578.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

TCGGCCGCCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGCAGCTGCAACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGGGCGGCCGAT

Entity 6 Entity 6 polymer

Description description	DNA (321-MER)
Molecular weight formula_weight	98701.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCGGCCGCCCTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTTGCAGCTGCTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGGCGGCCGA

Entity 7 Entity 7 polymer

Description description	Isoform 3 of DNA (cytosine-5)-methyltransferase 3B
Molecular weight formula_weight	86702.4 kDa
EC 编号 ec_number	2.1.1.37
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V,Z,L,X

MKGDTRHLNGEEDAGGREDSILVNGACSDQSSDSPPILEAIRTPEIRGRRSSSRLSKREVSSLLSYTQDLTGDGDGEDGDGSDTPVMPKLFRETRTRSESPAVRTRNNNSVSSRERHRPSPRSTRGRQGRNHVDESPVEFPATRSLRRRATASAGTPWPSPPSSYLTIDLTDDTEDTHGTPQSSSTPYARLAQDSQQGGMESPQVEADSGDGDSSEYQDGKEFGIGDLVWGKIKGFSWWPAMVVSWKATSKRQAMSGMRWVQWFGDGKFSEVSADKLVALGLFSQHFNLATFNKLVSYRKAMYHALEKARVRAGKTFPSSPGDSLEDQLKPMLEWAHGGFKPTGIEGLKPNNTQPENKTRRRTADDSATSDYCPAPKRLKTNCYNNGKDRGDEKDYDQSREQMASDVANNKSSLEDGCLSCGRKNPVSFHPLFEGGLCQTCRDRFLELFYMYDDDGYQSYCTVCCEGRELLLCSNTSCCRCFCVECLEVLVGTGTAAEAKLQEPWSCYMCLPQRCHGVLRRRKDWNVRLQAFFTSDTGLEYEAPKLYPAIPAARRRPIRVLSLFDGIATGYLVLKELGIKVGKYVASEVCEESIAVGTVKHEGNIKYVNDVRNITKKNIEEWGPFDLVIGGSPCNDLSNVNPARKGLYEGTGRLFFEFYHLLNYSRPKEGDDRPFFWMFENVVAMKVGDKRDISRFLECNPVMIDAIKVSAAHRARYFWGNLPGMNRIFGFPVHYTDVSNMGRGARQKLLGRSWSVPVIRHLFAPLKDYFACE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera

Entity 8 Entity 8 polymer

Description description	DNA (cytosine-5)-methyltransferase 3A
Molecular weight formula_weight	77914.7 kDa
EC 编号 ec_number	2.1.1.37
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,Y,W,K

MNAVEENQGPGESQKVEEASPPAVQQPTDPASPTVATTPEPVGSDAGDKNATKAGDDEPEYEDGRGFGIGELVWGKLRGFSWWPGRIVSWWMTGRSRAAEGTRWVMWFGDGKFSVVCVEKLMPLSSFCSAFHQATYNKQPMYRKAIYEVLQVASSRAGKLFPVCHDSDESDTAKAVEVQNKPMIEWALGGFQPSGPKGLEPPEEEKNPYKEVYTDMWVEPEAAAYAPPPPAKKPRKSTAEKPKVKEIIDERTRERLVYEVRQKCRNIEDICISCGSLNVTLEHPLFVGGMCQNCKNCFLECAYQYDDDGYQSYCTICCGGREVLMCGNNNCCRCFCVECVDLLVGPGAAQAAIKEDPWNCYMCGHKGTYGLLRRREDWPSRLQMFFANNHDQEFDPPKVYPPVPAEKRKPIRVLSLFDGIATGLLVLKDLGIQVDRYIASEVCEDSITVGMVRHQGKIMYVGDVRSVTQKHIQEWGPFDLVIGGSPCNDLSIVNPARKGLYEGTGRLFFEFYRLLHDARPKEGDDRPFFWLFENVVAMGVSDKRDISRFLESNPVMIDAKEVSAAHRARYFWGNLPGMNRPLASTVNDKLELQECLEHGRIAKFSKVRTITTRSNSIKQGKDQHFPVFMNEKEDILWCTEMERVFGFPVHYTDVSNMSRLARQRLLGRSWSVPVIRHLFAPLKEYFACV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera

Entity 9 Entity 9 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 10 Entity 10 non-polymer

Description description	S-ADENOSYL-L-HOMOCYSTEINE
Molecular weight formula_weight	384.4 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.75 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	211221
