SAXSdb — 6t93

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 1-J × 2 （P06899） DNA (153-MER) × 1 DNA (153-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H31_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–139； UniProt 1–136 Author chain E； PDBConstruct 4–139； UniProt 1–136

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.1 × 2 （P68431） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 1-J × 2 （P06899） DNA (153-MER) × 1 DNA (153-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–106； UniProt 1–103 Author chain F； PDBConstruct 4–106； UniProt 1–103

Histone H2A type 1-B/E

Homo sapiens

UniProt P04908

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2B type 1-J × 2 （P06899） DNA (153-MER) × 1 DNA (153-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1B_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 4–133； UniProt 1–130 Author chain G； PDBConstruct 4–133； UniProt 1–130

Histone H2B type 1-J

Homo sapiens

UniProt P06899

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） DNA (153-MER) × 1 DNA (153-MER) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1J_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 4–129； UniProt 1–126 Author chain H； PDBConstruct 4–129； UniProt 1–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6t93
Deposition date deposition_date	2019-10-25
Structure title title	Nucleosome with OCT4-SOX2 motif at SHL-6
Keywords keywords	nucleosome, OCT4, SOX2, transcription factor, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6t93__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6t93__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

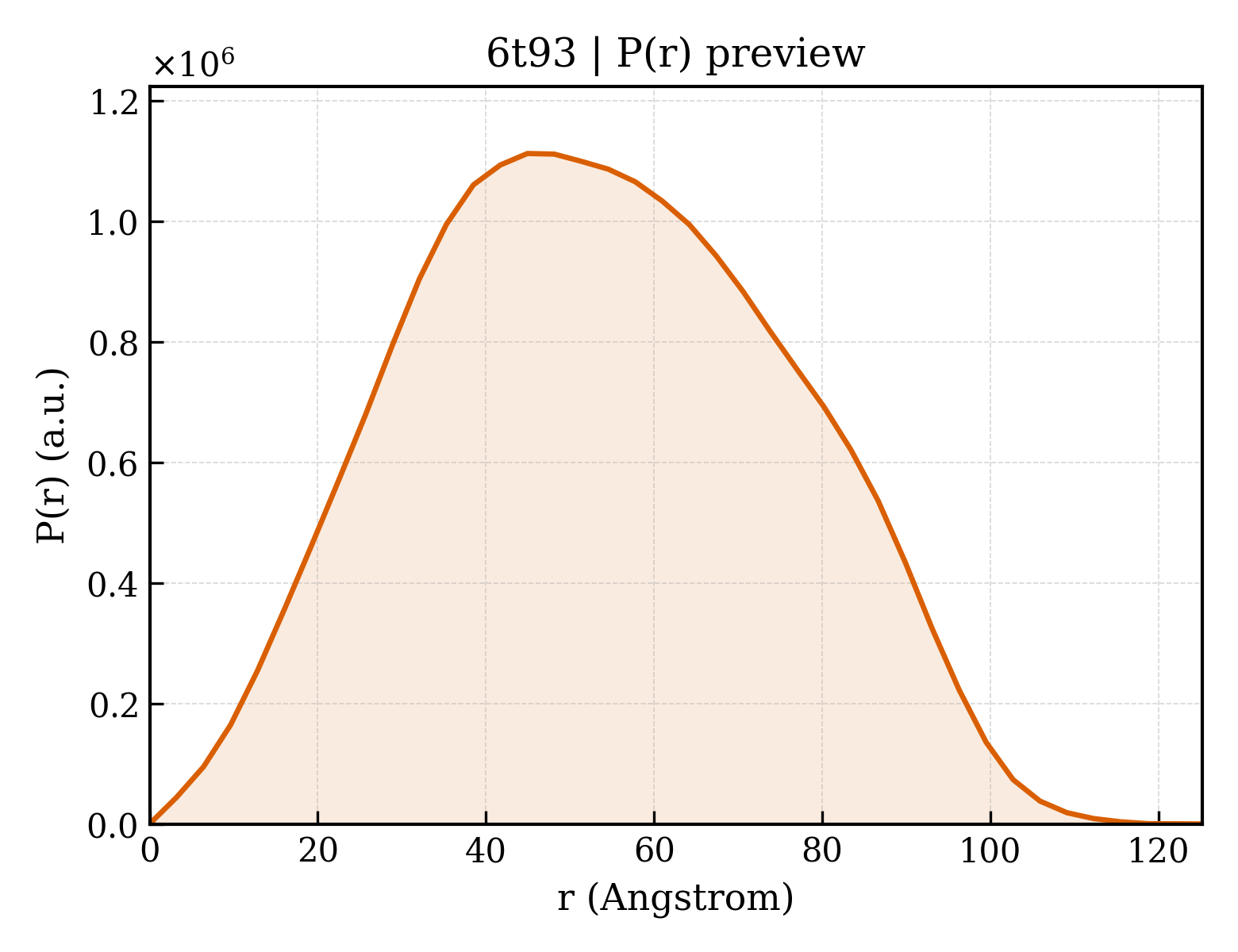

6t93__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.99 Å
Rg (electron density)	38.24 Å
Total Rg	38.94 Å
Atom count	12199
Residues	1060
Excluded volume	197940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6t93__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone H3.1
Molecular weight formula_weight	15719.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	12199

GSHMARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11676.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

GSHMSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1-B/E
Molecular weight formula_weight	14447.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

GSHMSGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 4 Entity 4 polymer

Description description	Histone H2B type 1-J
Molecular weight formula_weight	14217.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

GSHMPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 5 Entity 5 polymer

Description description	DNA (153-MER)
Molecular weight formula_weight	46962.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCCTGGAGACTTTGTTATGCAAATCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGAT

Entity 6 Entity 6 polymer

Description description	DNA (153-MER)
Molecular weight formula_weight	47487.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGATTTGCATAACAAAGTCTCCAGGAT

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	6t93B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6t93C00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6t93D00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6t93F00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6t93G00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	6t93H00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.49 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	6302
