9tay

Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome

Method: ELECTRON MICROSCOPY D_max: 286.5 Å Quality: EXCELLENT

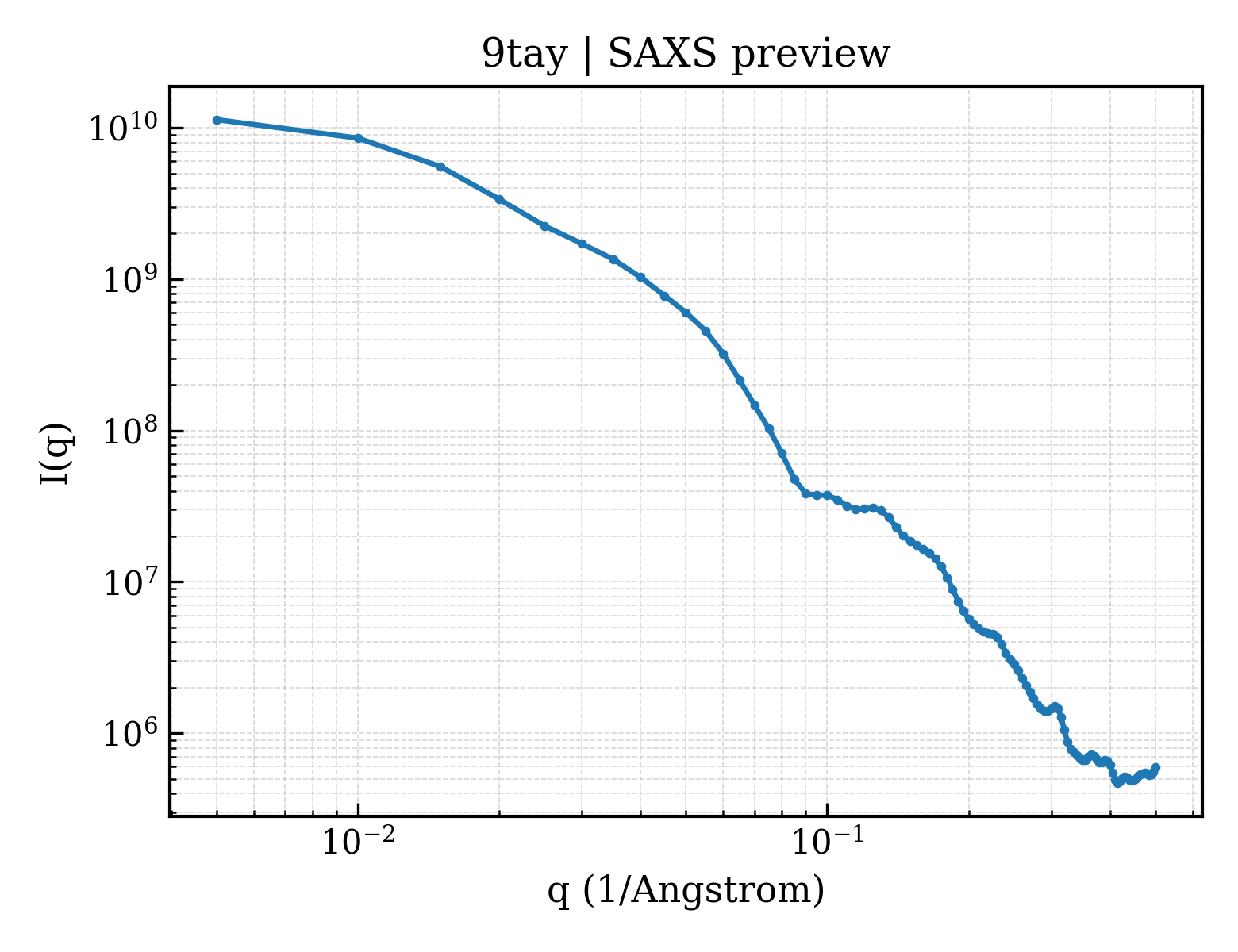

SAXS Profile

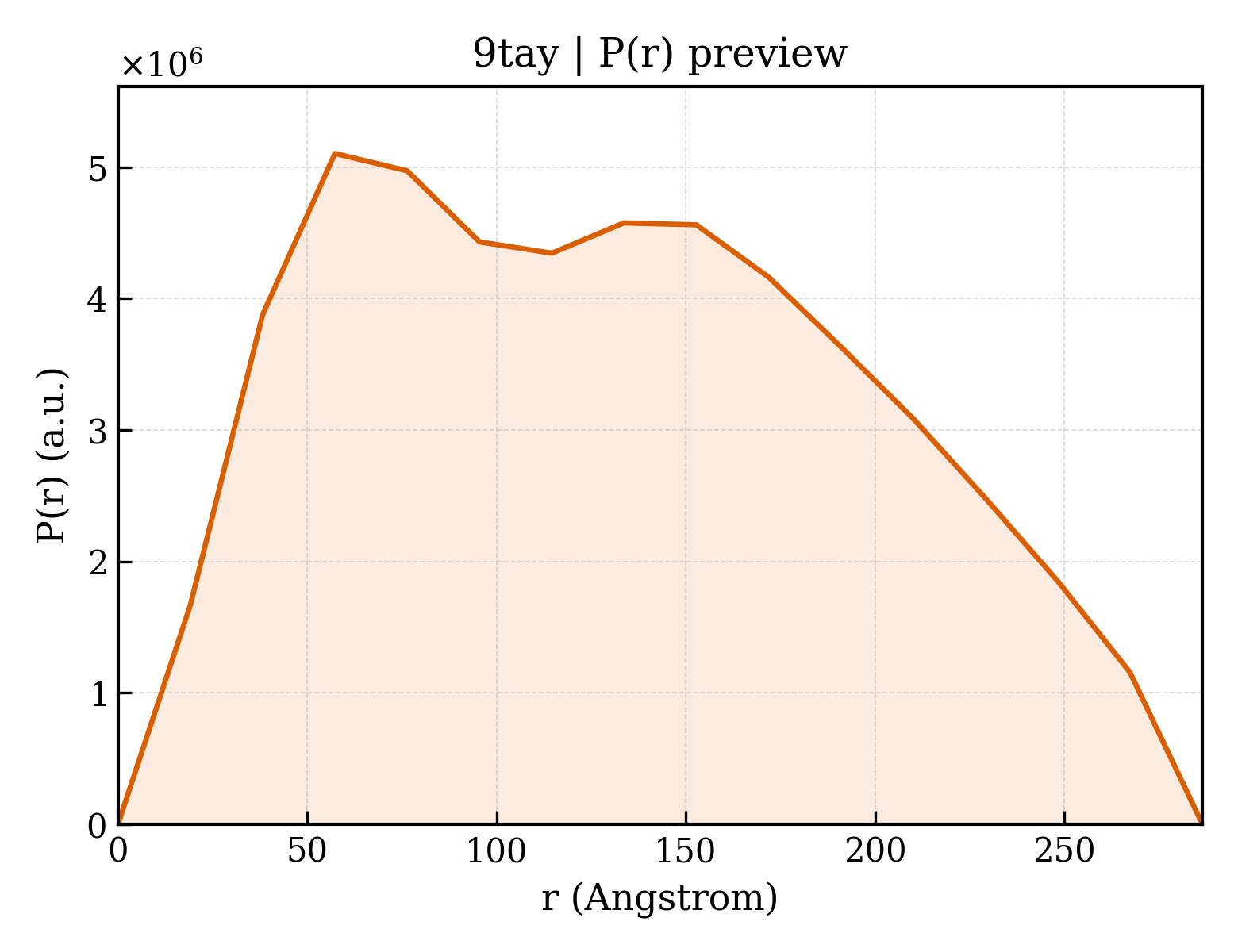

P(r) Distribution

▼

1. Structure Basics

entry_id	9tay
deposition_date	2025-11-18
title	Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome
keywords	Centromeres, Kinetochores, CELL CYCLE; CELL CYCLE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	— Å
rg_electron	104.80 Å
i0	12475000000.00
molecular_weight	828450.0 kDa
excluded_volume	986940 Å³
envelope_volume	1922100 Å³
shell_volume	166410 Å³
envelope_diameter	332.7 Å
shell_rg	79.74 Å
envelope_rg	99.80 Å
shape_rg	104.70 Å
total_rg	105.10 Å
total_atoms	57462
n_residues	6201
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	286.5 Å
rg_real	102.90 Å
rg_real_error	1.20 Å
i0_real	1.1980e+10
i0_real_error	2.5580e+08
rg_reciprocal	99.23 Å
i0_reciprocal	12150000000.0000
total_estimate	0.9042
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	57.3 Å
skewness	0.225
kurtosis	-0.938
angular_range	— – 0.0750 Å⁻¹
current_alpha	1.1240
highest_alpha	303600000.0000
n_real_points	16
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 0.966; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (22)

Entity 1 polymer

description	Centromere protein H
formula_weight	28520.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H
atom_count	57462

MEEQPQMQDADEPADSGGEGRAGGPPQVAGAQAACSEDRMTLLLRLRAQTKQQLLEYKSMVDASEEKTPEQIMQEKQIEAKIEDLENEIEEVKVAFEIKKLALDRMRLSTALKKNLEKISRQSSVLMDNMKHLLELNKLIMKSQQESWDLEEKLLDIRKKRLQLKQASESKLLEIQTEKNKQKIDLDSMENSERIKIIRQNLQMEIKITTVIQHVFQNLILGSKVNWAEDPALKEIVLQLEKNVDMM

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	Centromere protein I
formula_weight	87615.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

MSPQKRVKNVQAQNRTSQGSSSFQTTLSAWKVKQDPSNSKNISKHGQNNPVGDYEHADDQAEEDALQMAVGYFEKGPIKASQNKDKTLEKHLKTVENVAWKNGLASEEIDILLNIALSGKFGNAVNTRILKCMIPATVISEDSVVKAVSWLCVGKCSGSTKVLFYRWLVAMFDFIDRKEQINLLYGFFFASLQDDALCPYVCHLLYLLTKKENVKPFRVRKLLDLQAKMGMQPHLQALLSLYKFFAPALISVSLPVRKKIYFKNSENLWKTALLAVKQRNRGPSPEPLKLMLGPANVRPLKRKWNSLSVIPVLNSSSYTKECGKKEMSLSDCLNRSGSFPLEQLQSFPQLLQNIHCLELPSQMGSVLNNSLLLHYINCVRDEPVLLRFYYWLSQTLQEECIWYKVNNYEHGKEFTNFLDTIIRAECFLQEGFYSCEAFLYKSLPLWDGLCCRSQFLQLVSWIPFSSFSEVKPLLFDHLAQLFFTSTIYFKCSVLQSLKELLQNWLLWLSMDIHMKPVTNSPLETTLGGSMNSVSKLIHYVGWLSTTAMRLESNNTFLLHFILDFYEKVCDIYINYNLPLVVLFPPGIFYSALLSLDTSILNQLCFIMHRYRKNLTAAKKNELVQKTKSEFNFSSKTYQEFNHYLTSMVGCLWTSKPFGKGIYIDPEILEKTGVAEYKNSLNVVHHPSFLSYAVSFLLQESPEERTVNVSSIRGKKWSWYLDYLFSQGLQGLKLFIRSSVHHSSIPRAEGINCNNQYENLYFQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 3 polymer

description	Centromere protein K
formula_weight	31696.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

MNQEDLDPDSTTDVGDVTNTEEELIRECEEMWKDMEECQNKLSLIGTETLTDSNAQLSLLIMQVKCLTAELSQWQKKTPETIPLTEDVLITLGKEEFQKLRQDLEMVLSTKESKNEKLKEDLEREQRWLDEQQQIMESLNVLHSELKNKVETFSESRIFNELKTKMLNIKEYKEKLLSTLGEFLEDHFPLPDRSVKKKKKNIQESSVNLITLHEMLEILINRLFDVPHDPYVKISDSFWPPYVELLLRNGIALRHPEDPTRIRLEAFHQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 4 polymer

description	Centromere protein L
formula_weight	39364.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

GPLGMDSYSAPESTPSASSRPEDYFIGATPLQKRLESVRKQSSFILTPPRRKIPQCSQLQEDVDPQKVAFLLHKQWTLYSLTPLYKFSYSNLKEYSRLLNAFIVAEKQKGLAVEVGEDFNIKVIFSTLLGMKGTQRDPEAFLVQIVSKSQLPSENREGKVLWTGWFCCVFGDSLLETVSEDFTCLPLFLANGAESNTAIIGTWFQKTFDCYFSPLAINAFNLSWMAAMWTACKMDHYVATTEFLWSVPCSPQSLDISFAIHPEDAKALWDSVHKTPGEVTQEEVDLFMDCLYSHFHRHFKIHLSATRLVRVSTSVASAHTDGKIKILCHKYLIGVLAYLTELAIFQIE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 5 polymer

description	Centromere protein M
formula_weight	19761.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M

MSVLRPLDKLPGLNTATILLVGTEDALLQQLADSMLKEDCASELKVHLAKSLPLPSSVNRPRIDLIVFVVNLHSKYSLQNTEESLRHVDASFFLGKVCFLATGAGRESHCSIHRHTVVKLAHTYQSPLLYCDLEVEGFRATMAQRLVRVLQICAGHVPGVSALNLLSLLRSSEGPSLEDL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 6 polymer

description	Centromere protein N
formula_weight	40541.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	N

MDETVAEFIKRTILKIPMNELTTILKAWDFLSENQLQTVNFRQRKESVVQHLIHLCEEKRASISDAALLDIIYMQFHQHQKVWEVFQMSKGPGEDVDLFDMKQFKNSFKKILQRALKNVTVSFRETEENAVWIRIAWGTQYTKPNQYKPTYVVYYSQTPYAFTSSSMLRRNTPLLGQALTIASKHHQIVKMDLRSRYLDSLKAIVFKQYNQTFETHNSTTPLQERSLGLDINMDSRIIHENIVEKERVQRITQETFGDYPQPQLEFAQYKLETKFKSGLNGSILAERKEPLRCLIKFSSPHLLEALKSLAPAGIADAPLSPLLTCIPNKRMNYFKIRDKSDLEVLFQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 7 polymer

description	Centromere protein O
formula_weight	33830.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	O

MEQANPLRPDGESKGGVLAHLERLETQVSRSRKQSEELQSVQAQEGALGTKIHKLRRLRDELRAVVRHRRASVKACIANVEPNQTVEINEQEALEEKLENVKAILQAYHFTGLSGKLTSRGVCVCISTAFEGNLLDSYFVDLVIQKPLRIHHHSVPVFIPLEEIAAKYLQTNIQHFLFSLCEYLNAYSGRKYQADRLQSDFAALLTGPLQRNPLCNLLSFTYKLDPGGQSFPFCARLLYKDLTATLPTDVTVTCQGVEVLSTSWEEQRASHETLFCTKPLHQVFASFTRKGEKLDMSLVS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 8 polymer

description	Centromere protein Q
formula_weight	24634.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Q

MTKHTNLKHGKTAASKRKTWQPLSKSTRDHLQTMMESVIMTILSNSIKEKEEIQYHLNFLKKRLLQQCETLKVPPKKMEDLTNVSSLLNMERARDKANEEGLALLQEEIDKMVETTELMTGNIQSLKNKIQILASEVEEEEERVKQMHQINSSGVLSLPELSQKTLKAPTLQKEILALIPNQNALLKDLDILHNSSQMKSMSTFIEEAYKKLDAS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 9 polymer

description	Centromere protein U
formula_weight	24484.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	U

MKTSDIKELNIVLPEFEKTHLEHQQRIESKVCKAAIATFYVNVKEQFIKMLKESQMLTNLKRKNAKMISDIEKKRQRMIEVQDELLRLEPQLKQLQTKYDELKERKSSLRNAAYFLSNLKQLYQDYSDVQAQEPNVKETYDSSSLPALLFKARTLLGAESHLRNINHQLEKLLDQGENLYFQSWSHPQFEKGGGSGGGSGGGSWSHPQFEK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 10 polymer

description	Centromere protein P
formula_weight	33210.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	P

MDAELAEVRALQAEIAALRRACEDPPAPWEEKSRVQKSFQAIHQFNLEGWKSSKDLKNQLGHLESELSFLSTLTGINIRNHSKQTEDLTSTEMTEKSIRKVLQRHRLSGNCHMVTFQLEFQILEIQNKERLSSAVTDLNIIMEPTECSELSEFVSRAEERKDLFMFFRSLHFFVEWFEYRKRTFKHLKEKYPDAVYLSEGPSSCSMGIRSASRPGFELVIVWRIQIDEDGKVFPKLDLLTKVPQRALELDKNRAIETAPLSFRTLVGLLGIEAALESLIKSLCAEENN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 11 polymer

description	Centromere protein R
formula_weight	20228.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MPVKRSLKLDGLLEENSFDPSKITRKKSVITYSPTTGTCQMSLFASPTSSEEQKHRNGLSNEKRKKLNHPSLTESKESTTKDNDEFMMLLSKVEKLSEEIMEIMQNLSSIQALEGSRELENLIGISCASHFLKREMQKTKELMTKVNKQKLFEKSTGLPHKASRHLDSYEFLKAILN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 12 polymer

description	Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T
formula_weight	84067.7 kDa
ec_number	2.1.1.63
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	T

MSYYHHHHHHDYDIPTTENLYFQGMDKDCEMKRTTLDSPLGKLELSGCEQGLHRIIFLGKGTSAADAVEVPAPAAVLGGPEPLMQATAWLNAYFHQPEAIEEFPVPALHHPVFQQESFTRQVLWKLLKVVKFGEVISYSHLAALAGNPAATAAVKTALSGNPVPILIPCHRVVQGDLDVGGYEGGLAVKEWLLAHEGHRLGKPGLGSDLEVLFQGPMADHNPDSDSTPRTLLRRVLDTADPRTPRRPRSARAGARRALLETASPRKLSGQTRTIARGRSHGARSVGRSAHIQASGHLEEQTPRTLLKNILLTAPESSILMPESVVKPVPAPQAVQPSRQESSCGSLELQLPELEPPTTLAPGLLAPGRRKQRLRLSVFQQGVDQGLSLSQEPQGNADASSLTRSLNLTFATPLQPQSVQRPGLARRPPARRAVDVGAFLRDLRDTSLAPPNIVLEDTQPFSQPMVGSPNVYHSLPCTPHTGAEDAEQAAGRKTQSSGPGLQKNSPGKPAQFLAGEAEEVNAFALGFLSTSSGVSGEDEVEPLHDGVEEAEKKMEEEGVSVSEMEATGAQGPSRVEEAEGHTEVTEAEGSQGTAEADGPGASSGDEDASGRAASPESASSTPESLQARRHHQFLEPAPAPGAAVLSSEPAEPLLVRHPPRPRTTGPRPRQDPHKAGLSHYVKLFSFYAKMPMERKALEMVEKCLDKYFQHLCDDLEVFAAHAGRKTVKPEDLELLMRRQGLVTDQVSLHVLVERHLPLEYRQLLIPCAYSGNSVFPAQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 13 polymer

description	Centromere protein W
formula_weight	10087.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	W

MALSTIVSQRKQIKRKAPRGFLKRVFKRKKPQLRLEKSGDLLVHLNCLLFVHRLAEESRTNACASKCRVINKEHVLAAAKVILKKSRG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 14 polymer

description	Centromere protein S
formula_weight	15917.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	S

MEEEAETEEQQRFSYQQRLKAAVHYTVGCLCEEVALDKEMQFSKQTIAAISELTFRQCENFAKDLEMFARHAKRTTINTEDVKLLARRSNSLLKYITDKSEEIAQINLERKAQKKKKSEDGSKNSRQPAEAGVVESEN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 15 polymer

description	Centromere protein X
formula_weight	8972.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	X

MEGAGAGSGFRKELVSRLLHLHFKDDKTKVSGDALQLMVELLKVFVVEAAVRGVRQAQAEDALRVDVDQLEKVLPQLLLDF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 16 polymer

description	Histone H3-like centromeric protein A
formula_weight	16023.6 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,E,c,g

MGPRRRSRKPEAPRRRSPSPTPTPGPSRRGPSLGASSHQHSRRRQGWLKEIRKLQKSTHLLIRKLPFSRLAREICVKFTRGVDFNWQAQALLALQEAAEAFLVHLFEDAYLLTLHAGRVTLFPKDVQLARRIRGLEEGLG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 17 polymer

description	Histone H4
formula_weight	11394.4 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	B,F,d,h

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 18 polymer

description	Histone H2A type 1-C
formula_weight	16666.3 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	C,G,e,i

MGSSHHHHHHSPGLEVLFQGPRGMSGRGKQGGKARAKAKSRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 19 polymer

description	Histone H2B type 1-C/E/F/G/I
formula_weight	13937.2 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	D,J,f,j

MPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSSK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 20 polymer

description	DNA (318-MER)
formula_weight	99810.6 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	V

ATCAGGAAATATCTTCACATAAAAACTAGACAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCTTGTAGTATCTGCAAGTGGACATTCGGAGCACTTTGTGGCCTTCGTTGGAAACGGGAATATGTTCACATAAAAACTAGACAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCTTGTAGTATCTGGAATTGGACATTTGGAGAT

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 21 polymer

description	DNA (318-MER)
formula_weight	100290.8 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	Y

ATCTCCAAATGTCCAATTCCAGATACTACAAGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGTCTAGTTTTTATGTGAACATATTCCCGTTTCCAACGAAGGCCACAAAGTGCTCCGAATGTCCACTTGCAGATACTACAAGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGTCTAGTTTTTATGTGAAGATATTTCCTGAT

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 22 polymer

description	scFv
formula_weight	29161.3 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	Z,a,m,n

MMKSSHHHHHHENLYFQSNAMEVQLQQSGPELVEPGTSVKMPCKASGYTFTSYTIQWVKQTPRQGLEWIGYIYPYNAGTKYNEKFKGKATLTSDKSSSTVYMELSSLTSEDSAVYYCARKSSRLRSTLDYWGQGTSVTVSSGGGGSGGGGSGGGGSMDIKMTQSPSSMHASLGERVTITCKASQDIRSYLSWYQQKPWKSPKTLIYYATSLADGVPSRFSGSGSGQDFSLTINNLESDDTATYYCLQHGESPYTFGSGTKLEIKRA

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Escherichia coli

▶

6. Citations (1)

▶

resolution	15.500 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	15.50 Å
resolution_method	—
num_particles	15057

fit	/app/data/saxs_computation/ta/9tay/9tay.fit
pddf	/app/data/pr_computation/ta/9tay/9tay.pr.out
profile	/app/data/saxs_computation/ta/9tay/9tay.dat
