1eh7
METHYLATED HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1eh7 |
| deposition_date | 2000-02-18 |
| title | METHYLATED HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE |
| keywords | ALKYLTRANSFERASE, METHYLTRANSFERASE, DNA REPAIR, TRANSFERASE; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.69 Å |
| rg_electron | 15.32 Å |
| i0 | 5700370.00 |
| molecular_weight | 17572.0 kDa |
| excluded_volume | 22188 ų |
| envelope_volume | 25147 ų |
| shell_volume | 13942 ų |
| envelope_diameter | 55.0 Å |
| shell_rg | 21.08 Å |
| envelope_rg | 15.59 Å |
| shape_rg | 15.29 Å |
| total_rg | 16.54 Å |
| total_atoms | 1233 |
| n_residues | 161 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

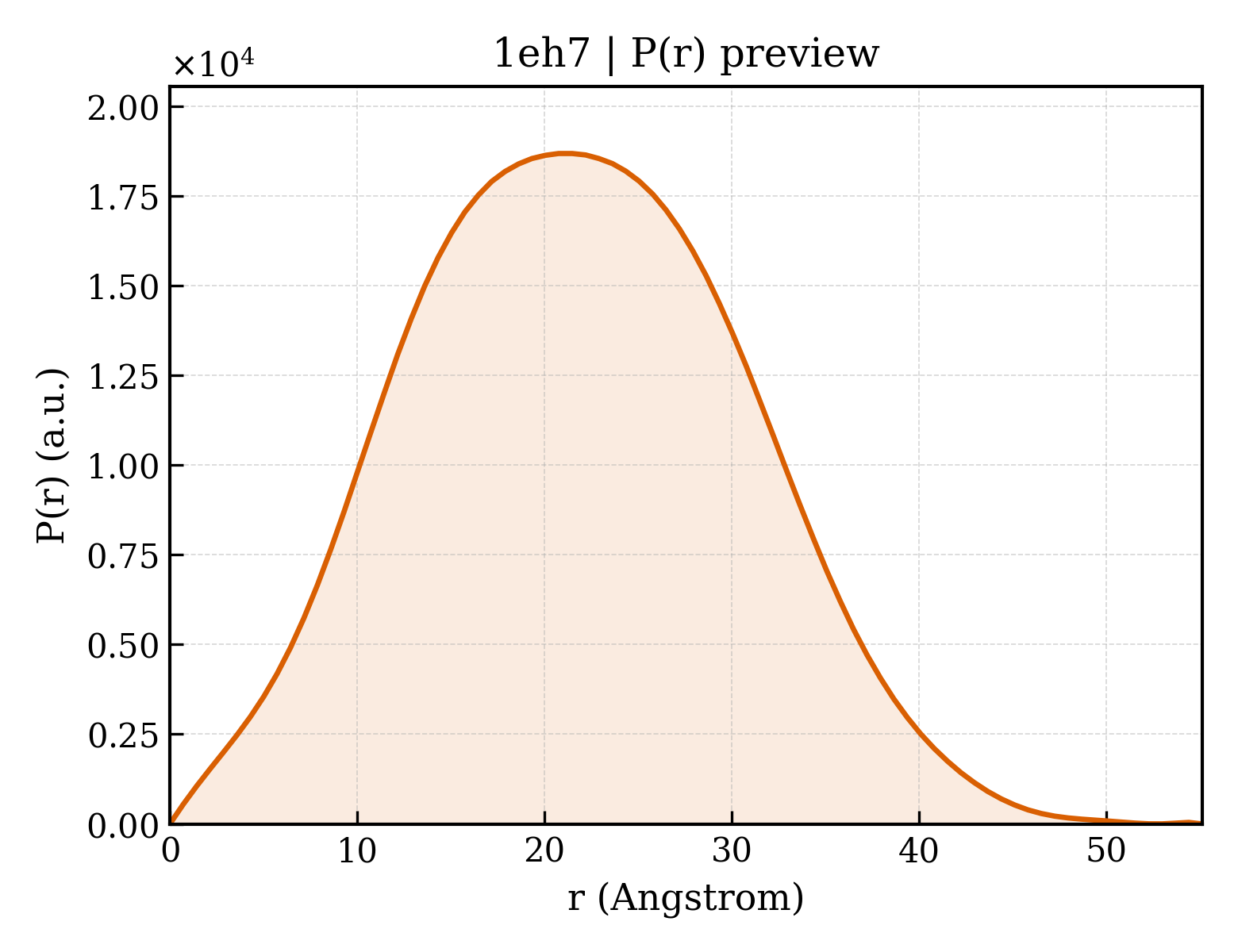

3. P(r) Analysis (GNOM)
| dmax | 55.1 Å |
| rg_real | 16.59 Å |
| rg_real_error | 0.32 Å |
| i0_real | 5.7000e+06 |
| i0_real_error | 7.5670e+04 |
| rg_reciprocal | 16.61 Å |
| i0_reciprocal | 5700000.0000 |
| total_estimate | 0.8823 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 54.4 Å |
| skewness | 0.129 |
| kurtosis | -0.421 |
| angular_range | — – 0.4750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1130000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.979 |
