28op

Structure of the human inner kinetochore CCAN and CENP-C bound to DNA

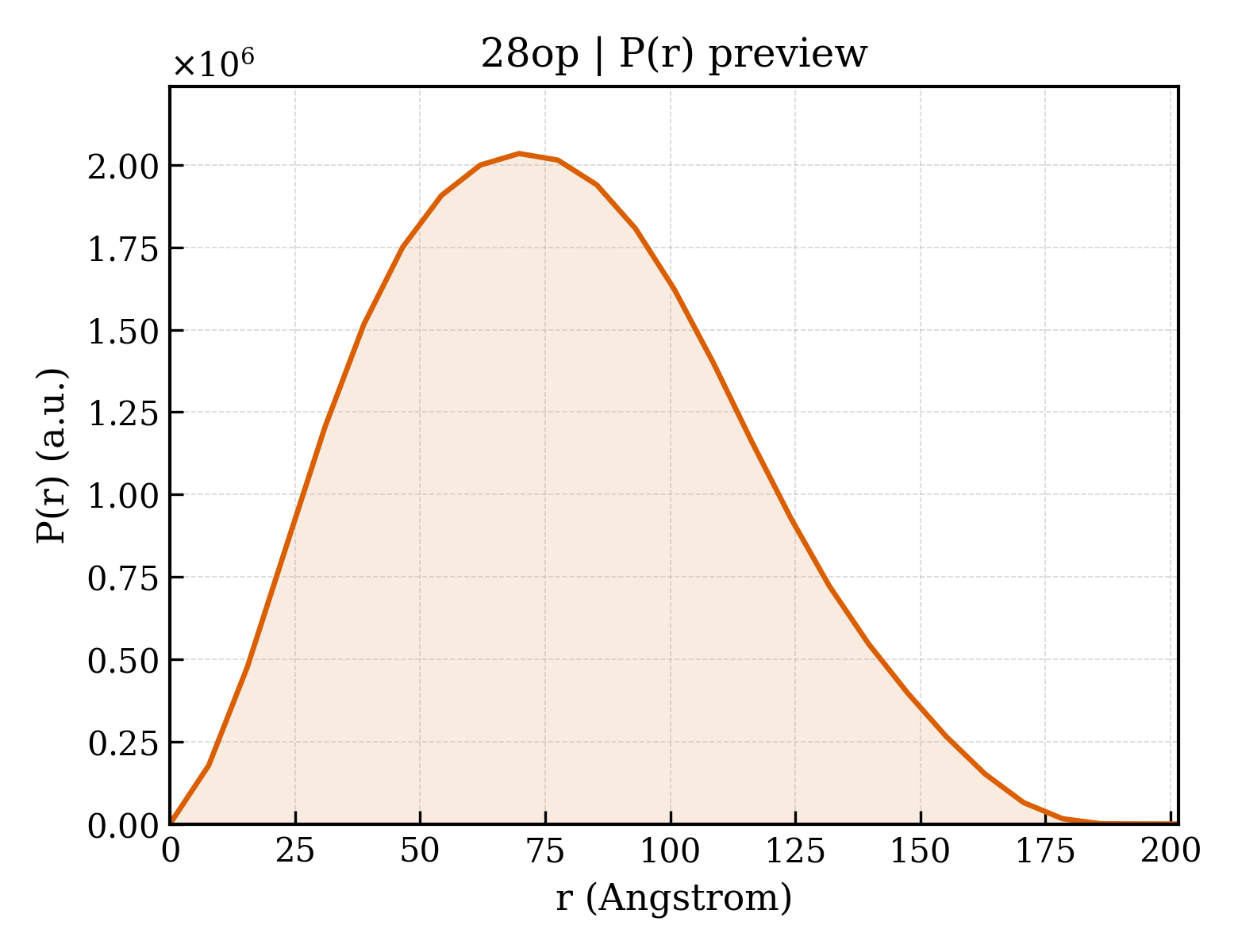

Method: ELECTRON MICROSCOPY Dmax: 201.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Centromere protein M

Homo sapiens

UniProt Q9NSP4

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain M； UniProt 1–180 Not recorded Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4P0T Crystal structure of human centromere protein M Deposited 2014-02-22 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: Monomeric
Chain A 1–171（171 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；100 mM bicine pH 8.5, 11 % MPD, 8 mM spermidine
Resolution 1.49 Å R-free 0.164
4P0T Crystal structure of human centromere protein M Deposited 2014-02-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: Monomeric
Chain B 1–171（171 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；100 mM bicine pH 8.5, 11 % MPD, 8 mM spermidine
Resolution 1.49 Å R-free 0.164
4WAU Crystal structure of CENP-M solved by native-SAD phasing Deposited 2014-09-01 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–171（171 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；100 mM bicine pH 8.5, 11 % MPD, 8 mM spermidine
Resolution 2.20 Å R-free 0.148
4WAU Crystal structure of CENP-M solved by native-SAD phasing Deposited 2014-09-01 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–171（171 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；100 mM bicine pH 8.5, 11 % MPD, 8 mM spermidine
Resolution 2.20 Å R-free 0.148
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain M 1–180（180 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

13 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPM_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain M； PDBConstruct 1–180； UniProt 1–180

Centromere protein S

Homo sapiens

UniProt Q8N2Z9

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain S； UniProt 1–138 Not recorded Centromere protein M × 1 （Q9NSP4） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4DRA Crystal structure of MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–107（107 aa） Fragment：C-terminus deleted, UNP residues 1-107
Chain D 1–107（107 aa） Fragment：C-terminus deleted, UNP residues 1-107
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；285 K；0.1M HEPES-NaOH, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.41 Å R-free 0.242
4DRA Crystal structure of MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–107（107 aa） Fragment：C-terminus deleted, UNP residues 1-107
Chain C 1–107（107 aa） Fragment：C-terminus deleted, UNP residues 1-107
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；285 K；0.1M HEPES-NaOH, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.41 Å R-free 0.242
4DRB The crystal structure of FANCM bound MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–114（114 aa） Fragment：C-terminus deleted, UNP residues 1-114
Chain B 1–114（114 aa） Fragment：C-terminus deleted, UNP residues 1-114
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；0.1M Tris-HCl, pH 8.5, 0.2 M (NH4)2SO4, 25% PEG 3350 , VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.63 Å R-free 0.256
4DRB The crystal structure of FANCM bound MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–114（114 aa） Fragment：C-terminus deleted, UNP residues 1-114
Chain E 1–114（114 aa） Fragment：C-terminus deleted, UNP residues 1-114
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；0.1M Tris-HCl, pH 8.5, 0.2 M (NH4)2SO4, 25% PEG 3350 , VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.63 Å R-free 0.256
4DRB The crystal structure of FANCM bound MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain G 1–114（114 aa） Fragment：C-terminus deleted, UNP residues 1-114
Chain H 1–114（114 aa） Fragment：C-terminus deleted, UNP residues 1-114
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；0.1M Tris-HCl, pH 8.5, 0.2 M (NH4)2SO4, 25% PEG 3350 , VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.63 Å R-free 0.256
4E44 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–110（110 aa） Fragment：UNP residues 1-110
Chain C 1–110（110 aa） Fragment：UNP residues 1-110
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.10 Å R-free 0.231
4E45 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer in Complex with Fanconi Anemia Associated Helicase hFANCM Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–110（110 aa） Fragment：UNP residues 1-110
Chain C 1–110（110 aa） Fragment：UNP residues 1-110
Not recorded GOL GLYCEROL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.00 Å R-free 0.245
4E45 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer in Complex with Fanconi Anemia Associated Helicase hFANCM Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 1–110（110 aa） Fragment：UNP residues 1-110
Chain H 1–110（110 aa） Fragment：UNP residues 1-110
Not recorded GOL GLYCEROL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.00 Å R-free 0.245
4E45 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer in Complex with Fanconi Anemia Associated Helicase hFANCM Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain K 1–110（110 aa） Fragment：UNP residues 1-110
Chain M 1–110（110 aa） Fragment：UNP residues 1-110
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.00 Å R-free 0.245
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain I 14–105（92 aa）
Chain J 14–105（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric
Chain K 14–105（92 aa）
Chain T 14–105（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain Q 14–105（92 aa）
Chain R 14–105（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 14–105（92 aa）
Chain S 14–105（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 14–105（92 aa）
Chain G 14–105（92 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NE1 Human MHF1 MHF2 DNA complexes Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 24-meric
Chain A 14–118（105 aa）
Chain C 14–118（105 aa）
Chain G 14–118（105 aa）
Chain I 14–118（105 aa）
Chain J 14–118（105 aa）
Chain K 14–118（105 aa）
Chain Q 14–118（105 aa）
Chain R 14–118（105 aa）
Chain S 14–118（105 aa）
Chain T 14–118（105 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M ammonium phosphate, Micro-batch under oil, temperature 300K
Resolution 6.50 Å R-free 0.295
4NE1 Human MHF1 MHF2 DNA complexes Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 20 PDB declaration: 24-meric
Chain Y 14–118（105 aa）
Chain a 14–118（105 aa）
Chain c 14–118（105 aa）
Chain e 14–118（105 aa）
Chain f 14–118（105 aa）
Chain g 14–118（105 aa）
Chain k 14–118（105 aa）
Chain l 14–118（105 aa）
Chain m 14–118（105 aa）
Chain n 14–118（105 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M ammonium phosphate, Micro-batch under oil, temperature 300K
Resolution 6.50 Å R-free 0.295
4NE3 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 14–105（92 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.252
4NE5 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 14–105（92 aa）
Chain E 14–105（92 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；Micro-batch under oil, temperature 300K
Resolution 2.50 Å R-free 0.264
4NE5 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 14–105（92 aa）
Chain G 14–105（92 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；Micro-batch under oil, temperature 300K
Resolution 2.50 Å R-free 0.264
4NE6 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 14–105（92 aa）
Chain C 14–105（92 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；Micro-batch under oil, temperature 300K
Resolution 2.10 Å R-free 0.262
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain S 1–138（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain S 1–138（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain S 1–138（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain S 1–138（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain S 1–138（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain S 1–138（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain S 1–138（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

16 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPS_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain S； PDBConstruct 1–138； UniProt 1–138

Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T

Homo sapiens

UniProt P16455

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain C； UniProt 1–182 Chain T； UniProt 1–182 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EH6 HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE Deposited 2000-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–207（207 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；18 MG/ML PROTEIN, 1.5 M SUCROSE, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.00 Å R-free 0.218
1EH7 METHYLATED HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE Deposited 2000-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–207（207 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；18 MG/ML PROTEIN, 1.5 M SUCROSE, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.00 Å R-free 0.229
1EH8 BENZYLATED HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE Deposited 2000-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–207（207 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；18 MG/ML PROTEIN, 1.5 M SUCROSE, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.230
1QNT X-ray structure of human O6alkylguanine-DNA alkyltransferase Deposited 1999-10-20 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–176（176 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；1.75M (NH4)2SO4, PH 7.5
Resolution 1.90 Å R-free 0.221
1T38 HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE BOUND TO DNA CONTAINING O6-METHYLGUANINE Deposited 2004-04-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 1–176（176 aa）
Mutation：C145S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；PEG 3000, Tris, sodium chloride, xylitol, calcium acetate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.307
1T39 HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE COVALENTLY CROSSLINKED TO DNA Deposited 2004-04-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 1–176（176 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 8000, MES, calcium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.344
1T39 HUMAN O6-ALKYLGUANINE-DNA ALKYLTRANSFERASE COVALENTLY CROSSLINKED TO DNA Deposited 2004-04-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain B 1–176（176 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；PEG 8000, MES, calcium acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.344
1YFH wt Human O6-Alkylguanine-DNA Alkyltransferase Bound To DNA Containing an Alkylated Cytosine Deposited 2004-12-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain C 1–179（179 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；277 K；PEG 4000, sodium chloride, citrate, magnesium chloride, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.01 Å R-free 0.286
1YFH wt Human O6-Alkylguanine-DNA Alkyltransferase Bound To DNA Containing an Alkylated Cytosine Deposited 2004-12-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 1–179（179 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；277 K；PEG 4000, sodium chloride, citrate, magnesium chloride, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.01 Å R-free 0.286
1YFH wt Human O6-Alkylguanine-DNA Alkyltransferase Bound To DNA Containing an Alkylated Cytosine Deposited 2004-12-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–179（179 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；277 K；PEG 4000, sodium chloride, citrate, magnesium chloride, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.01 Å R-free 0.286
8RGG Structure of dynein-2 intermediate chain DYNC2I2 (WDR34) in complex with dynein-2 heavy chain DYNC2H1. Deposited 2023-12-13 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 2–184（183 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8RGH Structure of dynein-2 intermediate chain DYNC2I1 (WDR60) in complex with the dynein-2 heavy chain DYNC2H1. Deposited 2023-12-13 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–184（183 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8RTY Structure of the F-actin barbed end bound by Cdc12 and profilin (ring complex) at a resolution of 6.3 Angstrom Deposited 2024-01-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain E 2–182（181 aa）
Chain F 2–182（181 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.
Resolution 6.25 Å
8RU2 Structure of the F-actin barbed end bound by formin mDia1 Deposited 2024-01-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–182（182 aa）
Chain F 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.
Resolution 3.49 Å
9HHL Structure of Dynein-Dynactin-NuMA-LIS1 Deposited 2024-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 41 PDB declaration: 41-meric
Chain 1 1–182（182 aa）
Chain 2 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.53 Å
9QEY Cryo-EM structure of the actin filament bound by a single Coronin-1B molecule. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain H 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 PO4 PHOSPHATE ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.01% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.74 Å
9QF2 Cryo-EM structure of the fully Coronin-1B-decorated actin filament in the ADP state. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: decameric
Chain F 1–182（182 aa）
Chain G 1–182（182 aa）
Chain H 1–182（182 aa）
Chain I 1–182（182 aa）
Chain J 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.01% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.42 Å
9QFB Cryo-EM structure of the fully Coronin-1B-decorated actin filament in the ADP state. Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain H 1–182（182 aa）
Chain I 1–182（182 aa）
Chain J 1–182（182 aa）
Chain K 1–182（182 aa）
Chain L 1–182（182 aa）
Chain M 1–182（182 aa）
Chain N 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.01% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.74 Å
9QFE Cryo-EM structure of the actin filament hetero-decorated by Coronin-1 and Cofilin-1 on separate actin strands Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain L 1–182（182 aa）
Chain M 1–182（182 aa）
Chain N 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.02% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.12 Å
9QFG Cryo-EM structure of the actin filament hetero-decorated by Coronin-1 and Cofilin-1, strand boundary Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain J 1–182（182 aa）
Chain K 1–182（182 aa）
Chain L 1–182（182 aa）
Chain M 1–182（182 aa）
Chain N 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.02% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.49 Å
9QFK Cryo-EM structure of the Coronin-1B-decorated actin filament bound by one Cofilin-1 molecule (crosslinked) Deposited 2025-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 14-meric
Chain H 1–182（182 aa）
Chain I 1–182（182 aa）
Chain K 1–182（182 aa）
Chain L 1–182（182 aa）
Chain M 1–182（182 aa）
Chain N 1–182（182 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.02% Tween20).
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.99 Å
9QFQ Cryo-EM structure of the cofilactin barbed end bound by AIP1 Deposited 2025-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: 11-meric
Chain P 1–182（182 aa）
Not recorded MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.015% Tween20)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.76 Å
9QFW Cryo-EM structure of the cofilactin barbed end bound by two AIP1 molecules Deposited 2025-03-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: 12-meric
Chain P 1–182（182 aa）
Chain Q 1–182（182 aa）
Not recorded MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1；1xKMEH (10 mM HEPES pH 7.1, 100 mM KCl, 2 mM MgCl2, 1 mM EGTA, 0.5 mM TCEP, 0.015% Tween20)
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.16 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain T 1–182（182 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

21 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MGMT_HUMAN
Isoform —
PDB entities 3, 18
Chains and sequence ranges Author chain T； PDBConstruct 25–206； UniProt 1–182 Author chain C； PDBConstruct 557–738； UniProt 1–182

Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T

Homo sapiens

UniProt Q96BT3

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain T； UniProt 1–561 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain T 1–561（561 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPT_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain T； PDBConstruct 217–777； UniProt 1–561

Centromere protein U

Homo sapiens

UniProt Q71F23

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain U； UniProt 243–418 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB8 Crystal structure of the CENP-OPQUR complex Deposited 2021-07-31 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；15% PEG2kmme, 40 mM NaFormate, 200 mM bis-tris propane pH 6.9
Resolution 3.68 Å R-free 0.352
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain U 1–418（418 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9FJG Two PLK1 PBD proteins bound to CENP-U(58-114) phosphorylated at Thr98 Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 58–114（57 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PG4 TETRAETHYLENE GLYCOL × 3 FLC CITRATE ANION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；0.02M Na3-citrate, 0.08 M NaH2(PO4) pH6.2, 18 v/v% PEG2000
Resolution 2.00 Å R-free 0.242
9FJH Two PLK1 PBD proteins bound to CENP-U(58-114) phosphorylated at Thr78 and Thr98 Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 58–114（57 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PGE TRIETHYLENE GLYCOL × 2 PG4 TETRAETHYLENE GLYCOL × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.2M NaCl, 0.1 M CHES pH9.5, 10 v/v% PEG8000
Resolution 2.15 Å R-free 0.250
9FJI Two PLK1 PBD proteins bound to CENP-U(58-114) phosphorylated at Thr98 Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 58–114（57 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 PG4 TETRAETHYLENE GLYCOL × 3 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；293 K；0.02M Na3-citrate, 0.08 M NaH2(PO4) pH6.2, 18 v/v% PEG2000
Resolution 2.10 Å R-free 0.243
9FJJ Two PLK1 PBD proteins bound to CENP-U(39-114) phosphorylated at Thr78 and Thr98 Deposited 2024-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain U 39–114（76 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PEG DI(HYDROXYETHYL)ETHER × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M tri-Lithium citrate, 20 v/v% PEG3350
Resolution 2.00 Å R-free 0.242
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain U 243–418（176 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain U 243–418（176 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain U 243–418（176 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPU_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain U； PDBConstruct 1–176； UniProt 243–418

Centromere protein W

Homo sapiens

UniProt Q5EE01

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain W； UniProt 1–88 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain W 1–88（88 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPW_HUMAN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain W； PDBConstruct 1–88； UniProt 1–88

Centromere protein X

Homo sapiens

UniProt A8MT69

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain X； UniProt 1–81 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4DRA Crystal structure of MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–81（81 aa）
Chain H 1–81（81 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；285 K；0.1M HEPES-NaOH, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.41 Å R-free 0.242
4DRA Crystal structure of MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–81（81 aa）
Chain G 1–81（81 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；285 K；0.1M HEPES-NaOH, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.41 Å R-free 0.242
4DRB The crystal structure of FANCM bound MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain J 1–81（81 aa）
Chain K 1–81（81 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；0.1M Tris-HCl, pH 8.5, 0.2 M (NH4)2SO4, 25% PEG 3350 , VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.63 Å R-free 0.256
4DRB The crystal structure of FANCM bound MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain L 1–81（81 aa）
Chain M 1–81（81 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；0.1M Tris-HCl, pH 8.5, 0.2 M (NH4)2SO4, 25% PEG 3350 , VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.63 Å R-free 0.256
4DRB The crystal structure of FANCM bound MHF complex Deposited 2012-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain N 1–81（81 aa）
Chain O 1–81（81 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；0.1M Tris-HCl, pH 8.5, 0.2 M (NH4)2SO4, 25% PEG 3350 , VAPOR DIFFUSION, HANGING DROP, temperature 285K
Resolution 2.63 Å R-free 0.256
4E44 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–81（81 aa）
Chain D 1–81（81 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.10 Å R-free 0.231
4E45 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer in Complex with Fanconi Anemia Associated Helicase hFANCM Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–81（81 aa）
Chain D 1–81（81 aa）
Not recorded GOL GLYCEROL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.00 Å R-free 0.245
4E45 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer in Complex with Fanconi Anemia Associated Helicase hFANCM Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain G 1–81（81 aa）
Chain I 1–81（81 aa）
Not recorded GOL GLYCEROL × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.00 Å R-free 0.245
4E45 Crystal structure of the hMHF1/hMHF2 Histone-Fold Tetramer in Complex with Fanconi Anemia Associated Helicase hFANCM Deposited 2012-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain L 1–81（81 aa）
Chain N 1–81（81 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；298 K；Tracking Code C4, 0.1M Tris pH 7.8, 0.2M LiCl, 0.1M Na2SO4, 17.5% w/v PEG3350, 10% glycerol cryo., vapor diffusion, sitting drop, temperature 298K
Resolution 2.00 Å R-free 0.245
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain M 8–81（74 aa）
Chain N 8–81（74 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric
Chain L 8–81（74 aa）
Chain U 8–81（74 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain V 8–81（74 aa）
Chain W 8–81（74 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 8–81（74 aa）
Chain X 8–81（74 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NDY Human MHF1-MHF2 DNA complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 8–81（74 aa）
Chain H 8–81（74 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M Ammonium Phosphate, Micro-batch under oil, temperature 300K
Resolution 7.00 Å R-free 0.279
4NE1 Human MHF1 MHF2 DNA complexes Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 24-meric
Chain B 8–81（74 aa）
Chain D 8–81（74 aa）
Chain H 8–81（74 aa）
Chain L 8–81（74 aa）
Chain M 8–81（74 aa）
Chain N 8–81（74 aa）
Chain U 8–81（74 aa）
Chain V 8–81（74 aa）
Chain W 8–81（74 aa）
Chain X 8–81（74 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M ammonium phosphate, Micro-batch under oil, temperature 300K
Resolution 6.50 Å R-free 0.295
4NE1 Human MHF1 MHF2 DNA complexes Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 20 PDB declaration: 24-meric
Chain Z 8–81（74 aa）
Chain b 8–81（74 aa）
Chain d 8–81（74 aa）
Chain h 8–81（74 aa）
Chain i 8–81（74 aa）
Chain j 8–81（74 aa）
Chain o 8–81（74 aa）
Chain p 8–81（74 aa）
Chain q 8–81（74 aa）
Chain r 8–81（74 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；0.1-0.3M ammonium phosphate, Micro-batch under oil, temperature 300K
Resolution 6.50 Å R-free 0.295
4NE3 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 8–81（74 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.80 Å R-free 0.252
4NE5 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 8–81（74 aa）
Chain F 8–81（74 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；Micro-batch under oil, temperature 300K
Resolution 2.50 Å R-free 0.264
4NE5 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 8–81（74 aa）
Chain H 8–81（74 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；Micro-batch under oil, temperature 300K
Resolution 2.50 Å R-free 0.264
4NE6 Human MHF1-MHF2 complex Deposited 2013-10-28 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 8–81（74 aa）
Chain D 8–81（74 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions Micro-batch under oil；300 K；Micro-batch under oil, temperature 300K
Resolution 2.10 Å R-free 0.262
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain X 1–81（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain X 1–81（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain X 1–81（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain X 1–81（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain X 1–81（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain X 1–81（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain X 1–81（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

16 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPX_HUMAN
Isoform —
PDB entities 7
Chains and sequence ranges Author chain X； PDBConstruct 1–81； UniProt 1–81

Centromere protein H

Homo sapiens

UniProt Q9H3R5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain H； UniProt 1–247 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB4 Cenp-HIK 3-protein complex Deposited 2021-07-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 199–247（49 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10% PEG 8k, 100 mM imidazole pH 8
Resolution 2.49 Å R-free 0.283
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain H 1–247（247 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPH_HUMAN
Isoform —
PDB entities 9
Chains and sequence ranges Author chain H； PDBConstruct 1–247； UniProt 1–247

Centromere protein I

Homo sapiens

UniProt Q92674

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain I； UniProt 1–756 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB4 Cenp-HIK 3-protein complex Deposited 2021-07-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 64–281（218 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10% PEG 8k, 100 mM imidazole pH 8
Resolution 2.49 Å R-free 0.283
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain I 1–756（756 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPI_HUMAN
Isoform —
PDB entities 10
Chains and sequence ranges Author chain I； PDBConstruct 1–756； UniProt 1–756

Centromere protein K

Homo sapiens

UniProt Q9BS16

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain K； UniProt 1–269 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB4 Cenp-HIK 3-protein complex Deposited 2021-07-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 165–269（105 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；10% PEG 8k, 100 mM imidazole pH 8
Resolution 2.49 Å R-free 0.283
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain K 1–269（269 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPK_HUMAN
Isoform —
PDB entities 11
Chains and sequence ranges Author chain K； PDBConstruct 1–269； UniProt 1–269

Centromere protein L

Homo sapiens

UniProt Q8N0S6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain L； UniProt 1–344 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain L 1–344（344 aa）
Mutation：N116D No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain L 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPL_HUMAN
Isoform —
PDB entities 12
Chains and sequence ranges Author chain L； PDBConstruct 5–348； UniProt 1–344

Centromere protein N

Homo sapiens

UniProt Q96H22

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain N； UniProt 1–339 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6BUZ Cryo-EM structure of CENP-A nucleosome in complex with kinetochore protein CENP-N Deposited 2017-12-11 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: undecameric
Chain N 1–286（286 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
6C0W Cryo-EM structure of human kinetochore protein CENP-N with the centromeric nucleosome containing CENP-A Deposited 2018-01-02 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain K 1–289（289 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6EQT CRYSTAL STRUCTURE OF THE HUMAN KINETOCHORE PROTEIN CENP-N Deposited 2017-10-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–213（213 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；6-16% PEG3350, pH 6.6-7.2
Resolution 2.73 Å R-free 0.254
6EQT CRYSTAL STRUCTURE OF THE HUMAN KINETOCHORE PROTEIN CENP-N Deposited 2017-10-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–213（213 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；6-16% PEG3350, pH 6.6-7.2
Resolution 2.73 Å R-free 0.254
6MUO CENP-A nucleosome bound by two copies of CENP-C(CD) and one copy CENP-N(NT) Deposited 2018-10-23 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain M 1–212（212 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；10 mM HEPES, 50 mN NaCl, 1 mM EDTA, 1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 8 seconds before plunging
Resolution 3.60 Å
6MUP CENP-A nucleosome bound by two copies of CENP-C(CD) and two copies CENP-N(NT) Deposited 2018-10-23 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain M 1–212（212 aa）
Chain N 1–212（212 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；10 mM HEPES, 50 mN NaCl, 1 mM EDTA, 1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 8 seconds before plunging
Resolution 3.50 Å
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7U46 Cryo-EM structure of CENP-A nucleosome (palindromic alpha satellite DNA) in complex with CENP-N Deposited 2022-02-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain K 1–289（289 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.68 Å
7U47 CryoEM structure of CENP-N promoted nucleosome stacks with CENP-A and palindromic alpha satellite DNA sequence Deposited 2022-02-28 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain K 1–289（289 aa）
Chain V 1–289（289 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.50 Å
7U4D CryoEM structure of CENP-N promoted nucleosome stacks with CENP-A and 601 DNA sequence Deposited 2022-02-28 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain K 1–289（289 aa）
Chain V 1–289（289 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.10 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain N 1–315（315 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain N 1–339（339 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

19 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPN_HUMAN
Isoform —
PDB entities 13
Chains and sequence ranges Author chain N； PDBConstruct 1–339； UniProt 1–339

Centromere protein O

Homo sapiens

UniProt Q9BU64

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain O； UniProt 1–300 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB8 Crystal structure of the CENP-OPQUR complex Deposited 2021-07-31 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；15% PEG2kmme, 40 mM NaFormate, 200 mM bis-tris propane pH 6.9
Resolution 3.68 Å R-free 0.352
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain O 1–300（300 aa）
Chain o 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain O 89–300（212 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain O 1–300（300 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain O 89–300（212 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPO_HUMAN
Isoform —
PDB entities 14
Chains and sequence ranges Author chain O； PDBConstruct 1–300； UniProt 1–300

Centromere protein P

Homo sapiens

UniProt Q6IPU0

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain P； UniProt 1–288 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB8 Crystal structure of the CENP-OPQUR complex Deposited 2021-07-31 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；15% PEG2kmme, 40 mM NaFormate, 200 mM bis-tris propane pH 6.9
Resolution 3.68 Å R-free 0.352
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain P 1–288（288 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPP_HUMAN
Isoform —
PDB entities 15
Chains and sequence ranges Author chain P； PDBConstruct 1–288； UniProt 1–288

Centromere protein Q

Trichoplusia ni

UniProt Q7L2Z9

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain Q； UniProt 55–268 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein R × 1 （Q13352） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB8 Crystal structure of the CENP-OPQUR complex Deposited 2021-07-31 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain Q 133–268（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；15% PEG2kmme, 40 mM NaFormate, 200 mM bis-tris propane pH 6.9
Resolution 3.68 Å R-free 0.352
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain Q 1–268（268 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain Q 55–268（214 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain Q 55–268（214 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain Q 55–268（214 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPQ_HUMAN
Isoform —
PDB entities 16
Chains and sequence ranges Author chain Q； PDBConstruct 2–215； UniProt 55–268

Centromere protein R

Homo sapiens

UniProt Q13352

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain R； UniProt 1–177 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase × 1 （Q03188,P16455） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7PB8 Crystal structure of the CENP-OPQUR complex Deposited 2021-07-31 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；15% PEG2kmme, 40 mM NaFormate, 200 mM bis-tris propane pH 6.9
Resolution 3.68 Å R-free 0.352
7PKN Structure of the human CCAN deltaCT complex Deposited 2021-08-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5S Structure of the human CCAN bound to alpha satellite DNA Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
7R5V Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9TAY Structure of the human inner kinetochore CCAN bound to a di-CENP-A nucleosome Deposited 2025-11-18 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 37-meric
Chain R 1–177（177 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.50 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPR_HUMAN
Isoform —
PDB entities 17
Chains and sequence ranges Author chain R； PDBConstruct 1–177； UniProt 1–177

Centromere protein C,Methylated-DNA--protein-cysteine methyltransferase

Homo sapiens

UniProt Q03188

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 16 DNA 2 PDB declaration: 18-meric（18） Consistent with all polymer counts Chain C； UniProt 1–545 Not recorded Centromere protein M × 1 （Q9NSP4） Centromere protein S × 1 （Q8N2Z9） Methylated-DNA--protein-cysteine methyltransferase,Centromere protein T × 1 （P16455,Q96BT3） Centromere protein U × 1 （Q71F23） DNA (59-MER) × 1 Centromere protein W × 1 （Q5EE01） Centromere protein X × 1 （A8MT69） DNA (61-MER) × 1 Centromere protein H × 1 （Q9H3R5） Centromere protein I × 1 （Q92674） Centromere protein K × 1 （Q9BS16） Centromere protein L × 1 （Q8N0S6） Centromere protein N × 1 （Q96H22） Centromere protein O × 1 （Q9BU64） Centromere protein P × 1 （Q6IPU0） Centromere protein Q × 1 （Q7L2Z9） Centromere protein R × 1 （Q13352） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 28OP Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5LSJ CRYSTAL STRUCTURE OF THE HUMAN KINETOCHORE MIS12-CENP-C delta-HEAD2 COMPLEX Deposited 2016-09-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain P 1–71（71 aa） Fragment：UNP residues 1-71
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；20% PEG3350, 0.2M potassium sodium tartrate
Resolution 3.25 Å R-free 0.297
5LSJ CRYSTAL STRUCTURE OF THE HUMAN KINETOCHORE MIS12-CENP-C delta-HEAD2 COMPLEX Deposited 2016-09-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain Q 1–71（71 aa） Fragment：UNP residues 1-71
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；20% PEG3350, 0.2M potassium sodium tartrate
Resolution 3.25 Å R-free 0.297
5LSK CRYSTAL STRUCTURE OF THE HUMAN KINETOCHORE MIS12-CENP-C COMPLEX Deposited 2016-09-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain P 1–71（71 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；6-12% PEG6000
Resolution 3.50 Å R-free 0.298
6MUO CENP-A nucleosome bound by two copies of CENP-C(CD) and one copy CENP-N(NT) Deposited 2018-10-23 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain K 518–537（20 aa）
Chain L 518–537（20 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；10 mM HEPES, 50 mN NaCl, 1 mM EDTA, 1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 8 seconds before plunging
Resolution 3.60 Å
6MUP CENP-A nucleosome bound by two copies of CENP-C(CD) and two copies CENP-N(NT) Deposited 2018-10-23 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain K 518–537（20 aa）
Chain L 518–537（20 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；10 mM HEPES, 50 mN NaCl, 1 mM EDTA, 1mM DTT
cryo-EM vitrification conditions Cryogen ETHANE；Blot for 8 seconds before plunging
Resolution 3.50 Å
6SE6 Class2 : CENP-A nucleosome in complex with CENP-C central region Deposited 2019-07-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain V 426–537（112 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
6SEE Class2A : CENP-A nucleosome in complex with CENP-C central region Deposited 2019-07-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain V 426–537（112 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6SEF Class2C : CENP-A nucleosome in complex with CENP-C central region Deposited 2019-07-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain V 426–537（112 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7PII Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2021-08-19 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 1–545（545 aa）
Chain L 1–545（545 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.68 Å
7QOO Structure of the human inner kinetochore CCAN complex Deposited 2021-12-24 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain C 1–544（544 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8；0.0025% Triton
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds at blot force -3
Resolution 4.60 Å
7R5R Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 2–544（543 aa）
Chain L 2–544（543 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.44 Å
7XHN Structure of human inner kinetochore CCAN-DNA complex Deposited 2022-04-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain C 1–943（943 aa）
Chain c 1–943（943 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.71 Å
7XHO Structure of human inner kinetochore CCAN complex Deposited 2022-04-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain C 1–943（943 aa）
Chain c 1–943（943 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
7YWX Structure of the human CCAN CENP-A alpha-satellite complex Deposited 2022-02-14 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain a 1–544（544 aa）
Chain b 1–544（544 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.00 Å
7YYH Structure of the human CCANdeltaT CENP-A alpha-satellite complex Deposited 2022-02-17 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain k 1–544（544 aa）
Chain l 1–544（544 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.90 Å
9TAW Structure of the human inner kinetochore CCAN bound to DNA Deposited 2025-11-18 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain b 1–545（545 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
9TAX Structure of the human inner kinetochore CCAN bound to a mono-CENP-A nucleosome Deposited 2025-11-18 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric
Chain a 1–545（545 aa）
Chain b 1–545（545 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å

16 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CENPC_HUMAN
Isoform —
PDB entities 18
Chains and sequence ranges Author chain C； PDBConstruct 1–545； UniProt 1–545

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 28op

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 28op
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id28op
Deposition date deposition_date2026-02-11
Structure title titleStructure of the human inner kinetochore CCAN and CENP-C bound to DNA
Keywords keywordsCentromeres, Kinetochores, CELL CYCLE; CELL CYCLE
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier60.17 Å
Radius of gyration Rg (electron density) rg_electron60.26 Å
Forward intensity I(0) i02431980000.00
Molecular weight molecular_weight400020.0 kDa
Excluded volume excluded_volume495120 ų
Envelope volume envelope_volume780210 ų
Hydration-shell volume shell_volume109660 ų
Envelope diameter envelope_diameter196.9 Å
Shell Rg shell_rg60.46 Å
Envelope Rg envelope_rg58.58 Å
Shape Rg shape_rg60.23 Å
Total Rg total_rg60.36 Å
Total atoms total_atoms27973
Residues n_residues3282
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax201.6 Å
Rg (real space) rg_real60.16 Å
Rg uncertainty (real space) rg_real_error1.82 Å
I(0) (real space) i0_real2.4320e+09
I(0) uncertainty (real space) i0_real_error4.9240e+07
Rg (reciprocal space) rg_reciprocal60.15 Å
I(0) (reciprocal space) i0_reciprocal2432000000.0000
Solution quality estimate total_estimate0.8669
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary69.8 Å
Skewness Skewness skewness0.269
Kurtosis Kurtosis kurtosis-0.522
Angular range angular_range— – 0.1300 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha195800000.0000
Real-space data points n_real_points27
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.911; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.542
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (18)

▶

8. Citations (1)

▶

9. Files and Curves (10)
