SAXSdb — 8iqg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromatin assembly factor 1 subunit A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Histone H3.1 × 1 （P68431） Histone H4 × 1 （P62805） Histone-binding protein RBBP4 × 1 （Q09028） Chromatin assembly factor 1 subunit B × 1 （Q13112）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAF1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–956； UniProt 1–956

Histone H3.1

Homo sapiens

UniProt P68431

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Chromatin assembly factor 1 subunit A × 1 （Q13111） Histone H4 × 1 （P62805） Histone-binding protein RBBP4 × 1 （Q09028） Chromatin assembly factor 1 subunit B × 1 （Q13112）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H31_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–136； UniProt 1–136

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Chromatin assembly factor 1 subunit A × 1 （Q13111） Histone H3.1 × 1 （P68431） Histone-binding protein RBBP4 × 1 （Q09028） Chromatin assembly factor 1 subunit B × 1 （Q13112）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–103； UniProt 1–103

Histone-binding protein RBBP4

Homo sapiens

UniProt Q09028

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Chromatin assembly factor 1 subunit A × 1 （Q13111） Histone H3.1 × 1 （P68431） Histone H4 × 1 （P62805） Chromatin assembly factor 1 subunit B × 1 （Q13112）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBBP4_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 1–425； UniProt 1–425

Chromatin assembly factor 1 subunit B

Homo sapiens

UniProt Q13112

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Chromatin assembly factor 1 subunit A × 1 （Q13111） Histone H3.1 × 1 （P68431） Histone H4 × 1 （P62805） Histone-binding protein RBBP4 × 1 （Q09028）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAF1B_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain B； PDBConstruct 1–559； UniProt 1–559

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8iqg
Deposition date deposition_date	2023-03-16
Structure title title	Cryo-EM structure of the monomeric human CAF1-H3-H4 complex
Keywords keywords	Histone chaperone, Chromatin assembly factor, REPLICATION; REPLICATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8iqg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8iqg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

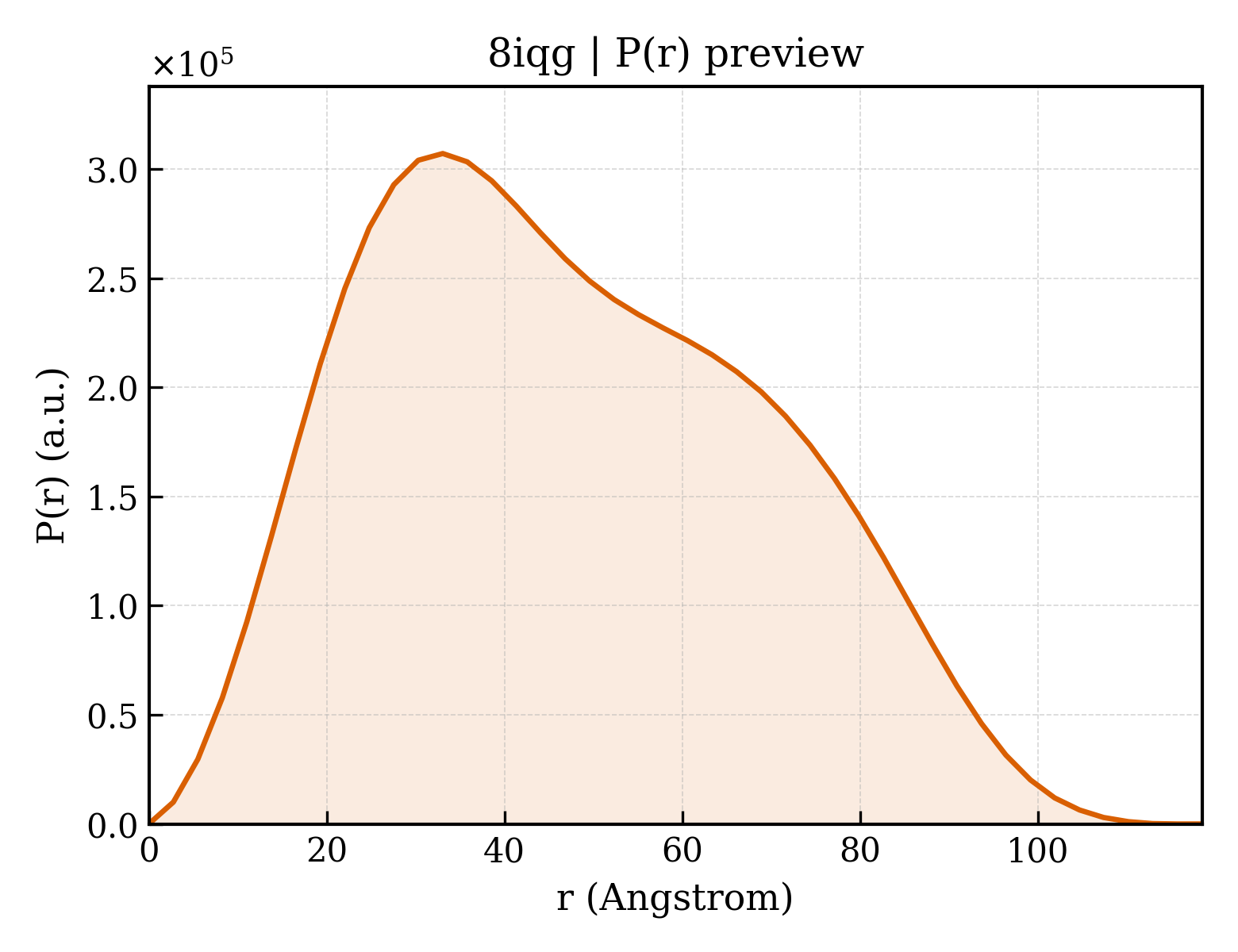

8iqg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.78 Å
Rg (electron density)	36.52 Å
Total Rg	36.90 Å
Atom count	8517
Residues	1168
Excluded volume	150090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8iqg__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Chromatin assembly factor 1 subunit A
Molecular weight formula_weight	107096.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8517

MLEELECGAPGARGAATAMDCKDRPAFPVKKLIQARLPFKRLNLVPKGKADDMSDDQGTSVQSKSPDLEASLDTLENNCHVGSDIDFRPKLVNGKGPLDNFLRNRIETSIGQSTVIIDLTEDSNEQPDSLVDHNKLNSEASPSREAINGQREDTGDQQGLLKAIQNDKLAFPGETLSDIPCKTEEEGVGCGGAGRRGDSQECSPRSCPELTSGPRMCPRKEQDSWSEAGGILFKGKVPMVVLQDILAVRPPQIKSLPATPQGKNMTPESEVLESFPEEDSVLSHSSLSSPSSTSSPEGPPAPPKQHSSTSPFPTSTPLRRITKKFVKGSTEKNKLRLQRDQERLGKQLKLRAEREEKEKLKEEAKRAKEEAKKKKEEEKELKEKERREKREKDEKEKAEKQRLKEERRKERQEALEAKLEEKRKKEEEKRLREEEKRIKAEKAEITRFFQKPKTPQAPKTLAGSCGKFAPFEIKEHMVLAPRRRTAFHPDLCSQLDQLLQQQSGEFSFLKDLKGRQPLRSGPTHVSTRNADIFNSDVVIVERGKGDGVPERRKFGRMKLLQFCENHRPAYWGTWNKKTALIRARDPWAQDTKLLDYEVDSDEEWEEEEPGESLSHSEGDDDDDMGEDEDEDDGFFVPHGYLSEDEGVTEECADPENHKVRQKLKAKEWDEFLAKGKRFRVLQPVKIGCVWAADRDCAGDDLKVLQQFAACFLETLPAQEEQTPKASKRERRDEQILAQLLPLLHGNVNGSKVIIREFQEHCRRGLLSNHTGSPRSPSTTYLHTPTPSEDAAIPSKSRLKRLISENSVYEKRPDFRMCWYVHPQVLQSFQQEHLPVPCQWSYVTSVPSAPKEDSGSVPSTGPSQGTPISLKRKSAGSMCITQFMKKRRHDGQIGAEDMDGFQADTEEEEEEEGDCMIVDVPDAAEVQAPCGAASGAGGGVGVDTGKATLTSSPLGAS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Histone H3.1
Molecular weight formula_weight	15437.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone-binding protein RBBP4
Molecular weight formula_weight	47709.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MADKEAAFDDAVEERVINEEYKIWKKNTPFLYDLVMTHALEWPSLTAQWLPDVTRPEGKDFSIHRLVLGTHTSDEQNHLVIASVQLPNDDAQFDASHYDSEKGEFGGFGSVSGKIEIEIKINHEGEVNRARYMPQNPCIIATKTPSSDVLVFDYTKHPSKPDPSGECNPDLRLRGHQKEGYGLSWNPNLSGHLLSASDDHTICLWDISAVPKEGKVVDAKTIFTGHTAVVEDVSWHLLHESLFGSVADDQKLMIWDTRSNNTSKPSHSVDAHTAEVNCLSFNPYSEFILATGSADKTVALWDLRNLKLKLHSFESHKDEIFQVQWSPHNETILASSGTDRRLNVWDLSKIGEEQSPEDAEDGPPELLFIHGGHTAKISDFSWNPNEPWVICSVSEDNIMQVWQMAENIYNDEDPEGSVDPEGQGS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Chromatin assembly factor 1 subunit B
Molecular weight formula_weight	61567.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKVITCEIAWHNKEPVYSLDFQHGTAGRIHRLASAGVDTNVRIWKVEKGPDGKAIVEFLSNLARHTKAVNVVRFSPTGEILASGGDDAVILLWKVNDNKEPEQIAFQDEDEAQLNKENWTVVKTLRGHLEDVYDICWATDGNLMASASVDNTAIIWDVSKGQKISIFNEHKSYVQGVTWDPLGQYVATLSCDRVLRVYSIQKKRVAFNVSKMLSGIGAEGEARSYRMFHDDSMKSFFRRLSFTPDGSLLLTPAGCVESGENVMNTTYVFSRKNLKRPIAHLPCPGKATLAVRCCPVYFELRPVVETGVELMSLPYRLVFAVASEDSVLLYDTQQSFPFGYVSNIHYHTLSDISWSSDGAFLAISSTDGYCSFVTFEKDELGIPLKEKPVLNMRTPDTAKKTKSQTHRGSSPGPRPVEGTPASRTQDPSSPGTTPPQARQAPAPTVIRDPPSITPAVKSPLPGPSEEKTLQPSSQNTKAHPSRRVTLNTLQAWSKTTPRRINLTPLKTDTPPSSVPTSVISTPSTEEIQSETPGDAQGSPPELKRPRLDENKGGTESLDP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	530555
