6la2

343 bp di-nucleosome harboring cohesive DNA termini assembled with linker histone H1.0

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 34 DNA 4	Histone H4 × 8 （P62805） Histone H2A type 1-B/E × 8 （P04908） Histone H2B type 1-J × 8 （P06899） DNA (343-MER) × 2 DNA (343-MER) × 2 Histone H1.0 × 2 （P07305）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H31_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–136； UniProt 1–136 Author chain K； PDBConstruct 1–136； UniProt 1–136 Author chain O； PDBConstruct 1–136； UniProt 1–136 Author chain U； PDBConstruct 1–136； UniProt 1–136 Author chain Y； PDBConstruct 1–136； UniProt 1–136 Author chain e； PDBConstruct 1–136； UniProt 1–136 Author chain i； PDBConstruct 1–136； UniProt 1–136

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 34 DNA 4	Histone H3.1 × 8 （P68431） Histone H2A type 1-B/E × 8 （P04908） Histone H2B type 1-J × 8 （P06899） DNA (343-MER) × 2 DNA (343-MER) × 2 Histone H1.0 × 2 （P07305）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103 Author chain L； PDBConstruct 1–103； UniProt 1–103 Author chain P； PDBConstruct 1–103； UniProt 1–103 Author chain V； PDBConstruct 1–103； UniProt 1–103 Author chain Z； PDBConstruct 1–103； UniProt 1–103 Author chain f； PDBConstruct 1–103； UniProt 1–103 Author chain j； PDBConstruct 1–103； UniProt 1–103

Histone H2A type 1-B/E

Homo sapiens

UniProt P04908

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 34 DNA 4	Histone H3.1 × 8 （P68431） Histone H4 × 8 （P62805） Histone H2B type 1-J × 8 （P06899） DNA (343-MER) × 2 DNA (343-MER) × 2 Histone H1.0 × 2 （P07305）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1B_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–130； UniProt 1–130 Author chain G； PDBConstruct 1–130； UniProt 1–130 Author chain M； PDBConstruct 1–130； UniProt 1–130 Author chain Q； PDBConstruct 1–130； UniProt 1–130 Author chain W； PDBConstruct 1–130； UniProt 1–130 Author chain a； PDBConstruct 1–130； UniProt 1–130 Author chain g； PDBConstruct 1–130； UniProt 1–130 Author chain k； PDBConstruct 1–130； UniProt 1–130

Histone H2B type 1-J

Homo sapiens

UniProt P06899

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 34 DNA 4	Histone H3.1 × 8 （P68431） Histone H4 × 8 （P62805） Histone H2A type 1-B/E × 8 （P04908） DNA (343-MER) × 2 DNA (343-MER) × 2 Histone H1.0 × 2 （P07305）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1J_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–126； UniProt 1–126 Author chain H； PDBConstruct 1–126； UniProt 1–126 Author chain N； PDBConstruct 1–126； UniProt 1–126 Author chain R； PDBConstruct 1–126； UniProt 1–126 Author chain X； PDBConstruct 1–126； UniProt 1–126 Author chain b； PDBConstruct 1–126； UniProt 1–126 Author chain h； PDBConstruct 1–126； UniProt 1–126 Author chain l； PDBConstruct 1–126； UniProt 1–126

Histone H1.0

Homo sapiens

UniProt P07305

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 34 DNA 4	Histone H3.1 × 8 （P68431） Histone H4 × 8 （P62805） Histone H2A type 1-B/E × 8 （P04908） Histone H2B type 1-J × 8 （P06899） DNA (343-MER) × 2 DNA (343-MER) × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H10_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain S； PDBConstruct 1–194； UniProt 1–194 Author chain T； PDBConstruct 1–194； UniProt 1–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6la2
Deposition date deposition_date	2019-11-11
Structure title title	343 bp di-nucleosome harboring cohesive DNA termini assembled with linker histone H1.0
Keywords keywords	Nucleosome, DNA-protein complex, DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA complex, Linker Histone, H1.0; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6la2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6la2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

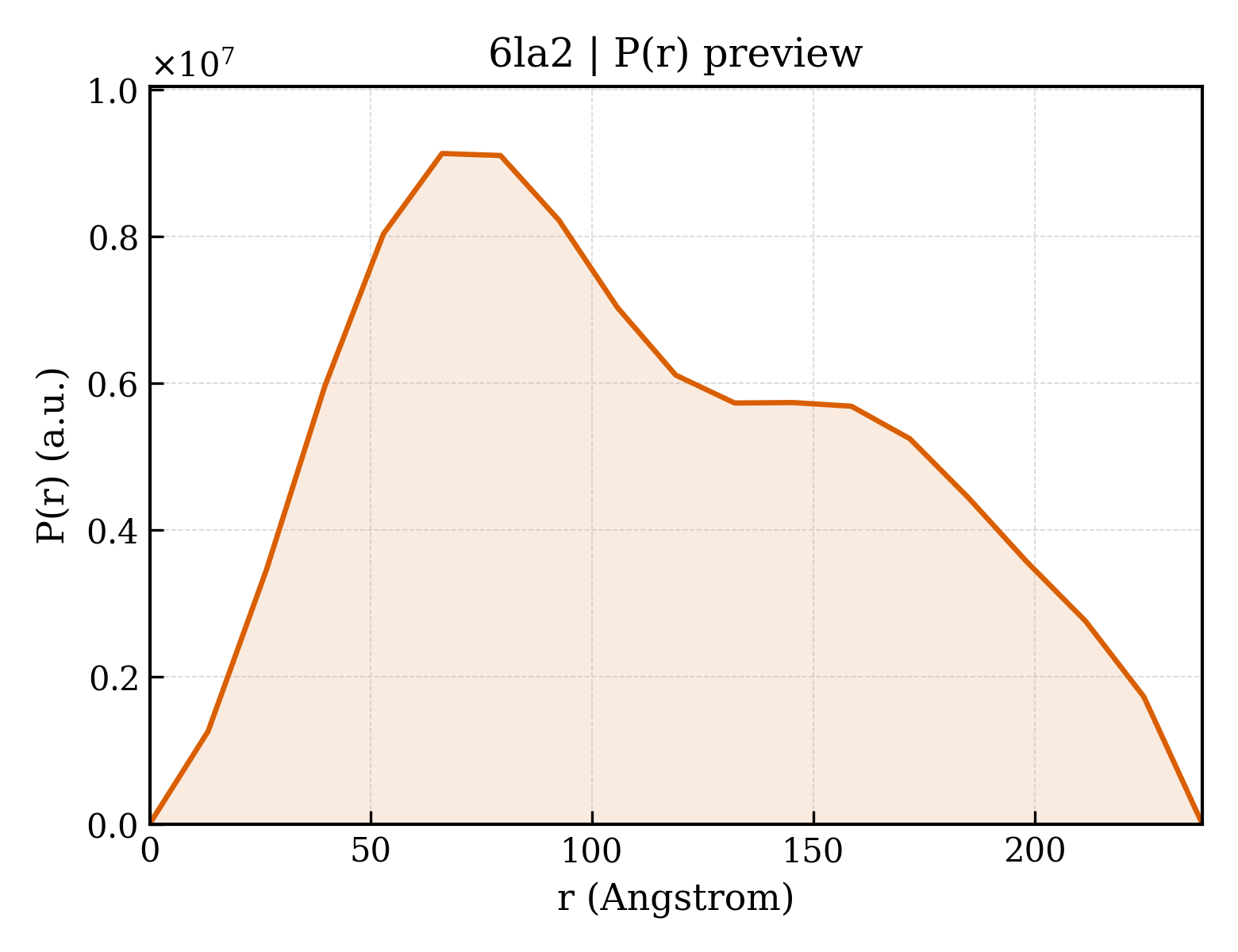

6la2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	88.82 Å
Rg (electron density)	89.09 Å
Total Rg	89.05 Å
Atom count	53828
Residues	4607
Excluded volume	870640 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6la2__assembly_1__model_1`	38-meric （38）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Histone H3.1
Molecular weight formula_weight	15437.2 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	e,i,A,E,K,O,U,Y
Atom count atom_count	53828

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	f,j,B,F,L,P,V,Z

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1-B/E
Molecular weight formula_weight	14165.6 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	g,k,C,G,M,Q,W,a

MSGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B type 1-J
Molecular weight formula_weight	13935.2 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	h,l,D,H,N,R,X,b

MPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA (343-MER)
Molecular weight formula_weight	105735.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I,c

CGCTGAAAAAAAACGCATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCTACCGCGTTTTAACCGCCACTAGAAGCGCTTACTAGTCTCCAGGCACGTGTGAGACCGGCACATGAAAAAAAAAAGCATGCTCGAGTATGAAAAAAAAAACGCATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCTACCGCGTTTTAACCGCCACTAGAAGCGCTTACTAGTCTCCAGGCACGTGTGAGACCGGCACATGAAAAAAAACAGCGGTAC

Source Source

Source organism organism	other sequences
NCBI taxonomy ID ncbi_taxonomy_id	28384
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA (343-MER)
Molecular weight formula_weight	106122.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J,d

CGCTGTTTTTTTTCATGTGCCGGTCTCACACGTGCCTGGAGACTAGTAAGCGCTTCTAGTGGCGGTTAAAACGCGGTAGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATGCGTTTTTTTTTTCATACTCGAGCATGCTTTTTTTTTTCATGTGCCGGTCTCACACGTGCCTGGAGACTAGTAAGCGCTTCTAGTGGCGGTTAAAACGCGGTAGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATGCGTTTTTTTTCAGCGGTAC

Source Source

Source organism organism	other sequences
NCBI taxonomy ID ncbi_taxonomy_id	28384
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Histone H1.0
Molecular weight formula_weight	20927.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S,T

MTENSTSAPAAKPKRAKASKKSTDHPKYSDMIVAAIQAEKNRAGSSRQSIQKYIKSHYKVGENADSQIKLSIKRLVTTGVLKQTKGVGASGSFRLAKSDEPKKSVAFKKTKKEIKKVATPKKASKPKKAASKAPTKKPKATPVKKAKKKLAATPKKAKKPKTVKAKPVKASKPKKAKPVKPKAKSSAKRAGKKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	107.755 Å
Unit-cell length b length_b	205.904 Å
Unit-cell length c length_c	237.677 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.19 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.890 Å
Low-resolution limit resolution_low	49.350 Å
R factor r_factor	0.2005
R_work r_work	0.1991
R_free r_free	0.2666
