9gfb

CryoEM structure of the human INO80 core-nucleosome complex state N-7

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RuvB-like 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUVB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–456； UniProt 1–456 Author chain B； PDBConstruct 1–456； UniProt 1–456 Author chain C； PDBConstruct 1–456； UniProt 1–456

RuvB-like 2

Homo sapiens

UniProt Q9Y230

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUVB2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–463； UniProt 1–463 Author chain E； PDBConstruct 1–463； UniProt 1–463 Author chain F； PDBConstruct 1–463； UniProt 1–463

Chromatin-remodeling ATPase INO80

Homo sapiens

UniProt Q9ULG1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INO80_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–1556； UniProt 1–1556

INO80 complex subunit B

Homo sapiens

UniProt Q9C086

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IN80B_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–356； UniProt 1–356

INO80 complex subunit C

Homo sapiens

UniProt Q6PI98

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IN80C_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–192； UniProt 1–192

Actin-related protein 5

Homo sapiens

UniProt Q9H9F9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARP5_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain J； PDBConstruct 1–607； UniProt 1–607

Histone H3.1

Homo sapiens

UniProt P68431

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H31_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain M； PDBConstruct 1–136； UniProt 1–136 Author chain Q； PDBConstruct 1–136； UniProt 1–136

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H2A type 1-B/E × 2 （P04908） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain N； PDBConstruct 1–102； UniProt 2–103 Author chain R； PDBConstruct 1–102； UniProt 2–103

Histone H2A type 1-B/E

Homo sapiens

UniProt P04908

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2B type 2-E × 2 （Q16778） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1B_HUMAN
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain O； PDBConstruct 1–129； UniProt 2–130 Author chain S； PDBConstruct 1–129； UniProt 2–130

Histone H2B type 2-E

Homo sapiens

UniProt Q16778

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 18 DNA 2	RuvB-like 1 × 3 （Q9Y265） RuvB-like 2 × 3 （Q9Y230） Chromatin-remodeling ATPase INO80 × 1 （Q9ULG1） INO80 complex subunit B × 1 （Q9C086） INO80 complex subunit C × 1 （Q6PI98） Actin-related protein 5 × 1 （Q9H9F9） Nucleosomal DNA strand 1 × 1 Nucleosomal DNA strand 2 × 1 Histone H3.1 × 2 （P68431） Histone H4 × 2 （P62805） Histone H2A type 1-B/E × 2 （P04908） ADENOSINE-5'-TRIPHOSPHATE × 1 ADENOSINE-5'-DIPHOSPHATE × 6 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B2E_HUMAN
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain P； PDBConstruct 1–125； UniProt 2–126 Author chain T； PDBConstruct 1–125； UniProt 2–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gfb
Deposition date deposition_date	2024-08-08
Structure title title	CryoEM structure of the human INO80 core-nucleosome complex state N-7
Keywords keywords	Homo sapiens, ATP-dependent chromatin remodeller, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9gfb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9gfb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

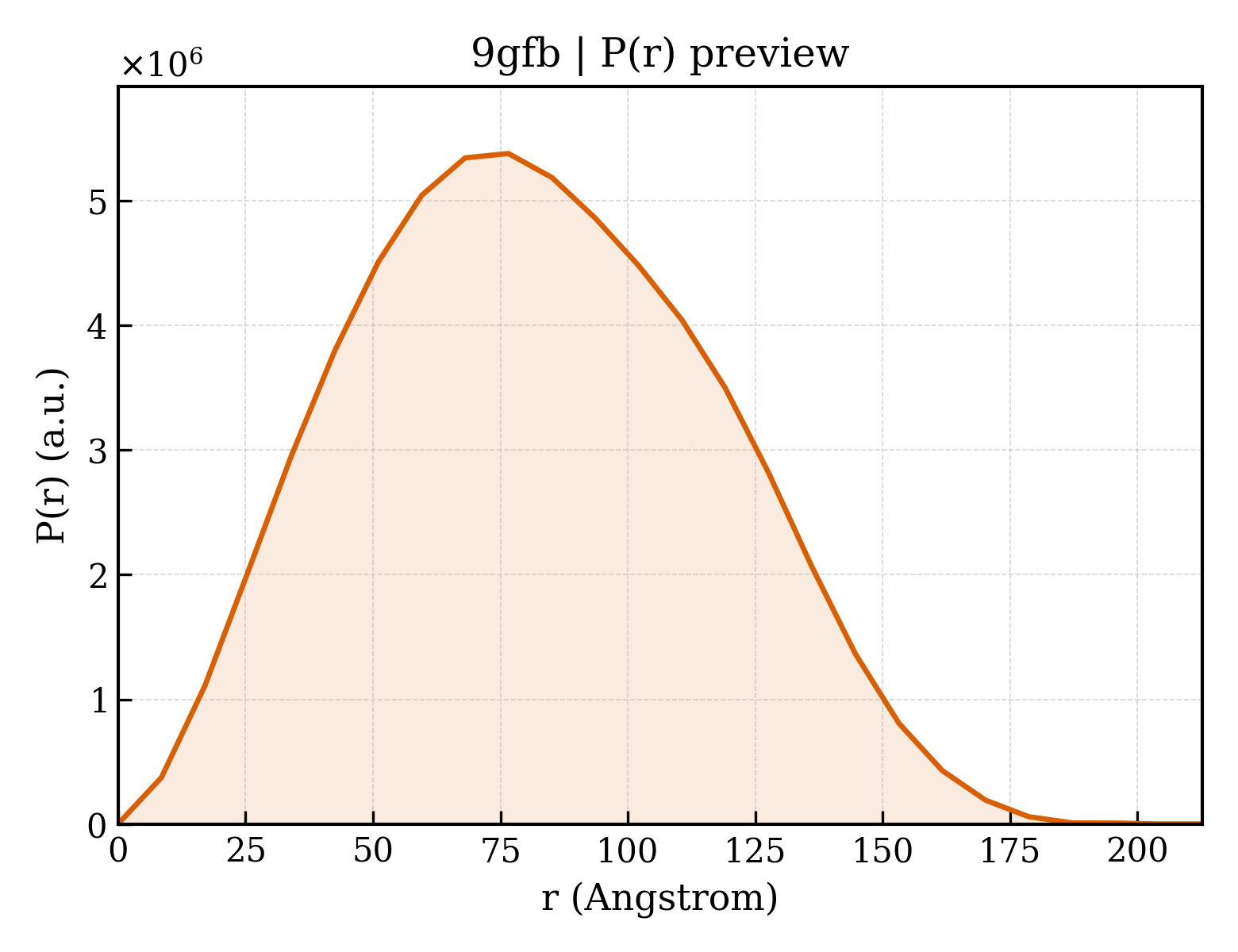

9gfb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	62.94 Å
Rg (electron density)	61.75 Å
Total Rg	61.99 Å
Atom count	43129
Residues	5013
Excluded volume	751530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9gfb__assembly_1__model_1`	20-meric （20）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (15)

Entity 1 Entity 1 polymer

Description description	RuvB-like 1
Molecular weight formula_weight	50296.9 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	43129

MKIEEVKSTTKTQRIASHSHVKGLGLDESGLAKQAASGLVGQENAREACGVIVELIKSKKMAGRAVLLAGPPGTGKTALALAIAQELGSKVPFCPMVGSEVYSTEIKKTEVLMENFRRAIGLRIKETKEVYEGEVTELTPCETENPMGGYGKTISHVIIGLKTAKGTKQLKLDPSIFESLQKERVEAGDVIYIEANSGAVKRQGRCDTYATEFDLEAEEYVPLPKGDVHKKKEIIQDVTLHDLDVANARPQGGQDILSMMGQLMKPKKTEITDKLRGEINKVVNKYIDQGIAELVPGVLFVDEVHMLDIECFTYLHRALESSIAPIVIFASNRGNCVIRGTEDITSPHGIPLDLLDRVMIIRTMLYTPQEMKQIIKIRAQTEGINISEEALNHLGEIGTKTTLRYSVQLLTPANLLAKINGKDSIEKEHVEEISELFYDAKSSAKILADQQDKYMK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	RuvB-like 2
Molecular weight formula_weight	51222.5 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

MATVTATTKVPEIRDVTRIERIGAHSHIRGLGLDDALEPRQASQGMVGQLAARRAAGVVLEMIREGKIAGRAVLIAGQPGTGKTAIAMGMAQALGPDTPFTAIAGSEIFSLEMSKTEALTQAFRRSIGVRIKEETEIIEGEVVEIQIDRPATGTGSKVGKLTLKTTEMETIYDLGTKMIESLTKDKVQAGDVITIDKATGKISKLGRSFTRARDYDAMGSQTKFVQCPDGELQKRKEVVHTVSLHEIDVINSRTQGFLALFSGDTGEIKSEVREQINAKVAEWREEGKAEIIPGVLFIDEVHMLDIESFSFLNRALESDMAPVLIMATNRGITRIRGTSYQSPHGIPIDLLDRLLIVSTTPYSEKDTKQILRIRCEEEDVEMSEDAYTVLTRIGLETSLRYAIQLITAASLVCRKRKGTEVQVDDIKRVYSLFLDESRSTQYMKEYQDAFLFNELKGETMDTS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Chromatin-remodeling ATPase INO80
Molecular weight formula_weight	177032.8 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MASELGARDDGGCTELAKPLYLQYLERALRLDHFLRQTSAIFNRNISSDDSEDGLDDSNPLLPQSGDPLIQVKEEPPNSLLGETSGAGSSGMLNTYSLNGVLQSESKCDKGNLYNFSKLKKSRKWLKSILLSDESSEADSQSEDDDEEELNLSREELHNMLRLHKYKKLHQNKYSKDKELQQYQYYSAGLLSTYDPFYEQQRHLLGPKKKKFKEEKKLKAKLKKVKKKRRRDEELSSEESPRRHHHQTKVFAKFSHDAPPPGTKKKHLSIEQLNARRRKVWLSIVKKELPKANKQKASARNLFLTNSRKLAHQCMKEVRRAALQAQKNCKETLPRARRLTKEMLLYWKKYEKVEKEHRKRAEKEALEQRKLDEEMREAKRQQRKLNFLITQTELYAHFMSRKRDMGHDGIQEEILRKLEDSSTQRQIDIGGGVVVNITQEDYDSNHFKAQALKNAENAYHIHQARTRSFDEDAKESRAAALRAANKSGTGFGESYSLANPSIRAGEDIPQPTIFNGKLKGYQLKGMNWLANLYEQGINGILADEMGLGKTVQSIALLAHLAERENIWGPFLIISPASTLNNWHQEFTRFVPKFKVLPYWGNPHDRKVIRRFWSQKTLYTQDAPFHVVITSYQLVVQDVKYFQRVKWQYMVLDEAQALKSSSSVRWKILLQFQCRNRLLLTGTPIQNTMAELWALLHFIMPTLFDSHEEFNEWFSKDIESHAENKSAIDENQLSRLHMILKPFMLRRIKKDVENELSDKIEILMYCQLTSRQKLLYQALKNKISIEDLLQSSMGSTQQAQNTTSSLMNLVMQFRKVCNHPELFERQETWSPFHISLKPYHISKFIYRHGQIRVFNHSRDRWLRVLSPFAPDYIQRSLFHRKGINEESCFSFLRFIDISPAEMANLMLQGLLARWLALFLSLKASYRLHQLRSWGAPEGESHQRYLRNKDFLLGVNFPLSFPNLCSCPLLKSLVFSSHCKAVSGYSDQVVHQRRSATSSLRRCLLTELPSFLCVASPRVTAVPLDSYCNDRSAEYERRVLKEGGSLAAKQCLLNGAPELAADWLNRRSQFFPEPAGGLWSIRPQNGWSFIRIPGKESLITDSGKLYALDVLLTRLKSQGHRVLIYSQMTRMIDLLEEYMVYRKHTYMRLDGSSKISERRDMVADFQNRNDIFVFLLSTRAGGLGINLTAADTVIFYDSDWNPTVDQQAMDRAHRLGQTKQVTVYRLICKGTIEERILQRAKEKSEIQRMVISGGNFKPDTLKPKEVVSLLLDDEELEKKLRLRQEEKRQQEETNRVKERKRKREKYAEKKKKEDELDGKRRKEGVNLVIPFVPSADNSNLSADGDDSFISVDSAMPSPFSEISISSELHTGSIPLDESSSDMLVIVDDPASSAPQSRATNSPASITGSVSDTVNGISIQEMPAAGRGHSARSRGRPKGSGSTAKGAGKGRSRKSTAGSAAAMAGAKAGAAAASAAAYAAYGYNVSKGISASSPLQTSLVRPAGLADFGPSSASSPLSSPLSKGNNVPGNPKNLHMTSSLAPDSLVRKQGKGTNPSGGR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	INO80 complex subunit B
Molecular weight formula_weight	38704.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MSKLWRRGSTSGAMEAPEPGEALELSLAGAHGHGVHKKKHKKHKKKHKKKHHQEEDAGPTQPSPAKPQLKLKIKLGGQVLGTKSVPTFTVIPEGPRSPSPLMVVDNEEEPMEGVPLEQYRAWLDEDSNLSPSPLRDLSGGLGGQEEEEEQRWLDALEKGELDDNGDLKKEINERLLTARQRALLQKARSQPSPMLPLPVAEGCPPPALTEEMLLKREERARKRRLQAARRAEEHKNQTIERLTKTAATSGRGGRGGARGERRGGRAAAPAPMVRYCSGAQGSTLSFPPGVPAPTAVSQRPSPSGPPPRCSVPGCPHPRRYACSRTGQALCSLQCYRINLQMRLGGPEGPGSPLLAT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	INO80 complex subunit C
Molecular weight formula_weight	20721.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MAAQIPIVATTSTPGIVRNSKKRPASPSHNGSSGGGYGASKKKKASASSFAQGISMEAMSENKMVPSEFSTGPVEKAAKPLPFKDPNFVHSGHGGAVAGKKNRTWKYLKQILASERALPWQLNDPNYFSIDAPPSFKPAKKYSDVSGLLANYTDPQSKLRFSTIEEFSYIRRLPSDVVTGYLALRKATSIVP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	Actin-related protein 5
Molecular weight formula_weight	68372.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MAANVFPFRDARAAPDPVLEAGPVAHGPLPVPLVLDNGSFQVRAGWACPGQDPGPEPRLQFRAVCARGRGGARGASGPQVGNALGSLEPLRWMLRSPFDRNVPVNLELQELLLDYSFQHLGVSSQGCVDHPIVLTEAVCNPLYSRQMMSELLFECYGIPKVAYGIDSLFSFYHNKPKNSMCSGLIISSGYQCTHVLPILEGRLDAKNCKRINLGGSQAAGYLQRLLQLKYPGHLAAITLSRMEEILHEHSYIAEDYVEELHKWRCPDYYENNVHKMQLPFSSKLLGSTLTSEEKQERRQQQLRRLQELNARRREEKLQLDQERLDRLLYVQELLEDGQMDQFHKALIELNMDSPEELQSYIQKLSIAVEQAKQKILQAEVNLEVDVVDSKPETPDLEQLEPSLEDVESMNDFDPLFSEETPGVEKPVTTVQPVFNLAAYHQLFVGTERIRAPEIIFQPSLIGEEQAGIAETLQYILDRYPKDIQEMLVQNVFLTGGNTMYPGMKARMEKELLEMRPFRSSFQVQLASNPVLDAWYGARDWALNHLDDNEVWITRKEYEEKGGEYLKEHCASNIYVPIRLPKQASRSSDAQASSKGSAAGGGGAGEQA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 polymer

Description description	Nucleosomal DNA strand 1
Molecular weight formula_weight	47121.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	K

CAATATCCCGAGTACATGCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCA

Entity 8 Entity 8 polymer

Description description	Nucleosomal DNA strand 2
Molecular weight formula_weight	46715.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	L

TGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGCATGTACTCGGGATATTG

Entity 9 Entity 9 polymer

Description description	Histone H3.1
Molecular weight formula_weight	15437.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,Q

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 10 Entity 10 polymer

Description description	Histone H4
Molecular weight formula_weight	11263.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,R

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 11 Entity 11 polymer

Description description	Histone H2A type 1-B/E
Molecular weight formula_weight	14034.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,S

SGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 12 Entity 12 polymer

Description description	Histone H2B type 2-E
Molecular weight formula_weight	13820.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,T

PEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSSK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 13 Entity 13 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 14 Entity 14 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 15 Entity 15 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Resolution resolution	3.55 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	64537

CryoEM structure of the human INO80 core-nucleosome complex state N-7

1. Protein Identity and Related Structures Protein Identity & Related Structures

RuvB-like 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

RuvB-like 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Chromatin-remodeling ATPase INO80

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

INO80 complex subunit B

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

INO80 complex subunit C

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Actin-related protein 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H3.1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2A type 1-B/E

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2B type 2-E

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
