9yl3

State 1 MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac

Method: ELECTRON MICROSCOPY D_max: 183.7 Å Quality: REASONABLE

SAXS Profile

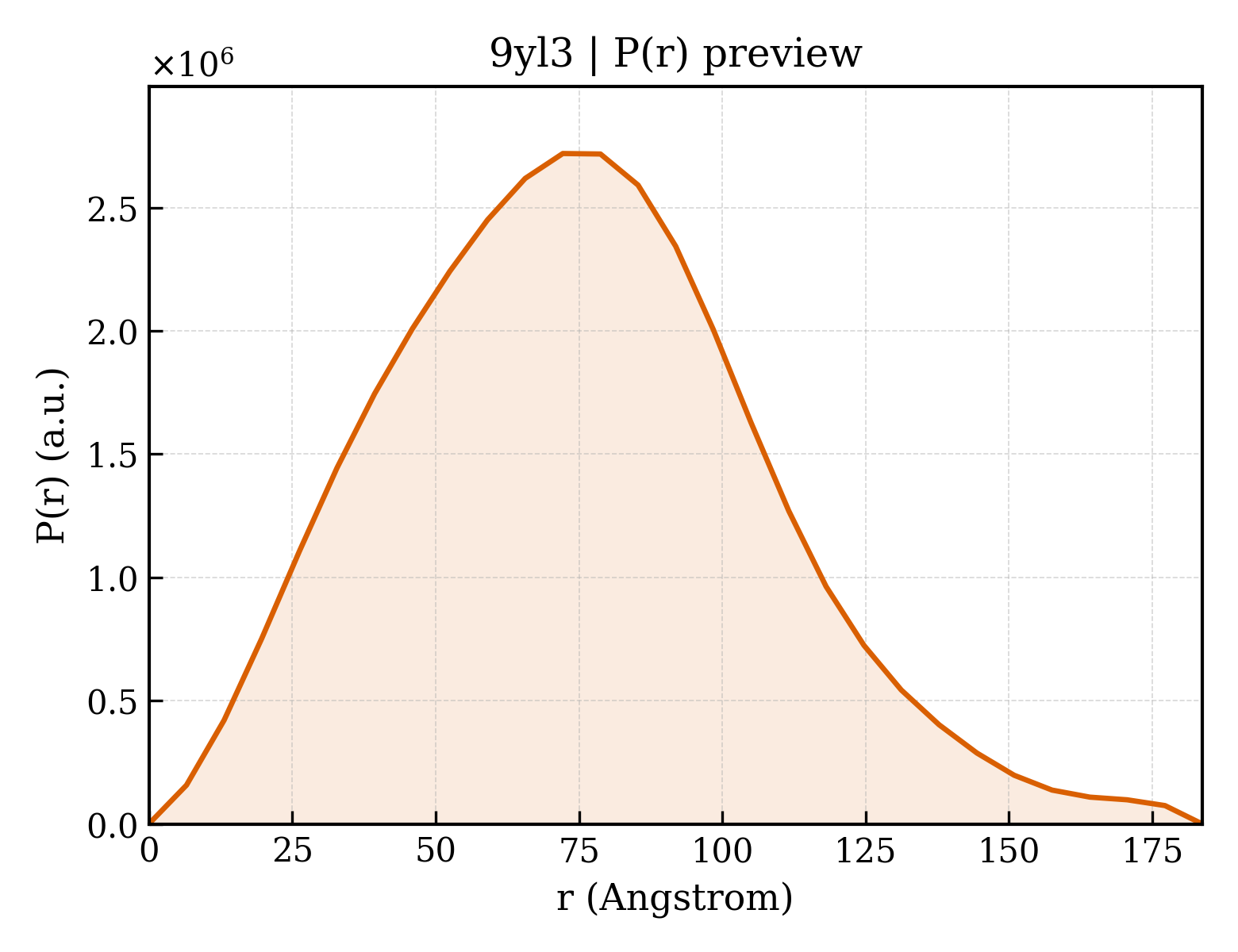

P(r) Distribution

▼

1. Structure Basics

entry_id	9yl3
deposition_date	2025-10-08
title	State 1 MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac
keywords	MLL4 complex, histone modification, nucleosome recognition, transcription coactivation, TRANSCRIPTION, TRANSCRIPTION-DNA complex; TRANSCRIPTION/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	56.11 Å
rg_electron	55.79 Å
i0	2814320000.00
molecular_weight	383170.0 kDa
excluded_volume	454120 Å³
envelope_volume	758930 Å³
shell_volume	112620 Å³
envelope_diameter	195.0 Å
shell_rg	60.62 Å
envelope_rg	53.94 Å
shape_rg	55.77 Å
total_rg	55.97 Å
total_atoms	26556
n_residues	2892
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	183.7 Å
rg_real	57.36 Å
rg_real_error	0.70 Å
i0_real	2.7830e+09
i0_real_error	5.0230e+07
rg_reciprocal	56.24 Å
i0_reciprocal	2816000000.0000
total_estimate	0.7039
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	72.2 Å
skewness	0.337
kurtosis	-0.075
angular_range	— – 0.1400 Å⁻¹
current_alpha	1.3920
highest_alpha	222300000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 0.915; Sysdev: 0.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.787

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (13)

Entity 1 polymer

description	[histone H3]-lysine(4) N-methyltransferase,Histone-lysine N-methyltransferase 2D
formula_weight	140032.8 kDa
ec_number	2.1.1.364
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K
atom_count	26713

MDYKDDDDKSDTMQNTVVLFSNTDKFVLMQDMCVVCGSFGRGAEGHLLACSQCSQCYHPYCVNSKITKVMLLKGWRCVECIVCEVCGQASDPSRLLLCDDCDISYHTYCLDPPLLTVPKGGWKCKWCVSCMQCGAASPGFHCEWQNSYTHCGPCASLVTCPICHAPYVEEDLLIQCRHCERWMHAGCESLFTEDDVEQAADEGFDCVSCQPYVVKPVAPVAPPELSNKEDAAARKPLTPKPKRVQKASDRLVSSRKKLRKEDGVRASEALLKQLKQELSLLPLTEPAITANFSLFAPFGSGCPVNGQSQLRGAFGSGALPTGPDYYSQLLTKNNLSNPPTPPSSLPPTPPPSVQQKMVNGVTPSEELGEHPKDAASARDSERALRDTSEVKSLDLLAALPTPPHNQTEDVRMESDEDSDSPDSIVPASSPESILGEEAPRFPHLGSGRWEQEDRALSPVIPLIPRASIPVFPDTKPYGALGLEVPGKLPVTTWEKGKGSEVSVMLTVSAAAAKNLNGVMVAVAELLSMKIPNSYEVLFPESPARAGTEPKKGEAEGPGGKEKGLEGKSPDTGPDWLKQFDAVLPGYTLKSQLDILSLLKQESPAPEPPTQHSYTYNVSNLDVRQLSAPPPEEPSPPPSPLAPSPASPPTEPLVELPTEPLAEPPVPSPLPLASSPESARPKPRARPPEEGEDSRPPRLKKWKGVRWKRLRLLLTIQKGSGRQEDEREVAEFMEQLGTALRPDKVPRDMRRCCFCHEEGDGATDGPARLLNLDLDLWVHLNCALWSTEVYETQGGALMNVEVALHRGLLTKCSLCQRTGATSSCNRMRCPNVYHFACAIRAKCMFFKDKTMLCPMHKIKGPCEQELSSFAVFRRVYIERDEVKQIASIIQRGERLHMFRVGGLVFHAIGQLLPHQMADFHSATALYPVGYEATRIYWSLRTNNRRCCYRCSIGENNGRPEFVIKVIEQGLEDLVFTDASPQAVWNRIIEPVAAMRKEADMLRLFPEYLKGEELFGLTVHAVLRIAESLPGVESCQNYLFRYGRHPLMELPLMINPTGCARSEPKILTHYKRPHTLNSTSMSKAYQSTFTGETNTPYSKQFVHSKSSQYRRLRTEWKNNVYLARSRIQGLGLYAAKDLEKHTMVIEYIGTIIRNEVANRREKIYEEQNRGIYMFRINNEHVIDATLTGGPARYINHSCAPNCVAEVVTFDKEDKIIIISSRRIPKGEELTYDYQFDFEDDQHKIPCHCGAWNCRKWMN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Ubiquitin
formula_weight	8622.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	O

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 3 polymer

description	Histone H3.1
formula_weight	15306.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,E

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 4 polymer

description	Histone H4
formula_weight	11263.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,F

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 5 polymer

description	Histone H2A type 1-B/E
formula_weight	14034.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,G

SGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 6 polymer

description	Histone H2B type 2-E
formula_weight	13820.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,H

PEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSSK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 7 polymer

description	DNA
formula_weight	45604.0 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	J

ACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAG

Entity 8 polymer

description	Retinoblastoma-binding protein 5
formula_weight	59223.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	N

MNLELLESFGQNYPEEADGTLDCISMALTCTFNRWGTLLAVGCNDGRIVIWDFLTRGIAKIISAHIHPVCSLCWSRDGHKLVSASTDNIVSQWDVLSGDCDQRFRFPSPILKVQYHPRDQNKVLVCPMKSAPVMLTLSDSKHVVLPVDDDSDLNVVASFDRRGEYIYTGNAKGKILVLKTDSQDLVASFRVTTGTSNTTAIKSIEFARKGSCFLINTADRIIRVYDGREILTCGRDGEPEPMQKLQDLVNRTPWKKCCFSGDGEYIVAGSARQHALYIWEKSIGNLVKILHGTRGELLLDVAWHPVRPIIASISSGVVSIWAQNQVENWSAFAPDFKELDENVEYEERESEFDIEDEDKSEPEQTGADAAEDEEVDVTSVDPIAAFCSSDEELEDSKALLYLPIAPEVEDPEENPYGPPPDAVQTSLMDEGASSEKKRQSSADGSQPPKKKPKTTNIELQGVPNDEVHPLLGVKGDGKSKKKQAGRPKGSKGKEKDSPFKPKLYKGDRGLPLEGSAKGKVQAELSQPLTAGGAISELL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 9 polymer

description	Set1/Ash2 histone methyltransferase complex subunit ASH2
formula_weight	68805.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	T

MAAAGAGPGQEAGAGPGPGAVANATGAEEGEMKPVAAGAAAPPGEGISAAPTVEPSSGEAEGGEANLVDVSGGLETESSNGKDTLEGAGDTSEVMDTQAGSVDEENGRQLGEVELQCGICTKWFTADTFGIDTSSCLPFMTNYSFHCNVCHHSGNTYFLRKQANLKEMCLSALANLTWQSRTQDEHPKTMFSKDKDIIPFIDKYWECMTTRQRPGKMTWPNNIVKTMSKERDVFLVKEHPDPGSKDPEEDYPKFGLLDQDLSNIGPAYDNQKQSSAVSTSGNLNGGIAAGSSGKGRGAKRKQQDGGTTGTTKKARSDPLFSAQRLPPHGYPLEHPFNKDGYRYILAEPDPHAPDPEKLELDCWAGKPIPGDLYRACLYERVLLALHDRAPQLKISDDRLTVVGEKGYSMVRASHGVRKGAWYFEITVDEMPPDTAARLGWSQPLGNLQAPLGYDKFSYSWRSKKGTKFHQSIGKHYSSGYGQGDVLGFYINLPEDTETAKSLPDTYKDKALIKFKSYLYFEEKDFVDKAEKSLKQTPHSEIIFYKNGVNQGVAYKDIFEGVYFPAISLYKSCTVSINFGPCFKYPPKDLTYRPMSDMGWGAVVEHTLADVLYHVETEVDGRRSPPWEP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 10 polymer

description	Protein dpy-30 homolog
formula_weight	11261.7 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	P,Q

MEPEQMLEGQTQVAENPHSEYGLTDNVERIVENEKINAEKSSKQKVDLQSLPTRAYLDQTVVPILLQGLAVLAKERPPNPIEFLASYLLKNKAQFEDRN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 11 polymer

description	WD repeat-containing protein 5
formula_weight	36635.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MATEEKKPETEAARAQPTPSSSATQSKPTPVKPNYALKFTLAGHTKAVSSVKFSPNGEWLASSSADKLIKIWGAYDGKFEKTISGHKLGISDVAWSSDSNLLVSASDDKTLKIWDVSSGKCLKTLKGHSNYVFCCNFNPQSNLIVSGSFDESVRIWDVKTGKCLKTLPAHSDPVSAVHFNRDGSLIVSSSYDGLCRIWDTASGQCLKTLIDDDNPPVSFVKFSPNGKYILAATLDNTLKLWDYSKGKCLKTYTGHKNEKYCIFANFSVTGGKWIVSGSEDNLVYIWNLQTKEIVQKLQGHTDVVISTACHPTENIIASAALENDKTIKLWKSDC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 12 polymer

description	DNA
formula_weight	45145.8 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	I

CTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGT

Entity 13 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	157

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.500 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.50 Å
resolution_method	—
num_particles	33669

fit	/app/data/saxs_computation/yl/9yl3/9yl3.fit
pddf	/app/data/pr_computation/yl/9yl3/9yl3.pr.out
profile	/app/data/saxs_computation/yl/9yl3/9yl3.dat
