9qlm
Solution structure of the TAF3-PHD bound to a H3K4me3Q5ser histone tail peptide with a serotonylated glutamine

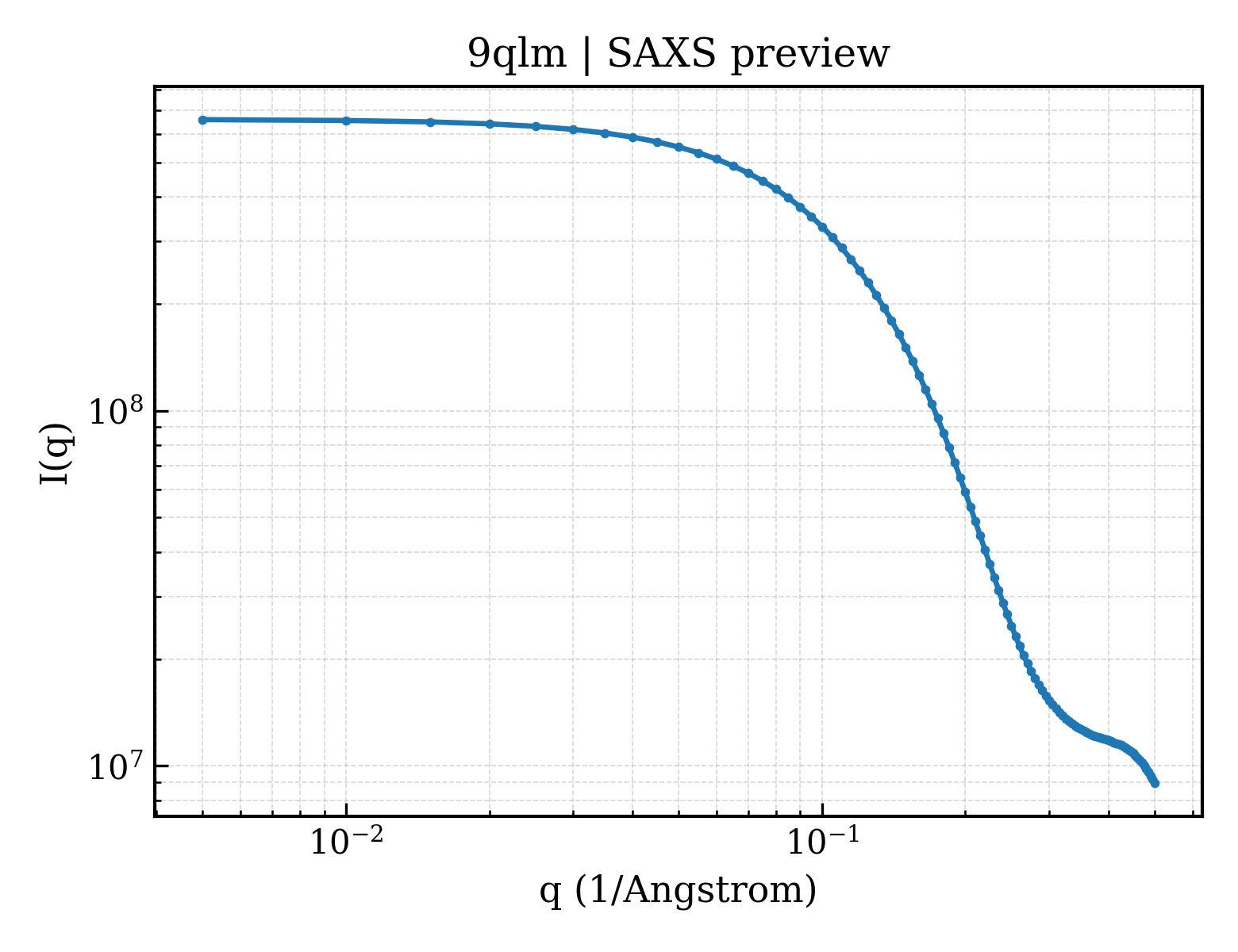

SAXS Profile

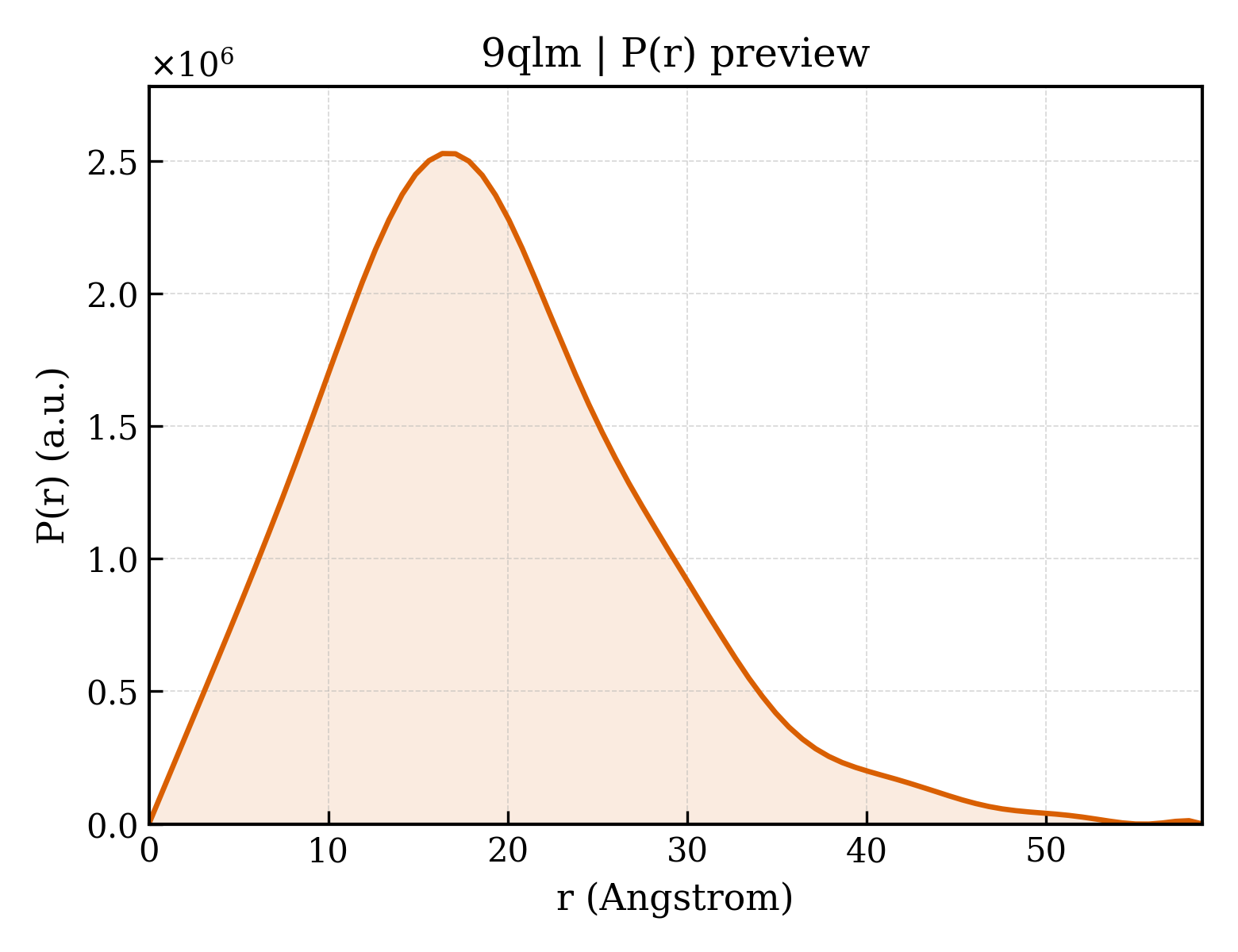

P(r) Distribution
1. Structure Basics
| entry_id | 9qlm |
| deposition_date | 2025-03-21 |
| title | Solution structure of the TAF3-PHD bound to a H3K4me3Q5ser histone tail peptide with a serotonylated glutamine |
| keywords | serotonylation, methylation, histone H3, GENE REGULATION, TFIID; GENE REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.62 Å |
| rg_electron | 14.72 Å |
| i0 | 660427000.00 |
| molecular_weight | 204130.0 kDa |
| excluded_volume | 249260 ų |
| envelope_volume | 33194 ų |
| shell_volume | 15571 ų |
| envelope_diameter | 65.4 Å |
| shell_rg | 24.43 Å |
| envelope_rg | 19.54 Å |
| shape_rg | 14.75 Å |
| total_rg | 14.84 Å |
| total_atoms | 27320 |
| n_residues | 1720 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.7 Å |
| rg_real | 14.75 Å |
| rg_real_error | 0.64 Å |
| i0_real | 6.6040e+08 |
| i0_real_error | 9.5100e+06 |
| rg_reciprocal | 14.74 Å |
| i0_reciprocal | 660400000.0000 |
| total_estimate | 0.6838 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 16.4 Å |
| skewness | 0.621 |
| kurtosis | 0.460 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 146200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.455; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.520; Smooth: 0.000 |
