7klr

Solution structure of the PHD1 domain of histone demethylase KDM5A in complex with a histone H3(1-10) peptide

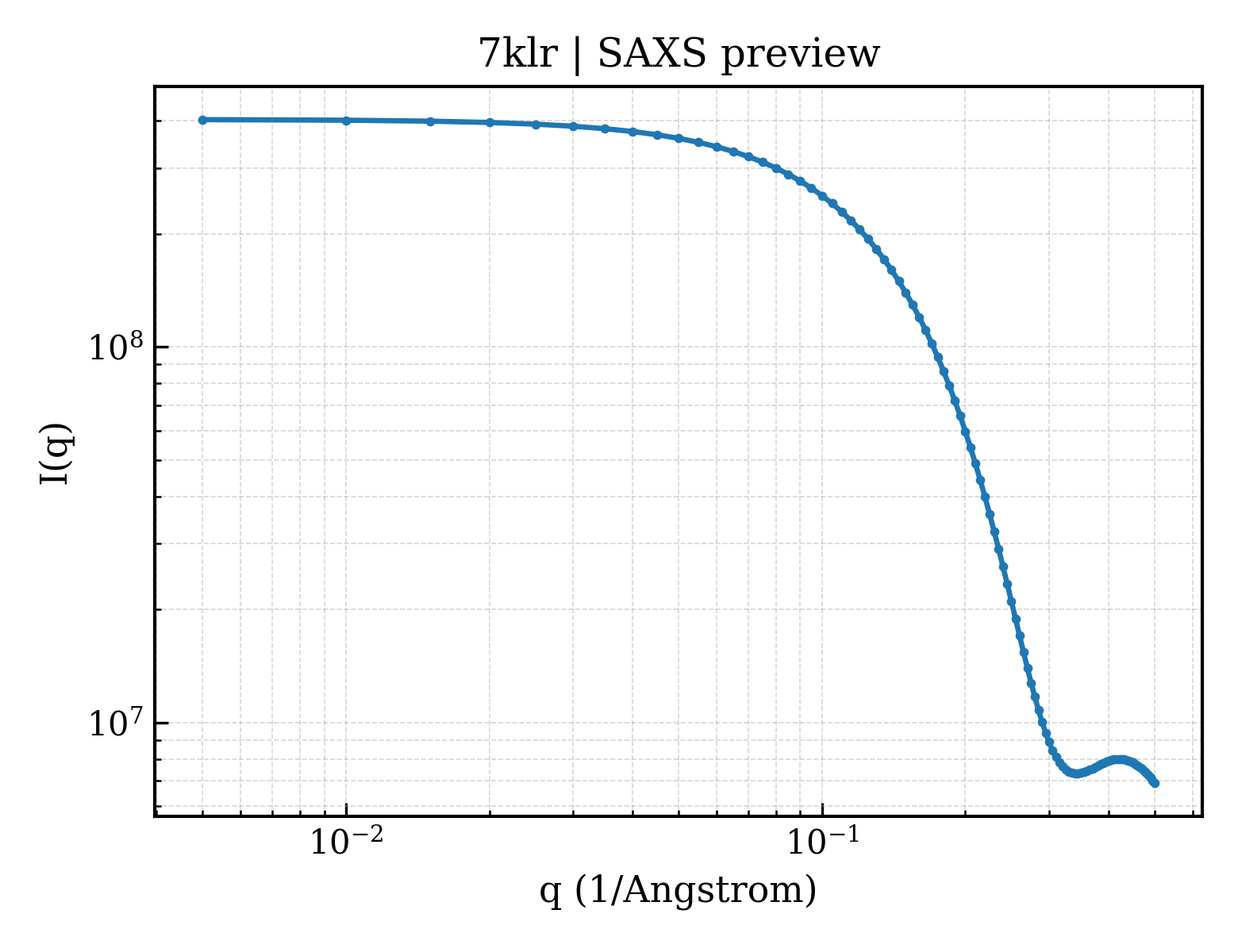

Method: SOLUTION NMR Dmax: 39.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lysine-specific demethylase 5A

Homo sapiens

UniProt P29375

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 287–344 Not recorded Histone H3.1 × 1 （P68431） ZN ZINC ION × 2 SOLUTION NMR NMR measurement conditions：pH 7.5；298 K；Ionic strength (raw mmCIF value) 150；Pressure 1 NMR sample composition：900 uM [U-13C; U-15N] Histone lysine demethylase 5A, KDM5A, 4000 uM Histone H3.1, 50 mM HEPES, 150 mM sodium chloride, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：550 uM [U-13C; U-15N] Histone lysine demethylase 5A, KDM5A, 800 uM Histone H3.1, 50 mM HEPES, 150 mM sodium chloride, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：1250 uM [U-13C; U-15N] Histone lysine demethylase 5A, KDM5A, 400 uM Histone H3.1, 50 mM HEPES, 150 mM sodium chloride, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7KLR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2JXJ NMR structure of the ARID domain from the histone H3K4 demethylase RBP2 Deposited 2007-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 85–175（91 aa） Fragment：ARID domain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6；293 K；Ionic strength (raw mmCIF value) ~200 mM salt；Pressure ambient
NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] protein, 50 mM sodium phosphate, 100 mM sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] protein, 50 mM sodium phosphate, 100 mM sodium chloride, 100% D2O | 100% D2O
Resolution not provided
2KGG Solution Structure of JARID1A C-terminal PHD finger Deposited 2009-03-11 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1609–1659（51 aa） Fragment：PHD-TYPE C-terminal ZINC FINGER
Not recorded ZN ZINC ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；293.2 K；Ionic strength (raw mmCIF value) 20 mM Sodium Phosphate；Pressure 1
NMR measurement conditions pH 7；298.2 K；Ionic strength (raw mmCIF value) 200 mM NaCl；Pressure 1
NMR sample composition 0.2-0.5 MM [U-100% 13C; U-100% 15N] JARID1A PHD FINGER 3, 5MM DTT, 1 MM ZINC CHLORIDE, 20 MM SODIUM PHHOSPHATE, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.2-0.5 MM [U-100% 15N] JARID1A PHD FINGER 3, 10 MM MOPS, 5 MM DTT, 1 MM ZINC CHLORIDE, 12 MG/ML BACTERIOPHAGE PF1, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2KGI Solution structure of JARID1A C-terminal PHD finger in complex with H3(1-9)K4me3 Deposited 2009-03-12 Different construct Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1609–1659（51 aa） Fragment：PHD-TYPE C-terminal ZINC FINGER
Not recorded ZN ZINC ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；293.2 K；Ionic strength (raw mmCIF value) 20 mM SODIUM PHOSPHATE；Pressure 1
NMR measurement conditions pH 7；298.2 K；Ionic strength (raw mmCIF value) 200 mM NACL；Pressure 1
NMR sample composition 0.2-0.5 MM [U-100% 13C; U-100% 15N] JARID1A PHD FINGER 3, 0.2-0.5 MM H3(1-9)K4ME3, 5 MM DTT, 1 MM ZINC CHLORIDE, 20 MM SODIUM PHOSPHATE, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.2-0.5 MM [U-100% 15N] JARID1A PHD FINGER 3, 0.2-0.5 MM H3(1-9)K4ME3, 5 MM DTT, 1 MM ZINC CHLORIDE, 10 MM MOPS, 12 MG/ML BACTERIOPHAGE PF1, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3GL6 Crystal structure of JARID1A-PHD3 complexed with H3(1-9)K4me3 peptide Deposited 2009-03-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1609–1659（51 aa） Fragment：C-terminal PHD finger
Not recorded ZN ZINC ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M Hepes-Na, 10% iso-propanol, 20% PEG4000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.225
5C11 Crystal Structure of Jarid1a PHD finger bound to histone H3C4me3 peptide Deposited 2015-06-12 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1609–1659（51 aa） Fragment：PHD finger domain, UNP residues 1609-1659
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.02 M sodium l-glutamate, 0.02 M dl-alanine, 0.02 M glycine, 0.02 M dl-lysine HCl, 0.02 M dl-serine, 0.1 M Tris, 0.1 M Bicine, PH8.5, 12.5% MPD, 12.5% PEG 1K, 12.5% PEG 3350
Resolution 2.80 Å R-free 0.279
5CEH Structure of histone lysine demethylase KDM5A in complex with selective inhibitor Deposited 2015-07-06 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 12–797（786 aa） Fragment：UNP residues 12-797
Not recorded NI NICKEL (II) ION × 1 ZN ZINC ION × 2 50P 7-oxo-5-phenyl-6-(propan-2-yl)-4,7-dihydropyrazolo[1,5-a]pyrimidine-3-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% PEG3350, 0.1 M HEPES, pH 7.3, 12% glycerol
Resolution 3.14 Å R-free 0.238
5E6H A Linked Jumonji Domain of the KDM5A Lysine Demethylase Deposited 2015-10-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded MN MANGANESE (II) ION × 1 AKG 2-OXOGLUTARIC ACID × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；1.5 M Ammonium sulfate 100mM Tris-HCl, pH 8.5 12% glycerol
Resolution 2.24 Å R-free 0.220
5ISL Linked KDM5A Jmj Domain Bound to the Inhibitor C49 (2-{[(2-{[(E)-2-(dimethylamino)ethenyl](ethyl)amino}-2-oxoethyl)amino]methyl}pyridine-4-carboxylic acid) Deposited 2016-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded MMK 2-{[(2-{[(E)-2-(dimethylamino)ethenyl](ethyl)amino}-2-oxoethyl)amino]methyl}pyridine-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.69 Å R-free 0.202
5IVB A High Resolution Structure of a Linked KDM5A Jmj Domain with Alpha-Ketoglutarate Deposited 2016-03-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588,Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588,Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded AKG 2-OXOGLUTARIC ACID × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.39 Å R-free 0.214
5IVC Linked KDM5A Jmj Domain Bound to the Inhibitor N3 (4'-[(2-phenylethyl)carbamoyl][2,2'-bipyridine]-4-carboxylic acid) Deposited 2016-03-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded 6E7 4'-[(2-phenylethyl)carbamoyl][2,2'-bipyridine]-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 EDO 1,2-ETHANEDIOL × 3 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.57 Å R-free 0.184
5IVE Linked KDM5A Jmj Domain Bound to the Inhibitor N8 ( 5-methyl-7-oxo-6-(propan-2-yl)-4,7-dihydropyrazolo[1,5-a]pyrimidine-3-carbonitrile) Deposited 2016-03-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded 6E8 5-methyl-7-oxo-6-(propan-2-yl)-4,7-dihydropyrazolo[1,5-a]pyrimidine-3-carbonitrile × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.78 Å R-free 0.205
5IVF Linked KDM5A Jmj Domain Bound to the Inhibitor N10 8-(1-methyl-1H-imidazol-4-yl)-2-(4,4,4-trifluorobutoxy)pyrido[3,4-d]pyrimidin-4-ol Deposited 2016-03-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded 6EB 8-(1-methyl-1H-imidazol-4-yl)-2-(4,4,4-trifluorobutoxy)pyrido[3,4-d]pyrimidin-4-ol × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.68 Å R-free 0.202
5IVJ Linked KDM5A Jmj Domain Bound to the Inhibitor N11 [3-({1-[2-(4,4-difluoropiperidin-1-yl)ethyl]-5-fluoro-1H-indazol-3-yl}amino)pyridine-4-carboxylic acid] Deposited 2016-03-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded 6ED 3-({1-[2-(4,4-difluoropiperidin-1-yl)ethyl]-5-fluoro-1H-indazol-3-yl}amino)pyridine-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.57 Å R-free 0.189
5IVV Linked KDM5A Jmj Domain Bound to the Inhibitor N12 [3-((1-methyl-1H-pyrrolo[2,3-b]pyridin-3-yl)amino)isonicotinic acid] Deposited 2016-03-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded 6EN 3-[(1-methyl-1H-pyrrolo[2,3-b]pyridin-3-yl)amino]pyridine-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.85 Å R-free 0.204
5IVY Linked KDM5A Jmj Domain Bound to the Inhibitor N16 [3-(2-(4-chlorophenyl)acetamido)isonicotinic acid] Deposited 2016-03-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded 6EO 3-{[(4-chlorophenyl)acetyl]amino}pyridine-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.45 Å R-free 0.209
5IW0 Linked KDM5A Jmj Domain Bound to the Inhibitor N19 [2-(5-((4-chloro-2-methylbenzyl)oxy)-1H-pyrazol-1-yl)isonicotinic acid] Deposited 2016-03-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded 6EP 2-{5-[(4-chloro-2-methylphenyl)methoxy]-1H-pyrazol-1-yl}pyridine-4-carboxylic acid × 1 AKG 2-OXOGLUTARIC ACID × 1 MN MANGANESE (II) ION × 1 EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.63 Å R-free 0.192
5IWF Linked KDM5A Jmj Domain Bound to the Inhibitor 2-(((2-((2-(dimethylamino)ethyl)(ethyl)amino)-2-oxoethyl)amino)methyl)isonicotinamid Deposited 2016-03-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Chain A 348–588（241 aa） Fragment：Linked KDM5A Jmj Domain, UNP residues 1-87 and 348-588
Not recorded LQT 2-[[[2-[2-(dimethylamino)ethyl-ethyl-amino]-2-oxidanylidene-ethyl]amino]methyl]pyridine-4-carboxamide × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 2.29 Å R-free 0.243
5K4L Crystal structure of KDM5A in complex with a naphthyridone inhibitor Deposited 2016-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 12–797（786 aa） Fragment：UNP residues 12-797
Chain B 12–797（786 aa） Fragment：UNP residues 12-797
Not recorded NI NICKEL (II) ION × 2 ZN ZINC ION × 4 6QN ~{N}-ethyl-4-oxidanyl-2-oxidanylidene-1~{H}-1,7-naphthyridine-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.3；292 K；20% PEG3350, 0.1 M HEPES, pH 7.3, and 12% glycerol
Resolution 3.18 Å R-free 0.257
5K4L Crystal structure of KDM5A in complex with a naphthyridone inhibitor Deposited 2016-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 12–797（786 aa） Fragment：UNP residues 12-797
Chain B 12–797（786 aa） Fragment：UNP residues 12-797
Not recorded NI NICKEL (II) ION × 2 ZN ZINC ION × 4 6QN ~{N}-ethyl-4-oxidanyl-2-oxidanylidene-1~{H}-1,7-naphthyridine-3-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.3；292 K；20% PEG3350, 0.1 M HEPES, pH 7.3, and 12% glycerol
Resolution 3.18 Å R-free 0.257
5V9P Crystal structure of pyrrolidine amide inhibitor [(3S)-3-(4-bromo-1H-pyrazol-1-yl)pyrrolidin-1-yl][3-(propan-2-yl)-1H-pyrazol-5-yl]methanone (compound 35) in complex with KDM5A Deposited 2017-03-23 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 12–797（786 aa）
Not recorded NI NICKEL (II) ION × 1 ZN ZINC ION × 2 90S [(3S)-3-(4-bromo-1H-pyrazol-1-yl)pyrrolidin-1-yl][3-(propan-2-yl)-1H-pyrazol-5-yl]methanone × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.3；291 K；200 uM inhibitor, 20% PEG3350, 0.1 M HEPES, pH 7.3, 12% glycerol
Resolution 3.00 Å R-free 0.248
5V9T Crystal structure of selective pyrrolidine amide KDM5a inhibitor N-{(3R)-1-[3-(propan-2-yl)-1H-pyrazole-5-carbonyl]pyrrolidin-3-yl}cyclopropanecarboxamide (compound 48) Deposited 2017-03-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 12–797（786 aa）
Not recorded NI NICKEL (II) ION × 1 ZN ZINC ION × 2 90V N-{(3R)-1-[3-(propan-2-yl)-1H-pyrazole-5-carbonyl]pyrrolidin-3-yl}cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.3；291 K；200 uM inhibitor, 20% PEG3350, 0.1 M HEPES, pH 7.3, 12% glycerol
Resolution 3.05 Å R-free 0.290
5V9T Crystal structure of selective pyrrolidine amide KDM5a inhibitor N-{(3R)-1-[3-(propan-2-yl)-1H-pyrazole-5-carbonyl]pyrrolidin-3-yl}cyclopropanecarboxamide (compound 48) Deposited 2017-03-23 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 12–797（786 aa）
Not recorded NI NICKEL (II) ION × 1 ZN ZINC ION × 2 90V N-{(3R)-1-[3-(propan-2-yl)-1H-pyrazole-5-carbonyl]pyrrolidin-3-yl}cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.3；291 K；200 uM inhibitor, 20% PEG3350, 0.1 M HEPES, pH 7.3, 12% glycerol
Resolution 3.05 Å R-free 0.290
6BGU LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 2-((2-chlorophenyl)(propoxy)methyl)-1H-pyrrolo[3,2-b]pyridine (Compound N9) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DKP 2-[(R)-(2-chlorophenyl)(propoxy)methyl]-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 DMS DIMETHYL SULFOXIDE × 1 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 4 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.68 Å R-free 0.208
6BGV LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 2-((2-chlorophenyl)(2-(piperidin-1-yl)ethoxy)methyl)-1l2-pyrrolo[3,2-b]pyridine-7-carboxylic acid (Compound N40) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DQG 2-{(S)-(2-chlorophenyl)[2-(piperidin-1-yl)ethoxy]methyl}-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 4 DMS DIMETHYL SULFOXIDE × 2 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.59 Å R-free 0.184
6BGW LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 2-((2-chlorophenyl)(2-(4,4-difluoropiperidin-1-yl)ethoxy)methyl)-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid(Compound N41) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DKS 2-{(S)-(2-chlorophenyl)[2-(4,4-difluoropiperidin-1-yl)ethoxy]methyl}-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 5 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.64 Å R-free 0.213
6BGX LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 2-((2-chlorophenyl)((4,4-difluorocyclohexyl)methoxy)methyl)-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid(Compound N42) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DKV 2-{(S)-(2-chlorophenyl)[(4,4-difluorocyclohexyl)methoxy]methyl}-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.88 Å R-free 0.236
6BGY LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 2-((2-chlorophenyl)(2-(1-methylpyrrolidin-2-yl)ethoxy)methyl)-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid(Compound 46) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DLJ 2-[(S)-(2-chlorophenyl){2-[(2R)-1-methylpyrrolidin-2-yl]ethoxy}methyl]-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 EDO 1,2-ETHANEDIOL × 4 DMS DIMETHYL SULFOXIDE × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.22 Å R-free 0.193
6BGZ LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 2-((2-chlorophenyl)(2-(1-methyl-1H-imidazol-2-yl)ethoxy)methyl)-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid (Compound N47) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DNV 2-{(S)-(2-chlorophenyl)[2-(1-methyl-1H-imidazol-2-yl)ethoxy]methyl}-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.69 Å R-free 0.197
6BH0 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR (R)-2-((2-chlorophenyl)(2-(piperidin-1-yl)ethoxy)methyl)-1l2-pyrrolo[3,2-b]pyridine-7-carboxylic acid (Compound N51) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DO1 2-{(R)-(2-chlorophenyl)[2-(piperidin-1-yl)ethoxy]methyl}-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.99 Å R-free 0.219
6BH1 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR (S)-2-((2-chlorophenyl)(2-(piperidin-1-yl)ethoxy)methyl)-1l2-pyrrolo[3,2-b]pyridine-7-carboxylic acid (Compound N52) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DQG 2-{(S)-(2-chlorophenyl)[2-(piperidin-1-yl)ethoxy]methyl}-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 DMS DIMETHYL SULFOXIDE × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.93 Å R-free 0.184
6BH2 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR (R)-N-(1-(3-isopropyl-1H-pyrazole-5-carbonyl)pyrrolidin-3-yl)cyclopropanecarboxamide (Compound N54) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded MN MANGANESE (II) ION × 1 GOL GLYCEROL × 2 90V N-{(3R)-1-[3-(propan-2-yl)-1H-pyrazole-5-carbonyl]pyrrolidin-3-yl}cyclopropanecarboxamide × 1 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.45 Å R-free 0.205
6BH3 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR (S)-N-(1-(3-isopropyl-1H-pyrazole-5-carbonyl)pyrrolidin-3-yl)cyclopropanecarboxamide (Compound N55) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DQJ N-{(3S)-1-[5-(propan-2-yl)-1H-pyrazole-3-carbonyl]pyrrolidin-3-yl}cyclopropanecarboxamide × 1 MN MANGANESE (II) ION × 1 DMS DIMETHYL SULFOXIDE × 1 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.70 Å R-free 0.216
6BH4 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 5-(1-(tert-butyl)-1H-pyrazol-4-yl)-6-isopropyl-7-oxo-4,7-dihydropyrazolo[1,5-a]pyrimidine-3-carbonitrile (Compound N75/CPI-48) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DQS 5-(1-tert-butyl-1H-pyrazol-4-yl)-7-oxo-6-(propan-2-yl)-4,7-dihydropyrazolo[1,5-a]pyrimidine-3-carbonitrile × 1 MN MANGANESE (II) ION × 1 EDO 1,2-ETHANEDIOL × 7 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 2.05 Å R-free 0.218
6BH5 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR 2-((2-chlorophenyl)(3-(piperidin-1-yl)propoxy)methyl)-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid (Compound N48) Deposited 2017-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded DNY 2-{(S)-(2-chlorophenyl)[3-(piperidin-1-yl)propoxy]methyl}-1H-pyrrolo[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 EDO 1,2-ETHANEDIOL × 5 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2), 0-20% glycerol, 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.65 Å R-free 0.216
6DQ4 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR GSK-J1 Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded K0I 3-[[2-pyridin-2-yl-6-(1,2,4,5-tetrahydro-3-benzazepin-3-yl)pyrimidin-4-yl]amino]propanoic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 5 SO4 SULFATE ION × 3 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.39 Å R-free 0.216
6DQ4 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR GSK-J1 Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded K0I 3-[[2-pyridin-2-yl-6-(1,2,4,5-tetrahydro-3-benzazepin-3-yl)pyrimidin-4-yl]amino]propanoic acid × 2 MN MANGANESE (II) ION × 2 GOL GLYCEROL × 10 SO4 SULFATE ION × 6 DMS DIMETHYL SULFOXIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.39 Å R-free 0.216
6DQ5 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N43 i.e. 3-((6-(4-acryloyl-1,4-diazepan-1-yl)-2-(pyridin-2-yl)pyrimidin-4-yl)amino)propanoic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6G N-[6-(4-acryloyl-1,4-diazepan-1-yl)-2-(pyridin-2-yl)pyrimidin-4-yl]-beta-alanine × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.89 Å R-free 0.254
6DQ5 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N43 i.e. 3-((6-(4-acryloyl-1,4-diazepan-1-yl)-2-(pyridin-2-yl)pyrimidin-4-yl)amino)propanoic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6G N-[6-(4-acryloyl-1,4-diazepan-1-yl)-2-(pyridin-2-yl)pyrimidin-4-yl]-beta-alanine × 2 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.89 Å R-free 0.254
6DQ6 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N44 i.e. 3-((2-(pyridin-2-yl)-6-(4-(vinylsulfonyl)-1,4-diazepan-1-yl)pyrimidin-4-yl)amino)propanoic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6J N-{6-[4-(ethenylsulfonyl)-1,4-diazepan-1-yl]-2-(pyridin-2-yl)pyrimidin-4-yl}-beta-alanine × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.59 Å R-free 0.202
6DQ6 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N44 i.e. 3-((2-(pyridin-2-yl)-6-(4-(vinylsulfonyl)-1,4-diazepan-1-yl)pyrimidin-4-yl)amino)propanoic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6J N-{6-[4-(ethenylsulfonyl)-1,4-diazepan-1-yl]-2-(pyridin-2-yl)pyrimidin-4-yl}-beta-alanine × 2 MN MANGANESE (II) ION × 2 GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.59 Å R-free 0.202
6DQ7 LINKED KDM5A JMJ DOMAIN BOUND TO THE POTENTIAL HYDROLYSIS PRODUCT OF INHIBITOR N45 i.e. 3-((6-(4-(2-cyano-3-methylbut-2-enoyl)-1,4-diazepan-1-yl)-2-(pyridin-2-yl)pyrimidin-4-yl)amino)propanoic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6M N-{6-[4-(hydroxyacetyl)-1,4-diazepan-1-yl]-2-(pyridin-2-yl)pyrimidin-4-yl}-beta-alanine × 1 MN MANGANESE (II) ION × 1 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.85 Å R-free 0.209
6DQ8 LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N49 i.e. 2-((2-chlorophenyl)(2-(1-methylpyrrolidin-2-yl)ethoxy)methyl)thieno[3,2-b]pyridine-7-carboxylic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6S 2-[(R)-(2-chlorophenyl){2-[(2S)-1-methylpyrrolidin-2-yl]ethoxy}methyl]thieno[3,2-b]pyridine-7-carboxylic acid × 1 H6T 2-[(S)-(2-chlorophenyl){2-[(2S)-1-methylpyrrolidin-2-yl]ethoxy}methyl]thieno[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 DMS DIMETHYL SULFOXIDE × 2 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.46 Å R-free 0.210
6DQ9 Linked KDM5A JMJ Domain Bound to the Covalent Inhibitor N69 i.e. [2-((3-acrylamidophenyl)(2-(piperidin-1-yl)ethoxy)methyl)thieno[3,2-b]pyridine-7-carboxylic acid] Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H74 2-{(R)-[3-(acryloylamino)phenyl][2-(piperidin-1-yl)ethoxy]methyl}thieno[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 2 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.75 Å R-free 0.198
6DQA Linked KDM5A JMJ Domain Bound to Inhibitor N70 i.e.[2-((3-aminophenyl)(2-(piperidin-1-yl)ethoxy)methyl)thieno[3,2-b]pyridine-7-carboxylic acid] Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6V 2-{(R)-(3-aminophenyl)[2-(piperidin-1-yl)ethoxy]methyl}thieno[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.89 Å R-free 0.201
6DQB LINKED KDM5A JMJ DOMAIN FORMING COVALENT BOND TO INHIBITOR N71 i.e. 2-((3-(4-(dimethylamino)but-2-enamido)phenyl)(2-(piperidin-1-yl)ethoxy)methyl)thieno[3,2-b]pyridine-7-carboxylic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H77 2-{(R)-(3-{[(2E)-4-(dimethylamino)but-2-enoyl]amino}phenyl)[2-(piperidin-1-yl)ethoxy]methyl}thieno[3,2-b]pyridine-7-carboxylic acid × 1 HZV 2-{(R)-(3-{[4-(dimethylamino)butanoyl]amino}phenyl)[2-(piperidin-1-yl)ethoxy]methyl}thieno[3,2-b]pyridine-7-carboxylic acid × 1 HZM 2-{(S)-(3-{[4-(dimethylamino)butanoyl]amino}phenyl)[2-(piperidin-1-yl)ethoxy]methyl}thieno[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.79 Å R-free 0.201
6DQC LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N50 i.e. 2-(4-((2-(dimethylamino)ethyl)(ethyl)carbamoyl)-5-(4-methoxyphenyl)-1H-pyrazol-1-yl)isonicotinic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H5Y 2-[4-{[2-(dimethylamino)ethyl](ethyl)carbamoyl}-5-(4-methoxyphenyl)-1H-pyrazol-1-yl]pyridine-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 DMS DIMETHYL SULFOXIDE × 1 GOL GLYCEROL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.75 Å R-free 0.215
6DQD LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N53 i.e. 2-(5-([1,1'-biphenyl]-3-yl)-4-(1-(2-(piperidin-1-yl)ethoxy)ethyl)-1H-pyrazol-1-yl)isonicotinic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H67 2-[5-([1,1'-biphenyl]-3-yl)-4-{(1S)-1-[2-(piperidin-1-yl)ethoxy]ethyl}-1H-pyrazol-1-yl]pyridine-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.99 Å R-free 0.217
6DQD LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N53 i.e. 2-(5-([1,1'-biphenyl]-3-yl)-4-(1-(2-(piperidin-1-yl)ethoxy)ethyl)-1H-pyrazol-1-yl)isonicotinic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H67 2-[5-([1,1'-biphenyl]-3-yl)-4-{(1S)-1-[2-(piperidin-1-yl)ethoxy]ethyl}-1H-pyrazol-1-yl]pyridine-4-carboxylic acid × 2 MN MANGANESE (II) ION × 2 GOL GLYCEROL × 4 DMS DIMETHYL SULFOXIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.99 Å R-free 0.217
6DQE LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N67 i.e. 2-(5-phenyl-4-(phenyl(2-(piperidin-1-yl)ethoxy)methyl)-1H-pyrazol-1-yl)isonicotinic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6A 2-(5-phenyl-4-{(R)-phenyl[2-(piperidin-1-yl)ethoxy]methyl}-1H-pyrazol-1-yl)pyridine-4-carboxylic acid × 1 MN MANGANESE (II) ION × 1 GOL GLYCEROL × 1 DMS DIMETHYL SULFOXIDE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.69 Å R-free 0.187
6DQE LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N67 i.e. 2-(5-phenyl-4-(phenyl(2-(piperidin-1-yl)ethoxy)methyl)-1H-pyrazol-1-yl)isonicotinic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H6A 2-(5-phenyl-4-{(R)-phenyl[2-(piperidin-1-yl)ethoxy]methyl}-1H-pyrazol-1-yl)pyridine-4-carboxylic acid × 2 MN MANGANESE (II) ION × 2 GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.69 Å R-free 0.187
6DQF LINKED KDM5A JMJ DOMAIN BOUND TO THE INHIBITOR N68 i.e. 2-(1-(2-(piperidin-1-yl)ethyl)-1H-benzo[d]imidazol-2-yl)thieno[3,2-b]pyridine-7-carboxylic acid Deposited 2018-06-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–87（87 aa）
Chain A 348–588（241 aa）
Not recorded H61 2-{1-[2-(piperidin-1-yl)ethyl]-1H-benzimidazol-2-yl}thieno[3,2-b]pyridine-7-carboxylic acid × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1.2-1.35 M (NH4)2SO4, 0.1 M Tris-HCl (pH 8.6-9.2) 0-20% glycerol 25 mM (Na/K) dibasic/monobasic phosphate
Resolution 1.69 Å R-free 0.207
7KLO Solution structure of the PHD1 domain of histone demethylase KDM5A Deposited 2020-10-30 Different oligomeric state Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 287–344（58 aa）
Not recorded ZN ZINC ION × 2 SOLUTION NMR
NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 150；Pressure 1
NMR sample composition 900 uM U-13C, 99%; U-15N, 99 % PHD1, 50 mM HEPES, 150 mM NaCl, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 550 uM U-13C, 99%; U-15N, 99 % PHD1, 50 mM HEPES, 150 mM NaCl, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided

45 other PDB entries and 52 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name KDM5A_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–59； UniProt 287–344

Histone H3.1

Homo sapiens

UniProt P68431

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 2–11 Not recorded Lysine-specific demethylase 5A × 1 （P29375） ZN ZINC ION × 2 SOLUTION NMR NMR measurement conditions：pH 7.5；298 K；Ionic strength (raw mmCIF value) 150；Pressure 1 NMR sample composition：900 uM [U-13C; U-15N] Histone lysine demethylase 5A, KDM5A, 4000 uM Histone H3.1, 50 mM HEPES, 150 mM sodium chloride, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：550 uM [U-13C; U-15N] Histone lysine demethylase 5A, KDM5A, 800 uM Histone H3.1, 50 mM HEPES, 150 mM sodium chloride, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O NMR sample composition：1250 uM [U-13C; U-15N] Histone lysine demethylase 5A, KDM5A, 400 uM Histone H3.1, 50 mM HEPES, 150 mM sodium chloride, 5 mM beta-mercaptoethanol, 0.1 mM ZnCl2, 95% H2O/5% D2O | 95% H2O/5% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7KLR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2B2T Tandem chromodomains of human CHD1 complexed with Histone H3 Tail containing trimethyllysine 4 and phosphothreonine 3 Deposited 2005-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–19（19 aa） Fragment：residues 1-19
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES, pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00
Resolution 2.45 Å R-free 0.266
2B2U Tandem chromodomains of human CHD1 complexed with Histone H3 Tail containing trimethyllysine 4 and dimethylarginine 2 Deposited 2005-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–15（15 aa） Fragment：residues 1-15
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES, pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00
Resolution 2.95 Å R-free 0.290
2B2V Crystal structure analysis of human CHD1 chromodomains 1 and 2 bound to histone H3 resi 1-15 MeK4 Deposited 2005-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–15（15 aa） Fragment：residues 1-15
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES, pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00
Resolution 2.65 Å R-free 0.266
2B2W Tandem chromodomains of human CHD1 complexed with Histone H3 Tail containing trimethyllysine 4 Deposited 2005-09-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–19（19 aa） Fragment：residues 1-19
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00
Resolution 2.40 Å R-free 0.273
2CV5 Crystal structure of human nucleosome core particle Deposited 2005-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 0–135（136 aa）
Chain E 0–135（136 aa）
Not recorded MN MANGANESE (II) ION × 9 CL CHLORIDE ION × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.50 Å R-free 0.277
2L75 Solution structure of CHD4-PHD2 in complex with H3K9me3 Deposited 2010-12-02 Different construct Different mutation/modification Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–14（13 aa） Fragment：UNP residues 2-14
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 15；Pressure ambient
NMR sample composition 1 mM CHD4-PHD2-1; 1 mM H3K9me3-2, 20 uM DSS-3; 1 mM DTT-4; 5 mM sodium chloride-5; 10 mM sodium phosphate-6; 93% H2O/7% D2O | 93% H2O/7% D2O
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] CHD4-PHD2-7; 1.1 mM H3K9me3-8; 20 uM DSS-9; 1 mM DTT-10; 5 mM sodium chloride-11; 10 mM sodium phosphate-12; 93% H2O/7% D2O | 93% H2O/7% D2O
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] CHD4-PHD2-13; 1.1 mM H3K9me3-14; 20 uM DSS-15; 1 mM DTT-16; 5 mM sodium chloride-17; 10 mM sodium phosphate-18; 100% D2O | 100% D2O
Resolution not provided
2RI7 Crystal structure of PHD finger-linker-bromodomain Y17E mutant from human BPTF in the H3(1-9)K4ME2 bound state Deposited 2007-10-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 2–10（9 aa） Fragment：N-terminal tail residues 2-10
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 GOL GLYCEROL × 1 IPA ISOPROPYL ALCOHOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；BPTF Y17E PHD finger-linker-bromodomain (16.5 mg/ml, 20 mM Tris-HCl pH 7.5, 50 mM KCl) was pre-incubated with three-fold molar excess of H3(1-9)K4me2 peptide in the presence of 5 mM MgCl2 for about 30 min on ice. Drops were made by mixing 2 l each of the complex with the reservoir solution: 8.5% isopropanol, 0.085 M Hepes-Na, pH 7.5, 17% PEG 4000, 15% Glycerol. A 0.3 l of 1 M KCl was then added to the drops as additive., VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.45 Å R-free 0.192
2UXN Structural Basis of Histone Demethylation by LSD1 Revealed by Suicide Inactivation Deposited 2007-03-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 2–22（21 aa） Fragment：HISTONE H3-DERIVED SUICIDE INHIBITOR, RESIDUES 2-22
Non-standard monomer：Yes (specific site not provided by mmCIF) FDA DIHYDROFLAVINE-ADENINE DINUCLEOTIDE × 1 GOL GLYCEROL × 1 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；PROTEIN: 25 MM HEPES, PH 7.4, 200 MM SODIUM CHLORIDE, 1 MM PMSF, AND 5 MM DTT RESERVOIR: 0.8 M LITHIUM SULFATE, 0.8 M AMMONIUM SULFATE, 0.4 M SODIUM CHLORIDE, 0.1 M SODIUM CITRATE, PH 5.6, AND 10 MM DTT
Resolution 2.72 Å R-free 0.272
3A1B Crystal structure of the DNMT3A ADD domain in complex with histone H3 Deposited 2009-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–21（20 aa） Fragment：ADD(ATRX-DNMT3-DNMT3L) domain(residues 476-614), UNP residues 2-21(Histone H3.1)
Not recorded ZN ZINC ION × 3 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；10% PEG 2000 monomethyl ether, 0.1M Bis-Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.29 Å R-free 0.224
3AFA The human nucleosome structure Deposited 2010-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.270
3AYW Crystal Structure of Human Nucleosome Core Particle Containing H3K56Q mutation Deposited 2011-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Mutation：K56Q Mutation：K56Q CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.90 Å R-free 0.273
3AZE Crystal Structure of Human Nucleosome Core Particle Containing H3K64Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Mutation：K64Q Mutation：K64Q CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.00 Å R-free 0.302
3AZF Crystal Structure of Human Nucleosome Core Particle Containing H3K79Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Mutation：K79Q Mutation：K79Q CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.70 Å R-free 0.263
3AZG Crystal Structure of Human Nucleosome Core Particle Containing H3K115Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Mutation：K115Q Mutation：K115Q CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.40 Å R-free 0.269
3AZH Crystal Structure of Human Nucleosome Core Particle Containing H3K122Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Mutation：K122Q Mutation：K122Q CL CHLORIDE ION × 3 MN MANGANESE (II) ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.49 Å R-free 0.266
3AZI Crystal Structure of Human Nucleosome Core Particle Containing H4K31Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 13 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.70 Å R-free 0.289
3AZJ Crystal Structure of Human Nucleosome Core Particle Containing H4K44Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.89 Å R-free 0.268
3AZK Crystal Structure of Human Nucleosome Core Particle Containing H4K59Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.20 Å R-free 0.258
3AZL Crystal Structure of Human Nucleosome Core Particle Containing H4K77Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.70 Å R-free 0.259
3AZM Crystal Structure of Human Nucleosome Core Particle Containing H4K79Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 3 MN MANGANESE (II) ION × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 2.89 Å R-free 0.296
3AZN Crystal Structure of Human Nucleosome Core Particle Containing H4K91Q mutation Deposited 2011-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.00 Å R-free 0.254
3KMT Crystal structure of vSET/SAH/H3 ternary complex Deposited 2009-11-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 26–33（8 aa） Fragment：residues 26-33
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；26% PEG 4000, 0.1 M sodium citrate pH 6.3, 5% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.78 Å R-free 0.224
3KMT Crystal structure of vSET/SAH/H3 ternary complex Deposited 2009-11-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 26–33（8 aa） Fragment：residues 26-33
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；26% PEG 4000, 0.1 M sodium citrate pH 6.3, 5% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.78 Å R-free 0.224
3KMT Crystal structure of vSET/SAH/H3 ternary complex Deposited 2009-11-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 26–33（8 aa） Fragment：residues 26-33
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；26% PEG 4000, 0.1 M sodium citrate pH 6.3, 5% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.78 Å R-free 0.224
3KMT Crystal structure of vSET/SAH/H3 ternary complex Deposited 2009-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 26–33（8 aa） Fragment：residues 26-33
Chain H 26–33（8 aa） Fragment：residues 26-33
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；26% PEG 4000, 0.1 M sodium citrate pH 6.3, 5% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.78 Å R-free 0.224
3KMT Crystal structure of vSET/SAH/H3 ternary complex Deposited 2009-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 26–33（8 aa） Fragment：residues 26-33
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；26% PEG 4000, 0.1 M sodium citrate pH 6.3, 5% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.78 Å R-free 0.224
3KQI crystal structure of PHF2 PHD domain complexed with H3K4Me3 peptide Deposited 2009-11-17 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–12（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 GOL GLYCEROL × 1 CL CHLORIDE ION × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；2.0 M ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.78 Å R-free 0.218
3KQI crystal structure of PHF2 PHD domain complexed with H3K4Me3 peptide Deposited 2009-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–12（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 4 GOL GLYCEROL × 2 CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；2.0 M ammonium sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.78 Å R-free 0.218
3LQI Crystal structure of MLL1 PHD3-Bromo complexed with H3(1-9)K4me2 peptide Deposited 2010-02-09 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 2–10（9 aa） Fragment：Histone H3 N-terminal tail
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；293 K；0.1 M Bis-Tris, 0.2 M ammonium acetate, 25% PEG3350, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.92 Å R-free 0.241
3LQI Crystal structure of MLL1 PHD3-Bromo complexed with H3(1-9)K4me2 peptide Deposited 2010-02-09 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain S 2–10（9 aa） Fragment：Histone H3 N-terminal tail
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；293 K；0.1 M Bis-Tris, 0.2 M ammonium acetate, 25% PEG3350, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.92 Å R-free 0.241
3LQI Crystal structure of MLL1 PHD3-Bromo complexed with H3(1-9)K4me2 peptide Deposited 2010-02-09 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain T 2–10（9 aa） Fragment：Histone H3 N-terminal tail
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；293 K；0.1 M Bis-Tris, 0.2 M ammonium acetate, 25% PEG3350, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.92 Å R-free 0.241
3LQJ Crystal structure of MLL1 PHD3-Bromo complexed with H3(1-9)K4me3 peptide Deposited 2010-02-09 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Q 2–10（9 aa） Fragment：Histone H3 N-terminal tail
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；293 K；0.1 M Tris, 0.2 M Li2SO4, 15% PEG3350, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.274
3LQJ Crystal structure of MLL1 PHD3-Bromo complexed with H3(1-9)K4me3 peptide Deposited 2010-02-09 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain T 2–10（9 aa） Fragment：Histone H3 N-terminal tail
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；293 K；0.1 M Tris, 0.2 M Li2SO4, 15% PEG3350, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.274
3O34 Crystal structure of TRIM24 PHD-Bromo complexed with H3(13-32)K23ac peptide Deposited 2010-07-23 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 14–33（20 aa） Fragment：UNP residues 14-35
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 BTN BIOTIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；100 mM Na-citrate (pH 5.6), 200 mM K/Na-tartrate tetrahydrate and 1.6 M ammonium sulfate , VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.241
3O35 Crystal structure of TRIM24 PHD-Bromo complexed with H3(23-31)K27ac peptide Deposited 2010-07-23 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 24–32（9 aa） Fragment：UNP residues 14 -22
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；200 mM Na-acetate, 30% Polyethylene glycol 4000, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.76 Å R-free 0.225
3O35 Crystal structure of TRIM24 PHD-Bromo complexed with H3(23-31)K27ac peptide Deposited 2010-07-23 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 24–32（9 aa） Fragment：UNP residues 14 -22
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；200 mM Na-acetate, 30% Polyethylene glycol 4000, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.76 Å R-free 0.225
3O37 Crystal structure of TRIM24 PHD-Bromo complexed with H3(1-10)K4 peptide Deposited 2010-07-23 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM Tris (pH 7.5), 30% Polyethylene glycol monomethyl ether 5000 and 100 mM NaCl , VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.254
3O37 Crystal structure of TRIM24 PHD-Bromo complexed with H3(1-10)K4 peptide Deposited 2010-07-23 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM Tris (pH 7.5), 30% Polyethylene glycol monomethyl ether 5000 and 100 mM NaCl , VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.254
3O37 Crystal structure of TRIM24 PHD-Bromo complexed with H3(1-10)K4 peptide Deposited 2010-07-23 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM Tris (pH 7.5), 30% Polyethylene glycol monomethyl ether 5000 and 100 mM NaCl , VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.254
3O37 Crystal structure of TRIM24 PHD-Bromo complexed with H3(1-10)K4 peptide Deposited 2010-07-23 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；50 mM Tris (pH 7.5), 30% Polyethylene glycol monomethyl ether 5000 and 100 mM NaCl , VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.254
3U4S Histone Lysine demethylase JMJD2A in complex with T11C peptide substrate crosslinked to N-oxalyl-D-cysteine Deposited 2011-10-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 8–15（8 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) NI NICKEL (II) ION × 1 ZN ZINC ION × 1 08P N-(carboxycarbonyl)-D-cysteine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；20% PEG 3350, 0.1M citrate, 2 mM NiCl2, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.15 Å R-free 0.222
3U4S Histone Lysine demethylase JMJD2A in complex with T11C peptide substrate crosslinked to N-oxalyl-D-cysteine Deposited 2011-10-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 8–15（8 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) NI NICKEL (II) ION × 1 ZN ZINC ION × 1 08P N-(carboxycarbonyl)-D-cysteine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；20% PEG 3350, 0.1M citrate, 2 mM NiCl2, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.15 Å R-free 0.222
3U5N Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-20)K9me3K14ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–21（20 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9 and acetylated K14, UNP residues 2-21
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M ammonium tartrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.95 Å R-free 0.256
3U5N Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-20)K9me3K14ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–21（20 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9 and acetylated K14, UNP residues 2-21
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M ammonium tartrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.95 Å R-free 0.256
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain N 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain O 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5O Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-22)K9me3K14acK18ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 2–23（22 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14 and K18, UNP residues 2-23
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M sodium citrate and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.280
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain N 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain O 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3U5P Crystal structure of the complex of TRIM33 PHD-Bromo and H3(1-28)K9me3K14acK18acK23ac histone peptide Deposited 2011-10-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 2–29（28 aa） Fragment：N-terminal histone H3 peptide containing trimethylated K9, acetylated K14, K18 and K23, UNP residues 2-29
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M lithium sulfate, 0.1 mM Tris pH 8.0 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.265
3V43 Crystal structure of MOZ Deposited 2011-12-14 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Q 2–19（18 aa） Fragment：UNP RESIDUES 2-19
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 4 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；0.2M ammonium acetate, 0.1M tri-sodium citrate, 30% w/v PEG 4000, pH 5.6, vapor diffusion, hanging drop, temperature 293K
Resolution 1.47 Å R-free 0.176
3W96 Crystal Structure of Human Nucleosome Core Particle lacking H2A N-terminal region Deposited 2013-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.00 Å R-free 0.296
3W97 Crystal Structure of Human Nucleosome Core Particle lacking H2B N-terminal region Deposited 2013-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.20 Å R-free 0.321
3W98 Crystal Structure of Human Nucleosome Core Particle lacking H3.1 N-terminal region Deposited 2013-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 29–136（108 aa） Fragment：UNP residues 29-136
Chain E 29–136（108 aa） Fragment：UNP residues 29-136
Not recorded MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.42 Å R-free 0.303
3W99 Crystal Structure of Human Nucleosome Core Particle lacking H4 N-terminal region Deposited 2013-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；POTASSIUM CACODYLATE, POTASSIUM CHLORIDE, MANGANESE CHLORIDE, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K
Resolution 3.00 Å R-free 0.312
3WA9 The nucleosome containing human H2A.Z.1 Deposited 2013-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.07 Å R-free 0.271
3WAA The nucleosome containing human H2A.Z.2 Deposited 2013-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.20 Å R-free 0.271
3WKJ The nucleosome containing human TSH2B Deposited 2013-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.291
3X1S Crystal structure of the nucleosome core particle Deposited 2014-11-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded MN MANGANESE (II) ION × 6 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；60-70mM KCL, 70-90mM MnCl2, 24% MPD, 20mM Na-Cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.81 Å R-free 0.270
3X1T Crystal structure of nucleosome core particle consisting of mouse testis specific histone variants H2aa and H2ba Deposited 2014-11-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded MN MANGANESE (II) ION × 22 CL CHLORIDE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；60-70mM Kcl, 70-90mM MnCl2, 24% MPD, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.81 Å R-free 0.266
3X1U Crystal structure of nucleosome core particle in the presence of histone variants involved in reprogramming Deposited 2014-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded MN MANGANESE (II) ION × 4 CL CHLORIDE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；60-70 mM KCl, 70-90 mM MnCl2, 24% MPD, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.25 Å R-free 0.270
3X1V Crystal structure of nucleosome core particle in the presence of histone variant involved in reprogramming Deposited 2014-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded MN MANGANESE (II) ION × 19 CL CHLORIDE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；60-70 mM KCl, 70-90 mM MnCl2, Na-cocodylate, 24% MPD, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.92 Å R-free 0.259
3ZVY PHD finger of human UHRF1 in complex with unmodified histone H3 N- terminal tail Deposited 2011-07-28 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–9（8 aa） Fragment：RESIDUES 2-9
Not recorded ZN ZINC ION × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；290 K；CRYSTALS WERE OBTAINED AT 17 DEGREES USING THE VAPOR DIFFUSION METHOD BY MIXING A PROTEIN SOLUTION AT A CONCENTRATION OF 606 MICROM (IN 20 MM TRIS PH 7, 150 MM NACL, 0.5 MM TCEP, 25 MICROM ZNCL2 AND 0.1 MM PMSF) AND 10-FOLD EXCESS OF PEPTIDE WITH AN EQUAL VOLUME OF RESERVOIR SOLUTION (0.1 M TRIS PH 8.5, 0.2 M MGCL2, 30 % PEG 4000). CRYSTALS WERE CRYOPROTECTED WITH 15 % MPD AND FLASH FROZEN IN LIQUID NITROGEN.
Resolution 1.95 Å R-free 0.227
3ZVY PHD finger of human UHRF1 in complex with unmodified histone H3 N- terminal tail Deposited 2011-07-28 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–9（8 aa） Fragment：RESIDUES 2-9
Not recorded ZN ZINC ION × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；290 K；CRYSTALS WERE OBTAINED AT 17 DEGREES USING THE VAPOR DIFFUSION METHOD BY MIXING A PROTEIN SOLUTION AT A CONCENTRATION OF 606 MICROM (IN 20 MM TRIS PH 7, 150 MM NACL, 0.5 MM TCEP, 25 MICROM ZNCL2 AND 0.1 MM PMSF) AND 10-FOLD EXCESS OF PEPTIDE WITH AN EQUAL VOLUME OF RESERVOIR SOLUTION (0.1 M TRIS PH 8.5, 0.2 M MGCL2, 30 % PEG 4000). CRYSTALS WERE CRYOPROTECTED WITH 15 % MPD AND FLASH FROZEN IN LIQUID NITROGEN.
Resolution 1.95 Å R-free 0.227
4BD3 Phf19 links methylated lysine 36 of histone H3 to regulation of Polycomb activity Deposited 2012-10-04 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 32–42（11 aa） Fragment：H3(31-41)K36ME3, RESIDUES 32-42
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 200；Pressure 1.0
NMR sample composition 90% WATER/10% D2O
Resolution not provided
4C1Q Crystal structure of the PRDM9 SET domain in complex with H3K4me2 and AdoHcy. Deposited 2013-08-13 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–11（10 aa） Fragment：N-TERMINUS, RESIDUES 2-11
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；278 K；0.2 M AMMONIUM SULFATE, 0.1 M BIS-TRIS PH 5.5 AND 25% W/V PEG3350
Resolution 2.30 Å R-free 0.252
4F4U The bicyclic intermediate structure provides insights into the desuccinylation mechanism of SIRT5 Deposited 2012-05-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 5–16（12 aa） Fragment：UNP residue 5-16
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；16% PEG 4000, 6% Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.00 Å R-free 0.261
4F4U The bicyclic intermediate structure provides insights into the desuccinylation mechanism of SIRT5 Deposited 2012-05-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 5–16（12 aa） Fragment：UNP residue 5-16
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；16% PEG 4000, 6% Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.00 Å R-free 0.261
4F56 The bicyclic intermediate structure provides insights into the desuccinylation mechanism of SIRT5 Deposited 2012-05-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 5–16（12 aa） Fragment：UNP residue 5-16
Not recorded ZN ZINC ION × 1 CGK 3-[(2R,3aR,5R,6R,6aR)-5-({[(S)-{[(S)-{[(2R,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-3,4-dihydroxytetrahydrofuran-2-yl]methoxy}(hydroxy)phosphoryl]oxy}(hydroxy)phosphoryl]oxy}methyl)-2,6-dihydroxytetrahydrofuro[2,3-d][1,3]oxathiol-2-yl]propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；30% PEG 10000, 0.1M Tris, pH 8.5, vapor diffusion, hanging drop, temperature 298K
Resolution 1.70 Å R-free 0.233
4F56 The bicyclic intermediate structure provides insights into the desuccinylation mechanism of SIRT5 Deposited 2012-05-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 5–16（12 aa） Fragment：UNP residue 5-16
Not recorded ZN ZINC ION × 1 CGK 3-[(2R,3aR,5R,6R,6aR)-5-({[(S)-{[(S)-{[(2R,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-3,4-dihydroxytetrahydrofuran-2-yl]methoxy}(hydroxy)phosphoryl]oxy}(hydroxy)phosphoryl]oxy}methyl)-2,6-dihydroxytetrahydrofuro[2,3-d][1,3]oxathiol-2-yl]propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；30% PEG 10000, 0.1M Tris, pH 8.5, vapor diffusion, hanging drop, temperature 298K
Resolution 1.70 Å R-free 0.233
4FT2 crystal structure of Zea mays ZMET2 in complex H3(1-15)K9me2 peptide and SAH Deposited 2012-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain P 16–30（15 aa） Fragment：histone H3 peptide, UNP residues 16-30
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.2 M calcium acetate, 0.1 M imidazole pH 8.0, and 10% PEG8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.20 Å R-free 0.277
4FT4 crystal structure of Zea mays ZMET2 in complex H3(1-32)K9me2 peptide and SAH Deposited 2012-06-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Q 33–64（32 aa） Fragment：histone H3 peptide, UNP residues 33-64
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.2 M sodium citrate, 0.1 M bis-tris propane, pH 6.5 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.248
4FT4 crystal structure of Zea mays ZMET2 in complex H3(1-32)K9me2 peptide and SAH Deposited 2012-06-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 33–64（32 aa） Fragment：histone H3 peptide, UNP residues 33-64
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.2 M sodium citrate, 0.1 M bis-tris propane, pH 6.5 and 20% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.248
4FWF Complex structure of LSD2/AOF1/KDM1b with H3K4 mimic Deposited 2012-07-01 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2–21（20 aa） Fragment：UNP residues 2-21
Mutation：K4M ZN ZINC ION × 3 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；21% PEG3350, 200mM diammonium citrate, pH 7, VAPOR DIFFUSION, temperature 298K
Resolution 2.70 Å R-free 0.237
4LK9 Crystal Structure of MOZ double PHD finger histone H3 tail complex Deposited 2013-07-07 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–22（21 aa） Fragment：unp residues 2-22
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；283 K；100 mM Na-Hepes, 1.4 M sodium citrate, pH 7.5, VAPOR DIFFUSION, temperature 283K
Resolution 1.60 Å R-free 0.186
4LKA Crystal Structure of MOZ double PHD finger histone H3K9ac complex Deposited 2013-07-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–22（21 aa） Fragment：unp residues 2-22
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；283 K；100 mM Na-Hepes, 1.4 M sodium citrate, pH 7.5, vapor diffusion, temperature 283K
Resolution 1.61 Å R-free 0.185
4LLB Crystal Structure of MOZ double PHD finger histone H3K14ac complex Deposited 2013-07-09 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–22（21 aa） Fragment：unp residues 2-22
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；283 K；100 mM Tris-Cl, 200 mM Li2SO4, 30% PEG 4000, pH 8.5, VAPOR DIFFUSION, temperature 283K
Resolution 2.50 Å R-free 0.266
4LLB Crystal Structure of MOZ double PHD finger histone H3K14ac complex Deposited 2013-07-09 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–22（21 aa） Fragment：unp residues 2-22
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；283 K；100 mM Tris-Cl, 200 mM Li2SO4, 30% PEG 4000, pH 8.5, VAPOR DIFFUSION, temperature 283K
Resolution 2.50 Å R-free 0.266
4N4H Crystal structure of the Bromo-PWWP of the mouse zinc finger MYND-type containing 11 isoform alpha in complex with histone H3.1K36me3 Deposited 2013-10-08 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 22–43（22 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 PO4 PHOSPHATE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；289 K；25% (w/v) polyethylene glycol 4000, 0.1M Tris-HCl, pH 8.3, 0.2M Li2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.30 Å R-free 0.263
4UP0 Ternary crystal structure of the Pygo2 PHD finger in complex with the B9L HD1 domain and a H3K4me2 peptide Deposited 2014-06-11 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 2–16（15 aa） Fragment：RESIDUES 2-16
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions 1 M SODIUM CITRATE, 0.1 M TRIS PH 7, 0.2 M NACL
Resolution 1.28 Å R-free 0.166
4YM5 Crystal structure of the human nucleosome containing 6-4PP (inside) Deposited 2015-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 4.00 Å R-free 0.289
4YM6 Crystal structure of the human nucleosome containing 6-4PP (outside) Deposited 2015-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 3.51 Å R-free 0.287
4Z0R Crystal Structure of the CW domain of ZCWPW2 mutant F78R in complex with histone H3 peptide Deposited 2015-03-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–16（15 aa） Fragment：N-terminal tail (UNP residues 2-16)
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 UNX UNKNOWN LIGAND × 9 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；2 M ammonium sulfate, 2% PEG400, 0.1 M HEPES sodium
Resolution 1.75 Å R-free 0.192
4Z2M Crystal structure of human SPT16 Mid-AID/H3-H4 tetramer FACT Histone complex Deposited 2015-03-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain G 35–136（102 aa） Fragment：UNP residues 35-136
Chain I 35–136（102 aa） Fragment：UNP residues 35-136
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；10% PEG400, 0.9-1.1 M Imidazole, 100-150 mM L-histidine
Resolution 2.98 Å R-free 0.246
5AV5 human nucleosome core particle Deposited 2015-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions LIQUID DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 2.40 Å R-free 0.233
5AV6 human nucleosome core particle Deposited 2015-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 2.20 Å R-free 0.229
5AV8 human nucleosome core particle Deposited 2015-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 2.20 Å R-free 0.233
5AV9 human nucleosome core particle Deposited 2015-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 2.20 Å R-free 0.239
5AVB human nucleosome core particle Deposited 2015-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 2.40 Å R-free 0.236
5AVC human nucleosome core particle Deposited 2015-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 2.40 Å R-free 0.238
5B24 The crystal structure of the nucleosome containing cyclobutane pyrimidine dimer Deposited 2015-12-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 3.60 Å R-free 0.249
5B2I Human nucleosome containing CpG unmethylated DNA Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 3.00 Å R-free 0.257
5B2J Human nucleosome containing CpG methylated DNA Deposited 2016-01-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, manganese(II) chloride, potassium chloride
Resolution 2.60 Å R-free 0.252
5B31 The crystal structure of the heterotypic H2AZ/H2A nucleosome with H3.1. Deposited 2016-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 8 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.20 Å R-free 0.271
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain N 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5C3I Crystal structure of the quaternary complex of histone H3-H4 heterodimer with chaperone ASF1 and the replicative helicase subunit MCM2 Deposited 2015-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain V 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；20% PEG 3350, 2% Tacsimate,0.1 M Tris-HCl pH 8.0
Resolution 3.50 Å R-free 0.253
5CPI Nucleosome containing unmethylated Sat2R DNA Deposited 2015-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.90 Å R-free 0.295
5CPJ Nucleosome containing methylated Sat2R DNA Deposited 2015-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 3.15 Å R-free 0.295
5CPK Nucleosome containing methylated Sat2L DNA Deposited 2015-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.63 Å R-free 0.284
5GSE Crystal structure of unusual nucleosome Deposited 2016-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；potassium bromide, potassium thiocyanate, Tris-HCl, PGA-LM, PEG 400
Resolution 3.14 Å R-free 0.255
5GSU Crystal structure of nucleosome core particle consisting of human testis-specific histone variants, Th2A and Th2B Deposited 2016-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded CL CHLORIDE ION × 3 MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；20mM Pottasium Cacodylate pH 6.0, 60-70mM KCl, 70-90mM MnCl2
Resolution 3.10 Å R-free 0.257
5GT0 Crystal structure of nucleosome complex with human testis-specific histone variants, Th2a Deposited 2016-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded MN MANGANESE (II) ION × 14 CL CHLORIDE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；60-70mM KCl, 70-90mM MnCl2, 24% MPD
Resolution 2.82 Å R-free 0.280
5GT3 Crystal structure of nucleosome particle in the presence of human testis-specific histone variant, hTh2b Deposited 2016-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded MN MANGANESE (II) ION × 12 CL CHLORIDE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；60-70mM KCl, 70-90mM MnCl2, 24% MPD
Resolution 2.91 Å R-free 0.258
5GTC Crystal structure of complex between DMAP-SH conjugated with a Kaposi's sarcoma herpesvirus LANA peptide (5-15) and nucleosome core particle Deposited 2016-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.70 Å R-free 0.267
5HJB AF9 YEATS in complex with histone H3 Crotonylation at K9 Deposited 2016-01-12 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 4–11（8 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；292 K；20% (w/v) polyethylene glycol 4000, 0.2 M ammonium sulfate, 0.1 M sodium citrate tribasic dihydrate, 3% MPD
Resolution 2.70 Å R-free 0.253
5HJC BRD3 second bromodomain in complex with histone H3 acetylation at K18 Deposited 2016-01-13 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 16–24（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30%(w/v) polyethylene glycol methyl ether 5000, 0.2 M ammonium sulfate, 0.1 M MES, 0.1 M guanidine hydrochloride
Resolution 2.60 Å R-free 0.269
5HJD AF9 YEATS in complex with histone H3 Crotonylation at K18 Deposited 2016-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 15–21（7 aa）
Chain D 15–21（7 aa）
Chain F 15–21（7 aa）
Chain L 15–21（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CU COPPER (II) ION × 3 SO4 SULFATE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；20%(w/v) polyethylene glycol 4000, 0.2 M ammonium sulfate, 0.1 M sodium citrate tribasic dihydrate, 0.1 M copper chloride dihydrate
Resolution 2.81 Å R-free 0.273
5HJD AF9 YEATS in complex with histone H3 Crotonylation at K18 Deposited 2016-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 15–21（7 aa）
Chain I 15–21（7 aa）
Chain J 15–21（7 aa）
Chain M 15–21（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CU COPPER (II) ION × 1 SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；20%(w/v) polyethylene glycol 4000, 0.2 M ammonium sulfate, 0.1 M sodium citrate tribasic dihydrate, 0.1 M copper chloride dihydrate
Resolution 2.81 Å R-free 0.273
5IQL Crystal structure of YEATS2 YEATS bound to H3K27cr peptide Deposited 2016-03-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 25–32（8 aa） Fragment：H3 peptide (UNP RESIDUES 25-32)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；291 K；0.1M Bis-Tris propane, 4.0 M NH4Ac, pH 7.0
Resolution 2.10 Å R-free 0.253
5J9S ENL YEATS in complex with histone H3 acetylation at K27 Deposited 2016-04-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 16–40（25 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M K/Na Tartrate, 0.1M Sodium citrate tribasic dihydrate, pH 5.6, 2M (NH4)2SO4
Resolution 2.70 Å R-free 0.210
5JRG Crystal structure of the nucleosome containing the DNA with tetrahydrofuran (THF) Deposited 2016-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.50 Å R-free 0.245
5KKL Structure of ctPRC2 in complex with H3K27me3 and H3K27M Deposited 2016-06-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 23–31（9 aa）
Mutation：K2027M ZN ZINC ION × 8 SAM S-ADENOSYLMETHIONINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；15% PEG4000, 175mM ammonium citrate, pH 7.0
Resolution 2.94 Å R-free 0.234
5T1G chromo shadow domain of CBX1 in complex with a histone peptide Deposited 2016-08-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 39–53（15 aa） Fragment：unp residues 39-53
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1.5 M sodium citrate, 0.1 M HEPES
Resolution 1.90 Å R-free 0.243
5T1I CBX3 chromo shadow domain in complex with histone H3 peptide Deposited 2016-08-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 39–53（15 aa） Fragment：unp residues 39-53
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25% PEG 3350, 0.2 M sodium chloride, 0.1 M Hepes, 5% Ethylene Glycol
Resolution 1.60 Å R-free 0.239
5T8R Crystal structure of human BAZ2A PHD zinc finger in complex with unmodified H3 10-mer Deposited 2016-09-08 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2 M Na/K phosphate
Resolution 2.40 Å R-free 0.235
5T8R Crystal structure of human BAZ2A PHD zinc finger in complex with unmodified H3 10-mer Deposited 2016-09-08 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2 M Na/K phosphate
Resolution 2.40 Å R-free 0.235
5T8R Crystal structure of human BAZ2A PHD zinc finger in complex with unmodified H3 10-mer Deposited 2016-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 4 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2 M Na/K phosphate
Resolution 2.40 Å R-free 0.235
5T8R Crystal structure of human BAZ2A PHD zinc finger in complex with unmodified H3 10-mer Deposited 2016-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 2–11（10 aa） Fragment：UNP residues 2-11
Not recorded ZN ZINC ION × 4 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2 M Na/K phosphate
Resolution 2.40 Å R-free 0.235
5TBN Solution NMR structure of PHF20 PHD domain in complex with a histone H3K4me2 peptide Deposited 2016-09-12 Different construct Different mutation/modification Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–12（11 aa） Fragment：residues 2-12
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate；Pressure 101325
NMR sample composition 1.5 mM [U-15N] PHF20 PHD domain, 6.0 mM H3K4me2 peptide, 25 mM sodium phosphate, 0.3 mM DSS, 1.5 mM sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 1.5 mM [U-13C; U-15N] PHF20 PHD domain, 6.0 mM H3K4me2 peptide, 25 mM sodium phosphate, 0.3 mM DSS, 1.5 mM sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 2 mM H3K4me2 peptide, 25 mM sodium phosphate, 0.3 mM DSS, 1.5 mM sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
5VA6 CRYSTAL STRUCTURE OF ATXR5 IN COMPLEX WITH HISTONE H3.1 MONO-METHYLATED ON R26 Deposited 2017-03-24 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 20–37（18 aa） Fragment：residues 20-37
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50% polypropylene glycol 400, 5% DMSO, 0.1 M HEPES-NaOH (pH 6.0)
Resolution 2.40 Å R-free 0.297
5VA6 CRYSTAL STRUCTURE OF ATXR5 IN COMPLEX WITH HISTONE H3.1 MONO-METHYLATED ON R26 Deposited 2017-03-24 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 20–37（18 aa） Fragment：residues 20-37
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50% polypropylene glycol 400, 5% DMSO, 0.1 M HEPES-NaOH (pH 6.0)
Resolution 2.40 Å R-free 0.297
5WFC Humanized mutant of the Chaetomium thermophilum Polycomb Repressive Complex 2 bound to the inhibitor GSK343 Deposited 2017-07-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 23–33（11 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 8 A97 N-[(6-methyl-2-oxo-4-propyl-1,2-dihydropyridin-3-yl)methyl]-6-[2-(4-methylpiperazin-1-yl)pyridin-4-yl]-1-(propan-2-yl)-1H-indazole-4-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；100 mM sodium malonate pH 7.0, 16% PEG 3350, 43 mM 3-cyclohexyl-1-propylphosphocholine
Resolution 2.28 Å R-free 0.203
5WVO Crystal structure of DNMT1 RFTS domain in complex with K18/K23 mono-ubiquitylated histone H3 Deposited 2016-12-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 2–37（36 aa） Fragment：UNP residues 2-37
Mutation：K18C,K23C ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；100mM Bis-Tris (pH 6.0), 200mM lithium sulfate monohydrate, 20% PEG 10000
Resolution 2.00 Å R-free 0.239
5XF3 Nucleosome core particle with an adduct of a binuclear RAPTA (Ru-arene-phosphaadamantane) compound having a 1,2-diphenylethylenediamine linker (R,R-configuration) Deposited 2017-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MG MAGNESIUM ION × 1 RUD [ethane6-3-(p-tolyl)propanoic acid]Ru(1,3,5-triaza-7-phosphaadamantane)Cl2 × 2 RRK (1R,2R)-1,2-diphenylethane-1,2-diamine × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；35-55 mM MnCl2, 25-49 mM KCl, 20 mM K-Cacodylate pH 6.0
Resolution 2.60 Å R-free 0.270
5XF4 Nucleosome core particle with an adduct of a binuclear RAPTA (Ru-arene-phosphaadamantane) compound having a 1,2-diphenylethylenediamine linker (S,S-configuration) Deposited 2017-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MG MAGNESIUM ION × 1 RUD [ethane6-3-(p-tolyl)propanoic acid]Ru(1,3,5-triaza-7-phosphaadamantane)Cl2 × 2 SSK (1S,2S)-1,2-diphenylethane-1,2-diamine × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；35-55 mM MnCl2, 25-49 mM KCl, 20 mM K-Cacodylate pH 6.0
Resolution 2.87 Å R-free 0.266
5XF5 Nucleosome core particle with an adduct of a binuclear RAPTA (Ru-arene-phosphaadamantane) compound having a 1,2-diphenylethylenediamine linker (R,S-configuration) Deposited 2017-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MG MAGNESIUM ION × 1 RUD [ethane6-3-(p-tolyl)propanoic acid]Ru(1,3,5-triaza-7-phosphaadamantane)Cl2 × 2 RSK (1S,2R)-1,2-diphenylethane-1,2-diamine × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；35-55mM MnCl2, 25-49mM KCl, 20mM K-Cacodylate pH 6.0
Resolution 2.82 Å R-free 0.264
5XFR Ternary complex of MTF2, DNA and histone Deposited 2017-04-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain C 34–41（8 aa）
Chain D 34–41（8 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M MES monohydrate-pH 6.5, 0.2M ammonium sulfate, 25% PEG monomethyl ether 5000, 10% glycerol
Resolution 2.25 Å R-free 0.231
5Y0C Crystal Structure of the human nucleosome at 2.09 angstrom resolution Deposited 2017-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 10 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.09 Å R-free 0.249
5Y0D Crystal Structure of the human nucleosome containing the H2B E76K mutant Deposited 2017-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 1.99 Å R-free 0.252
5Z23 Crystal structure of the nucleosome containing a chimeric histone H3/CENP-A CATD Deposited 2017-12-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–75（75 aa）
Chain A 114–136（23 aa）
Chain E 1–75（75 aa）
Chain E 114–136（23 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.73 Å R-free 0.261
5Z30 The crystal structure of the nucleosome containing a cancer-associated histone H2A.Z R80C mutant Deposited 2018-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.45 Å R-free 0.243
5ZBX The crystal structure of the nucleosome containing histone H3.1 CATD(V76Q, K77D) Deposited 2018-02-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–75（75 aa）
Chain A 114–136（23 aa）
Chain E 1–75（75 aa）
Chain E 114–136（23 aa）
Mutation：V76Q, K77D Mutation：V76Q, K77D Mutation：V76Q, K77D Mutation：V76Q, K77D CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.58 Å R-free 0.249
6BHD Crystal structure of SETDB1 with a modified H3 peptide Deposited 2017-10-30 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–20（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 35 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；25% PEG3350, 0.2 M sodium chloride, 0.1 M HEPES, 5% glycerol
Resolution 1.25 Å R-free 0.183
6BHE Crystal structure of SETDB1 with a modified H3 peptide Deposited 2017-10-30 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–20（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 36 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；25% PEG3350, 0.2 M sodium chloride, 0.1 M HEPES, 5% glycerol
Resolution 1.35 Å R-free 0.172
6BHG Crystal structure of SETDB1 with a modified H3 peptide Deposited 2017-10-30 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–20（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 40 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；291 K；20% PEG5000 MME, 0.1 M Bis-Tris
Resolution 1.45 Å R-free 0.176
6BHH Crystal structure of SETDB1 with a modified H3 peptide Deposited 2017-10-30 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–20（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 2 UNX UNKNOWN LIGAND × 26 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；25% PEG3350, 0.2 M lithium sulfate, 0.1 M HEPES
Resolution 1.85 Å R-free 0.237
6BHI Crystal structure of SETDB1 with a modified H3 peptide Deposited 2017-10-30 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–20（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 35 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；25% PEG3350, 0.2 M lithium sulfate, 0.1 M HEPES
Resolution 1.40 Å R-free 0.187
6D07 Crystal structure of the complex between human chromobox homolog 1 (CBX1) and H3K9me3 peptide Deposited 2018-04-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–16（15 aa） Fragment：H3K9(me)3 peptide (UNP residues 2-16)
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；0.2 M sodium chloride, 0.1 M Tris, pH 8.0, 30% w/v PEG3350
Resolution 2.10 Å R-free 0.257
6D07 Crystal structure of the complex between human chromobox homolog 1 (CBX1) and H3K9me3 peptide Deposited 2018-04-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–16（15 aa） Fragment：H3K9(me)3 peptide (UNP residues 2-16)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；0.2 M sodium chloride, 0.1 M Tris, pH 8.0, 30% w/v PEG3350
Resolution 2.10 Å R-free 0.257
6D08 Crystal structure of an engineered bump-hole complex of mutant human chromobox homolog 1 (CBX1) with H3K9bn peptide Deposited 2018-04-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–16（15 aa） Fragment：H3K9bn peptide (UNP residues 2-16)
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.1 M citrate, pH 5.0, 3 M ammonium sulfate
Resolution 2.10 Å R-free 0.252
6D08 Crystal structure of an engineered bump-hole complex of mutant human chromobox homolog 1 (CBX1) with H3K9bn peptide Deposited 2018-04-10 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–16（15 aa） Fragment：H3K9bn peptide (UNP residues 2-16)
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.1 M citrate, pH 5.0, 3 M ammonium sulfate
Resolution 2.10 Å R-free 0.252
6HKT Structure of an H1-bound 6-nucleosome array Deposited 2018-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 48 PDB declaration: 50-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain U 1–136（136 aa）
Chain Y 1–136（136 aa）
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Chain k 1–136（136 aa）
Chain o 1–136（136 aa）
Chain u 1–136（136 aa）
Chain y 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.8；293.15 K；15% MPD, 0.1 M NaCl and 0.1 M Tris pH 8.8
Resolution 9.70 Å R-free 0.286
6HTS Cryo-EM structure of the human INO80 complex bound to nucleosome Deposited 2018-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric
Chain I 1–136（136 aa）
Chain M 1–136（136 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6IPU Human nucleosome core particle containing 145 bp of DNA Deposited 2018-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 39–136（98 aa）
Chain E 39–136（98 aa）
Not recorded CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；manganese chloride, potassium chloride, potassium cacodylate
Resolution 1.99 Å R-free 0.263
6IQ4 Nucleosome core particle cross-linked with a hetero-binuclear molecule possessing RAPTA and gold(I) 4-(diphenylphosphino)benzoic acid groups. Deposited 2018-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 39–136（98 aa）
Chain E 39–136（98 aa）
Not recorded AU GOLD ION × 1 XIS 4-diphenylphosphanylbenzoic acid × 1 MG MAGNESIUM ION × 4 D0X [Ru(eta(6)-p-cymene)Cl-2(pta) × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；manganese chloride, potassium chloride, potassium cacodylate
Resolution 2.25 Å R-free 0.257
6JOU Crystal structure of the human nucleosome containing H2A.Z.1 S42R Deposited 2019-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.17 Å R-free 0.250
6JR0 Crystal structure of the human nucleosome phased with 12 selenium atoms Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.50 Å R-free 0.253
6JR1 Crystal structure of the human nucleosome phased with 16 selenium atoms Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.40 Å R-free 0.243
6JXD Human nucleosome core particle with cohesive end DNA termini Deposited 2019-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 39–136（98 aa）
Chain E 39–135（97 aa）
Not recorded MN MANGANESE (II) ION × 17 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；manganese chloride, potassium chloride, potassium cacodylate
Resolution 2.25 Å R-free 0.292
6K1I Human nucleosome core particle with gammaH2A.X variant Deposited 2019-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 23 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；potassium chloride, manganese chloride, potassium cacodylate
Resolution 2.75 Å R-free 0.277
6K1J Human nucleosome core particle with H2A.X variant Deposited 2019-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；Potassium Chloride, Manganese Chloride, Potassium Cacodylate
Resolution 2.85 Å R-free 0.319
6K1K Human nucleosome core particle with H2A.X S139E variant Deposited 2019-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 33 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；potassium chloride, manganese chloride, potassium cacodylate
Resolution 2.20 Å R-free 0.275
6KE9 The Human Telomeric Nucleosome Displays Distinct Structural and Dynamic Properties Deposited 2019-07-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 41–136（96 aa）
Chain E 41–136（96 aa）
Not recorded MN MANGANESE (II) ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；Manganase chloride, potassium chloride, potassium cacodylate, MPD and trehalose
Resolution 2.22 Å R-free 0.230
6KVD Crystal structure of human nucleosome containing H2A.J Deposited 2019-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded MN MANGANESE (II) ION × 13 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.21 Å R-free 0.257
6L49 H3-CA-H3 tri-nucleosome with the 22 base-pair linker DNA Deposited 2019-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain S 1–136（136 aa）
Chain W 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 18.90 Å
6L4A H3-H3-H3 tri-nucleosome with the 22 base-pair linker DNA Deposited 2019-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain S 1–136（136 aa）
Chain W 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 12.30 Å
6L9H The Human Telomeric Nucleosome Displays Distinct Structural and Dynamic Properties Deposited 2019-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 41–136（96 aa）
Chain E 41–136（96 aa）
Not recorded MN MANGANESE (II) ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293.15 K；Manganase chloride, potassium chloride, potassium cacodylate, MPD and trehalose
Resolution 2.60 Å R-free 0.278
6L9Z 338 bp di-nucleosome assembled with linker histone H1.X Deposited 2019-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CL CHLORIDE ION × 8 CA CALCIUM ION × 65 K POTASSIUM ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291 K；Calcium chloride, Potassium chloride, Potassium Cacodylate
Resolution 2.50 Å R-free 0.256
6LA2 343 bp di-nucleosome harboring cohesive DNA termini assembled with linker histone H1.0 Deposited 2019-11-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 34 PDB declaration: 38-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain U 1–136（136 aa）
Chain Y 1–136（136 aa）
Chain e 1–136（136 aa）
Chain i 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291.15 K；Calcium chloride, Potassium chloride, Sodium acetate
Resolution 3.89 Å R-free 0.267
6LA8 349 bp di-nucleosome harboring cohesive DNA termini assembled with linker histone H1.0 Deposited 2019-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 23 K POTASSIUM ION × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291.15 K；Calcium chloride, potassium chloride, sodium acetate (cryo-25% MPD)
Resolution 3.40 Å R-free 0.265
6LA9 349 bp di-nucleosome harboring cohesive DNA termini assembled with linker histone H1.0 (high cryoprotectant) Deposited 2019-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 40 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291.15 K；Calcium chloride, potassium chloride, sodium acetate
Resolution 3.70 Å R-free 0.266
6LAB 169 bp nucleosome, harboring cohesive DNA termini, assembled with linker histone H1.0 Deposited 2019-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 20 K POTASSIUM ION × 2 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291.15 K；Calcium chloride, potassium chloride, sodium acetate
Resolution 3.20 Å R-free 0.262
6LE9 The Human Telomeric Nucleosome Displays Distinct Structural and Dynamic Properties Deposited 2019-11-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 41–136（96 aa）
Chain E 41–136（96 aa）
Not recorded MN MANGANESE (II) ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；Manganase chloride, potassium chloride, potassium cacodylate, MPD and trehalose
Resolution 2.60 Å R-free 0.281
6LER 169 bp nucleosome harboring non-identical cohesive DNA termini. Deposited 2019-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CA CALCIUM ION × 6 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291.15 K；Calcium chloride, potassium chloride, sodium acetate
Resolution 3.00 Å R-free 0.261
6LER 169 bp nucleosome harboring non-identical cohesive DNA termini. Deposited 2019-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 8 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291.15 K；Calcium chloride, potassium chloride, sodium acetate
Resolution 3.00 Å R-free 0.261
6M3V 355 bp di-nucleosome harboring cohesive DNA termini Deposited 2020-03-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded K POTASSIUM ION × 1 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4.5；291 K；Calcium chloride, Potassium chloride, Potassium Cacodylate, Poly glutamic acid
Resolution 4.60 Å R-free 0.261
6M44 355 bp di-nucleosome harboring cohesive DNA termini (high cryoprotectant) Deposited 2020-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291 K；Calcium chloride, Potassium chloride, Potassium Cacodylate, Poly glutamic acid
Resolution 3.81 Å R-free 0.286
6M4D Structural mechanism of nucleosome dynamics governed by human histone variants H2A.B and H2A.Z.2.2 Deposited 2020-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
6M4G Structural mechanism of nucleosome dynamics governed by human histone variants H2A.B and H2A.Z.2.2 Deposited 2020-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
6M4H Structural mechanism of nucleosome dynamics governed by human histone variants H2A.B and H2A.Z.2.2 Deposited 2020-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6R8Y Cryo-EM structure of NCP-6-4PP(-1)-UV-DDB Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
6R8Z Cryo-EM structure of NCP_THF2(-1)-UV-DDB Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6R90 Cryo-EM structure of NCP-THF2(+1)-UV-DDB class A Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
6R91 Cryo-EM structure of NCP_THF2(-3)-UV-DDB Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
6R92 Cryo-EM structure of NCP-THF2(+1)-UV-DDB class B Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6R93 Cryo-EM structure of NCP-6-4PP Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6R94 Cryo-EM structure of NCP_THF2(-3) Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
6T90 OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2019-10-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–134（134 aa）
Not recorded PTD PENTANEDIAL × 9 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
6T93 Nucleosome with OCT4-SOX2 motif at SHL-6 Deposited 2019-10-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.49 Å
6UPK Structure of FACT_subnucleosome complex 1 Deposited 2019-10-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å
6UPL Structure of FACT_subnucleosome complex 2 Deposited 2019-10-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.40 Å
6USJ Structure of two nucleosomes bridged by human PARP2 Deposited 2019-10-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Buffer was pH-adjusted and filtered through a 0.22 um filter.
cryo-EM vitrification conditions Cryogen ETHANE；Blot time 2s, blot force 0
Resolution 10.50 Å
6V2K The nucleosome structure after H2A-H2B exchange Deposited 2019-11-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.60 Å R-free 0.248
6V41 crystal structure of CDY1 chromodomain bound to H3K9me3 Deposited 2019-11-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain QQQ 2–16（15 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 20 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；1.4 M sodium citrate, 0.1 M HEPES
Resolution 1.60 Å R-free 0.215
6V92 RSC-NCP Deposited 2019-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 33 PDB declaration: 35-meric
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 20.00 Å
6WAV Crystal structure of PHF1 in complex with H3K36me3 substitution Deposited 2020-03-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 32–43（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 UNX UNKNOWN LIGAND × 17 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；1.2 M ammonium sulfate and 0.1 M sodium acetate 4.6
Resolution 1.70 Å R-free 0.241
6WAV Crystal structure of PHF1 in complex with H3K36me3 substitution Deposited 2020-03-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 32–43（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；1.2 M ammonium sulfate and 0.1 M sodium acetate 4.6
Resolution 1.70 Å R-free 0.241
6WAV Crystal structure of PHF1 in complex with H3K36me3 substitution Deposited 2020-03-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 32–43（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；1.2 M ammonium sulfate and 0.1 M sodium acetate 4.6
Resolution 1.70 Å R-free 0.241
6WAV Crystal structure of PHF1 in complex with H3K36me3 substitution Deposited 2020-03-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 32–43（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) UNX UNKNOWN LIGAND × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；1.2 M ammonium sulfate and 0.1 M sodium acetate 4.6
Resolution 1.70 Å R-free 0.241
6WW4 Crystal structure of HERC2 ZZ domain in complex with histone H3 tail Deposited 2020-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–7（6 aa） Fragment：fusion protein
Not recorded ZN ZINC ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M ammonium acetate, 0.1 M Bis-Tris, pH 5.5, and 17% PEG 10000
Resolution 2.25 Å R-free 0.243
6WW4 Crystal structure of HERC2 ZZ domain in complex with histone H3 tail Deposited 2020-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–7（6 aa） Fragment：fusion protein
Not recorded ZN ZINC ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M ammonium acetate, 0.1 M Bis-Tris, pH 5.5, and 17% PEG 10000
Resolution 2.25 Å R-free 0.243
6YIH Structure of Chromosomal Passenger Complex (CPC) bound to phosphorylated Histone 3 peptide at 2.6 A. Deposited 2020-04-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 2–13（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；291 K；20 % (w/v) PEG 4,000, 100 mM HEPES pH 7.0, 150 mM ammonium sulphate
Resolution 2.55 Å R-free 0.259
6YOV OCT4-SOX2-bound nucleosome - SHL+6 Deposited 2020-04-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–134（134 aa）
Not recorded PTD PENTANEDIAL × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7BWD Structure of Dot1L-H2BK34ub Nucleosome Complex Deposited 2020-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.32 Å
7C0M Human cGAS-nucleosome complex Deposited 2020-05-01 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Chain a 2–136（135 aa）
Chain e 2–136（135 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7CCQ Structure of the 1:1 cGAS-nucleosome complex Deposited 2020-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 39–136（98 aa）
Chain E 39–136（98 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7CCR Structure of the 2:2 cGAS-nucleosome complex Deposited 2020-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain A 39–136（98 aa）
Chain E 39–136（98 aa）
Chain L 39–136（98 aa）
Chain P 39–136（98 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å
7COW 353 bp di-nucleosome harboring cohesive DNA termini with linker histone H1.0 Deposited 2020-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 3 K POTASSIUM ION × 5 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291.15 K；potassium acetate, calcium chloride, potassium chloride
Resolution 2.86 Å R-free 0.297
7D1Z Cryo-EM structure of SET8-nucleosome complex Deposited 2020-09-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
7DBP Linker histone defines structure and self-association behaviour of the 177 bp human chromosome Deposited 2020-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
7E8D NSD2 E1099K mutant bound to nucleosome Deposited 2021-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded ZN ZINC ION × 3 SFG SINEFUNGIN × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7K5X Cryo-EM structure of a chromatosome containing human linker histone H1.0 Deposited 2020-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.93 Å
7K5Y Cryo-EM structure of a chromatosome containing human linker histone H1.4 Deposited 2020-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.76 Å
7K60 Cryo-EM structure of a chromatosome containing human linker histone H1.10 Deposited 2020-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.12 Å
7K61 Cryo-EM structure of 197bp nucleosome aided by scFv Deposited 2020-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.85 Å
7K63 Cryo-EM structure of a chromatosome containing chimeric linker histone gH1.10-ncH1.4 Deposited 2020-09-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.03 Å
7LBK Crystal structure of human Survivin bound to histone H3 T3phK4me3 peptide Deposited 2021-01-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–13（12 aa）
Chain D 2–13（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；The crystal was obtained by mixing 1 uL of protein at 10 mg/mL with 1 uL of mother liquor composed of 0.16 M potassium/sodium tartrate, 14% PEG 3350.
Resolution 2.70 Å R-free 0.253
7LBO Crystal structure of human Survivin bound to histone H3 T3phK4me1 peptide Deposited 2021-01-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–13（12 aa）
Chain F 2–13（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；1 uL of protein at 10 mg/mL was mixed with 1 uL of buffer composed of 0.16 M potassium/sodium tartrate, 12% PEG 3350
Resolution 2.50 Å R-free 0.261
7LBP Crystal structure of human Survivin bound to histone H3T3phK4ac peptide Deposited 2021-01-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–13（12 aa）
Chain D 2–13（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；1 uL of protein at 10mg/mL was mixed with 1 uL of buffer composed of 0.16 M potassium/sodium tartrate, 12% PEG 3350
Resolution 2.60 Å R-free 0.247
7LBQ Crystal structure of human Survivin bound to histone H3 T3phK4me2 peptide Deposited 2021-01-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 2–13（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；1 uL of protein was mixed with 1uL of buffer composed of 2.25 mM spermine, 9 mM MgCl2, 0.9 mM spermidine, 1.8 mM cobalt (III)hexamine chloride, 0.05 sodium cacodylate pH 7.0, 5% PEG 400
Resolution 2.69 Å R-free 0.268
7LYA Cryo-EM structure of the human nucleosome core particle with linked histone proteins H2A and H2B Deposited 2021-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
7LYB Cryo-EM structure of the human nucleosome core particle in complex with BRCA1-BARD1-UbcH5c Deposited 2021-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
7LYC Cryo-EM structure of the human nucleosome core particle ubiquitylated at histone H2A Lys13 and Lys15 in complex with BARD1 (residues 415-777) Deposited 2021-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
7MJU Crystal structure of human AF10 PZP bound to histone H3 tail Deposited 2021-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–14（13 aa）
Not recorded ZN ZINC ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.09 M Tris, 22.5% PEG 3350, and 10 mM spermine tetrahydrochloride
Resolution 2.10 Å R-free 0.206
7NL0 Cryo-EM structure of the Lin28B nucleosome core particle Deposited 2021-02-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7SCY Nuc147 bound to single BRCT Deposited 2021-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7SCZ Nuc147 bound to multiple BRCTs Deposited 2021-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7U0G structure of LIN28b nucleosome bound 3 OCT4 Deposited 2022-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
7U0I Structure of LIN28b nucleosome bound 2 OCT4 Deposited 2022-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
7U0J Structure of 162bp LIN28b nucleosome Deposited 2022-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
7V6Q Crystal structure of sNASP-ASF1A-H3.1-H4 complex Deposited 2021-08-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–136（136 aa）
Not recorded GOL GLYCEROL × 4 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；18% (v/v) Tacsimate, pH 5.0 11% (v/v) PEG2000MME
Resolution 3.00 Å R-free 0.203
7V6Q Crystal structure of sNASP-ASF1A-H3.1-H4 complex Deposited 2021-08-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–136（136 aa）
Not recorded GOL GLYCEROL × 2 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；18% (v/v) Tacsimate, pH 5.0 11% (v/v) PEG2000MME
Resolution 3.00 Å R-free 0.203
7V90 Telomeric mononucleosome Deposited 2021-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7V96 Telomeric Dinucleosome Deposited 2021-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
7V9C Telomeric Dinucleosome in open state Deposited 2021-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
7V9J Telomeric trinucleosome Deposited 2021-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain S 1–136（136 aa）
Chain W 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
7V9K Telomeric tetranucleosome Deposited 2021-08-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 32 PDB declaration: 34-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain S 1–136（136 aa）
Chain W 1–136（136 aa）
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.10 Å
7V9S Telomeric trinucleosome in open state Deposited 2021-08-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain S 1–136（136 aa）
Chain W 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.00 Å
7VA4 Telomeric tetranucleosome in open state Deposited 2021-08-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 32 PDB declaration: 34-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain S 1–136（136 aa）
Chain W 1–136（136 aa）
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 14.00 Å
7VZ4 Cryo-EM structure of human nucleosome core particle composed of the Widom 601L DNA sequence Deposited 2021-11-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 1.89 Å
7W9V Cryo-EM structure of nucleosome in complex with p300 acetyltransferase catalytic core (complex I) Deposited 2021-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.95 Å
7X57 Cryo-EM structure of human subnucleosome (closed form) Deposited 2022-03-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain C 2–136（135 aa）
Chain E 2–136（135 aa）
Chain G 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.63 Å
7X58 Cryo-EM structure of human subnucleosome (open form) Deposited 2022-03-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain C 2–136（135 aa）
Chain E 2–136（135 aa）
Chain G 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
7XVL Crystal Structure of Nucleosome-H1.0 Linker Histone Assembly (sticky-169an DNA fragment) Deposited 2022-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 21-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain U 1–136（136 aa）
Chain Y 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40-45mM CaCl2, 25mM KCl, 10mM Na-acetate (pH 4.5)
Resolution 3.51 Å R-free 0.280
7XVL Crystal Structure of Nucleosome-H1.0 Linker Histone Assembly (sticky-169an DNA fragment) Deposited 2022-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Chain e 1–136（136 aa）
Chain i 1–136（136 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40-45mM CaCl2, 25mM KCl, 10mM Na-acetate (pH 4.5)
Resolution 3.51 Å R-free 0.280
7XVM Crystal Structure of Nucleosome-H5 Linker Histone Assembly (sticky-169a DNA fragment) Deposited 2022-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 18 CL CHLORIDE ION × 3 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40-45mM CaCl2, 25mM KCl, 10mM Na-acetate (pH 4.5)
Resolution 2.84 Å R-free 0.259
7XX5 Crystal Structure of Nucleosome-H1.3 Linker Histone Assembly (sticky-169a DNA fragment) Deposited 2022-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 21-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 13 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40-45mM CaCl2, 25mM KCl, 10mM Na-acetate (pH 4.5)
Resolution 3.19 Å R-free 0.259
7XX6 Crystal Structure of Nucleosome-H1.0 Linker Histone Assembly (sticky-169a DNA fragment) Deposited 2022-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 21-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CA CALCIUM ION × 21 K POTASSIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40-45mM CaCl2, 25mM KCl, 10mM Na-acetate (pH 4.5)
Resolution 3.39 Å R-free 0.296
7XX6 Crystal Structure of Nucleosome-H1.0 Linker Histone Assembly (sticky-169a DNA fragment) Deposited 2022-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 17 PDB declaration: 21-meric
Chain U 1–136（136 aa）
Chain Y 1–136（136 aa）
Chain e 1–136（136 aa）
Chain i 1–136（136 aa）
Not recorded CA CALCIUM ION × 26 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40-45mM CaCl2, 25mM KCl, 10mM Na-acetate (pH 4.5)
Resolution 3.39 Å R-free 0.296
7XZX Cryo-EM structure of the nucleosome in complex with p53 DNA-binding domain Deposited 2022-06-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.53 Å
7XZY Cryo-EM structure of the nucleosome containing 193 base-pair DNA with a p53 target sequence Deposited 2022-06-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
7XZZ Cryo-EM structure of the nucleosome in complex with p53 Deposited 2022-06-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.07 Å
7Y00 Cryo-EM structure of the nucleosome containing 169 base-pair DNA with a p53 target sequence Deposited 2022-06-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
7Y5U Cryo-EM structure of the monomeric human CAF1LC-H3-H4 complex Deposited 2022-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7Y5V Cryo-EM structure of the dimeric human CAF1LC-H3-H4 complex Deposited 2022-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 1–136（136 aa）
Chain I 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.10 Å
7Y5W Cryo-EM structure of the left-handed Di-tetrasome Deposited 2022-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain C 1–136（136 aa）
Chain E 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7Y60 Cryo-EM structure of human CAF1LC bound right-handed Di-tetrasome Deposited 2022-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain C 1–136（136 aa）
Chain E 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7Y61 Cryo-EM structure of the two CAF1LCs bound right-handed Di-tetrasome Deposited 2022-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–136（136 aa）
Chain C 1–136（136 aa）
Chain E 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.60 Å
7Y7I chicken KNL2 in complex with the CENP-A nucleosome Deposited 2022-06-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–64（64 aa）
Chain E 1–64（64 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7YOZ Cryo-EM structure of human subnucleosome (intermediate form) Deposited 2022-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain C 2–136（135 aa）
Chain E 2–136（135 aa）
Chain G 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
7YQK cryo-EM structure of gammaH2AXK15ub-H4K20me2 nucleosome bound to 53BP1 Deposited 2022-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 37–136（100 aa）
Chain E 37–136（100 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
7ZI4 Cryo-EM structure of the human INO80 complex bound to a WT nucleosome Deposited 2022-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain I 1–136（136 aa）
Chain M 1–136（136 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4uL of sample applied to Quantifoil R2/2 Cu 300 mesh grids. blot parameters were wait time 30 sec, blot time 0.5 sec, blot force -8
Resolution 3.20 Å
8DK5 Structure of 187bp LIN28b nucleosome with site 0 mutation Deposited 2022-07-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.71 Å
8EVG 162bp CX3CR1 nucleosome (further classified with better nucleosome end) Deposited 2022-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
8EVH CX3CR1 nucleosome and wild type PU.1 complex Deposited 2022-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.85 Å
8EVI CX3CR1 nucleosome and PU.1 complex containing disulfide bond mutations Deposited 2022-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.64 Å
8EVJ CX3CR1 nucleosome bound PU.1 and C/EBPa Deposited 2022-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.1
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8GE0 Crystal structure of JADE1 PZP domain in complex with Histone H3 Deposited 2023-03-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–14（13 aa）
Not recorded ZN ZINC ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Sodium chloride, 0.1 M HEPES pH 7.0, 20 % w/v PEG 6000
Resolution 2.40 Å R-free 0.241
8GE0 Crystal structure of JADE1 PZP domain in complex with Histone H3 Deposited 2023-03-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–14（13 aa）
Not recorded ZN ZINC ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Sodium chloride, 0.1 M HEPES pH 7.0, 20 % w/v PEG 6000
Resolution 2.40 Å R-free 0.241
8GE0 Crystal structure of JADE1 PZP domain in complex with Histone H3 Deposited 2023-03-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2–14（13 aa）
Not recorded ZN ZINC ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291.15 K；0.2 M Sodium chloride, 0.1 M HEPES pH 7.0, 20 % w/v PEG 6000
Resolution 2.40 Å R-free 0.241
8GUI Bre1-nucleosome complex (Model I) Deposited 2022-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.81 Å
8GUJ Bre1-nucleosome complex (Model II) Deposited 2022-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8GUK Human nucleosome core particle (free form) Deposited 2022-09-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.51 Å
8H0V RNA polymerase II transcribing a chromatosome (type I) Deposited 2022-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 21 PDB declaration: 24-meric
Chain a 2–136（135 aa）
Chain e 2–136（135 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8H0W RNA polymerase II transcribing a chromatosome (type II) Deposited 2022-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 21 PDB declaration: 24-meric
Chain a 2–136（135 aa）
Chain e 2–136（135 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8H1T Cryo-EM structure of BAP1-ASXL1 bound to chromatosome Deposited 2022-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8HAG Cryo-EM structure of the p300 catalytic core bound to the H4K12acK16ac nucleosome, class 1 (3.2 angstrom resolution) Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8HAH Cryo-EM structure of the p300 catalytic core bound to the H4K12acK16ac nucleosome, class 2 (3.9 angstrom resolution) Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8HAI Cryo-EM structure of the p300 catalytic core bound to the H4K12acK16ac nucleosome, class 1 (4.7 angstrom resolution) Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.70 Å
8HAJ Cryo-EM structure of the p300 catalytic core bound to the H4K12acK16ac nucleosome, class 2 (4.8 angstrom resolution) Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
8HAK Cryo-EM structure of the p300 catalytic core bound to the H4K12acK16ac nucleosome, class 4 (4.5 angstrom resolution) Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8HAL Cryo-EM structure of the CBP catalytic core bound to the H4K12acK16ac nucleosome, class 1 Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8HAM Cryo-EM structure of the CBP catalytic core bound to the H4K12acK16ac nucleosome, class 2 Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8HAN Cryo-EM structure of the CBP catalytic core bound to the H4K12acK16ac nucleosome, class 3 Deposited 2022-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8IEG Bre1(mRBD-RING)/Rad6-Ub/nucleosome complex Deposited 2023-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain E 38–135（98 aa）
Chain K 38–135（98 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.44 Å
8IEJ RNF20-RNF40/hRad6A-Ub/nucleosome complex Deposited 2023-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain E 38–135（98 aa）
Chain K 38–135（98 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.12 Å
8IHL Overlapping tri-nucleosome Deposited 2023-02-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Chain K 2–136（135 aa）
Chain M 2–136（135 aa）
Chain Q 2–136（135 aa）
Chain U 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.64 Å
8IIY Crystal structure of MBP fused GAS41 YEATS domain in complex with H3K14ac peptide Deposited 2023-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–20（19 aa）
Chain C 2–20（19 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris buffer (pH 8.5) containing 20% (w/v) PEG monomethyl ether 2000, 200 mM trimethylamine N-oxide
Resolution 2.15 Å R-free 0.247
8IIZ Crystal structure of MBP fused GAS41 YEATS domain in complex with H3K27ac peptide Deposited 2023-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–33（32 aa）
Chain C 2–33（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris buffer (pH 8.5) containing 20% (w/v) PEG monomethyl ether 2000, 200 mM trimethylamine N-oxide
Resolution 2.10 Å R-free 0.301
8IJ0 Crystal structure of GAS41 YEATS domain in complex with H3K9ac peptide Deposited 2023-02-24 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–12（11 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Na-HEPES buffer (pH 7.5) containing 5% (w/v) PEG 400 and 2 M ammonium sulfate
Resolution 1.52 Å R-free 0.189
8IJ0 Crystal structure of GAS41 YEATS domain in complex with H3K9ac peptide Deposited 2023-02-24 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–12（11 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 SO4 SULFATE ION × 4 1PE PENTAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Na-HEPES buffer (pH 7.5) containing 5% (w/v) PEG 400 and 2 M ammonium sulfate
Resolution 1.52 Å R-free 0.189
8IQF Cryo-EM structure of the dimeric human CAF1-H3-H4 complex Deposited 2023-03-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 1–136（136 aa）
Chain I 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8IQG Cryo-EM structure of the monomeric human CAF1-H3-H4 complex Deposited 2023-03-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8J6S Cryo-EM structure of the single CAF-1 bound right-handed Di-tetrasome Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain C 1–136（136 aa）
Chain E 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8J6T Cryo-EM structure of the double CAF-1 bound right-handed Di-tetrasome Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–136（136 aa）
Chain C 1–136（136 aa）
Chain E 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Hepes, pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å
8JBX Human canonical 601 DNA nucleosome Deposited 2023-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
8JCC Human histone H2B variant H2BFWT Cryo-EM structure with 601 DNA sequence Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
8JCD Human H2BFWTH100R nucleosome with 601 DNA Deposited 2023-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.14 Å
8JHF Native SUV420H1 bound to 167-bp nucleosome Deposited 2023-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 1 SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blotted for 3 s before being plunged into liquid ethane
Resolution 3.68 Å
8JHG Native SUV420H1 bound to 167-bp nucleosome Deposited 2023-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 1 SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blotted for 3 s before being plunged into liquid ethane
Resolution 3.58 Å
8JL9 Cryo-EM structure of the human nucleosome with scFv Deposited 2023-06-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.65 Å
8JLA Cryo-EM structure of the human nucleosome lacking N-terminal region of H2A, H2B, H3, and H4 Deposited 2023-06-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 29–136（108 aa）
Chain E 29–136（108 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.44 Å
8JND The cryo-EM structure of the nonameric RAD51 ring bound to the nucleosome with the linker DNA binding Deposited 2023-06-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 19-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.66 Å
8JNE The cryo-EM structure of the decameric RAD51 ring bound to the nucleosome without the linker DNA binding Deposited 2023-06-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.68 Å
8JNF The cryo-EM structure of the RAD51 filament bound to the nucleosome Deposited 2023-06-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: 16-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.91 Å
8KCY Structure of nucleosome complexed with two DEK molecules Deposited 2023-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8KD1 Structure of nucleosome complexed with one DEK molecule Deposited 2023-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8KE0 Structure of H1.2 bound to the nucleosome Deposited 2023-08-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8OFF Structure of BARD1 ARD-BRCTs in complex with H2AKc15ub nucleosomes (Map1) Deposited 2023-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain Ca 1–135（135 aa）
Chain Cb 1–135（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 50 mM NaCl and 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE；blot force = 0 N blot time = 8 s
Resolution 3.40 Å
8OO7 CryoEM Structure INO80core Hexasome complex composite model state1 Deposited 2023-04-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain M 2–136（135 aa）
Chain Q 2–136（135 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；30mM HEPES, pH7.5 50mM NaCl 0.25mM CaCl2 0.25mM DTT 2mM ADP 3.3mM MgCl2 10mM NaF 2mM AlCl3 0.05% octyl-beta-glucoside
cryo-EM vitrification conditions Cryogen ETHANE；wait time of 5s, blot force at 3, and a blot time of 2s with Whatman blotting paper (Cytiva, CAT No. 10311807)
Resolution 2.80 Å
8OOA CryoEM Structure INO80core Hexasome complex Hexasome refinement state1 Deposited 2023-04-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain M 2–136（135 aa）
Chain Q 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；30mM HEPES, pH7.5 50mM NaCl 0.25mM CaCl2 0.25mM DTT 2mM ADP 3.3mM MgCl2 10mM NaF 2mM AlCl3 0.05% octyl-beta-glucoside
cryo-EM vitrification conditions Cryogen ETHANE；wait time of 5s, blot force at 3, and a blot time of 2s with Whatman blotting paper (Cytiva, CAT No. 10311807)
Resolution 3.18 Å
8OOP CryoEM Structure INO80core Hexasome complex composite model state2 Deposited 2023-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain M 2–136（135 aa）
Chain Q 2–136（135 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 2 ALF TETRAFLUOROALUMINATE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；30mM HEPES, pH7.5 50mM NaCl 0.25mM CaCl2 0.25mM DTT 2mM ADP 3.3mM MgCl2 10mM NaF 2mM AlCl3 0.05% octyl-beta-glucoside
cryo-EM vitrification conditions Cryogen ETHANE；wait time of 5s, blot force at 3, and a blot time of 2s with Whatman blotting paper (Cytiva, CAT No. 10311807)
Resolution 2.70 Å
8OOS CryoEM Structure INO80core Hexasome complex ATPase-hexasome refinement state 2 Deposited 2023-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain M 2–136（135 aa）
Chain Q 2–136（135 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；30mM HEPES, pH7.5 50mM NaCl 0.25mM CaCl2 0.25mM DTT 2mM ADP 3.3mM MgCl2 10mM NaF 2mM AlCl3 0.05% octyl-beta-glucoside
cryo-EM vitrification conditions Cryogen ETHANE；wait time of 5s, blot force at 3, and a blot time of 2s with Whatman blotting paper (Cytiva, CAT No. 10311807)
Resolution 3.29 Å
8OSJ Cryo-EM structure of CLOCK-BMAL1 bound to a nucleosomal E-box at position SHL-6.2 (DNA conformation 1) Deposited 2023-04-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.20 Å
8OSK Cryo-EM structure of CLOCK-BMAL1 bound to a nucleosomal E-box at position SHL+5.8 (composite map) Deposited 2023-04-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8OSL Cryo-EM structure of CLOCK-BMAL1 bound to the native Por enhancer nucleosome (map 2, additional 3D classification and flexible refinement) Deposited 2023-04-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å
8OTS OCT4 and MYC-MAX co-bound to a nucleosome Deposited 2023-04-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded PTD PENTANEDIAL × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8OTT MYC-MAX bound to a nucleosome at SHL+5.8 Deposited 2023-04-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 40–134（95 aa）
Chain E 40–134（95 aa）
Not recorded PTD PENTANEDIAL × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8OX0 Structure of apo telomeric nucleosome Deposited 2023-04-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；25 mM HEPES-KOH pH 8.0, 150 mM KCl, 1 mM MgCl2, 1% glycerol, 0.01% Igepal CA-630,1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE；Blot Force: -15 Blot Time: 2.5 s
Resolution 2.52 Å
8OX1 Structure of TRF1core in complex with telomeric nucleosome Deposited 2023-04-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；25 mM HEPES-KOH pH 8.0, 150 mM KCl, 1 mM MgCl2, 1% glycerol, 0.01% Igepal CA-630, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE；Blot Force: -15 Blot Time: 2.5 s
Resolution 2.70 Å
8Q36 Structure of Nucleosome Core with a Bound Metallopeptide Conjugate (Foamy Virus GAG Peptide-Au[I] Compound) Deposited 2023-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain AAA 39–136（98 aa）
Chain EEE 39–136（98 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；Buffers containing MnCl2, KCl and K-cacodylate [pH 6.0].
Resolution 2.60 Å R-free 0.262
8Q3E High Resolution Structure of Nucleosome Core with Bound Foamy Virus GAG Peptide Deposited 2023-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain AAA 39–136（98 aa）
Chain EEE 39–136（98 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；Buffers containing MnCl2, KCl and K-cacodylate [pH 6.0]
Resolution 2.17 Å R-free 0.270
8Q3M Structure of Nucleosome Core with a Bound Kaposi Sarcoma Associated Herpesvirus LANA Peptide Having a Methionine to Ornithine Substitution Deposited 2023-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain AAA 39–136（98 aa）
Chain EEE 39–136（98 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；Buffers containing MnCl2, KCl and K-cacodylate [pH 6.0]
Resolution 2.50 Å R-free 0.268
8Q3X Structure of Nucleosome Core with a Bound Metallopeptide Conjugate (Kaposi Sarcoma Associated Herpesvirus LANA Peptide-Au[I] Compound) Deposited 2023-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain AAA 39–136（98 aa）
Chain EEE 39–136（98 aa）
Not recorded AU GOLD ION × 1 XIS 4-diphenylphosphanylbenzoic acid × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；Buffers containing MnCl2, KCl and K-cacodylate [pH 6.0]
Resolution 2.30 Å R-free 0.262
8QKT Structure of a nucleosome composed of a palindromic 167-base pair blunt-ended DNA fragment Deposited 2023-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain AAA 39–136（98 aa）
Chain EEE 39–136（98 aa）
Not recorded MN MANGANESE (II) ION × 19 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；MnCl2-containing buffers
Resolution 3.26 Å R-free 0.321
8QKT Structure of a nucleosome composed of a palindromic 167-base pair blunt-ended DNA fragment Deposited 2023-09-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain KKK 39–136（98 aa）
Chain OOO 39–136（98 aa）
Not recorded MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；MnCl2-containing buffers
Resolution 3.26 Å R-free 0.321
8RGM Cryo-EM structure of nucleosome containing Widom603 DNA Deposited 2023-12-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8SMW Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 1) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8SMX Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 2) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8SMY Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 3) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8SMZ Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (Class 4) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8SN0 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 5) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8SN1 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A. No density for Ub.) (class 6) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8SN2 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c (UbcH5c chemically conjugated to histone H2A) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8SN3 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 1) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8SN4 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 2) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8SN5 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 3) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8SN6 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 4) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8SN7 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 5) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8SN8 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c~Ub (UbcH5c chemically conjugated to histone H2A) (class 6) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8SN9 Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c with backside ubiquitin (UbcH5c chemically conjugated to histone H2A) (class 1) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8SNA Cryo-EM structure of the human nucleosome core particle in complex with RNF168 and UbcH5c with backside ubiquitin (UbcH5c chemically conjugated to histone H2A) (class 2) Deposited 2023-04-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8SPS High resolution structure of ESRRB nucleosome bound OCT4 at site a and site b Deposited 2023-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8SPU Structure of ESRRB nucleosome bound OCT4 at site c Deposited 2023-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8SWI Crystal structure of legAS4 from Legionella pneumophila subsp. pneumophila with histone H3 (1-12)peptide Deposited 2023-05-18 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–13（12 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1M Bis-Tris 6.5 and 38% PPG P400
Resolution 3.00 Å R-free 0.310
8SYP Genomic CX3CR1 nucleosome Deposited 2023-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8TXV Cryo-EM structure of the human nucleosome core particle ubiquitylated at histone H2A K15 in complex with RNF168 (Class 1) Deposited 2023-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8TXW Cryo-EM structure of the human nucleosome core particle ubiquitylated at histone H2A K15 in complex with RNF168 (Class 2) Deposited 2023-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8TXX Cryo-EM structure of the human nucleosome core particle ubiquitylated at histone H2A K15 in complex with RNF168 (Class 3) Deposited 2023-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8U13 Cryo-EM structure of the human nucleosome core particle ubiquitylated at histone H2A lysine 15 in complex with RNF168-UbcH5c (class 1) Deposited 2023-08-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8U14 Cryo-EM structure of the human nucleosome core particle ubiquitylated at histone H2A lysine 15 in complex with RNF168-UbcH5c (class 2) Deposited 2023-08-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8U9S Cryo-EM structure of NRCAM nucleosome aided by scFv Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8UBJ Cryo-EM structure of NRCAM nucleosome aided by scFv (3D Flex map) Deposited 2023-09-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8UBK Cryo-EM structure of Ascl1/E12a in complex with NRCAM nucleosome Deposited 2023-09-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8UBL Cryo-EM structure of Ascl1/E12a in complex with NRCAM nucleosome (3D Flex map) Deposited 2023-09-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8UPF Cryo-EM structure of the human nucleosome core particle in complex with RNF168-UbcH5c Deposited 2023-10-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8VFX Cryo-EM structure of 186bp ALBN1 nucleosome aided by scFv Deposited 2023-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.65 Å
8VFY Cryo-EM structure of FoxA1 in complex with ALBN1 nucleosome (class 1) Deposited 2023-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
8VFZ Cryo-EM structure of FoxA1 in complex with ALBN1 nucleosome (class 2) Deposited 2023-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8VG0 Cryo-EM structure of GATA4 in complex with ALBN1 nucleosome Deposited 2023-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
8VG1 Cryo-EM structure of FoxA1 and GATA4 in complex with ALBN1 nucleosome Deposited 2023-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.48 Å
8VG2 Cryo-EM structure of FoxA1 and GATA4 in complex with H14 chromatosome Deposited 2023-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8VLR Cryo-EM structure of native H2AK119bu nucleosome at 2.6 Deposited 2024-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 39–136（98 aa）
Chain E 39–136（98 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM Tris-HCl, pH 7.5, 50 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8VMI PRC2_AJ119-450 bound to H3K4me3 Deposited 2024-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 2–7（6 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8VML PRC2_AJ1-450 bound to H3K4me3 Deposited 2024-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain I 20–41（22 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8VNV PRC2_AJ1-450 bound to H3K36me3 with histone H3 tail engaged Deposited 2024-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain I 20–41（22 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8W9D Cryo-EM structure of the Rpd3S-nucleosome complex from budding yeast in State 1 Deposited 2023-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded ZN ZINC ION × 7 K POTASSIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8W9E Cryo-EM structure of the Rpd3S-nucleosome complex from budding yeast in State 2 Deposited 2023-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: 17-meric
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded ZN ZINC ION × 7 K POTASSIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8W9F Cryo-EM structure of the Rpd3S-nucleosome complex from budding yeast in State 3 Deposited 2023-09-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: 17-meric
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8WG5 Cryo-EM structure of USP16 bound to H2AK119Ub nucleosome Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 38–135（98 aa）
Chain E 38–135（98 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
8X15 Structure of nucleosome-bound SRCAP-C in the apo state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain C 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X19 Structure of nucleosome-bound SRCAP-C in the ADP-BeFx-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain C 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8X1C Structure of nucleosome-bound SRCAP-C in the ADP-bound state Deposited 2023-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric
Chain C 1–136（136 aa）
Chain G 1–136（136 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XBT The cryo-EM structure of the octameric RAD51 ring bound to the nucleosome with the linker DNA binding Deposited 2023-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
8XBU The cryo-EM structure of the decameric RAD51 ring bound to the nucleosome with the linker DNA binding Deposited 2023-12-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.24 Å
8XBW The cryo-EM structure of the RAD51 N-terminal lobe domain bound to the histone H4 tail of the nucleosome Deposited 2023-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
8XRJ RNA polymerase II elongation complex with upstream nucleosome extracted from human nuclei Deposited 2024-01-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: 23-meric
Chain a 2–136（135 aa）
Chain e 2–136（135 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8XVS RNA polymerase II elongation complex with downstream nucleosome extracted from human nuclei Deposited 2024-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: 23-meric
Chain a 2–136（135 aa）
Chain e 2–136（135 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8Y3C Cryo-EM structure of the overlapping di-nucleosome (closed form) Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.21 Å
8Y3D Cryo-EM structure of the overlapping di-nucleosome (intermediate form2) Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
8Y3E Cryo-EM structure of the overlapping di-nucleosome (open form) Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: 16-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.32 Å
8Y3F Cryo-EM structure of the overlapping di-nucleosome (intermediate form1) Deposited 2024-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.54 Å
8YBJ Cryo-EM structure of human nucleosome core particle composed of the Widom 601 DNA sequence Deposited 2024-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.38 Å
8YBK Cryo-EM structure of the human nucleosome containing the H3.1 E97K mutant Deposited 2024-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Mutation：E97K Mutation：E97K No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.69 Å
8YJF Structure of human SPT16 MD-CTD and MCM2 HBD chaperoning a histone H3-H4 tetramer and an H2A-H2B dimer Deposited 2024-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 57–136（80 aa）
Chain E 57–136（80 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M calcium acetate, 0.1 M Sodium cacodylate pH 5.5, 12% (w/v) PEG 8000
Resolution 4.40 Å R-free 0.312
8YJM Structure of human SPT16 MD-CTD and MCM2 HBD chaperoning a histone H3-H4 tetramer and a single chain H2B-H2A chimera Deposited 2024-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 57–136（80 aa）
Chain E 57–136（80 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.2 M sodium acetate, 0.1 M sodium citrate pH 5.5, 5%(w/v) PEG 4000
Resolution 4.15 Å R-free 0.286
8YNY Structure of Cas9-sgRNA ribonucleoprotein bound to nucleosome Deposited 2024-03-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: 13-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.52 Å
8YTI Crystal Structure of Nucleosome-H1x Linker Histone Assembly (sticky-169a DNA fragment) Deposited 2024-03-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded CL CHLORIDE ION × 8 CA CALCIUM ION × 52 K POTASSIUM ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40-45 mM CaCl2, 25 mM KCl, 10 mM Na-acetate (pH 4.5)
Resolution 2.70 Å R-free 0.267
8YV8 Cryo-EM structure of CDCA7 bound to nucleosome including hemimethylated CpG site in Widom601 positioning sequence. Deposited 2024-03-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9ECP Structure of the native human NCP purified from HEK293 cells Deposited 2024-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 39–134（96 aa）
Chain E 39–134（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.91 Å
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Q 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Z 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 11 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain a 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain b 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 13 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain c 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 14 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain d 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 15 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain e 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 16 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain f 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain S 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain T 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain U 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain V 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain W 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain X 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9EHI Crystal structure of ENL YEATS in complex with histone H3 methacrylated at K18 Deposited 2024-11-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Y 16–22（7 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.0, 20% (v/v) Jeffamine M600, pH 7.0
Resolution 2.60 Å R-free 0.267
9FGQ Structure of human APC3loop 375-381 bound to the NCP Deposited 2024-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPEs pH8.0, 50 mM NaCl, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9FH9 Structure of CyclinB1 N-terminus bound to the NCP Deposited 2024-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9GCG CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain M 1–136（136 aa）
Chain Q 1–136（136 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.43 Å
9GE4 CryoEM structure of the human INO80 core- H2A.Z nucleosome complex Deposited 2024-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain M 1–136（136 aa）
Chain Q 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.52 Å
9GE5 CryoEM structure of the human INO80-Hexasome complex Deposited 2024-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric
Chain M 43–136（94 aa）
Chain Q 43–136（94 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9GEL CryoEM structure of the human INO80-Hexasome complex Deposited 2024-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain M 1–136（136 aa）
Chain Q 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.86 Å
9GEV CryoEM structure of the human INO80 core-nucleosome complex state N-6 Deposited 2024-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain M 1–136（136 aa）
Chain Q 1–136（136 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9GF6 CryoEM structure of the human INO80 core-nucleosome complex state N-6 Deposited 2024-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain M 1–136（136 aa）
Chain Q 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9GFB CryoEM structure of the human INO80 core-nucleosome complex state N-7 Deposited 2024-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain M 1–136（136 aa）
Chain Q 1–136（136 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9GFM CryoEM structure of the human INO80 core-nucleosome complex state N-7 Deposited 2024-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain M 44–136（93 aa）
Chain Q 37–136（100 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9IGW Ku70/80 bound to 147 bp nucleosome Deposited 2025-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
9IGX Ku70/80 bound to 153 bp nucleosome Deposited 2025-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 39–135（97 aa）
Chain E 39–135（97 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9J8M Cryo-EM structure of BAF-Lamin A/C IgF-nucleosome complex (High mobility complex) Deposited 2024-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.82 Å
9J8N Cryo-EM structure of BAF-Lamin A/C IgF-nucleosome complex (Low mobility complex) Deposited 2024-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 28 PDB declaration: 32-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.14 Å
9J8O Cryo-EM structure of BAF-Lamin A/C IgF-H1-nucleosome complex Deposited 2024-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 28-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.05 Å
9J8W Cryo-EM structure of NCP-UV-DDB complex containing CPD Deposited 2024-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
9JC6 Human H2BW2 nucleosome Deposited 2024-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.34 Å
9MLL GammaH2AX containing nucleosomes, Parallel stack Deposited 2024-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain L 1–136（136 aa）
Chain P 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9MLN GammaH2AX containing nucleosome, Canonical (Class 1) Deposited 2024-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MLR GammaH2AX containing nucleosome, Half-wrapped (Class 2) Deposited 2024-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9MLS GammaH2AX containing nucleosome, Extended (Class 3) Deposited 2024-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MMK H2AX containing nucleosome, Canonical (Class 1) Deposited 2024-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9MMM H2AX containing nucleosomes, Parallel stack Deposited 2024-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain L 1–136（136 aa）
Chain P 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9MMN H2AX containing nucleosomes, Left offset stack Deposited 2024-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain L 1–136（136 aa）
Chain P 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MMO H2AX containing nucleosomes, Right offset stack Deposited 2024-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: eicosameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain L 1–136（136 aa）
Chain P 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9MMT H2AX containing nucleosome, Unwrapped (Class 2) Deposited 2024-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9Q80 Ku70/80 with Ku70 linker and SAP domain bound to a 153 bp H2AX nucleosome Deposited 2025-02-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9Q8X Ku70/80 bound to a 153 bp H2AX nucleosome Deposited 2025-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
9Q9F DNA-PK bound to a 153 bp H2AX nucleosome model 1 Deposited 2025-02-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.54 Å
9QCR DNA-PK bound to 153 bp H2AX nucleosome model 2 Deposited 2025-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.37 Å
9QCS Ku80 mediated DNA-PK dimer bound to 153 bp H2AX nucleosome Deposited 2025-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 26-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.38 Å
9QLM Solution structure of the TAF3-PHD bound to a H3K4me3Q5ser histone tail peptide with a serotonylated glutamine Deposited 2025-03-21 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–13（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 2 SRO SEROTONIN × 1 SOLUTION NMR
NMR measurement conditions pH 7；293 K；Ionic strength (raw mmCIF value) 44；Pressure 1
NMR sample composition 0.88 mM [U-13C; U-15N] TAF3-PHD, 0.88 mM H3K4me3Q5ser, 20 mM potassium phosphate, 4 mM potassium chloride, 10 uM zinc chloride, 0.01 % w/v sodium azide, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
9QMS DNA-PK bound to 153 bp H2AX nucleosome with ATPyS Deposited 2025-03-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 26 PDB declaration: 30-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain a 1–136（136 aa）
Chain e 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
9R04 p53 bound to the nucleosome at position SHL-5.7 (crosslinked sample) Deposited 2025-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9R2M p53 bound to nucleosome at position SHL+5.9 (non-crosslinked sample, composite map) Deposited 2025-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9R2P p53 bound to nucleosome at position SHL+5.9 (crosslinked sample) Deposited 2025-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.18 Å
9R2Q p53 bound to nucleosome at position SHL-5.7 (non-crosslinked sample) Deposited 2025-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9RL4 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2025-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded PTD PENTANEDIAL × 16 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9RMC Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 1 Deposited 2025-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9RN1 Structure of BAF-nucleosome complex with OCT4-SOX2 at SHL+6 in ADP-bound state, BAF47 bound to ATPase lobe 2 Deposited 2025-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
9RN2 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2 Deposited 2025-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 21-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9UJS RNA polymerase II elongation complex stalled at SHL(-4) of the H3-H4 octasome Deposited 2025-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: 23-meric
Chain a 1–136（136 aa）
Chain c 1–136（136 aa）
Chain e 1–136（136 aa）
Chain g 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9UJT RNA polymerase II elongation complex stalled at SHL(-0.5) of the H3-H4 octasome (tetrasome) Deposited 2025-04-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: nonadecameric
Chain e 1–136（136 aa）
Chain g 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.54 Å
9UZ7 Cryo-EM structure of the nucleosome core particle with site-specific DNA-histone crosslinking Deposited 2025-05-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain B 2–136（135 aa）
Mutation：C96S/C110S/K115C Mutation：C96S/C110S/K115C Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；10 mM HEPES, pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution not provided
9V6Q Cryo-EM structure of two cPRC1 complexes bound to opposite faces of an endogenous 147-bp mono-nucleosome Deposited 2025-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 4.60 Å
9V6S Cryo-EM structure of a single cPRC1 complex engaged on one face of an endogenous 147-bp mononucleosome Deposited 2025-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.00 Å
9V6X Cryo-EM structure of the cPRC1 complex bound to an endogenous 184-bp mono-nucleosome Deposited 2025-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 4.00 Å
9V8L Cryo-EM structure of the cPRC1-di-nucleosome (loose) complex Deposited 2025-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain O 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 6.60 Å
9V9H Cryo-EM structure of the cPRC1-di-nucleosome (tight) complex Deposited 2025-05-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain M 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 4.50 Å
9V9P Cryo-EM structure of the cPRC1-di-nucleosome (CBX7) complex Deposited 2025-06-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric
Chain A 1–136（136 aa）
Chain E 1–136（136 aa）
Chain K 1–136（136 aa）
Chain M 1–136（136 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.40 Å
9VEM SIRT2 structure in complex with H3K18myr peptide and native NAD: pre-catalysis state 1 Deposited 2025-06-09 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 17–22（6 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 PEG DI(HYDROXYETHYL)ETHER × 2 EDO 1,2-ETHANEDIOL × 5 GOL GLYCEROL × 1 ZN ZINC ION × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Tris 8.0, 25% PEG 2000MME
Resolution 2.57 Å R-free 0.264
9VEW SIRT2 structure in complex with H3K18myr peptide and native NAD: pre-catalysis state 2 Deposited 2025-06-10 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 16–22（7 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 1 ZN ZINC ION × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Tris 8.0, 25% PEG 2000MME
Resolution 2.68 Å R-free 0.251
9VG0 SIRT2 structure in complex with H3K18myr peptide Deposited 2025-06-12 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 16–22（7 aa）
Not recorded EDO 1,2-ETHANEDIOL × 5 ZN ZINC ION × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；Tris 8.0, 25% PEG 2000MME
Resolution 1.61 Å R-free 0.231
9VG3 SIRT2 structure in complex with H3K18myr peptide: pre NAD binding state Deposited 2025-06-12 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 17–22（6 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；Tris 8.0, 25% PEG2000MME
Resolution 2.15 Å R-free 0.251
9VGE SIRT2 demyristoylation intermediate I structure Deposited 2025-06-13 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 16–22（7 aa）
Not recorded NCA NICOTINAMIDE × 1 GOL GLYCEROL × 1 ZN ZINC ION × 1 YDD [[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(2R,3S,4R,5S)-3,4-bis(oxidanyl)-5-tetradecoxy-oxolan-2-yl]methyl hydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；Tris 8.0, 25% PEG 2000MME
Resolution 2.56 Å R-free 0.282
9VGZ SIRT2-F96A structure in complex with H3K18myr peptide and native NAD Deposited 2025-06-15 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 16–22（7 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1 ZN ZINC ION × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；Tris 8.0, 25% PEG 2000MME
Resolution 2.34 Å R-free 0.236
9VH0 SIRT2-H187A structure in complex with H3K18myr peptide and native NAD Deposited 2025-06-16 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 16–21（6 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 ZN ZINC ION × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；0.1 M MES 5.5, 9.2% PEG10000
Resolution 2.41 Å R-free 0.273
9VH0 SIRT2-H187A structure in complex with H3K18myr peptide and native NAD Deposited 2025-06-16 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 16–21（6 aa）
Not recorded NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 ZN ZINC ION × 1 MYR MYRISTIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；0.1 M MES 5.5, 9.2% PEG10000
Resolution 2.41 Å R-free 0.273
9XSF Cryo-EM structure of H4S47GlcNAc nucleosome at 3.39 angstrom Deposited 2025-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.39 Å
9YL3 State 1 MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: 17-meric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.50 Å
9YLE State 3 MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: 17-meric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.63 Å
9YLY MLL4FC bound to a nucleosome with p53 RE Deposited 2025-10-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 14 PDB declaration: 16-meric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.77 Å
9YM8 State 2 focused on PHD FYR of MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: 18-meric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.43 Å
9YMF State 2 focused on H3 N terminal tail of MLL4FC bound to a nucleosome premodified with H2BK120ub and H4K16ac Deposited 2025-10-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: 18-meric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.45 Å
9ZEO Competition for different elements of the nucleosome acidic patch yields distinct functional outcomes. VHH 1G1 Deposited 2025-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain A 39–136（98 aa）
Chain E 39–136（98 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；20 mM HEPES pH7.6, 50 mM NaCl, 0.5 mM MgCl2, 1 mM EDTA
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å

402 other PDB entries and 475 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name H31_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–10； UniProt 2–11

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7klr

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7klr
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7klr
Deposition date deposition_date2020-10-31
Structure title titleSolution structure of the PHD1 domain of histone demethylase KDM5A in complex with a histone H3(1-10) peptide
Keywords keywordsPHD, H3, Epigenetics, KDM5A, GENE REGULATION; GENE REGULATION
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier11.81 Å
Radius of gyration Rg (electron density) rg_electron11.86 Å
Forward intensity I(0) i0403620000.00
Molecular weight molecular_weight157510.0 kDa
Excluded volume excluded_volume191620 ų
Envelope volume envelope_volume18334 ų
Hydration-shell volume shell_volume11562 ų
Envelope diameter envelope_diameter44.8 Å
Shell Rg shell_rg19.32 Å
Envelope Rg envelope_rg14.00 Å
Shape Rg shape_rg11.88 Å
Total Rg total_rg11.94 Å
Total atoms total_atoms21100
Residues n_residues1380
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax39.6 Å
Rg (real space) rg_real11.77 Å
Rg uncertainty (real space) rg_real_error0.35 Å
I(0) (real space) i0_real4.0360e+08
I(0) uncertainty (real space) i0_real_error4.3840e+06
Rg (reciprocal space) rg_reciprocal11.77 Å
I(0) (reciprocal space) i0_reciprocal403600000.0000
Solution quality estimate total_estimate0.7966
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary15.0 Å
Skewness Skewness skewness0.211
Kurtosis Kurtosis kurtosis-0.200
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha85950.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.787; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd7klra1
Class classg — Small proteins
Fold Fold foldg.50 — FYVE/PHD zinc finger
Superfamily Superfamily superfamilyg.50.1 — FYVE/PHD zinc finger
Family Family familyg.50.1.0 — automated matches
Domain ID domain_idd7klra2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
▶

8. Citations (1)

▶

9. Files and Curves (10)
