1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA EXCISION REPAIR PROTEIN ERCC-6

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 84–160	Fragment：N-TERMINAL COIED-COIL DOMAIN, RESIDUES 84-160	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：1.6 M MAGNESIUM SULFATE, 0.1 M MES PH 6.6	Resolution 1.85 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4CVO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7OO3 Pol II-CSB-CSA-DDB1-UVSSA (Structure1) Deposited 2021-05-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 17 PDB declaration: eicosameric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7OOB Pol II-CSB-CSA-DDB1-UVSSA-ADPBeF3 (Structure2) Deposited 2021-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: octadecameric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
7OOP Pol II-CSB-CSA-DDB1-UVSSA-PAF-SPT6 (Structure 3) Deposited 2021-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7OPC Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 4) Deposited 2021-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7OPD Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 5) Deposited 2021-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8B3D Structure of the Pol II-TCR-ELOF1 complex. Deposited 2022-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 17 PDB declaration: eicosameric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8B3F Pol II-CSB-CSA-DDB1-ELOF1 Deposited 2022-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: nonadecameric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9BZ0 Structure of an STK19-containing TC-NER complex Deposited 2024-05-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 19 PDB declaration: 22-meric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.90 Å
9ER2 PolII-TCR-STK19 structure. Deposited 2024-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 19 PDB declaration: 22-meric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 11 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9FD2 Structure of Pol II-TC-NER-STK19 complex Deposited 2024-05-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 19 PDB declaration: 22-meric	Chain e 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9HWG Structure of the transcribing Pol II-TCR-RECQL5 complex Deposited 2025-01-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: 21-meric	Chain b 1–1493（1493 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 50 mM KCl, 4 mM MgCl2, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ERCC6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–79； UniProt 84–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4cvo
Deposition date deposition_date	2014-03-28
Structure title title	Crystal structure of the N-terminal colied-coil domain of human DNA excision repair protein ERCC-6
Keywords keywords	HYDROLASE, COCKAYNE SYNDROME, NUCLEOTIDE EXCISION REPAIR; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

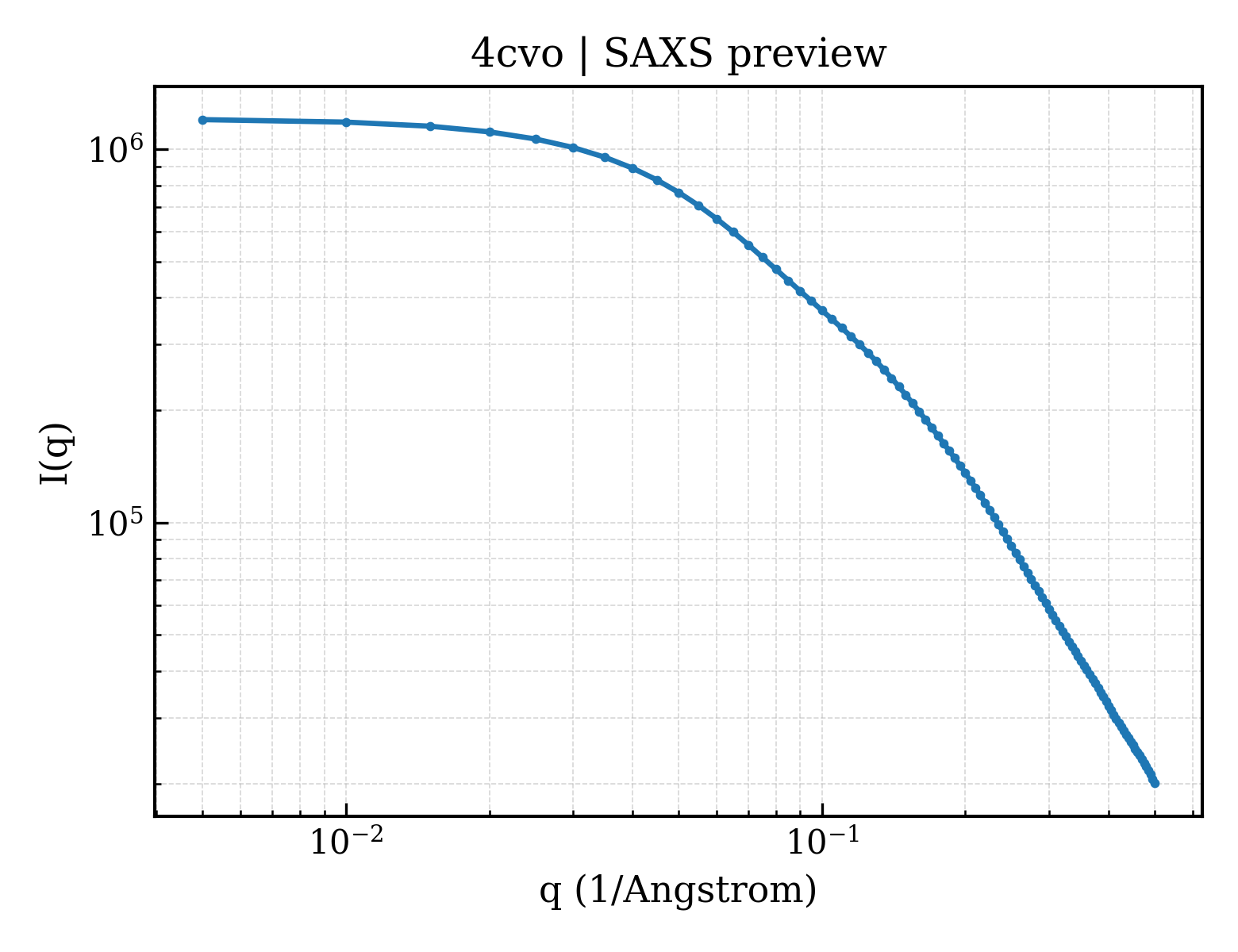

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.88 Å
Radius of gyration Rg (electron density) rg_electron	25.71 Å
Forward intensity I(0) i0	1205780.00
Molecular weight molecular_weight	7419.0 kDa
Excluded volume excluded_volume	9157 Å³
Envelope volume envelope_volume	14044 Å³
Hydration-shell volume shell_volume	6319 Å³
Envelope diameter envelope_diameter	94.7 Å
Shell Rg shell_rg	24.82 Å
Envelope Rg envelope_rg	26.11 Å
Shape Rg shape_rg	25.68 Å
Total Rg total_rg	25.63 Å
Total atoms total_atoms	521
Residues n_residues	69
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

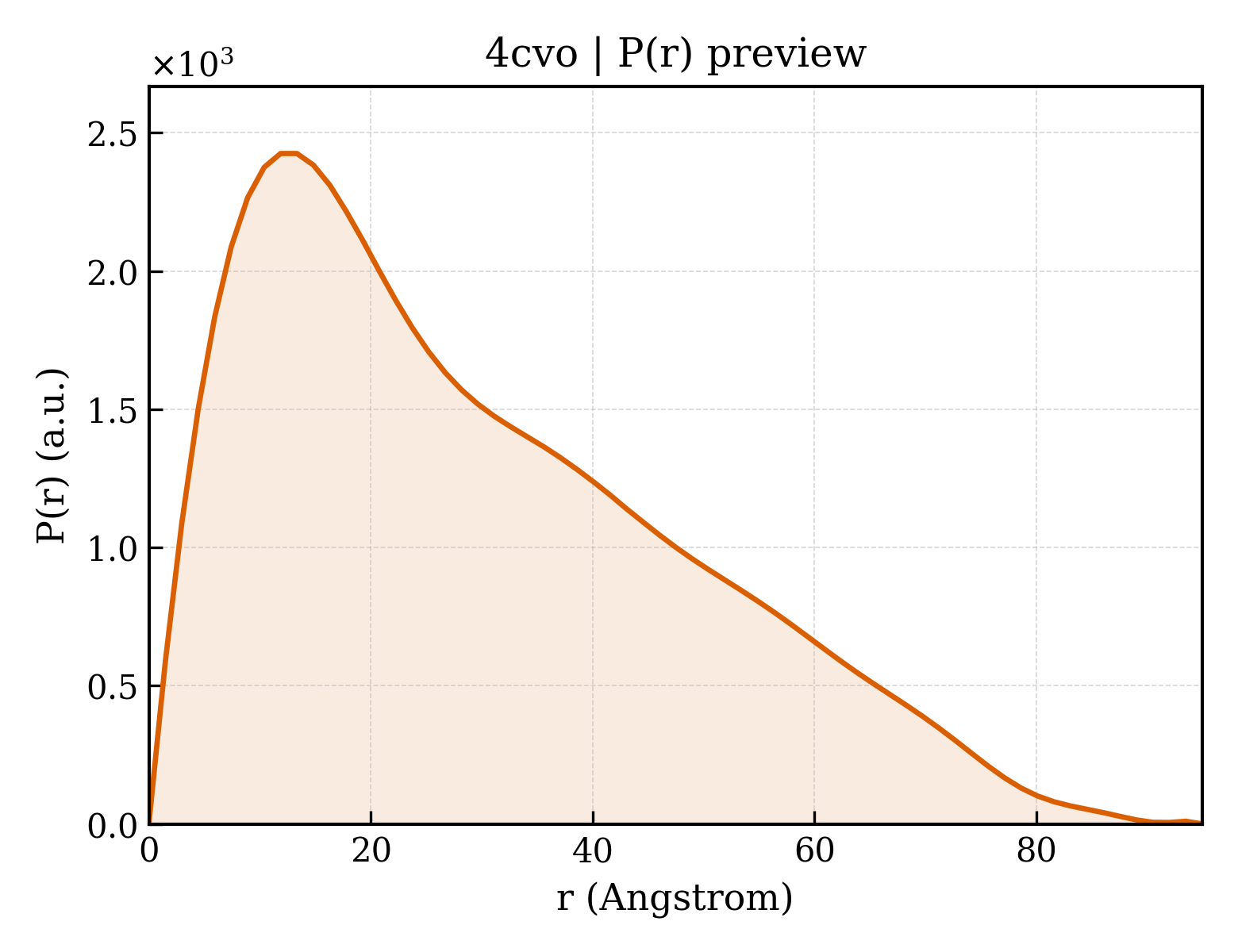

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.0 Å
Rg (real space) rg_real	24.75 Å
Rg uncertainty (real space) rg_real_error	1.43 Å
I(0) (real space) i0_real	1.2060e+06
I(0) uncertainty (real space) i0_real_error	1.9410e+04
Rg (reciprocal space) rg_reciprocal	24.55 Å
I(0) (reciprocal space) i0_reciprocal	1206000.0000
Solution quality estimate total_estimate	0.6244
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	93.5 Å
Skewness Skewness skewness	0.668
Kurtosis Kurtosis kurtosis	-0.389
Angular range angular_range	— – 0.3350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	46290.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.050; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.002; Smooth: 0.962

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	DNA EXCISION REPAIR PROTEIN ERCC-6
Molecular weight formula_weight	8763.7 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	548

SMEPSAQALELQGLGVDVYDQDVLEQGVLQQVDNAIHEASRASQLVDVEKEYRSVLDDLTSCTTSLRQINKIIEQLSPQ

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	27

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.444 Å
Unit-cell length b length_b	37.444 Å
Unit-cell length c length_c	321.268 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64 2 2
Space-group number int_tables_number	181
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	35.696 Å
R factor r_factor	0.2373
R_work r_work	0.2364
R_free r_free	0.2553

fit	/app/data/saxs_computation/cv/4cvo/4cvo.fit
pddf	/app/data/pr_computation/cv/4cvo/4cvo.pr.out
profile	/app/data/saxs_computation/cv/4cvo/4cvo.dat
