1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase COP1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Ubiquitin-conjugating enzyme E2 E2 × 2 （Q96LR5） DET1 homolog × 2 （Q7L5Y6） DNA damage-binding protein 1 × 2 （Q16531） DET1- and DDB1-associated protein 1 × 2 （Q9BW61）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–731； UniProt 1–731 Author chain B； PDBConstruct 1–731； UniProt 1–731 Author chain C； PDBConstruct 1–731； UniProt 1–731 Author chain D； PDBConstruct 1–731； UniProt 1–731 Author chain E； PDBConstruct 1–731； UniProt 1–731 Author chain F； PDBConstruct 1–731； UniProt 1–731 Author chain G； PDBConstruct 1–731； UniProt 1–731 Author chain J； PDBConstruct 1–731； UniProt 1–731

Ubiquitin-conjugating enzyme E2 E2

Homo sapiens

UniProt Q96LR5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	E3 ubiquitin-protein ligase COP1 × 8 （Q8NHY2） DET1 homolog × 2 （Q7L5Y6） DNA damage-binding protein 1 × 2 （Q16531） DET1- and DDB1-associated protein 1 × 2 （Q9BW61）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UB2E2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain Q； PDBConstruct 1–201； UniProt 1–201 Author chain T； PDBConstruct 1–201； UniProt 1–201

DET1 homolog

Homo sapiens

UniProt Q7L5Y6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	E3 ubiquitin-protein ligase COP1 × 8 （Q8NHY2） Ubiquitin-conjugating enzyme E2 E2 × 2 （Q96LR5） DNA damage-binding protein 1 × 2 （Q16531） DET1- and DDB1-associated protein 1 × 2 （Q9BW61）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DET1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain R； PDBConstruct 1–550； UniProt 1–550 Author chain U； PDBConstruct 1–550； UniProt 1–550

DNA damage-binding protein 1

Homo sapiens

UniProt Q16531

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	E3 ubiquitin-protein ligase COP1 × 8 （Q8NHY2） Ubiquitin-conjugating enzyme E2 E2 × 2 （Q96LR5） DET1 homolog × 2 （Q7L5Y6） DET1- and DDB1-associated protein 1 × 2 （Q9BW61）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDB1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–1140； UniProt 1–1140 Author chain V； PDBConstruct 1–1140； UniProt 1–1140

DET1- and DDB1-associated protein 1

Homo sapiens

UniProt Q9BW61

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	E3 ubiquitin-protein ligase COP1 × 8 （Q8NHY2） Ubiquitin-conjugating enzyme E2 E2 × 2 （Q96LR5） DET1 homolog × 2 （Q7L5Y6） DNA damage-binding protein 1 × 2 （Q16531）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDA1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain j； PDBConstruct 1–102； UniProt 1–102 Author chain n； PDBConstruct 1–102； UniProt 1–102

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9m0y
Deposition date deposition_date	2025-02-25
Structure title title	Local refinement of stacked like DDB1-DDA1-DET1-Ube2e2-COP1 complex (layer 2)
Keywords keywords	E3 ligase, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9m0y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9m0y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

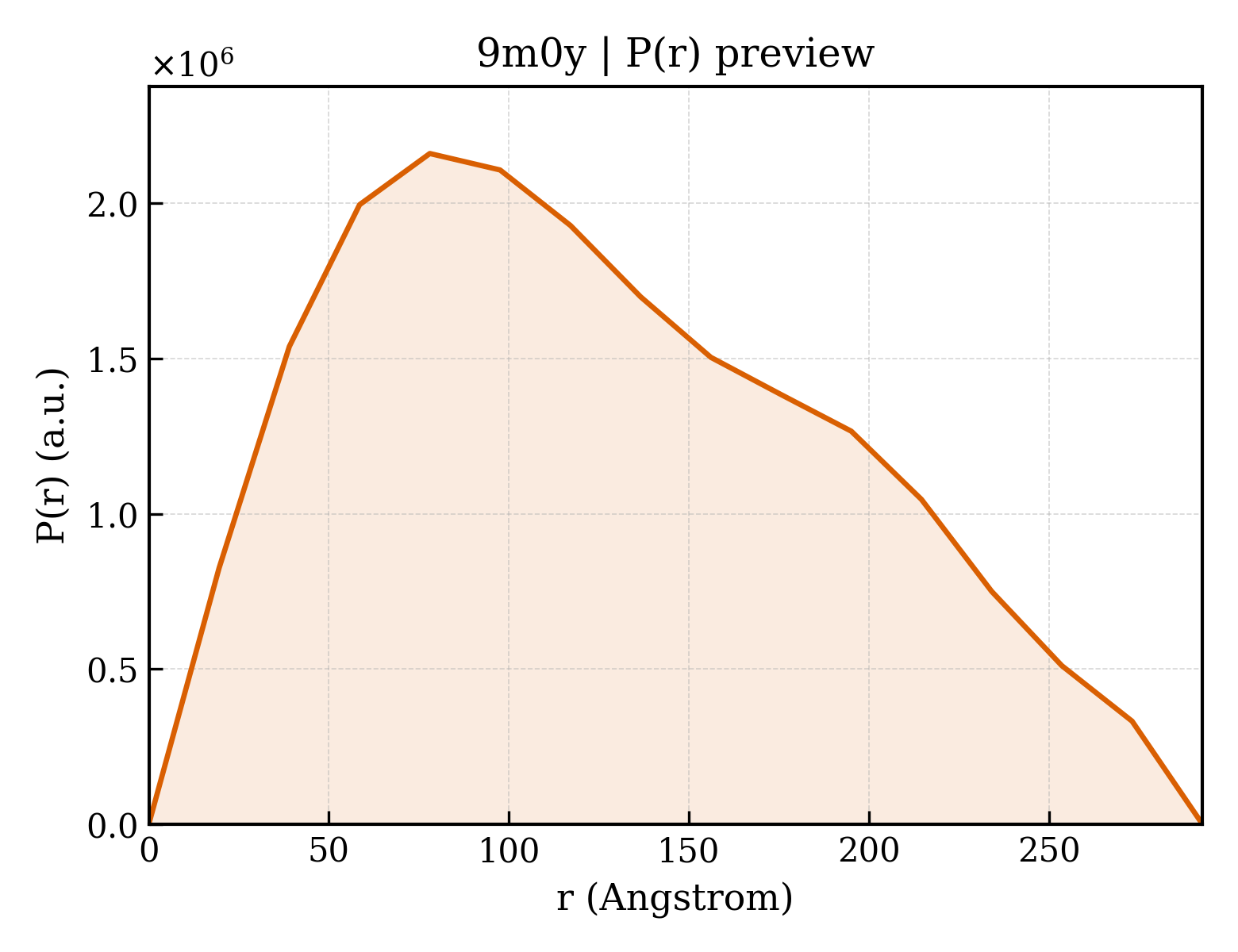

9m0y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	105.60 Å
Total Rg	105.50 Å
Atom count	36013
Residues	6909
Excluded volume	589240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9m0y__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase COP1
Molecular weight formula_weight	80569.2 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,J
Atom count atom_count	36013

MSGSRQAGSGSAGTSPGSSAASSVTSASSSLSSSPSPPSVAVSAAALVSGGVAQAAGSGGLGGPVRPVLVAPAVSGSGGGAVSTGLSRHSCAARPSAGVGGSSSSLGSGSRKRPLLAPLCNGLINSYEDKSNDFVCPICFDMIEEAYMTKCGHSFCYKCIHQSLEDNNRCPKCNYVVDNIDHLYPNFLVNELILKQKQRFEEKRFKLDHSVSSTNGHRWQIFQDWLGTDQDNLDLANVNLMLELLVQKKKQLEAESHAAQLQILMEFLKVARRNKREQLEQIQKELSVLEEDIKRVEEMSGLYSPVSEDSTVPQFEAPSPSHSSIIDSTEYSQPPGFSGSSQTKKQPWYNSTLASRRKRLTAHFEDLEQCYFSTRMSRISDDSRTASQLDEFQECLSKFTRYNSVRPLATLSYASDLYNGSSIVSSIEFDRDCDYFAIAGVTKKIKVYEYDTVIQDAVDIHYPENEMTCNSKISCISWSSYHKNLLASSDYEGTVILWDGFTGQRSKVYQEHEKRCWSVDFNLMDPKLLASGSDDAKVKLWSTNLDNSVASIEAKANVCCVKFSPSSRYHLAFGCADHCVHYYDLRNTKQPIMVFKGHRKAVSYAKFVSGEEIVSASTDSQLKLWNVGKPYCLRSFKGHINEKNFVGLASNGDYIACGSENNSLYLYYKGLSKTLLTFKFDTVKSVLDKDRKEDDTNEFVSAVCWRALPDGESNVLIAANSQGTIKVLELV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Ubiquitin-conjugating enzyme E2 E2
Molecular weight formula_weight	22282.1 kDa
EC 编号 ec_number	2.3.2.23
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q,T

MSTEAQRVDDSPSTSGGSSDGDQRESVQQEPEREQVQPKKKEGKISSKTAAKLSTSAKRIQKELAEITLDPPPNCSAGPKGDNIYEWRSTILGPPGSVYEGGVFFLDITFSPDYPFKPPKVTFRTRIYHCNINSQGVICLDILKDNWSPALTISKVLLSICSLLTDCNPADPLVGSIATQYMTNRAEHDRMARQWTKRYAT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	DET1 homolog
Molecular weight formula_weight	63931.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R,U

MDHHVSTIKPRRIQNQNVIHRLERRRISSGKAGTHWHQVRVFHQNVFPNFTVVNVEKPPCFLRKFSPDGRYFIAFSSDQTSLEIYEYQGCQAAEDLLQGYEGEILSNGNDQRSVNIRGRLFERFFVLLHITNVAANGEHLNRECSLFTDDCRCVIVGSAAYLPDEPHPPFFEVYRNSESVTPNPRSPLEDYSLHIIDLHTGRLCDTRTFKCDKVVLSHNQGLYLYKNILAILSVQQQTIHVFQVTPEGTFIDVRTIGRFCYEDDLLTVSAVFPEVQRDSQTGMANPFRDPFINSLKHRLLVYLWRRAEQDGSAMAKRRFFQYFDQLRQLRMWKMQLLDENHLFIKYTSEDVVTLRVTDPSQASFFVVYNMVTTEVIAVFENTSDELLELFENFCDLFRNATLHSEVQFPCSASSNNFARQIQRRFKDTIINAKYGGHTEAVRRLLGQLPISAQSYSGSPYLDLSLFSYDDKWVSVMERPKTCGDHPIRFYARDSGLLKFEIQAGLLGRPINHTVRRLVAFTFHPFEPFAISVQRTNAEYVVNFHMRHCCT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	DNA damage-binding protein 1
Molecular weight formula_weight	127097.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S,V

MSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGIHEHASIDLPGIKGLWPLRSDPNRETDDTLVLSFVGQTRVLMLNGEEVEETELMGFVDDQQTFFCGNVAHQQLIQITSASVRLVSQEPKALVSEWKEPQAKNISVASCNSSQVVVAVGRALYYLQIHPQELRQISHTEMEHEVACLDITPLGDSNGLSPLCAIGLWTDISARILKLPSFELLHKEMLGGEIIPRSILMTTFESSHYLLCALGDGALFYFGLNIETGLLSDRKKVTLGTQPTVLRTFRSLSTTNVFACSDRPTVIYSSNHKLVFSNVNLKEVNYMCPLNSDGYPDSLALANNSTLTIGTIDEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	DET1- and DDB1-associated protein 1
Molecular weight formula_weight	11855.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	j,n

MADFLKGLPVYNKSNFSRFHADSVCKASNRRPSVYLPTREYPSEQIIVTEKTNILLRYLHQQWDKKNAAKKRDQEQVELEGESSAPPRKVARTDSPDMHEDT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.250 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.25 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	72163

Local refinement of stacked like DDB1-DDA1-DET1-Ube2e2-COP1 complex (layer 2)
