2isz

Crystal structure of a two-domain IdeR-DNA complex crystal form I

Method: X-RAY DIFFRACTION D_max: 107.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Iron-dependent repressor ideR

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 4 DNA 2 PDB declaration: hexameric（6） Consistent with all polymer counts	Chain A； UniProt 1–140 Chain B； UniProt 1–140 Chain C； UniProt 1–140 Chain D； UniProt 1–140	Not recorded	mbtA/mbtB operator strand 1 × 1 mbtA/mbtB operator strand 2 × 1 NI NICKEL (II) ION × 12 NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；28% PEG 3350, 0.2 M ammonium acetate, 0.1 M Bis-Tris pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.40 Å R-free 0.239

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ISZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B1B IRON DEPENDENT REGULATOR Deposited 1998-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–140（140 aa）	Not recorded	ZN ZINC ION × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.50	Resolution 2.60 Å R-free 0.360
1FX7 CRYSTAL STRUCTURE OF THE IRON-DEPENDENT REGULATOR (IDER) FROM MYCOBACTERIUM TUBERCULOSIS Deposited 2000-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–230（230 aa） Chain B 1–230（230 aa）	Not recorded	SO4 SULFATE ION × 11 CO COBALT (II) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；2.0 M lithium sulfate 0.01 M magnesium chloride 0.1 M MES buffer ~0.1 mM 21 bp duplex DNA oligomer, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.00 Å R-free 0.272
1FX7 CRYSTAL STRUCTURE OF THE IRON-DEPENDENT REGULATOR (IDER) FROM MYCOBACTERIUM TUBERCULOSIS Deposited 2000-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	SO4 SULFATE ION × 6 CO COBALT (II) ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；2.0 M lithium sulfate 0.01 M magnesium chloride 0.1 M MES buffer ~0.1 mM 21 bp duplex DNA oligomer, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.00 Å R-free 0.272
1FX7 CRYSTAL STRUCTURE OF THE IRON-DEPENDENT REGULATOR (IDER) FROM MYCOBACTERIUM TUBERCULOSIS Deposited 2000-09-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa） Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	SO4 SULFATE ION × 17 CO COBALT (II) ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；2.0 M lithium sulfate 0.01 M magnesium chloride 0.1 M MES buffer ~0.1 mM 21 bp duplex DNA oligomer, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.00 Å R-free 0.272
1FX7 CRYSTAL STRUCTURE OF THE IRON-DEPENDENT REGULATOR (IDER) FROM MYCOBACTERIUM TUBERCULOSIS Deposited 2000-09-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa） Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	SO4 SULFATE ION × 17 CO COBALT (II) ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；2.0 M lithium sulfate 0.01 M magnesium chloride 0.1 M MES buffer ~0.1 mM 21 bp duplex DNA oligomer, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.00 Å R-free 0.272
1FX7 CRYSTAL STRUCTURE OF THE IRON-DEPENDENT REGULATOR (IDER) FROM MYCOBACTERIUM TUBERCULOSIS Deposited 2000-09-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa） Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	SO4 SULFATE ION × 17 CO COBALT (II) ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；2.0 M lithium sulfate 0.01 M magnesium chloride 0.1 M MES buffer ~0.1 mM 21 bp duplex DNA oligomer, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 20K	Resolution 2.00 Å R-free 0.272
1U8R Crystal Structure of an IdeR-DNA Complex Reveals a Conformational Change in Activated IdeR for Base-specific Interactions Deposited 2004-08-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 1–230（230 aa） Chain B 1–230（230 aa） Chain C 1–230（230 aa） Chain D 1–230（230 aa）	Not recorded	CO COBALT (II) ION × 12 NA SODIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；7% w/v PEG 8000, 0.2 M calcium acetate, 0.1 M imidazole, 0.01 M cobalt chloride, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.75 Å R-free 0.265
1U8R Crystal Structure of an IdeR-DNA Complex Reveals a Conformational Change in Activated IdeR for Base-specific Interactions Deposited 2004-08-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain G 1–230（230 aa） Chain H 1–230（230 aa） Chain I 1–230（230 aa） Chain J 1–230（230 aa）	Not recorded	CO COBALT (II) ION × 12 NA SODIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；7% w/v PEG 8000, 0.2 M calcium acetate, 0.1 M imidazole, 0.01 M cobalt chloride, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.75 Å R-free 0.265
2ISY Crystal structure of the nickel-activated two-domain iron-dependent regulator (IdeR) Deposited 2006-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–140（140 aa） Chain B 1–140（140 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NI NICKEL (II) ION × 4 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；0.6 M Na/K phosphate pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.96 Å R-free 0.211
2IT0 Crystal structure of a two-domain IdeR-DNA complex crystal form II Deposited 2006-10-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 1–140（140 aa） Chain B 1–140（140 aa） Chain C 1–140（140 aa） Chain D 1–140（140 aa）	Not recorded	NI NICKEL (II) ION × 12 ACT ACETATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；26% PEG 4000, 0.2 M sodium acetate, 0.1 M Tris HCl pH 8.5, 5% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.273

5 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IDER_MYCTU
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–140； UniProt 1–140 Author chain B； PDBConstruct 1–140； UniProt 1–140 Author chain C； PDBConstruct 1–140； UniProt 1–140 Author chain D； PDBConstruct 1–140； UniProt 1–140

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

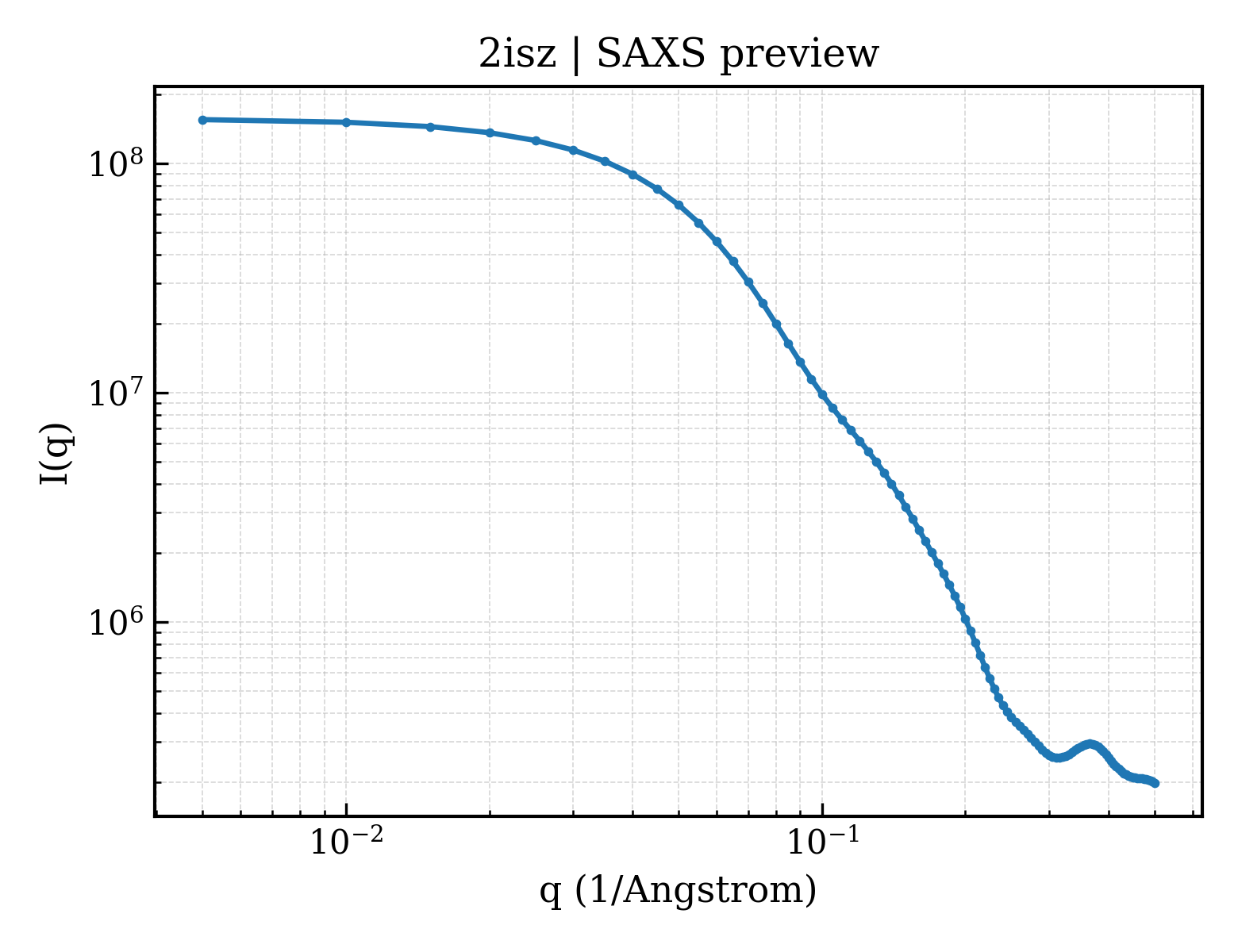

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2isz
Deposition date deposition_date	2006-10-18
Structure title title	Crystal structure of a two-domain IdeR-DNA complex crystal form I
Keywords keywords	DNA-binding protein, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.35 Å
Radius of gyration Rg (electron density) rg_electron	32.19 Å
Forward intensity I(0) i0	156932000.00
Molecular weight molecular_weight	84428.0 kDa
Excluded volume excluded_volume	98985 Å³
Envelope volume envelope_volume	132250 Å³
Hydration-shell volume shell_volume	34688 Å³
Envelope diameter envelope_diameter	113.1 Å
Shell Rg shell_rg	38.48 Å
Envelope Rg envelope_rg	31.95 Å
Shape Rg shape_rg	32.23 Å
Total Rg total_rg	32.52 Å
Total atoms total_atoms	5802
Residues n_residues	626
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	107.5 Å
Rg (real space) rg_real	32.35 Å
Rg uncertainty (real space) rg_real_error	0.95 Å
I(0) (real space) i0_real	1.5690e+08
I(0) uncertainty (real space) i0_real_error	2.7230e+06
Rg (reciprocal space) rg_reciprocal	32.35 Å
I(0) (reciprocal space) i0_reciprocal	156900000.0000
Solution quality estimate total_estimate	0.8930
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	39.5 Å
Skewness Skewness skewness	0.269
Kurtosis Kurtosis kurtosis	-0.515
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15520000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.894

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	mbtA/mbtB operator strand 1
Molecular weight formula_weight	10112.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E
Atom count atom_count	5944

CCCTGTTAGCACAGGCTGCCCTAATTTTAGTGG

Entity 2 Entity 2 polymer

Description description	mbtA/mbtB operator strand 2
Molecular weight formula_weight	10188.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

CACTAAAATTAGGGCAGCCTGTGCTAACAGGGC

Entity 3 Entity 3 polymer

Description description	Iron-dependent repressor ideR
Molecular weight formula_weight	17855.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

MNELVDTTEMYLRTIYDLEEEGVTPLRARIAERLDQSGPTVSQTVSRMERDGLLRVAGDRHLELTEKGRALAIAVMRKHRLAERLLVDVIGLPWEEVHAEACRWEHVMSEDVERRLVKVLNNPTTSPFGNPIPGLVELGVASENLYFQGGGHHHHHH

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI Class编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2isza1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d2isza2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

Domain ID domain_id	d2iszb1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d2iszb2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

Domain ID domain_id	d2iszc1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d2iszc2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

Domain ID domain_id	d2iszd1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.24 — Iron-dependent repressor protein

Domain ID domain_id	d2iszd2
Class class	a — All alpha proteins
Fold Fold fold	a.76 — Iron-dependent repressor protein, dimerization domain
Superfamily Superfamily superfamily	a.76.1 — Iron-dependent repressor protein, dimerization domain
Family Family family	a.76.1.1 — Iron-dependent repressor protein, dimerization domain

CATH v4.4 (8 domains)

Domain ID domain_id	2iszA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2iszA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

Domain ID domain_id	2iszB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2iszB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

Domain ID domain_id	2iszC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2iszC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

Domain ID domain_id	2iszD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2iszD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	60 — Diphtheria Toxin Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Iron dependent repressor, metal binding and dimerisation domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	53.832 Å
Unit-cell length b length_b	69.739 Å
Unit-cell length c length_c	76.461 Å
Unit-cell angle α angle_alpha	106.57 °
Unit-cell angle β angle_beta	104.85 °
Unit-cell angle γ angle_gamma	99.66 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.403 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2010
R_work r_work	0.1990
R_free r_free	0.2390

fit	/app/data/saxs_computation/is/2isz/2isz.fit
pddf	/app/data/pr_computation/is/2isz/2isz.pr.out
profile	/app/data/saxs_computation/is/2isz/2isz.dat

Crystal structure of a two-domain IdeR-DNA complex crystal form I

1. Protein Identity and Related Structures Protein Identity & Related Structures

Iron-dependent repressor ideR

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
