2ivq

SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE

Method: X-RAY DIFFRACTION D_max: 93.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

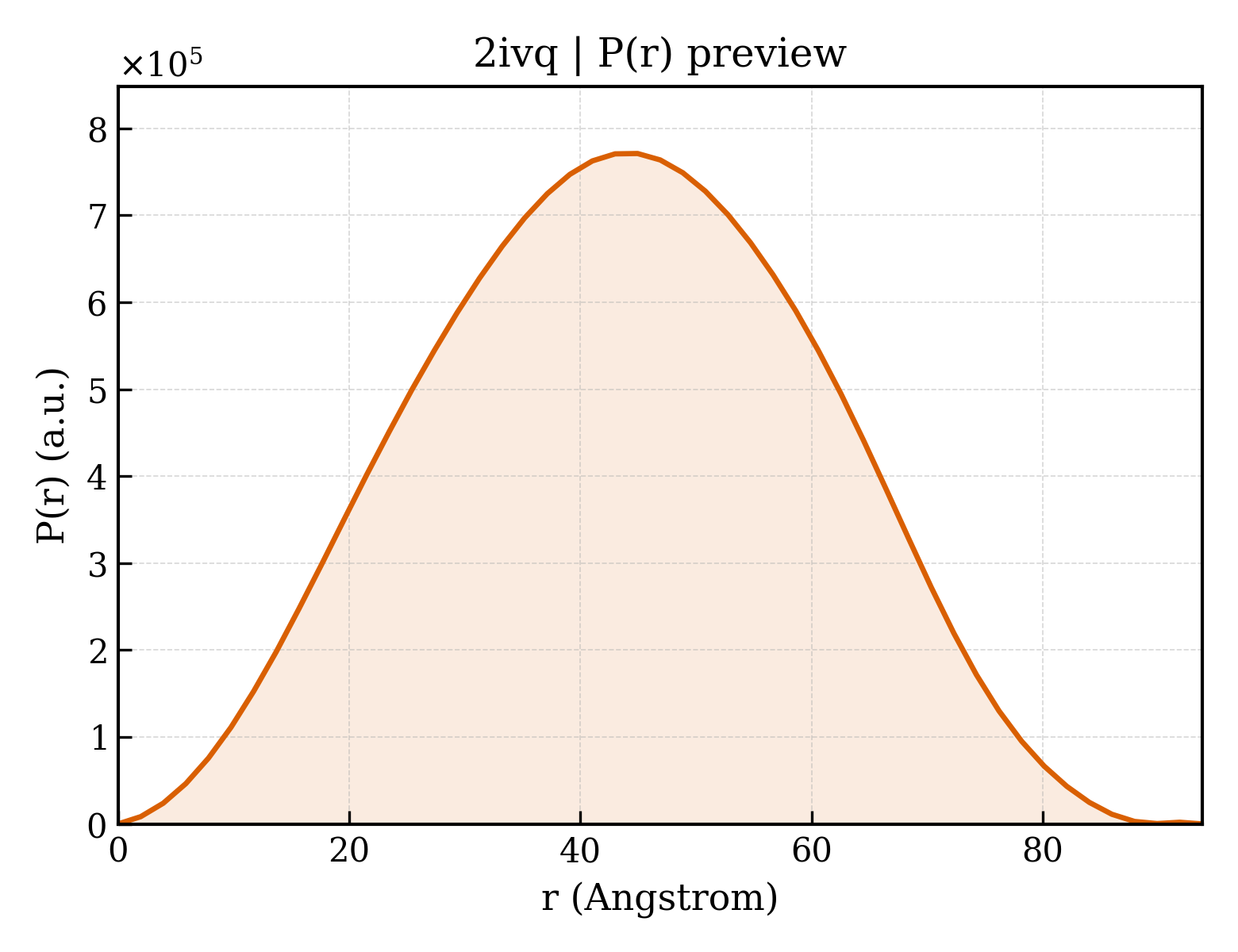

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ivq
沉积日期 deposition_date	2006-06-14
结构标题 title	SITE DIRECTED MUTAGENESIS OF KEY RESIDUES INVOLVED IN THE CATALYTIC MECHANISM OF CYANASE
关键词 keywords	CYANATE DEGRADATION, LYASE, MCSG, MIDWEST CENTER FOR STRUCTURAL GENOMICS, PROTEIN STRUCTURE INITIATIVE, PSI; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.24 Å
回转半径 Rg (电子) rg_electron	32.06 Å
零角强度 I(0) i0	437679000.00
分子量 molecular_weight	172930.0 kDa
排除体积 excluded_volume	218560 Å³
包络体积 envelope_volume	257320 Å³
水化壳体积 shell_volume	61486 Å³
包络直径 envelope_diameter	93.1 Å
壳层 Rg shell_rg	42.62 Å
包络 Rg envelope_rg	31.88 Å
形状 Rg shape_rg	32.05 Å
总 Rg total_rg	32.89 Å
总原子数 total_atoms	12093
残基数 n_residues	1560
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	93.8 Å
Rg (实空间) rg_real	32.99 Å
Rg 误差 (实空间) rg_real_error	0.32 Å
I(0) (实空间) i0_real	4.3770e+08
I(0) 误差 (实空间) i0_real_error	5.4740e+06
Rg (倒空间) rg_reciprocal	33.14 Å
I(0) (倒空间) i0_reciprocal	437700000.0000
解质量估计 total_estimate	0.8917
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.9 Å
偏度 Skewness skewness	-0.000
峰度 Kurtosis kurtosis	-0.594
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	177100000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.972; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.710

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	CYANATE HYDRATASE
分子量 formula_weight	17039.8 kDa
EC 编号 ec_number	4.2.1.104
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J
原子数 atom_count	13229

MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYKFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	24

Entity 3 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	13

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1124

▼

6. 折叠分类 (SCOP + CATH) 40 domains

SCOP 2.08 (20 domains)

结构域编号 domain_id	d2ivqa1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqd1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqe1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqe2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqf1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqf2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqg1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqg2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqh1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqh2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqi1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqi2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

结构域编号 domain_id	d2ivqj1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.4 — Cyanase N-terminal domain

结构域编号 domain_id	d2ivqj2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.72 — Cyanase C-terminal domain
超家族 Superfamily superfamily	d.72.1 — Cyanase C-terminal domain
家族 Family family	d.72.1.1 — Cyanase C-terminal domain

CATH v4.4 (20 domains)

结构域编号 domain_id	2ivqA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqG01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqH01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqI01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

结构域编号 domain_id	2ivqJ01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	2ivqJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1160 — Cyanate Lyase; Chain: A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Cyanate lyase, C-terminal domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	76.883 Å
晶胞边长 b length_b	80.845 Å
晶胞边长 c length_c	82.647 Å
晶胞夹角 α angle_alpha	69.99 °
晶胞夹角 β angle_beta	71.98 °
晶胞夹角 γ angle_gamma	66.17 °
晶胞分子数 Z z_pdb	10

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	76.030 Å
R 因子 r_factor	0.1830
R_work r_work	0.1800
R_free r_free	0.2430
