2j0y

L-ficolin complexed to b-1,3-D-glucan

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FICOLIN-2

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 3 其他Polymer 2	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose × 1 ACETATE ION × 1 CALCIUM ION × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 3	Consistent with protein count
2	Other combination	Homooligomer	Protein 3 其他Polymer 2	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose × 1 CALCIUM ION × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-glucopyranose × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FCN2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–218； UniProt 96–313 Author chain B； PDBConstruct 1–218； UniProt 96–313 Author chain C； PDBConstruct 1–218； UniProt 96–313 Author chain D； PDBConstruct 1–218； UniProt 96–313 Author chain E； PDBConstruct 1–218； UniProt 96–313 Author chain F； PDBConstruct 1–218； UniProt 96–313

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j0y
Deposition date deposition_date	2006-08-08
Structure title title	L-ficolin complexed to b-1,3-D-glucan
Keywords keywords	GLYCOPROTEIN, FICRINOGEN-LIKE, INNATE IMMUNITY, PATTERN RECOGNITION PROTEIN, LECTIN, COLLAGEN, IMMUNOLOGY, LECTIN- LIKE; LECTIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j0y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j0y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

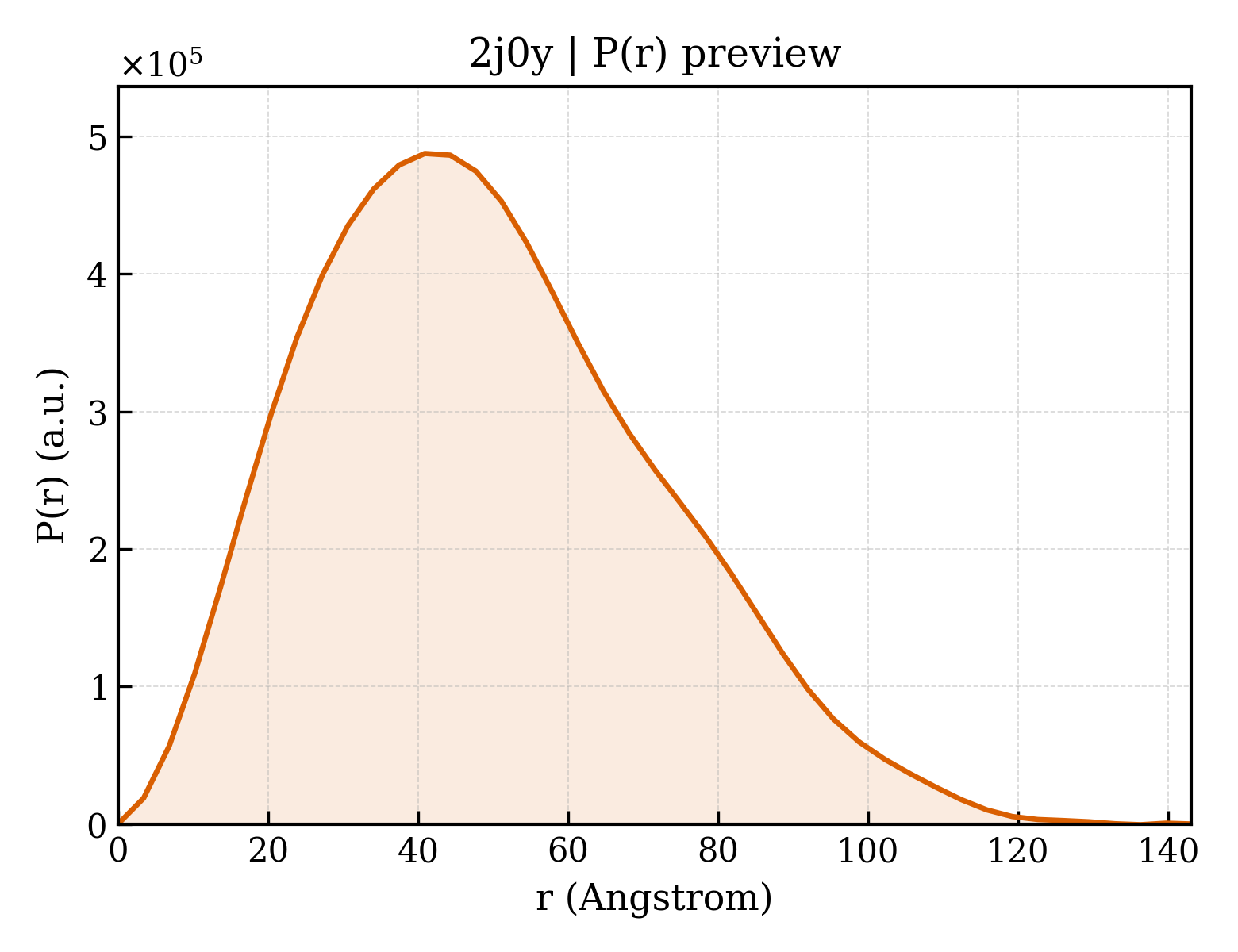

2j0y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.78 Å
Rg (electron density)	25.64 Å
Total Rg	26.55 Å
Atom count	5137
Residues	626
Excluded volume	89659 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j0y__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2j0y__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	FICOLIN-2
Molecular weight formula_weight	24729.3 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	10651

NPCLTGPRTCKDLLDRGHFLSGWHTIYLPDCRPLTVLCDMDTDGGGWTVFQRRVDGSVDFYRDWATYKQGFGSRLGEFWLGNDNIHALTAQGTSELRTDLVDFEDNYQFAKYRSFKVADEAEKYNLVLGAFVEGSAGDSLTFHNNQSFSTKDQDNDLNTGNCAVMFQGAWWYKNCHTSNLNGRYLRGTHGSFANGINWKSGKGYNYSYKVSEMKVRPA

Source Source

Source organism organism	HOMO SAPIENS
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 branched

Description description	beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose
Molecular weight formula_weight	666.6 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	beta-D-glucopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	294

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2j0ya_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j0yb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j0yc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j0yd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j0ye_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j0yf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	2j0yA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j0yA02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j0yB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j0yB02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j0yC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j0yC02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j0yD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j0yD02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j0yE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j0yE02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j0yF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j0yF02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

▶

Unit-cell length a length_a	96.080 Å
Unit-cell length b length_b	96.080 Å
Unit-cell length c length_c	140.980 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	19.950 Å
R factor r_factor	0.1980
R_work r_work	0.1960
R_free r_free	0.2420
