2j3f

L-ficolin complexed to N-acetyl-D-galactosamine

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FICOLIN-2

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 3 其他Polymer 1	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 3 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2 O-ACETALDEHYDYL-HEXAETHYLENE GLYCOL × 1 water × 3	Consistent with protein count
2	Other combination	Homooligomer	Protein 3 其他Polymer 1	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CALCIUM ION × 2 2-acetamido-2-deoxy-alpha-D-galactopyranose × 2 O-ACETALDEHYDYL-HEXAETHYLENE GLYCOL × 1 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FCN2_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–219； UniProt 95–313 Author chain B； PDBConstruct 1–219； UniProt 95–313 Author chain C； PDBConstruct 1–219； UniProt 95–313 Author chain E； PDBConstruct 1–219； UniProt 95–313 Author chain F； PDBConstruct 1–219； UniProt 95–313 Author chain D； PDBConstruct 1–219； UniProt 95–313

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j3f
Deposition date deposition_date	2006-08-21
Structure title title	L-ficolin complexed to N-acetyl-D-galactosamine
Keywords keywords	SUGAR BINDING PROTEIN, COLLAGEN, IMMUNOLOGY, GLYCOPROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j3f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

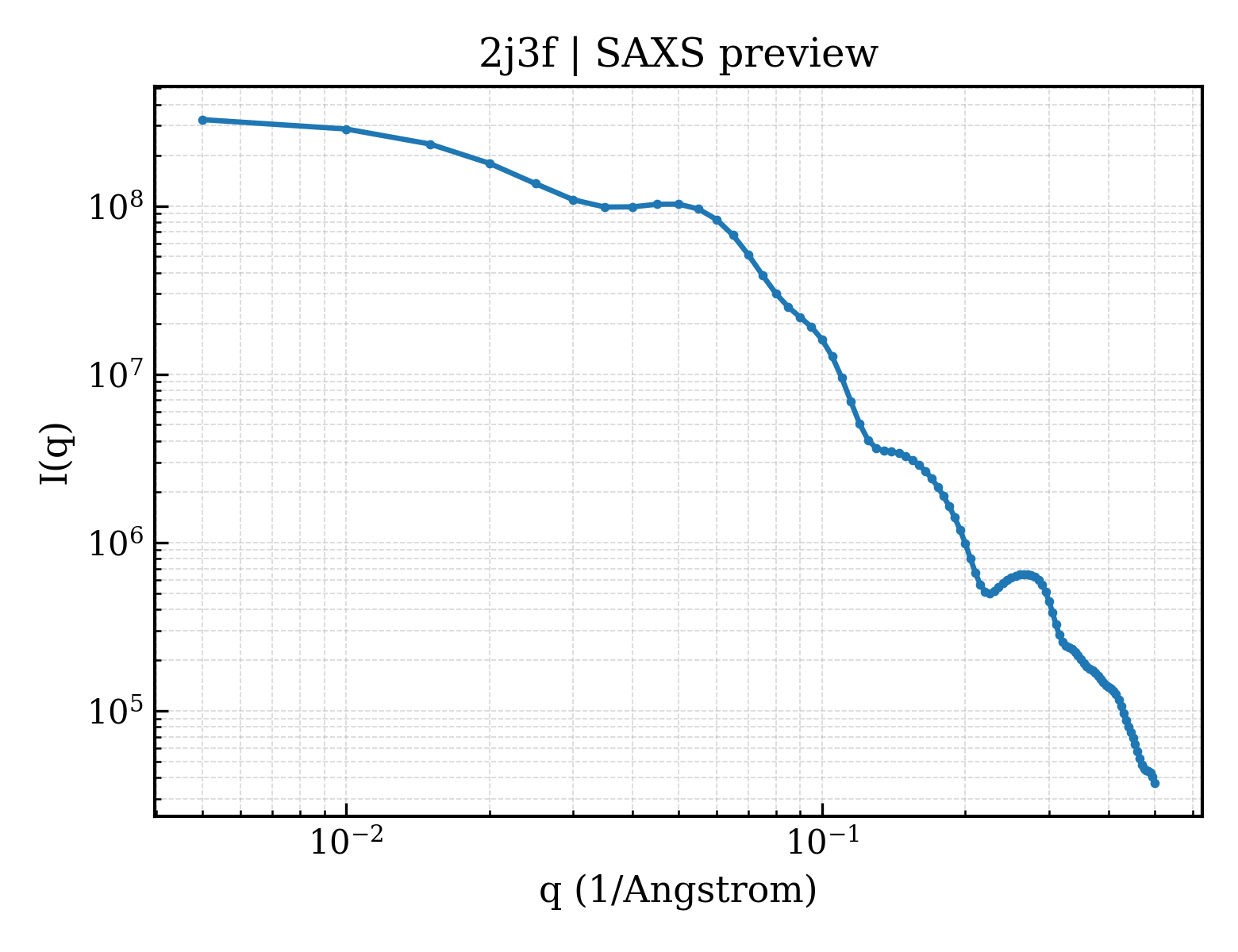

2j3f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

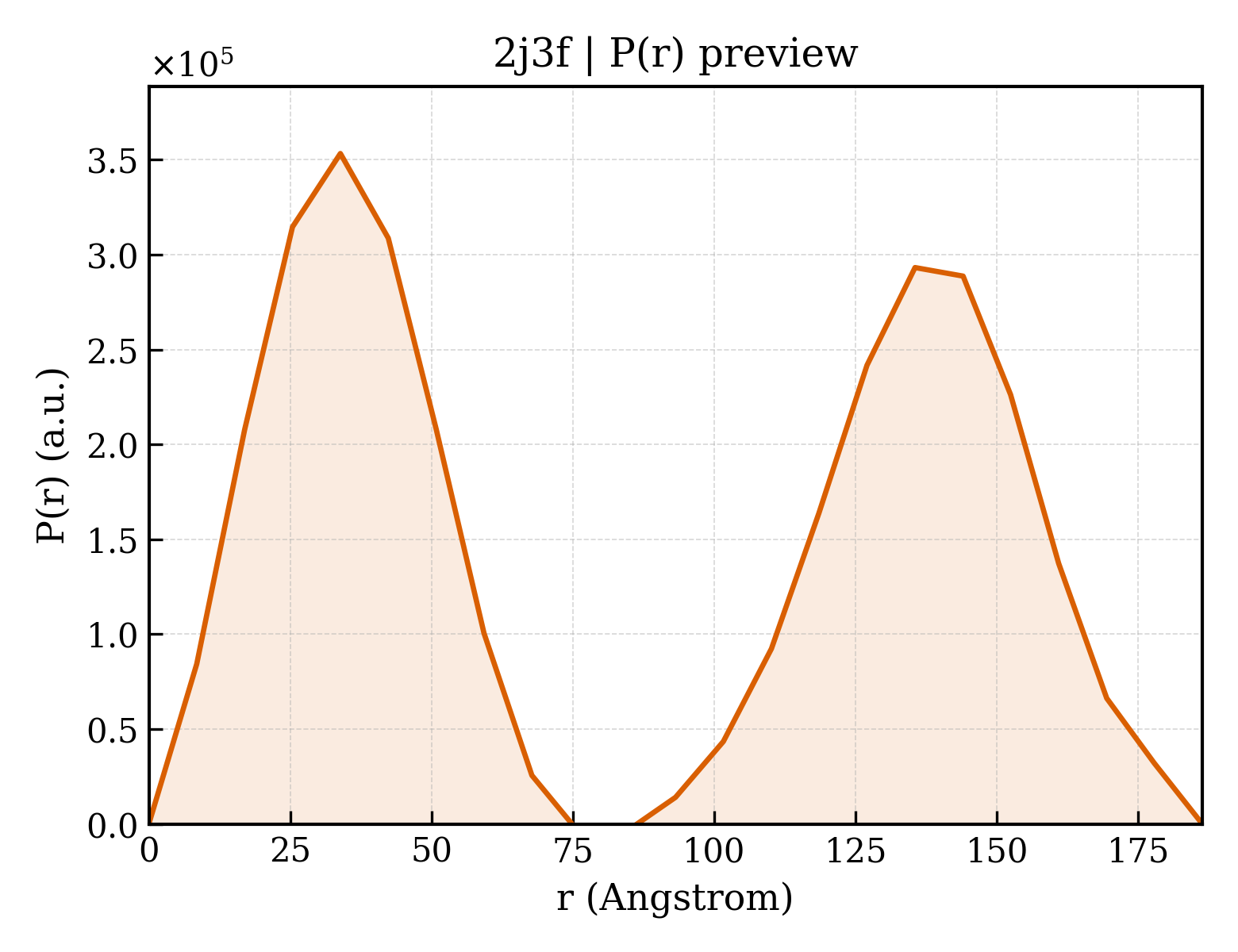

2j3f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.08 Å
Rg (electron density)	25.97 Å
Total Rg	26.84 Å
Atom count	5288
Residues	649
Excluded volume	92216 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j3f__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2j3f__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	FICOLIN-2
Molecular weight formula_weight	24840.5 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,E,F
Atom count atom_count	10783

PQPCLTGPRTCKDLLDRGHFLSGWHTIYLPDCRPLTVLCDMDTDGGGWTVFQRRVDGSVDFYRDWATYKQGFGSRLGEFWLGNDNIHALTAQGTSELRTDLVDFEDNYQFAKYRSFKVADEAEKYNLVLGAFVEGSAGDSLTFHNNQSFSTKDQDNDLNTGNCAVMFQGAWWYKNCHTSNLNGRYLRGTHGSFANGINWKSGKGYNYSYKVSEMKVRPA

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	TRICHOPLUSIA NI

Entity 2 Entity 2 polymer

Description description	FICOLIN-2
Molecular weight formula_weight	24853.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

PQPCLTGPRTCKDLLDRGHFLSGWHTIYLPDCRPLTVLCDMDTDGGGWTVFQRRVDGSVDFYRDWATYKQGFGSRLGEFWLGNDNIHALTAQGTSELRTDLVDFEDNYQFAKYRSFKVADEAEKYNLVLGAFVEGSAGDSLTFHNNQSFSTKDQDNDLNNGNCAVMFQGAWWYKNCHTSNLNGRYLRGTHGSFANGINWKSGKGYNYSYKVSEMKVRPA

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	TRICHOPLUSIA NI

Entity 3 Entity 3 branched

Description description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	894.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-alpha-D-galactopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	O-ACETALDEHYDYL-HEXAETHYLENE GLYCOL
Molecular weight formula_weight	324.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	53

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2j3fa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j3fb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j3fc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j3fd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j3fe_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

Domain ID domain_id	d2j3ff_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.171 — Fibrinogen C-terminal domain-like
Superfamily Superfamily superfamily	d.171.1 — Fibrinogen C-terminal domain-like
Family Family family	d.171.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	2j3fA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j3fA02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j3fB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j3fB02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j3fC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j3fC02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j3fD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j3fD02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j3fE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j3fE02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

Domain ID domain_id	2j3fF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	215 — Gamma Fibrinogen; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Gamma Fibrinogen, chain A, domain 1

Domain ID domain_id	2j3fF02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	530 — Gamma-fibrinogen Carboxyl Terminal Fragment; domain 2
Homologous superfamily homologous superfamily	10 — Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2

▶

Unit-cell length a length_a	96.825 Å
Unit-cell length b length_b	96.825 Å
Unit-cell length c length_c	141.898 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	15

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2240
R_work r_work	0.2220
R_free r_free	0.2770
