SAXSdb — 2je1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACIDIC LEUCINE-RICH NUCLEAR PHOSPHOPROTEIN 32 FAMILY MEMBER A

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–149	Fragment：LRR DOMAIN, RESIDUES 1-149	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.5；pH 5.50	Resolution 2.69 Å R-free 0.303
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–149	Fragment：LRR DOMAIN, RESIDUES 1-149	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.5；pH 5.50	Resolution 2.69 Å R-free 0.303
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–149	Fragment：LRR DOMAIN, RESIDUES 1-149	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.5；pH 5.50	Resolution 2.69 Å R-free 0.303
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 1–149	Fragment：LRR DOMAIN, RESIDUES 1-149	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.5；pH 5.50	Resolution 2.69 Å R-free 0.303

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2JE1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JE0 Crystal Structure of pp32 Deposited 2007-01-12	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–149（149 aa） Fragment：LRR DOMAIN, RESIDUES 1-149	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 2.40 Å R-free 0.269
2JE0 Crystal Structure of pp32 Deposited 2007-01-12	Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–149（149 aa） Fragment：LRR DOMAIN, RESIDUES 1-149	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 2.40 Å R-free 0.269
2JE0 Crystal Structure of pp32 Deposited 2007-01-12	Different ligand/ion Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–149（149 aa） Fragment：LRR DOMAIN, RESIDUES 1-149	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 2.40 Å R-free 0.269
2JE0 Crystal Structure of pp32 Deposited 2007-01-12	Different ligand/ion Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–149（149 aa） Fragment：LRR DOMAIN, RESIDUES 1-149	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 2.40 Å R-free 0.269
2JE0 Crystal Structure of pp32 Deposited 2007-01-12	Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–149（149 aa） Fragment：LRR DOMAIN, RESIDUES 1-149	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 2.40 Å R-free 0.269
2JE0 Crystal Structure of pp32 Deposited 2007-01-12	Different ligand/ion Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 1–149（149 aa） Fragment：LRR DOMAIN, RESIDUES 1-149	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 2.40 Å R-free 0.269
4XOS ANP32A LRR domain Deposited 2015-01-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–149（149 aa） Fragment：UNP residues 1-149	Not recorded	CL CHLORIDE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；20% PEG3000, 0.1M Hepes pH 7.5, 0.2M NaCl	Resolution 1.56 Å R-free 0.193
4XOS ANP32A LRR domain Deposited 2015-01-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–149（149 aa） Fragment：UNP residues 1-149	Not recorded	CL CHLORIDE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；20% PEG3000, 0.1M Hepes pH 7.5, 0.2M NaCl	Resolution 1.56 Å R-free 0.193
6XZQ Influenza C virus polymerase in complex with human ANP32A - Subclass 1 Deposited 2020-02-05	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 7 PDB declaration: octameric	Chain G 1–249（249 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8RMR Influenza polymerase A/H7N9-4M replication complex, an asymmetric polymerase dimer bound to human ANP32A Deposited 2024-01-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain G 1–249（249 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.25 Å
8RN0 Influenza polymerase A/H7N9-4M encapsidase plus 627(R) / human ANP32A (from "Influenza polymerase A/H7N9-4M replication complex" \| Local refinement) Deposited 2024-01-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–249（249 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.13 Å
8RNA Influenza B polymerase apo-trimer Deposited 2024-01-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–249（249 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
8RNB Influenza B polymerase, encapsidase plus 627(R) / human ANP32A (from "Influenza B polymerase apo-trimer" \| Local refinement) Deposited 2024-01-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–249（249 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å
8RNC Influenza B polymerase, replication complex, an asymmetric polymerase dimer bound to human ANP32A (from "Influenza B polymerase apo-trimer" \| Local refinement) Deposited 2024-01-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 1–249（249 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å

8 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AN32A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–149； UniProt 1–149 Author chain B； PDBConstruct 1–149； UniProt 1–149 Author chain C； PDBConstruct 1–149； UniProt 1–149 Author chain D； PDBConstruct 1–149； UniProt 1–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2je1
Deposition date deposition_date	2007-01-12
Structure title title	The crystal Structure of the tumor supressor protein pp32 (Anp32a) :structural insights into the Anp32 family of proteins
Keywords keywords	NUCLEAR PROTEIN, LEUCINE-RICH REPEAT, LRR, LANP, PHAPI, ANP32, PHOSPHORYLATION; NUCLEAR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.14 Å
Radius of gyration Rg (electron density) rg_electron	27.78 Å
Forward intensity I(0) i0	75174000.00
Molecular weight molecular_weight	67838.0 kDa
Excluded volume excluded_volume	85286 Å³
Envelope volume envelope_volume	111660 Å³
Hydration-shell volume shell_volume	33399 Å³
Envelope diameter envelope_diameter	89.7 Å
Shell Rg shell_rg	35.28 Å
Envelope Rg envelope_rg	27.33 Å
Shape Rg shape_rg	27.77 Å
Total Rg total_rg	28.63 Å
Total atoms total_atoms	4762
Residues n_residues	596
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	85.3 Å
Rg (real space) rg_real	28.96 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	7.5170e+07
I(0) uncertainty (real space) i0_real_error	1.2170e+06
Rg (reciprocal space) rg_reciprocal	29.04 Å
I(0) (reciprocal space) i0_reciprocal	75180000.0000
Solution quality estimate total_estimate	0.9127
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.1 Å
Skewness Skewness skewness	-0.009
Kurtosis Kurtosis kurtosis	-0.679
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	21160000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.960; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.989

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ACIDIC LEUCINE-RICH NUCLEAR PHOSPHOPROTEIN 32 FAMILY MEMBER A
Molecular weight formula_weight	16980.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4907

MEMGRRIHLELRNRTPSDVKELVLDNSRSNEGKLEGLTDEFEELEFLSTINVGLTSIANLPKLNKLKKLELSDNRVSGGLEVLAEKCPNLTHLNLSGNKIKDLSTIEPLKKLENLKSLDLFNCEVTNLNDYRENVFKLLPQLTYLDGYD

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	145

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2je1A00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	2je1B00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	2je1C00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	2je1D00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

▶

8. Citations (1)

▶

Unit-cell length a length_a	106.506 Å
Unit-cell length b length_b	106.506 Å
Unit-cell length c length_c	133.153 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	—

Resolution resolution	2.690 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2410
R_work r_work	0.2380
R_free r_free	0.3030

fit	/app/data/saxs_computation/je/2je1/2je1.fit
pddf	/app/data/pr_computation/je/2je1/2je1.pr.out
profile	/app/data/saxs_computation/je/2je1/2je1.dat

The crystal Structure of the tumor supressor protein pp32 (Anp32a) :structural insights into the Anp32 family of proteins

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACIDIC LEUCINE-RICH NUCLEAR PHOSPHOPROTEIN 32 FAMILY MEMBER A

State in the Current Structure

Other States of the Same Protein in the Database

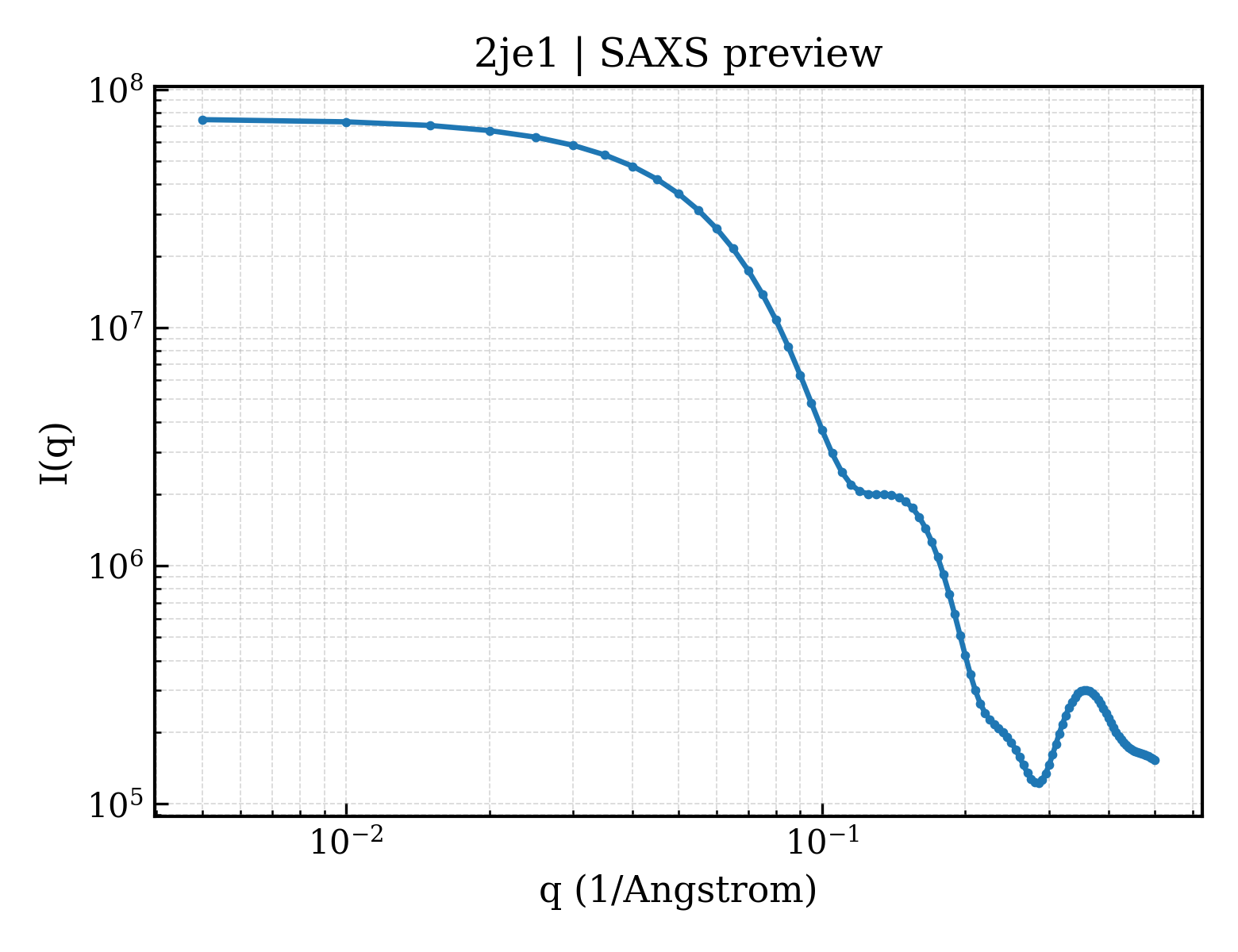

SAXS scattering curve SAXS Profile

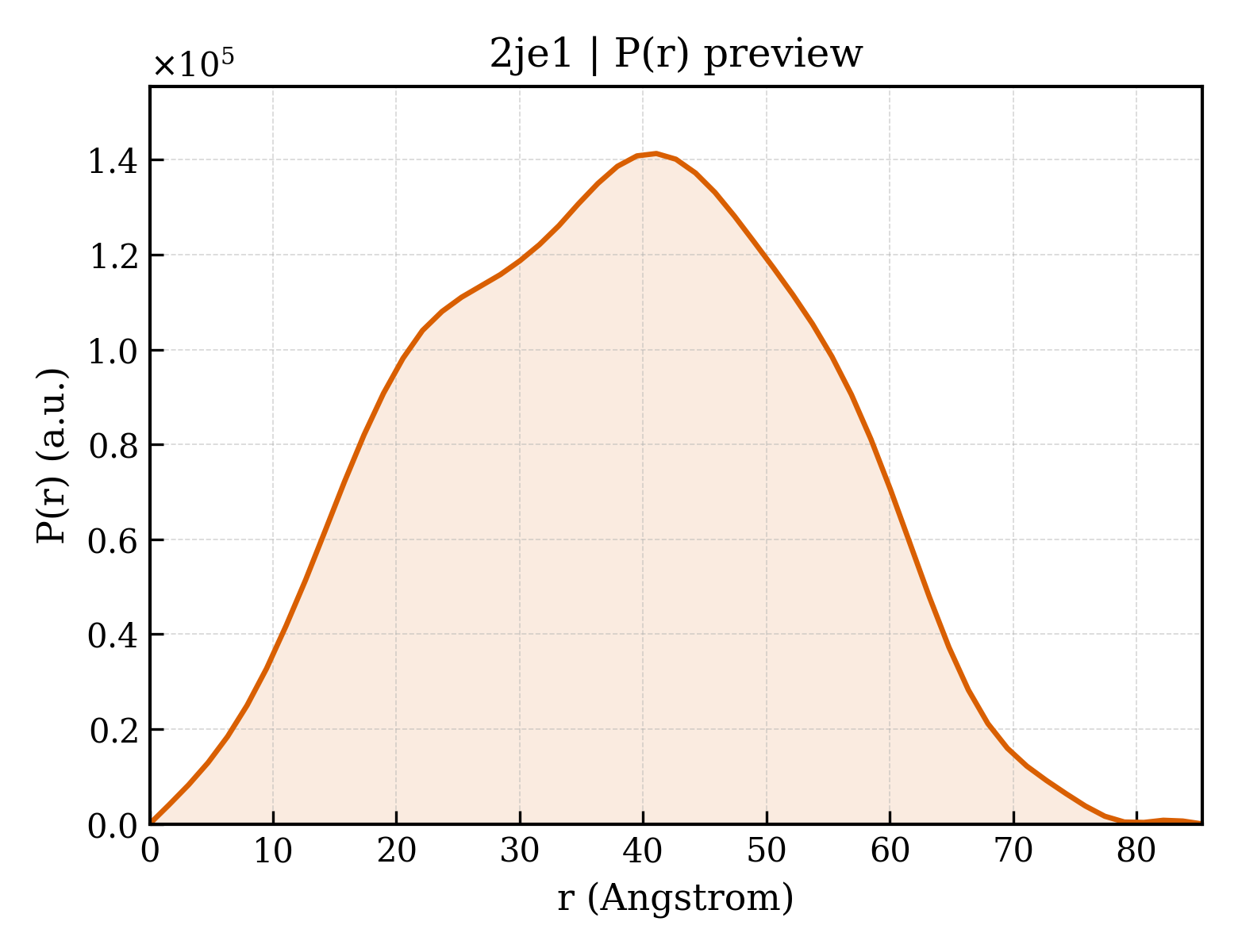

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction
