SAXSdb — 8rna

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polymerase acidic protein

Influenza B virus (B/Memphis/13/2003)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	RNA-directed RNA polymerase catalytic subunit × 3 （Q5V8Y6） Polymerase basic protein 2 × 3 （Q5V8X3） Acidic leucine-rich nuclear phosphoprotein 32 family member A × 1 （P39687）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5V8Z9_9INFB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–726； UniProt 1–726 Author chain D； PDBConstruct 1–726； UniProt 1–726 Author chain X； PDBConstruct 1–726； UniProt 1–726

RNA-directed RNA polymerase catalytic subunit

Influenza B virus (B/Memphis/13/2003)

UniProt Q5V8Y6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Polymerase acidic protein × 3 （Q5V8Z9） Polymerase basic protein 2 × 3 （Q5V8X3） Acidic leucine-rich nuclear phosphoprotein 32 family member A × 1 （P39687）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5V8Y6_9INFB
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–752； UniProt 1–752 Author chain E； PDBConstruct 1–752； UniProt 1–752 Author chain Y； PDBConstruct 1–752； UniProt 1–752

Polymerase basic protein 2

Influenza B virus (B/Memphis/13/2003)

UniProt Q5V8X3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Polymerase acidic protein × 3 （Q5V8Z9） RNA-directed RNA polymerase catalytic subunit × 3 （Q5V8Y6） Acidic leucine-rich nuclear phosphoprotein 32 family member A × 1 （P39687）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5V8X3_9INFB
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–770； UniProt 1–770 Author chain F； PDBConstruct 1–770； UniProt 1–770 Author chain Z； PDBConstruct 1–770； UniProt 1–770

Acidic leucine-rich nuclear phosphoprotein 32 family member A

Homo sapiens

UniProt P39687

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Polymerase acidic protein × 3 （Q5V8Z9） RNA-directed RNA polymerase catalytic subunit × 3 （Q5V8Y6） Polymerase basic protein 2 × 3 （Q5V8X3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AN32A_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 27–275； UniProt 1–249

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8rna
Deposition date deposition_date	2024-01-09
Last revision last_revision	2024-09-11
Structure title title	Influenza B polymerase apo-trimer
Keywords keywords	Viral polymerase, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8rna__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8rna__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

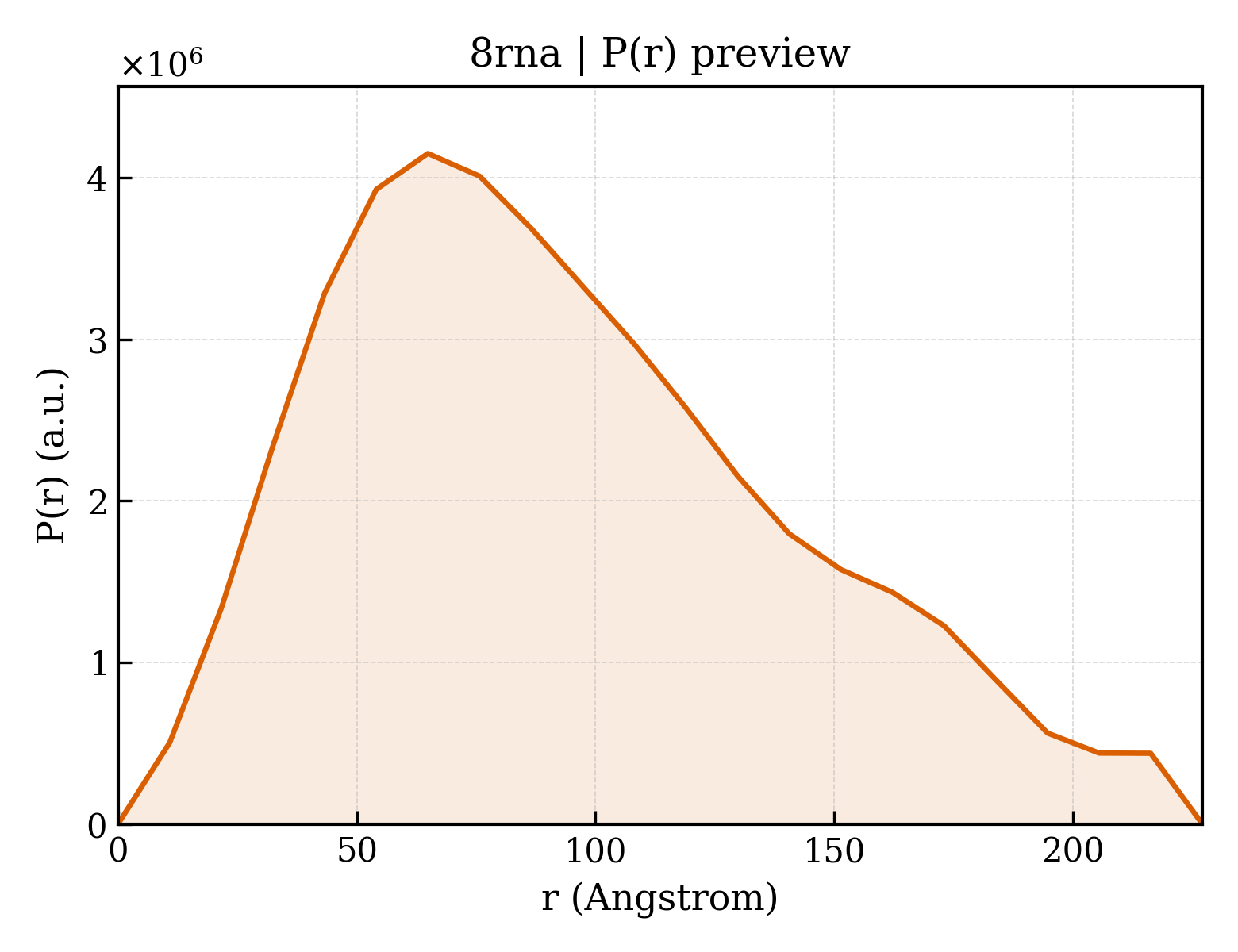

8rna__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	73.94 Å
Rg (electron density)	74.49 Å
Total Rg	74.29 Å
Atom count	91230
Residues	5718
Excluded volume	813880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8rna__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Polymerase acidic protein
Molecular weight formula_weight	83145.0 kDa
EC 编号 ec_number	3.1.-.-
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,X
Atom count atom_count	91230

MDTFITRNFQTTIIQKAKNTMAEFSEDPELQPAMLFNICVHLEVCYVISDMNFLDEEGKAYTALEGQGKEQNLRPQYEVIEGMPRTIAWMVQRSLAQEHGIETPKYLADLFDYKTKRFIEVGITKGLADDYFWKKKEKLGNSMELMIFSYNQDYSLSNESSLDEEGKGRVLSRLTELQAELSLKNLWQVLIGEEDVEKGIDFKLGQTISRLRDISVPAGFSNFEGMRSYIDNIDPKGAIERNLARMSPLVSVTPKKLTWEDLRPIGPHIYNHELPEVPYNAFLLMSDELGLANMTEGKSKKPKTLAKECLEKYSTLRDQTDPILIMKSEKANENFLWKLWRDCVNTISNEEMSNELQKTNYAKWATGDGLTYQKIMKEVAIDDETMCQEEPKIPNKCRVAAWVQTEMNLLSTLTSKRALDLPEIGPDVAPVEHVGSERRKYFVNEINYCKASTVMMKYVLFHTSLLNESNASMGKYKVIPITNRVVNEKGESFDMLYGLAVKGQSHLRGDTDVVTVVTFEFSSTDPRVDSGKWPKYTVFRIGSLFVSGREKSVYLYCRVNGTNKIQMKWGMEARRCLLQSMQQMEAIVEQESSIQGYDMTKACFKGDRVNSPKTFSIGTQEGKLVKGSFGKALRVIFTKCLMHYVFGNAQLEGFSAESRRLLLLIQALKDRKGPWVFDLEGMYSGIEECISNNPWVIQSAYWFNEWLGFEKEGSKVLESVDEIMDE

Source Source

Source organism organism	Influenza B virus (B/Memphis/13/2003)
NCBI taxonomy ID ncbi_taxonomy_id	1601067
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	RNA-directed RNA polymerase catalytic subunit
Molecular weight formula_weight	84433.3 kDa
EC 编号 ec_number	2.7.7.48
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,Y

MNINPYFLFIDVPIQAAISTTFPYTGVPPYSHGTGTGYTIDTVIRTHEYSNKGKQYISDVTGCTMVDPTNGPLPEDNEPSAYAQLDCVLEALDRMDEEHPGLFQAASQNAMETLMVTTVDKLTQGRQTFDWTVCRNQPAATALNTTITSFRLNDLNGADKGGLIPFCQDIIDSLDRPEMTFFSVKNIKKKLPAKNRKGFLIKRIPMKVKDKITKVEYIKRALSLNTMTKDAERGKLKRRAIATAGIQIRGFVLVVENLAKNICENLEQSGLPVGGNEKKAKLSNAVAKMLSNCPPGGISMTVTGDNTKWNECLNPRIFLAMTERITRDSPIWFRDFCSIAPVLFSNKIARLGKGFMITSKTKRLKAQIPCPDLFSIPLERYNEETRAKLKKLKPFFNEEGTASLSPGMMMGMFNMLSTVLGVAALGIKNIGNKEYLWDGLQSSDDFALFVNAKDEETCMEGINDFYRTCKLLGINMSKKKSYCNETGMFEFTSMFYRDGFVSNFAMELPSFGVAGVNESADMAIGMTIIKNNMINNGMGPATAQTAIQLFIADYRYTYKCHRGDSKVEGKRMKIIKELWENTKGRDGLLVADGGPNIYNLRNLHIPEIVLKYNLMDPEYKGRLLHPQNPFVGHLSIEGIKEADITPAHGPVKKMDYDAVSGTHSWRTKRNRSILNTDQRNMILEEQCYAKCCNLFEACFNSASYRKPVGQHSMLEAMAHRLRMDARLDYESGRMSKDDFEKAMAHLGEIGYI

Source Source

Source organism organism	Influenza B virus (B/Memphis/13/2003)
NCBI taxonomy ID ncbi_taxonomy_id	1601067
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Polymerase basic protein 2
Molecular weight formula_weight	90958.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,Z

MTLAKIELLKQLLRDNEAKTVLKQTTVDQYNIIRKFNTSRIEKNPSLRMKWAMCSNFPLALTKGDMANRIPLEYKGIQLKTNAEDIGTKGQMCSIAAVTWWNTYGPIGDTEGFERVYESFFLRKMRLDNATWGRITFGPVERVRKRVLLNPLTKEMPPDEASNVIMEILFPKEAGIPRESTWIHRELIKEKREKLKGTMITPIVLAYMLERELVARRRFLPVAGATSAEFIEMLHCLQGENWRQIYHPGGNKLTESRSQSMIVACRKIIRRSIVASNPLELAVEIANKTVIDTEPLKSCLAAIDGGDVACDIIRAALGLKIRQRQRFGRLELKRISGRGFKNDEEILIGNGTIQKIGIWDGEEEFHVRCGECRGILKKSKMKLEKLLINSAKKEDMRDLIILCMVFSQDTRMFQGVRGEINFLNRAGQLLSPMYQLQRYFLNRSNDLFDQWGYEESPKASELHGINESMNASDYTLKGVVVTRNVIDDFSSTETEKVSITKNLSLIKRTGEVIMGANDVSELESQAQLMITYDTPKMWEMGTTKELVQNTYQWVLKNLVTLKAQFLLGKEDMFQWDAFEAFESIIPQKMAGQYSGFARAVLKQMRDQEVMKTDQFIKLLPFCFSPPKLRSNGEPYQFLKLVLKGGGENFIEVRKGSPLFSYNPQTEVLTICGRMMSLKGKIEDEERNRSMGNAVLAGFLVSGKYDPDLGDFKTIEELEKLKPGEKANILLYQGKPVKVVKRKRYSALSNDISQGIKRQRMTVESMGWALSGWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source Source

Source organism organism	Influenza B virus (B/Memphis/13/2003)
NCBI taxonomy ID ncbi_taxonomy_id	1601067
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Acidic leucine-rich nuclear phosphoprotein 32 family member A
Molecular weight formula_weight	31747.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MKHHHHHHPMSDYDIPTTENLYFQGAMEMGRRIHLELRNRTPSDVKELVLDNSRSNEGKLEGLTDEFEELEFLSTINVGLTSIANLPKLNKLKKLELSDNRVSGGLEVLAEKCPNLTHLNLSGNKIKDLSTIEPLKKLENLKSLDLFNCEVTNLNDYRENVFKLLPQLTYLDGYDRDDKEAPDSDAEGYVEGLDDEEEDEDEEEYDEDAQVVEDEEDEDEEEEGEEEDVSGEEEEDEEGYNDGEVDDEEDEEELGEEERGQKRKREPEDEGEDDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.57 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	24051

Influenza B polymerase apo-trimer
