SAXSdb — 2jrh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitogen-activated protein kinase kinase kinase 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 42–126	Fragment：OPR, PB1 domain	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6；298 K；Pressure 1 NMR sample composition：0.5 mM [U-100% 13C; U-100% 15N] MEKK3 PB1-cis, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.8 mM [U-100% 15N] MEKK3 PB1-cis, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2JRH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2C60 crystal structure of human mitogen-activated protein kinase kinase kinase 3 isoform 2 phox domain at 1.25 A resolution Deposited 2005-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–124（88 aa） Fragment：PHOX DOMAIN, RESIDUES 37-124	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；150 NANOLITRE SITTING DROPS, 0.2 KSCN, 20% PEG3350, 10% ETHYLENE GLYCOL	Resolution 1.25 Å R-free 0.182
2O2V Crystal Structure of the Complex of Human Mitogen Activated Protein Kinase Kinase 5 Phox Domain (MAP2K5-phox) with Human Mitogen Activated Protein Kinase Kinase Kinase 3 (MAP3K3B-phox) Deposited 2006-11-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–124（88 aa） Fragment：MAP3K3B-phox	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；0.02M CaCl2, 0.1M Na(CH3COO), 30% MPD, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.83 Å R-free 0.224
2PPH solution structure of human MEKK3 PB1 domain Deposited 2007-04-30	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–126（85 aa） Fragment：PB1 domain (Residues 42-126)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure 1 NMR sample composition 0.5mM 15N,13C-labeled MEKK3 PB1 50mM phosphate buffer (pH 6.0), 1mM EDTA,10%(v/v) D2O \| 90% H2O/10% D2O	Resolution not provided
4Y5O CCM2 HHD in complex with MEKK3 NPB1 Deposited 2015-02-11	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–124（124 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M potassium phosphate and 20% PEG 3350	Resolution 2.35 Å R-free 0.232
4YL6 Crystal structure of truncated cerebral cavernous malformation 2 C-terminal adaptor domain in complex with an internal helix of mitogen-activated protein kinase kinase kinase 3 Deposited 2015-03-05	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–22（22 aa） Fragment：UNP residues 1-22	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；3.5 M Sodium Formate	Resolution 2.10 Å R-free 0.237

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	M3K3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–86； UniProt 42–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jrh
Deposition date deposition_date	2007-06-26
Structure title title	Solution structure of human MEKK3 PB1 domain cis isomer
Keywords keywords	kinase signaling domain, TRANSFERASE; TRANSFERASE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.36 Å
Radius of gyration Rg (electron density) rg_electron	15.32 Å
Forward intensity I(0) i0	739018000.00
Molecular weight molecular_weight	220630.0 kDa
Excluded volume excluded_volume	273100 Å³
Envelope volume envelope_volume	54406 Å³
Hydration-shell volume shell_volume	21367 Å³
Envelope diameter envelope_diameter	71.5 Å
Shell Rg shell_rg	28.53 Å
Envelope Rg envelope_rg	23.10 Å
Shape Rg shape_rg	15.37 Å
Total Rg total_rg	15.53 Å
Total atoms total_atoms	31080
Residues n_residues	1860
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.6 Å
Rg (real space) rg_real	15.34 Å
Rg uncertainty (real space) rg_real_error	0.07 Å
I(0) (real space) i0_real	7.0280e+08
I(0) uncertainty (real space) i0_real_error	5.7820e+06
Rg (reciprocal space) rg_reciprocal	16.51 Å
I(0) (reciprocal space) i0_reciprocal	739000000.0000
Solution quality estimate total_estimate	0.6582
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	18.3 Å
Skewness Skewness skewness	0.349
Kurtosis Kurtosis kurtosis	-0.096
Angular range angular_range	— – 0.4850 Å⁻¹
Current regularization parameter α current_alpha	3.8860
Highest regularization parameter α highest_alpha	400000.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.005; Oscil: 0.875; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2jrha1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d2jrha2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2jrhA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	Mitogen-activated protein kinase kinase kinase 3
Molecular weight formula_weight	11186.7 kDa
EC 编号 ec_number	2.7.11.25
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	31080

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Solution structure of human MEKK3 PB1 domain cis isomer

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitogen-activated protein kinase kinase kinase 3

State in the Current Structure

Other States of the Same Protein in the Database

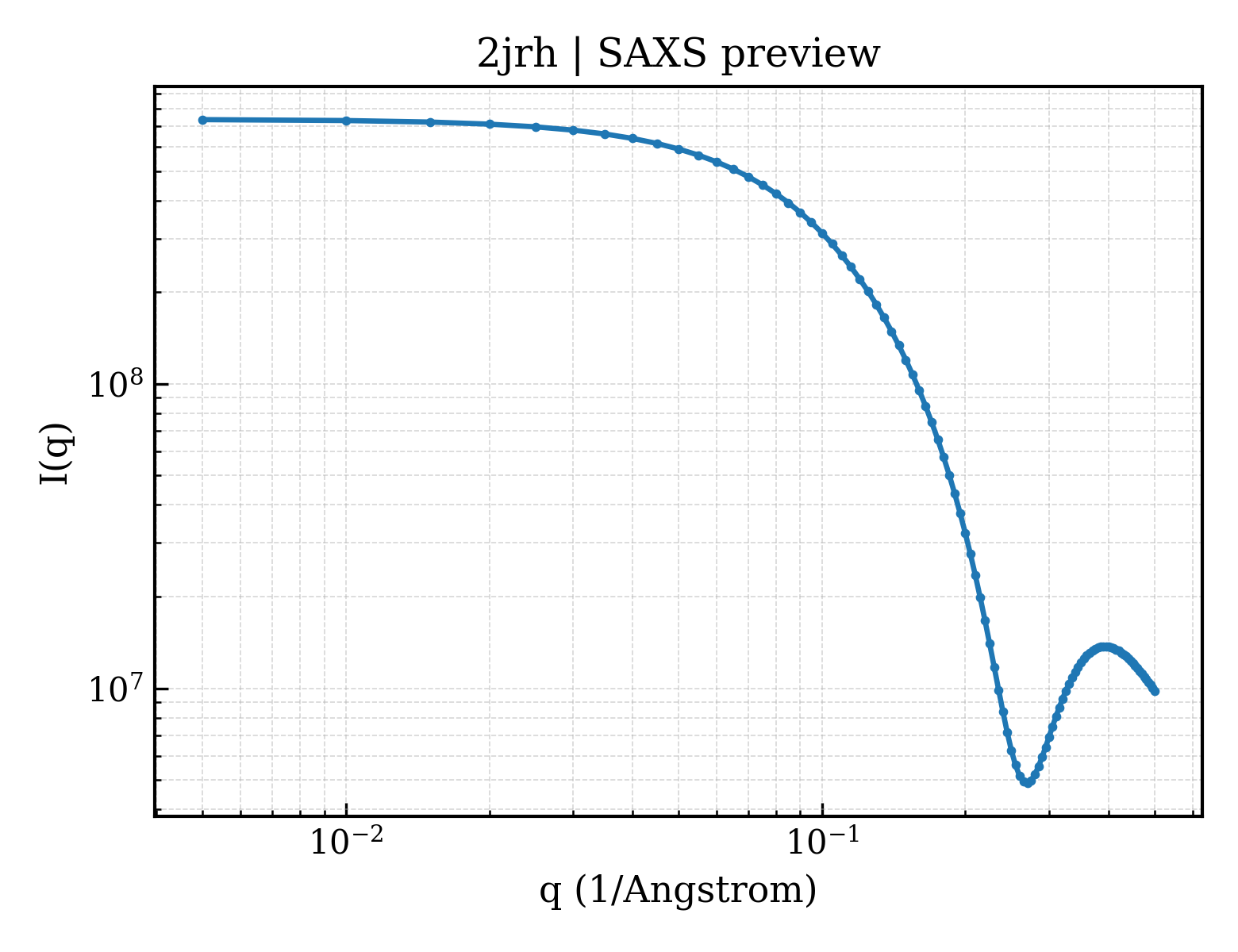

SAXS scattering curve SAXS Profile

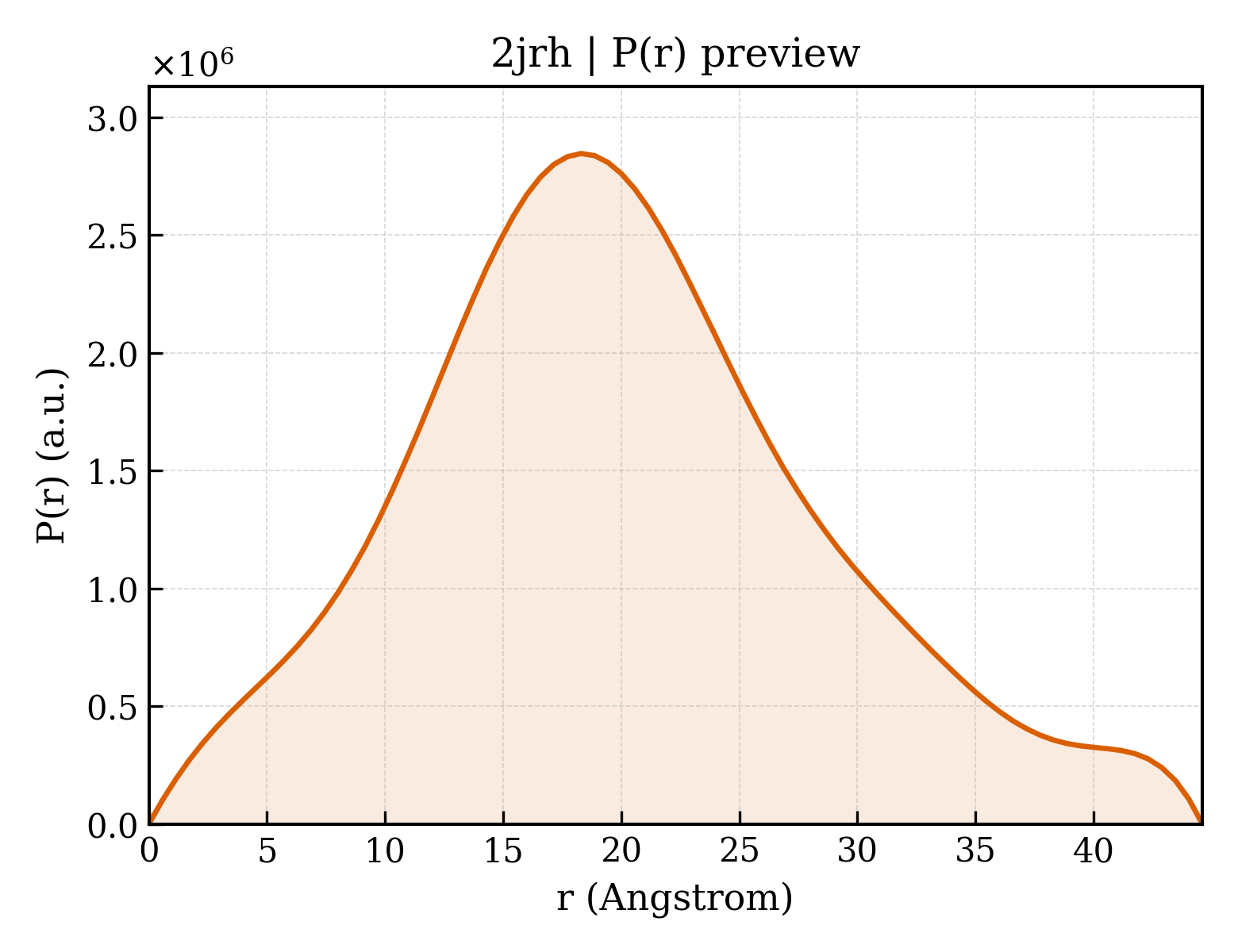

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/jr/2jrh/2jrh.fit
pddf	/app/data/pr_computation/jr/2jrh/2jrh.pr.out
profile	/app/data/saxs_computation/jr/2jrh/2jrh.dat
