SAXSdb — 2c60

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HUMAN MITOGEN-ACTIVATED PROTEIN KINASE KINASE KINASE 3 ISOFORM 2

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 37–124	Fragment：PHOX DOMAIN, RESIDUES 37-124 Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；150 NANOLITRE SITTING DROPS, 0.2 KSCN, 20% PEG3350, 10% ETHYLENE GLYCOL	Resolution 1.25 Å R-free 0.182

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2C60	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JRH Solution structure of human MEKK3 PB1 domain cis isomer Deposited 2007-06-26	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–126（85 aa） Fragment：OPR, PB1 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure 1 NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] MEKK3 PB1-cis, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-100% 15N] MEKK3 PB1-cis, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2O2V Crystal Structure of the Complex of Human Mitogen Activated Protein Kinase Kinase 5 Phox Domain (MAP2K5-phox) with Human Mitogen Activated Protein Kinase Kinase Kinase 3 (MAP3K3B-phox) Deposited 2006-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–124（88 aa） Fragment：MAP3K3B-phox	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；0.02M CaCl2, 0.1M Na(CH3COO), 30% MPD, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.83 Å R-free 0.224
2PPH solution structure of human MEKK3 PB1 domain Deposited 2007-04-30	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–126（85 aa） Fragment：PB1 domain (Residues 42-126)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure 1 NMR sample composition 0.5mM 15N,13C-labeled MEKK3 PB1 50mM phosphate buffer (pH 6.0), 1mM EDTA,10%(v/v) D2O \| 90% H2O/10% D2O	Resolution not provided
4Y5O CCM2 HHD in complex with MEKK3 NPB1 Deposited 2015-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–124（124 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M potassium phosphate and 20% PEG 3350	Resolution 2.35 Å R-free 0.232
4YL6 Crystal structure of truncated cerebral cavernous malformation 2 C-terminal adaptor domain in complex with an internal helix of mitogen-activated protein kinase kinase kinase 3 Deposited 2015-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–22（22 aa） Fragment：UNP residues 1-22	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；3.5 M Sodium Formate	Resolution 2.10 Å R-free 0.237

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	M3K3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–111； UniProt 37–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2c60
Deposition date deposition_date	2005-11-04
Structure title title	crystal structure of human mitogen-activated protein kinase kinase kinase 3 isoform 2 phox domain at 1.25 A resolution
Keywords keywords	;MAP3K3, MAP/ERK KINASE KINASE 3, MAPKKK3, MEKK3, SERINE THREONINE PHOSPHORYLATION, ATP-BINDING, KINASE, MAGNESIUM, METAL-BINDING, NUCLEOTIDE-BINDING, PHOSPHORYLATION, SERINE/THREONINE-PROTEIN KINASE, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.96 Å
Radius of gyration Rg (electron density) rg_electron	12.42 Å
Forward intensity I(0) i0	2107820.00
Molecular weight molecular_weight	9828.0 kDa
Excluded volume excluded_volume	12268 Å³
Envelope volume envelope_volume	14269 Å³
Hydration-shell volume shell_volume	9972 Å³
Envelope diameter envelope_diameter	47.3 Å
Shell Rg shell_rg	17.85 Å
Envelope Rg envelope_rg	12.87 Å
Shape Rg shape_rg	12.41 Å
Total Rg total_rg	13.76 Å
Total atoms total_atoms	683
Residues n_residues	83
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	48.5 Å
Rg (real space) rg_real	13.87 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	2.1080e+06
I(0) uncertainty (real space) i0_real_error	2.2880e+04
Rg (reciprocal space) rg_reciprocal	13.87 Å
I(0) (reciprocal space) i0_reciprocal	2108000.0000
Solution quality estimate total_estimate	0.8467
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.8 Å
Skewness Skewness skewness	0.110
Kurtosis Kurtosis kurtosis	-0.250
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	300900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.670; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HUMAN MITOGEN-ACTIVATED PROTEIN KINASE KINASE KINASE 3 ISOFORM 2
Molecular weight formula_weight	13144.1 kDa
EC 编号 ec_number	2.7.1.37
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	844

MHHHHHHSSGVDLGTENLYFQSMGHSNRQSDVRIKFEHNGERRIIAFSRPVKYEDVEHKVTTVFGQPLDLHYMNNELSILLKNQDDLDKAIDILDRSSSMKSLRILLLSQD

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2c60a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d2c60a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2c60A01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	82.800 Å
Unit-cell length b length_b	42.300 Å
Unit-cell length c length_c	30.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.60 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.250 Å
Low-resolution limit resolution_low	39.720 Å
R factor r_factor	0.1660
R_work r_work	0.1650
R_free r_free	0.1820

fit	/app/data/saxs_computation/c6/2c60/2c60.fit
pddf	/app/data/pr_computation/c6/2c60/2c60.pr.out
profile	/app/data/saxs_computation/c6/2c60/2c60.dat

crystal structure of human mitogen-activated protein kinase kinase kinase 3 isoform 2 phox domain at 1.25 A resolution

1. Protein Identity and Related Structures Protein Identity & Related Structures

HUMAN MITOGEN-ACTIVATED PROTEIN KINASE KINASE KINASE 3 ISOFORM 2

State in the Current Structure

Other States of the Same Protein in the Database

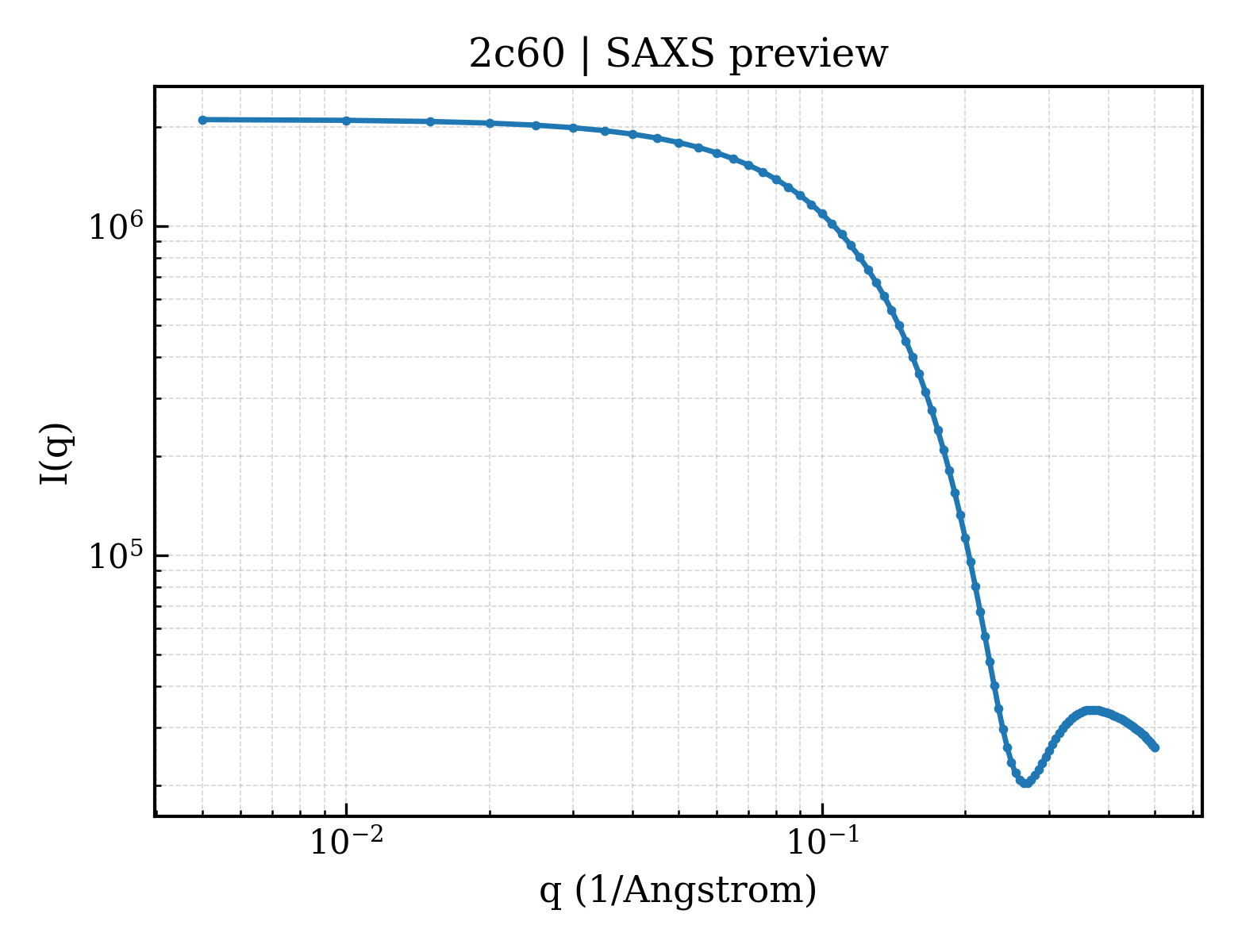

SAXS scattering curve SAXS Profile

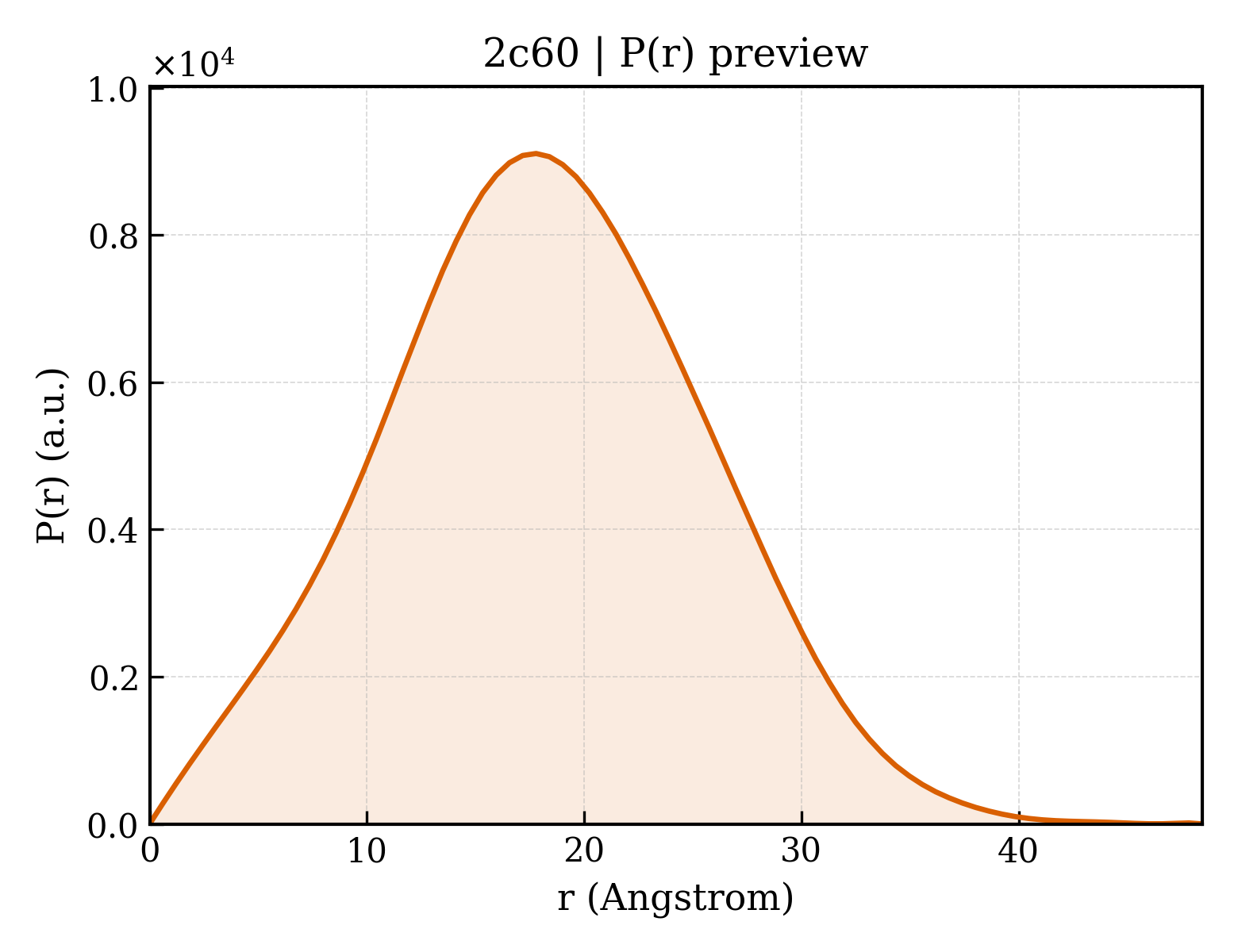

P(r) Distance Distribution P(r) Distribution
