SAXSdb — 2o2v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dual specificity mitogen-activated protein kinase kinase 5

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 5–108	Fragment：MAP2K5-phox	Mitogen-activated protein kinase kinase kinase 3 × 1 （Q99759）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；0.02M CaCl2, 0.1M Na(CH3COO), 30% MPD, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.83 Å R-free 0.224

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2O2V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2NPT Crystal Structure of the complex of human mitogen activated protein kinase kinase 5 phox domain (MAP2K5-phox) with human mitogen activated protein kinase kinase kinase 2 phox domain (MAP3K2-phox) Deposited 2006-10-30	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 5–108（104 aa） Fragment：MAP2K5-phox	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.2M NH4(CH3COO), 0.1M TRIS, 25% PEG 3350, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.75 Å R-free 0.247
2NPT Crystal Structure of the complex of human mitogen activated protein kinase kinase 5 phox domain (MAP2K5-phox) with human mitogen activated protein kinase kinase kinase 2 phox domain (MAP3K2-phox) Deposited 2006-10-30	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 5–108（104 aa） Fragment：MAP2K5-phox	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.2M NH4(CH3COO), 0.1M TRIS, 25% PEG 3350, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.75 Å R-free 0.247
4IC7 Crystal structure of the ERK5 kinase domain in complex with an MKK5 binding fragment Deposited 2012-12-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–130（115 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；48% PEG 200, 100mM MIB, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 2.60 Å R-free 0.258
4IC7 Crystal structure of the ERK5 kinase domain in complex with an MKK5 binding fragment Deposited 2012-12-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 16–130（115 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；48% PEG 200, 100mM MIB, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 2.60 Å R-free 0.258

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MP2K5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–106； UniProt 5–108

Mitogen-activated protein kinase kinase kinase 3

Homo sapiens

UniProt Q99759

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 37–124	Fragment：MAP3K3B-phox	Dual specificity mitogen-activated protein kinase kinase 5 × 1 （Q13163）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；0.02M CaCl2, 0.1M Na(CH3COO), 30% MPD, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.83 Å R-free 0.224

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2O2V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2C60 crystal structure of human mitogen-activated protein kinase kinase kinase 3 isoform 2 phox domain at 1.25 A resolution Deposited 2005-11-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–124（88 aa） Fragment：PHOX DOMAIN, RESIDUES 37-124	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；150 NANOLITRE SITTING DROPS, 0.2 KSCN, 20% PEG3350, 10% ETHYLENE GLYCOL	Resolution 1.25 Å R-free 0.182
2JRH Solution structure of human MEKK3 PB1 domain cis isomer Deposited 2007-06-26	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–126（85 aa） Fragment：OPR, PB1 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure 1 NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] MEKK3 PB1-cis, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-100% 15N] MEKK3 PB1-cis, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2PPH solution structure of human MEKK3 PB1 domain Deposited 2007-04-30	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–126（85 aa） Fragment：PB1 domain (Residues 42-126)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure 1 NMR sample composition 0.5mM 15N,13C-labeled MEKK3 PB1 50mM phosphate buffer (pH 6.0), 1mM EDTA,10%(v/v) D2O \| 90% H2O/10% D2O	Resolution not provided
4Y5O CCM2 HHD in complex with MEKK3 NPB1 Deposited 2015-02-11	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–124（124 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M potassium phosphate and 20% PEG 3350	Resolution 2.35 Å R-free 0.232
4YL6 Crystal structure of truncated cerebral cavernous malformation 2 C-terminal adaptor domain in complex with an internal helix of mitogen-activated protein kinase kinase kinase 3 Deposited 2015-03-05	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–22（22 aa） Fragment：UNP residues 1-22	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；3.5 M Sodium Formate	Resolution 2.10 Å R-free 0.237

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	M3K3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–90； UniProt 37–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2o2v
Deposition date deposition_date	2006-11-30
Structure title title	Crystal Structure of the Complex of Human Mitogen Activated Protein Kinase Kinase 5 Phox Domain (MAP2K5-phox) with Human Mitogen Activated Protein Kinase Kinase Kinase 3 (MAP3K3B-phox)
Keywords keywords	;mitogen activated protein kinase kinase 5, MAP2K5, MEK5, MKK5, PRKMK5, MAP kinase 5, phox, phox-domain, mitogen activated protein kinase kinase kinase 3, MEKK3, MAPKKK3, MAP/ERK kinase kinase 3, Structural Genomics, Structural Genomics Consortium, SGC, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

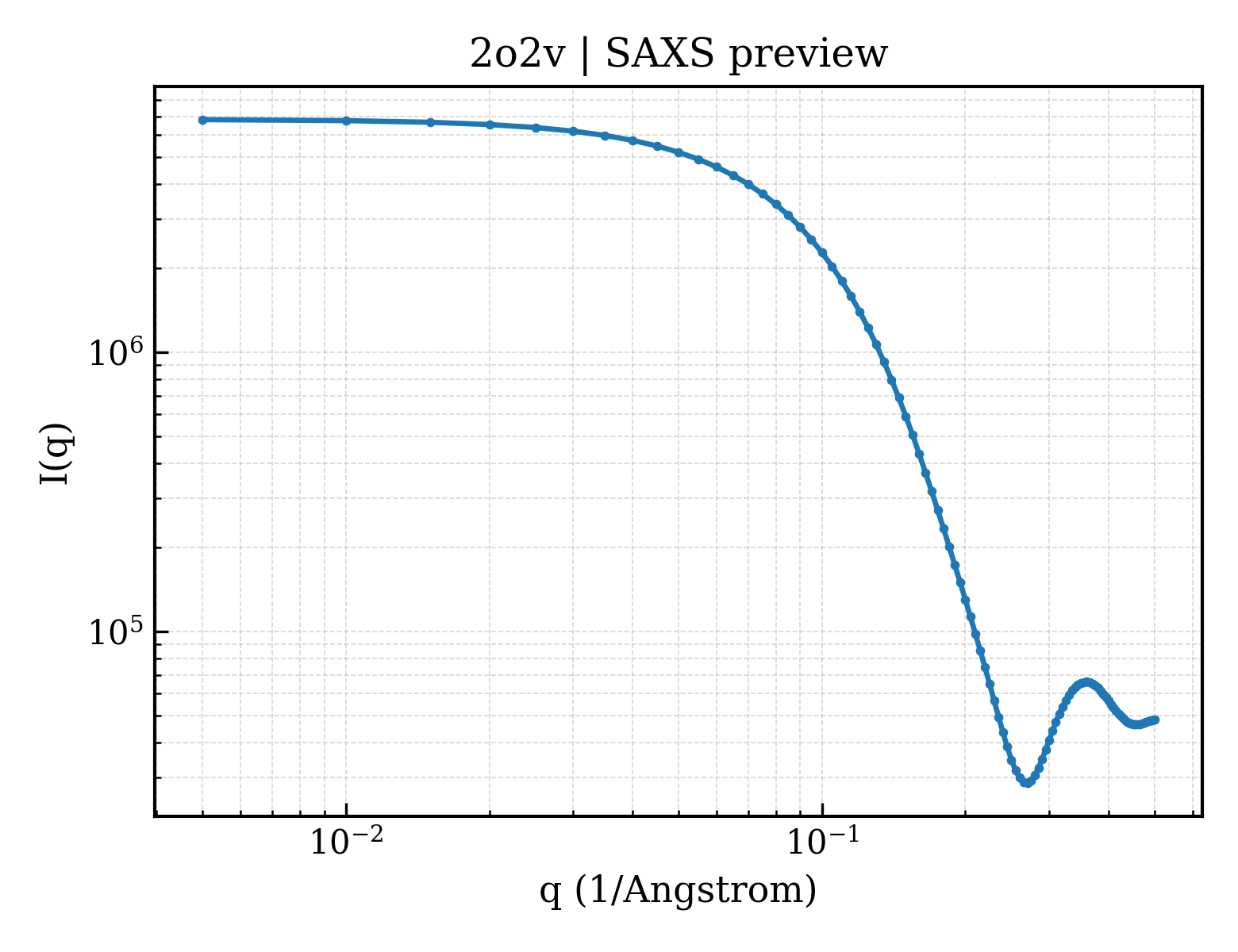

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.07 Å
Radius of gyration Rg (electron density) rg_electron	17.07 Å
Forward intensity I(0) i0	6834260.00
Molecular weight molecular_weight	19430.0 kDa
Excluded volume excluded_volume	24475 Å³
Envelope volume envelope_volume	29272 Å³
Hydration-shell volume shell_volume	14815 Å³
Envelope diameter envelope_diameter	58.9 Å
Shell Rg shell_rg	22.48 Å
Envelope Rg envelope_rg	17.34 Å
Shape Rg shape_rg	17.07 Å
Total Rg total_rg	18.01 Å
Total atoms total_atoms	1371
Residues n_residues	174
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

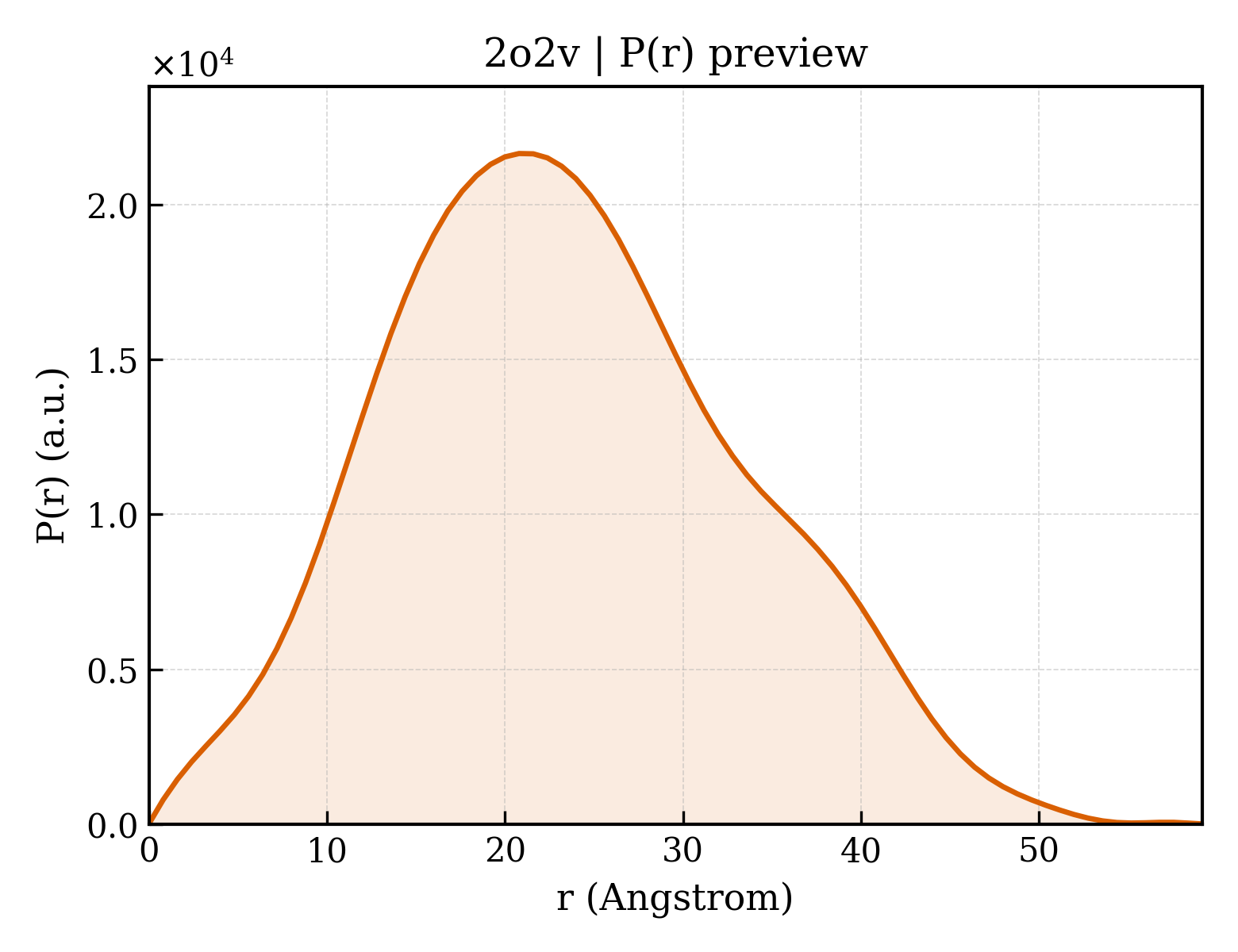

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	59.2 Å
Rg (real space) rg_real	18.02 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	6.8340e+06
I(0) uncertainty (real space) i0_real_error	8.0610e+04
Rg (reciprocal space) rg_reciprocal	18.02 Å
I(0) (reciprocal space) i0_reciprocal	6834000.0000
Solution quality estimate total_estimate	0.7404
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.8 Å
Skewness Skewness skewness	0.266
Kurtosis Kurtosis kurtosis	-0.385
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1764000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.805; Stabil: 1.000; Sysdev: 0.408; Positv: 1.000; Valcen: 1.000; Smooth: 0.981

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Dual specificity mitogen-activated protein kinase kinase 5
Molecular weight formula_weight	11941.5 kDa
EC 编号 ec_number	2.7.12.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1520

SMALGPFPAMENQVLVIRIKIPNSGAVDWTVHSGPQLLFRDVLDVIGQVLPEATTTAFEYEDEDGDRITVRSDEEMKAMLSYYYSTVMEQQVNGQLIEPLQIFPRA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Mitogen-activated protein kinase kinase kinase 3
Molecular weight formula_weight	10484.9 kDa
EC 编号 ec_number	2.7.11.25
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SMGHSNRQSDVRIKFEHNGERRIIAFSRPVKYEDVEHKVTTVFGQPLDLHYMNNELSILLKNQDDLDKAIDILDRSSSMKSLRILLLSQD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	141

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2o2va_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

Domain ID domain_id	d2o2vb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.2 — CAD & PB1 domains
Family Family family	d.15.2.2 — PB1 domain

CATH v4.4 (2 domains)

Domain ID domain_id	2o2vA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	2o2vB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	87.654 Å
Unit-cell length b length_b	87.654 Å
Unit-cell length c length_c	55.408 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.830 Å
Low-resolution limit resolution_low	46.830 Å
R factor r_factor	0.1960
R_work r_work	0.1940
R_free r_free	0.2240

fit	/app/data/saxs_computation/o2/2o2v/2o2v.fit
pddf	/app/data/pr_computation/o2/2o2v/2o2v.pr.out
profile	/app/data/saxs_computation/o2/2o2v/2o2v.dat
