SAXSdb — 2k0c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear pore complex protein Nup153

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 703–755	Fragment：RanBP2-type 2 domain (UNP residues 703-755)	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions：pH 7；293 K；Pressure ambient NMR sample composition：0.9-1.2 mM nup153znf2, 0.9-1.2 mM ZINC ION, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2K0C	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3CH5 The crystal structure of the RanGDP-Nup153ZnF2 complex Deposited 2008-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 703–754（52 aa） Fragment：residues 703-754	Not recorded	MG MAGNESIUM ION × 4 SO4 SULFATE ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 4 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；2 M ammonium sulfate, 0.1 M Bis Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.234
3CH5 The crystal structure of the RanGDP-Nup153ZnF2 complex Deposited 2008-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 703–754（52 aa） Fragment：residues 703-754	Not recorded	MG MAGNESIUM ION × 2 SO4 SULFATE ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；2 M ammonium sulfate, 0.1 M Bis Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.234
3GJ3 Crystal structure of human RanGDP-Nup153ZnF2 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 723–750（28 aa） Fragment：Nup153 - Zinc finger module 2: UNP residues 723-750	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.79 Å R-free 0.194
3GJ4 Crystal structure of human RanGDP-Nup153ZnF3 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 790–817（28 aa） Fragment：Nup153 - Zinc finger module 3: UNP residues 790-817	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.15 Å R-free 0.257
3GJ4 Crystal structure of human RanGDP-Nup153ZnF3 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 790–817（28 aa） Fragment：Nup153 - Zinc finger module 3: UNP residues 790-817	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.15 Å R-free 0.257
3GJ5 Crystal structure of human RanGDP-Nup153ZnF4 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 848–876（29 aa） Fragment：Nup153 - Zinc finger module 4: UNP residues 848-876	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1 Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.79 Å R-free 0.233
3GJ5 Crystal structure of human RanGDP-Nup153ZnF4 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 848–876（29 aa） Fragment：Nup153 - Zinc finger module 4: UNP residues 848-876	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1 Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.79 Å R-free 0.233
3GJ6 Crystal structure of human RanGDP-Nup153ZnF1 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 658–686（29 aa） Fragment：Nup153 - Zinc finger module 1: UNP residues 658-686	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1 M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.70 Å R-free 0.279
3GJ7 Crystal structure of human RanGDP-Nup153ZnF12 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 658–750（93 aa） Fragment：Nup153 - Zinc finger module 12: UNP residues 658-750	Not recorded	MG MAGNESIUM ION × 3 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.93 Å R-free 0.229
3GJ7 Crystal structure of human RanGDP-Nup153ZnF12 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 658–750（93 aa） Fragment：Nup153 - Zinc finger module 12: UNP residues 658-750	Not recorded	MG MAGNESIUM ION × 3 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.93 Å R-free 0.229
3GJ8 Crystal structure of human RanGDP-Nup153ZnF34 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 790–876（87 aa） Fragment：Nup153 - Zinc finger module 34: UNP residues 790-876	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.82 Å R-free 0.203
3GJ8 Crystal structure of human RanGDP-Nup153ZnF34 complex Deposited 2009-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 790–876（87 aa） Fragment：Nup153 - Zinc finger module 34: UNP residues 790-876	Not recorded	MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1M Bis-Tris pH 6.5, 18-20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.82 Å R-free 0.203
7MO1 Crystal Structure of the ZnF1 of Nucleoporin NUP153 in complex with Ran-GDP Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 648–687（40 aa） Fragment：ZINC FINGER 1 of NUP153 (UNP residues 648-687)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；294 K；22% w/v PEG3350, 0.1 M Bis-Tris	Resolution 1.60 Å R-free 0.175
7MO2 Crystal Structure of the ZnF2 of Nucleoporin NUP153 in complex with Ran-GDP Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 713–749（37 aa） Fragment：ZINC FINGER 2 of NUP153 (UNP residues 713-749)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；294 K；19% w/v PEG3350, 0.1 M Bis-Tris	Resolution 1.65 Å R-free 0.241
7MO2 Crystal Structure of the ZnF2 of Nucleoporin NUP153 in complex with Ran-GDP Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 713–749（37 aa） Fragment：ZINC FINGER 2 of NUP153 (UNP residues 713-749)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；294 K；19% w/v PEG3350, 0.1 M Bis-Tris	Resolution 1.65 Å R-free 0.241
7MO3 Crystal Structure of the ZnF3 of Nucleoporin NUP153 in complex with Ran-GDP, resolution 2.05 Angstrom Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 781–817（37 aa） Fragment：ZINC FINGER 3 of NUP153 (UNP residues 781-817)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；20% w/v PEG3350, 0.1 M Bis-Tris	Resolution 2.05 Å R-free 0.228
7MO3 Crystal Structure of the ZnF3 of Nucleoporin NUP153 in complex with Ran-GDP, resolution 2.05 Angstrom Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 781–817（37 aa） Fragment：ZINC FINGER 3 of NUP153 (UNP residues 781-817)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；20% w/v PEG3350, 0.1 M Bis-Tris	Resolution 2.05 Å R-free 0.228
7MO4 Crystal Structure of the ZnF3 of Nucleoporin NUP153 in complex with Ran-GDP, resolution 2.4 Angstrom Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 781–817（37 aa） Fragment：ZINC FINGER 3 of NUP153 (UNP residues 781-817)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；294 K；20% w/v PEG3350, 0.1 M Bis-Tris	Resolution 2.40 Å R-free 0.237
7MO4 Crystal Structure of the ZnF3 of Nucleoporin NUP153 in complex with Ran-GDP, resolution 2.4 Angstrom Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 781–817（37 aa） Fragment：ZINC FINGER 3 of NUP153 (UNP residues 781-817)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；294 K；20% w/v PEG3350, 0.1 M Bis-Tris	Resolution 2.40 Å R-free 0.237
7MO5 Crystal Structure of the ZnF4 of Nucleoporin NUP153 in complex with Ran-GDP Deposited 2021-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 838–874（37 aa） Fragment：ZINC FINGER 4 of NUP153 (UNP residues 838-874)	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；294 K；22% w/v PEG3350, 0.1 M Bis-Tris	Resolution 1.55 Å R-free 0.190

12 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NU153_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–53； UniProt 703–755

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2k0c
Deposition date deposition_date	2008-01-31
Structure title title	Zinc-finger 2 of Nup153
Keywords keywords	;Zinc-Finger, DNA-binding, Metal-binding, mRNA transport, Nuclear pore complex, Nucleus, Phosphoprotein, Protein transport, Translocation, Transport, METAL BINDING PROTEIN ;; METAL BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	9.98 Å
Radius of gyration Rg (electron density) rg_electron	10.35 Å
Forward intensity I(0) i0	95438600.00
Molecular weight molecular_weight	75714.0 kDa
Excluded volume excluded_volume	92591 Å³
Envelope volume envelope_volume	18622 Å³
Hydration-shell volume shell_volume	11097 Å³
Envelope diameter envelope_diameter	44.7 Å
Shell Rg shell_rg	20.05 Å
Envelope Rg envelope_rg	15.48 Å
Shape Rg shape_rg	10.32 Å
Total Rg total_rg	10.91 Å
Total atoms total_atoms	10280
Residues n_residues	700
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	39.1 Å
Rg (real space) rg_real	10.15 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	9.5440e+07
I(0) uncertainty (real space) i0_real_error	1.0660e+06
Rg (reciprocal space) rg_reciprocal	10.15 Å
I(0) (reciprocal space) i0_reciprocal	95440000.0000
Solution quality estimate total_estimate	0.6857
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	11.4 Å
Skewness Skewness skewness	0.679
Kurtosis Kurtosis kurtosis	0.303
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12630.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.521; Stabil: 0.988; Sysdev: 1.000; Positv: 1.000; Valcen: 0.382; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2k0ca_
Class class	g — Small proteins
Fold Fold fold	g.41 — Rubredoxin-like
Superfamily Superfamily superfamily	g.41.11 — Ran binding protein zinc finger-like
Family Family family	g.41.11.1 — Ran binding protein zinc finger-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	Nuclear pore complex protein Nup153
Molecular weight formula_weight	5536.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10280

来源生物 organism	Rattus norvegicus
通用名 common_name	Rat
宿主生物 host_organism	Escherichia coli

Zinc-finger 2 of Nup153

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear pore complex protein Nup153

State in the Current Structure

Other States of the Same Protein in the Database

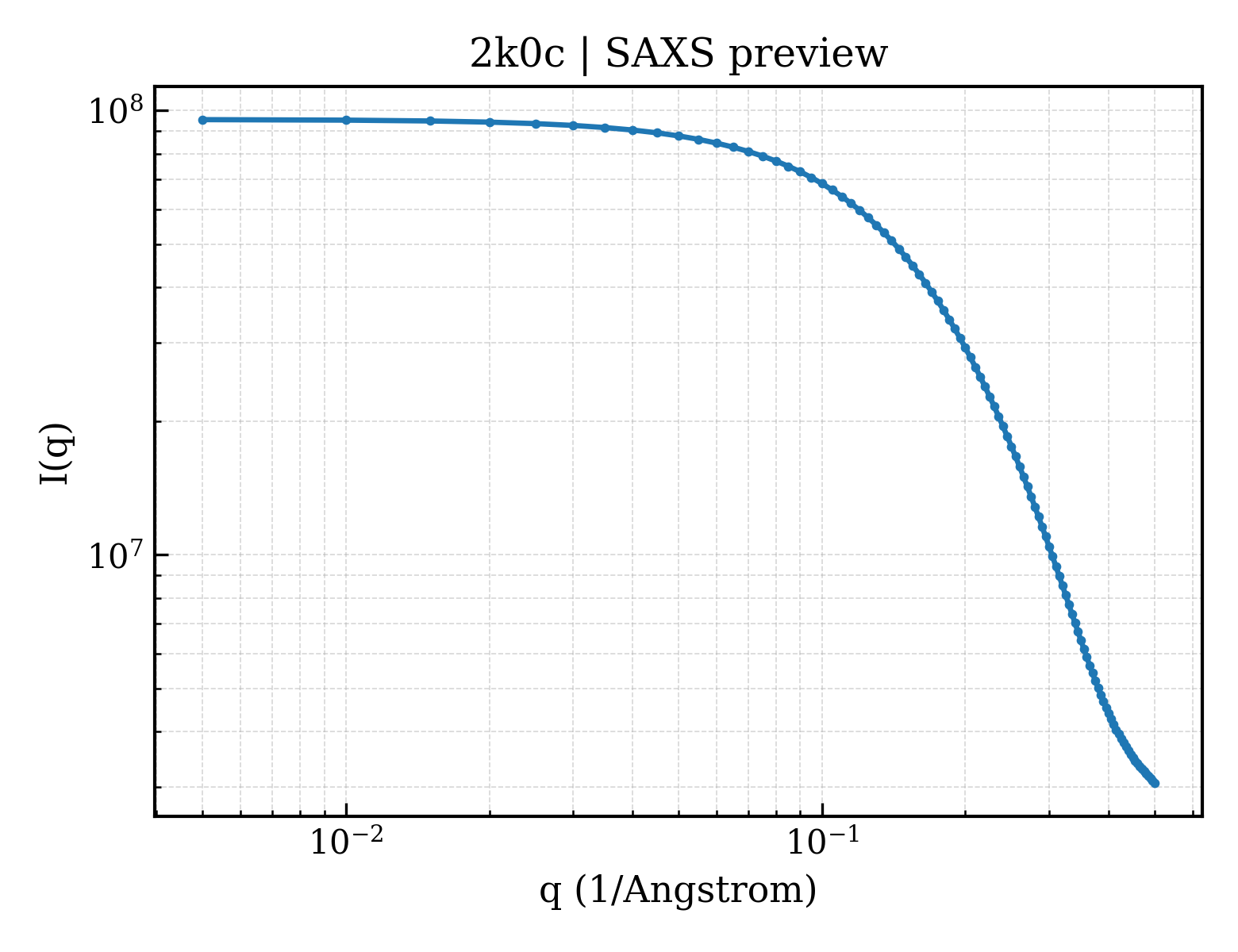

SAXS scattering curve SAXS Profile

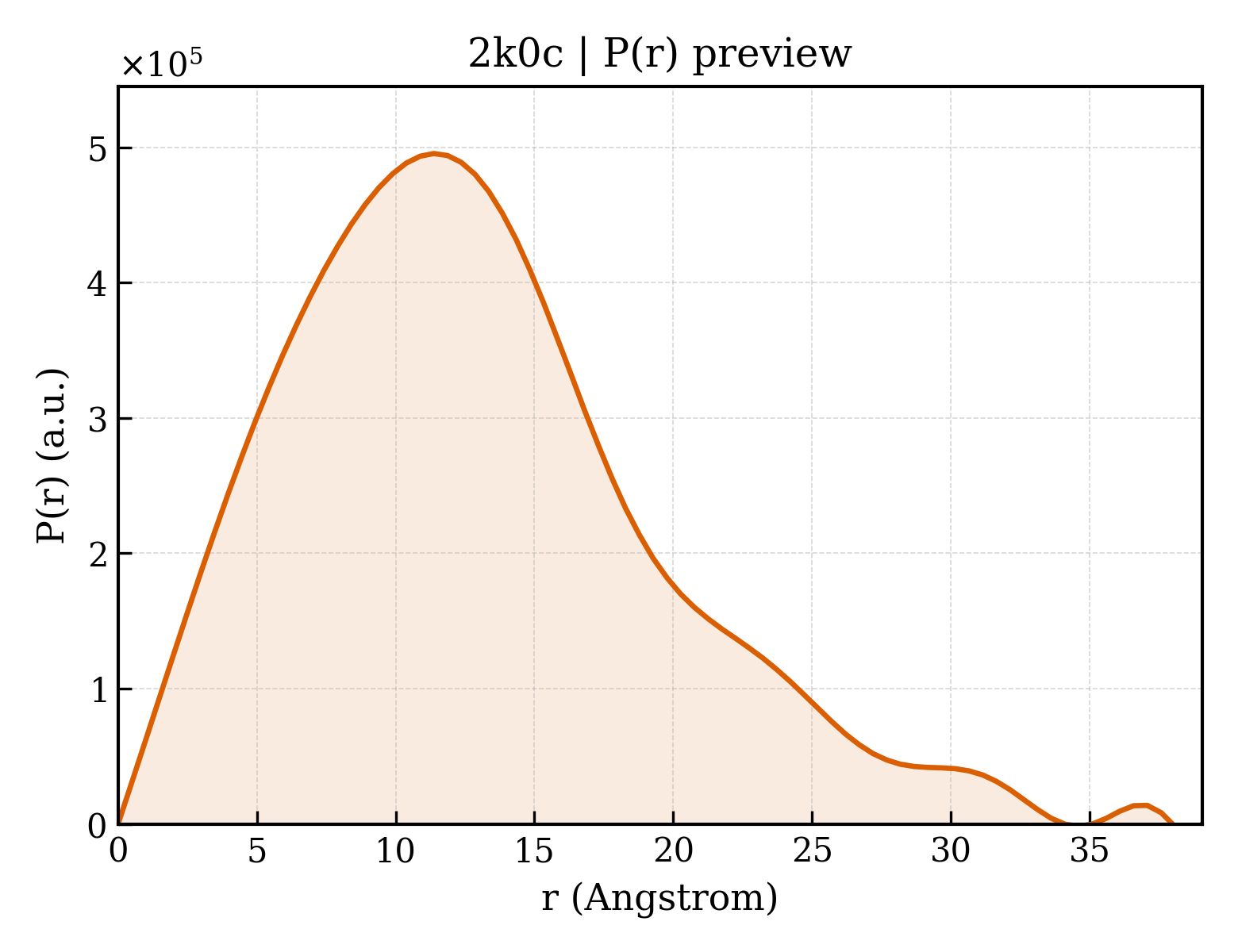

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 non-polymer

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/k0/2k0c/2k0c.fit
pddf	/app/data/pr_computation/k0/2k0c/2k0c.pr.out
profile	/app/data/saxs_computation/k0/2k0c/2k0c.dat
