SAXSdb — 3gj5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-binding nuclear protein Ran

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Nuclear pore complex protein Nup153 × 1 （P49791） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 ZINC ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Nuclear pore complex protein Nup153 × 1 （P49791） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAN_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–221； UniProt 2–216 Author chain C； PDBConstruct 7–221； UniProt 2–216

Nuclear pore complex protein Nup153

Rattus norvegicus

UniProt P49791

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	GTP-binding nuclear protein Ran × 1 （P62826） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 ZINC ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	GTP-binding nuclear protein Ran × 1 （P62826） MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 ZINC ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NU153_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 6–34； UniProt 848–876 Author chain D； PDBConstruct 6–34； UniProt 848–876

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3gj5
Deposition date deposition_date	2009-03-07
Structure title title	Crystal structure of human RanGDP-Nup153ZnF4 complex
Keywords keywords	;G protein, GDP, RAN, Nup153, nuclear pore, Zinc Finger, Acetylation, Cytoplasm, GTP-binding, Host-virus interaction, Isopeptide bond, Nucleotide-binding, Nucleus, Phosphoprotein, Polymorphism, Protein transport, Transport, Ubl conjugation, DNA-binding, Metal-binding, mRNA transport, Nuclear pore complex, Translocation, Zinc, Zinc-finger, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3gj5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

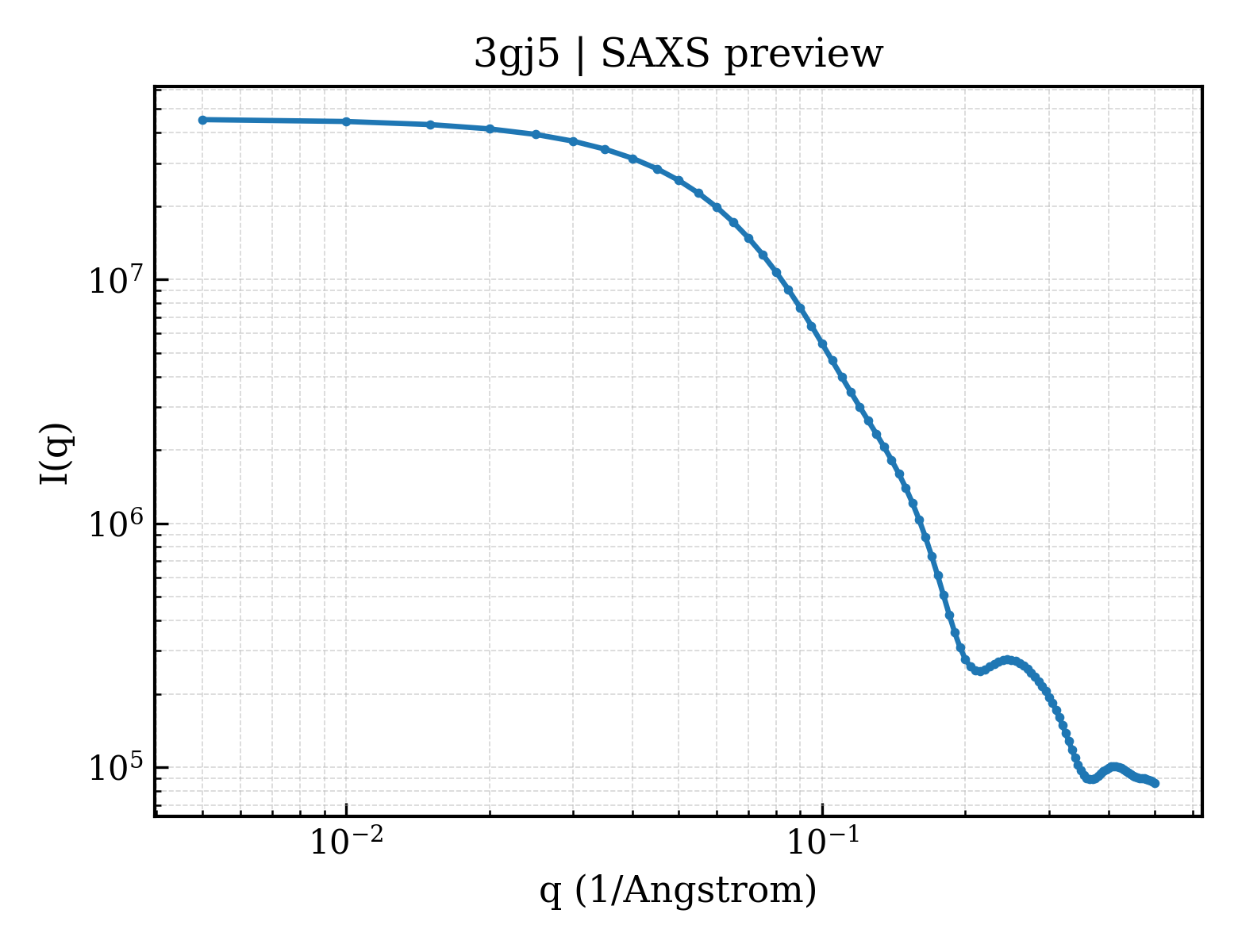

3gj5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

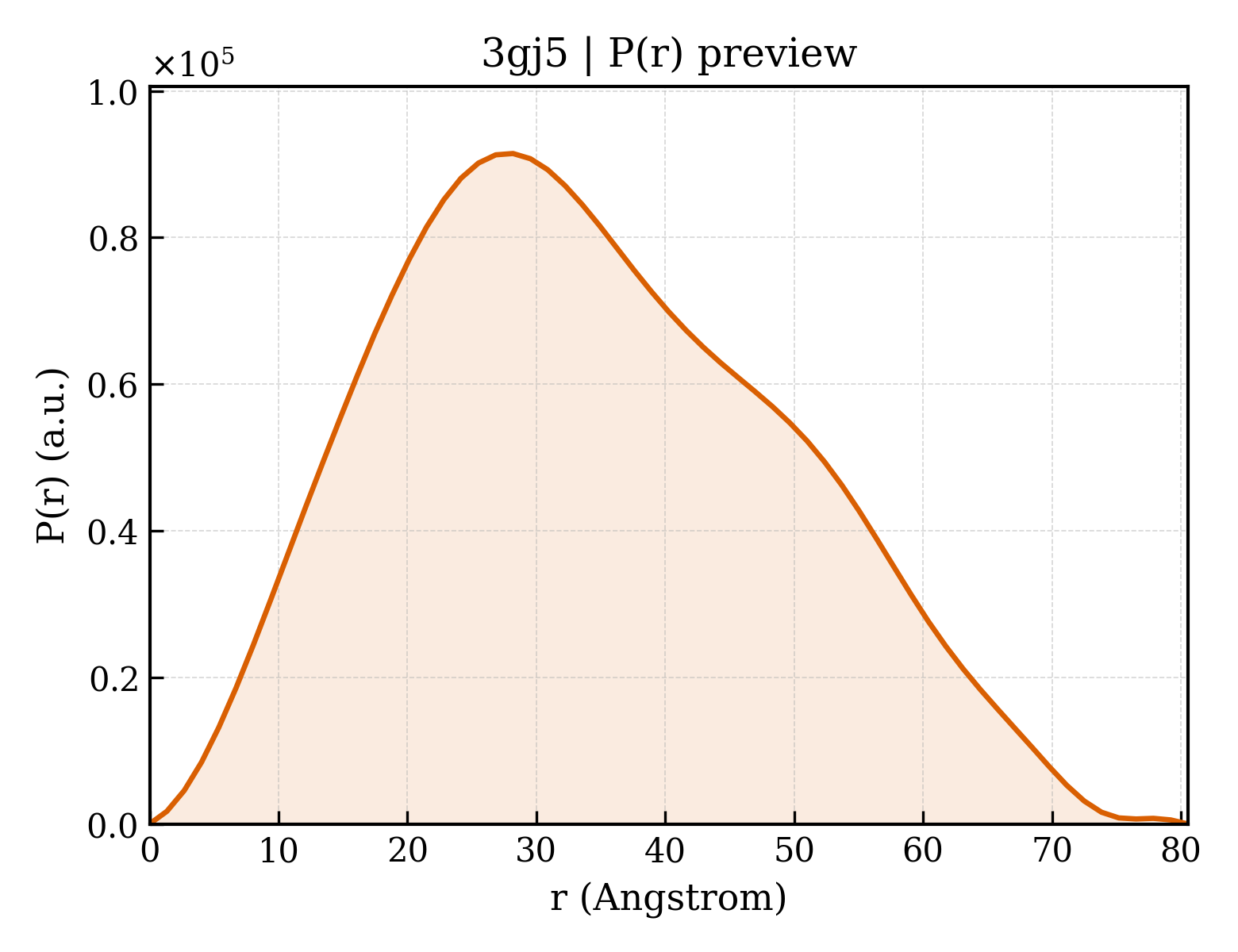

3gj5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.49 Å
Rg (electron density)	17.31 Å
Total Rg	18.36 Å
Atom count	1827
Residues	227
Excluded volume	32630 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3gj5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3gj5__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	GTP-binding nuclear protein Ran
Molecular weight formula_weight	24846.5 kDa
Mutation mutation	F35S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4112

GPHMASAAQGEPQVQFKLVLVGDGGTGKTTFVKRHLTGESEKKYVATLGVEVHPLVFHTNRGPIKFNVWDTAGQEKFGGLRDGYYIQAQCAIIMFDVTSRVTYKNVPNWHRDLVRVCENIPIVLCGNKVDIKDRKVKAKSIVFHRKKNLQYYDISAKSNYNFEKPFLWLARKLIGDPNLEFVAMPALAPPEVVMDPALAAQYEHDLEVAQTTALPDEDDDL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nuclear pore complex protein Nup153
Molecular weight formula_weight	3458.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GPLGSGSWDCEVCLVQNKADSTKCIACESAKPGT

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	458

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3gj5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d3gj5b_
Class class	g — Small proteins
Fold Fold fold	g.41 — Rubredoxin-like
Superfamily Superfamily superfamily	g.41.11 — Ran binding protein zinc finger-like
Family Family family	g.41.11.1 — Ran binding protein zinc finger-like

Domain ID domain_id	d3gj5c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d3gj5d_
Class class	g — Small proteins
Fold Fold fold	g.41 — Rubredoxin-like
Superfamily Superfamily superfamily	g.41.11 — Ran binding protein zinc finger-like
Family Family family	g.41.11.1 — Ran binding protein zinc finger-like

CATH v4.4 (2 domains)

Domain ID domain_id	3gj5A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3gj5C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	70.443 Å
Unit-cell length b length_b	61.343 Å
Unit-cell length c length_c	74.025 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	112.55 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.790 Å
Low-resolution limit resolution_low	45.658 Å
R factor r_factor	0.2004
R_work r_work	0.1986
R_free r_free	0.2325
