SAXSdb — 2kz1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon alpha-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 24–188	Not recorded	Soluble IFN alpha/beta receptor × 1 （Q15467）	SOLUTION NMR NMR measurement conditions：pH 8；305 K；Ionic strength (raw mmCIF value) 25；Pressure ambient NMR sample composition：0.25 mM [U-99% 2H] Interferon alpha, 0.25 mM [U-99% 2H] Soluble IFN alpha/beta receptor, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 100% D2O \| 100% D2O NMR sample composition：0.25 MM [U-99% 2H, 1H-K,R,L,A,M] INTERFERON ALPHA2, 0.25 MM [U-99% 2H, 1H-H,F,W] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 100% D2O \| 100% D2O NMR sample composition：0.25 MM [U-99% 2H, 1H-L] INTERFERON ALPHA2, 0.25 MM [U-99% 2H, 1H-H,W] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 100% D2O \| 100% D2O NMR sample composition：0.25 MM [15N] INTERFERON ALPHA2, 0.25 MM [1H] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition：0.25 MM [1H] INTERFERON ALPHA2, 0.25 MM [15N] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2KZ1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ITF INTERFERON ALPHA-2A, NMR, 24 STRUCTURES Deposited 1997-08-22	Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–188（165 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.4；298 K	Resolution not provided
1RH2 RECOMBINANT HUMAN INTERFERON-ALPHA 2B Deposited 1996-11-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–188（165 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions macroseeding；pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 40MM ZINC ACETATE, 30MM CACODYLATE, PH 5.6; MACRO SEEDING WAS PERFORMED TO GET REASONABLE SIZE CRYSTALS., macroseeding	Resolution 2.90 Å R-free 0.311
1RH2 RECOMBINANT HUMAN INTERFERON-ALPHA 2B Deposited 1996-11-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 24–188（165 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions macroseeding；pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 40MM ZINC ACETATE, 30MM CACODYLATE, PH 5.6; MACRO SEEDING WAS PERFORMED TO GET REASONABLE SIZE CRYSTALS., macroseeding	Resolution 2.90 Å R-free 0.311
1RH2 RECOMBINANT HUMAN INTERFERON-ALPHA 2B Deposited 1996-11-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 24–188（165 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions macroseeding；pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 40MM ZINC ACETATE, 30MM CACODYLATE, PH 5.6; MACRO SEEDING WAS PERFORMED TO GET REASONABLE SIZE CRYSTALS., macroseeding	Resolution 2.90 Å R-free 0.311
1RH2 RECOMBINANT HUMAN INTERFERON-ALPHA 2B Deposited 1996-11-07	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 24–188（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions macroseeding；pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 40MM ZINC ACETATE, 30MM CACODYLATE, PH 5.6; MACRO SEEDING WAS PERFORMED TO GET REASONABLE SIZE CRYSTALS., macroseeding	Resolution 2.90 Å R-free 0.311
1RH2 RECOMBINANT HUMAN INTERFERON-ALPHA 2B Deposited 1996-11-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 24–188（165 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions macroseeding；pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 40MM ZINC ACETATE, 30MM CACODYLATE, PH 5.6; MACRO SEEDING WAS PERFORMED TO GET REASONABLE SIZE CRYSTALS., macroseeding	Resolution 2.90 Å R-free 0.311
1RH2 RECOMBINANT HUMAN INTERFERON-ALPHA 2B Deposited 1996-11-07	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 24–188（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions macroseeding；pH 5.6；PROTEIN WAS CRYSTALLIZED FROM 40MM ZINC ACETATE, 30MM CACODYLATE, PH 5.6; MACRO SEEDING WAS PERFORMED TO GET REASONABLE SIZE CRYSTALS., macroseeding	Resolution 2.90 Å R-free 0.311
2HYM NMR based Docking Model of the Complex between the Human Type I Interferon Receptor and Human Interferon alpha-2 Deposited 2006-08-07	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–188（165 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 8；308 K；Ionic strength (raw mmCIF value) 20 mM deuterated tris buffer；Pressure ambient NMR sample composition 0.3 mM Interferon-alpha2 (D,15N), 90% D2O, 10% H2O, 20 mM deuterated tris buffer, 0.02% NaN3 \| 90% D2O, 10% H2O NMR sample composition 0.3 mM Interferon-alpha2 (D,15N, 13C), 5% D2O, 95% H2O, 20 mM deuterated tris buffer, 0.02% NaN3 \| 5% D2O, 95% H2O NMR sample composition 0.3 mM Interferon-alpha2 (D,15N), 5% D2O, 95% H2O, 20 mM deuterated tris buffer, 0.02% NaN3 \| 5% D2O, 95% H2O	Resolution not provided
2LAG Structure of the 44 kDa complex of interferon-alpha2 with the extracellular part of IFNAR2 obtained by 2D-double difference NOESY Deposited 2011-03-13	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–188（165 aa） Fragment：Extracellular domain residues 28-237	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 8；305 K；Ionic strength (raw mmCIF value) 25；Pressure ambient NMR sample composition 0.25 mM [U-99% 2H] Interferon alpha/beta receptor 2, 0.25 mM [U-99% 2H] Interferon alpha-2, 100% D2O \| 100% D2O	Resolution not provided
2LMS A single GalNAc residue on Threonine-106 modifies the dynamics and the structure of Interferon alpha-2a around the glycosylation site Deposited 2011-12-12	Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–188（165 aa）	Not recorded	A2G 2-acetamido-2-deoxy-alpha-D-galactopyranose × 1	SOLUTION NMR NMR measurement conditions pH 3.5；298.15 K；Ionic strength (raw mmCIF value) 25；Pressure ambient NMR sample composition 0.85 mM [U-100% 13C; U-100% 15N] Interferon Alpha-2a (O-glycosylated), 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.87 mM [U-100% 13C; U-100% 15N] Interferon Alpha-2a (O-glycosylated), 100% D2O \| 100% D2O	Resolution not provided
3S9D binary complex between IFNa2 and IFNAR2 Deposited 2011-06-01	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–188（165 aa） Fragment：IFNa2 (UNP Residues 24-188)	Mutation：H57A, E58A, Q61A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 293 K；20% (w/v) PEG 3350, 200 mM NaSCN, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.233
3S9D binary complex between IFNa2 and IFNAR2 Deposited 2011-06-01	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 24–188（165 aa） Fragment：IFNa2 (UNP Residues 24-188)	Mutation：H57A, E58A, Q61A	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 293 K；20% (w/v) PEG 3350, 200 mM NaSCN, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.233
4YPG Structural Insights Into the Neutralization Properties of a Human Anti-Interferon Monoclonal Antibody Deposited 2015-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 24–182（159 aa）	Not recorded	NI NICKEL (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.01 M NiCl2, 0.1 M Tris HCl	Resolution 3.00 Å R-free 0.272
4YPG Structural Insights Into the Neutralization Properties of a Human Anti-Interferon Monoclonal Antibody Deposited 2015-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 24–182（159 aa）	Not recorded	NI NICKEL (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.01 M NiCl2, 0.1 M Tris HCl	Resolution 3.00 Å R-free 0.272
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 24–188（165 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 24–188（165 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 24–188（165 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 24–188（165 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 24–188（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 24–188（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain X 24–188（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
4Z5R Rontalizumab Fab bound to Interferon-a2 Deposited 2015-04-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain N 24–188（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；lithium sulfate, PEG3350, 1% dioxane	Resolution 3.00 Å R-free 0.251
9GVL type-I interferons autoantibody pmab15 in complex with Interferon alpha-2 Deposited 2024-09-25	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–188（165 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；0.2 M (NH4)2SO4 0.1 M NaAcetate pH 4.6 30 %w/w PEG 2000 MME	Resolution 2.01 Å R-free 0.270
9GVL type-I interferons autoantibody pmab15 in complex with Interferon alpha-2 Deposited 2024-09-25	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–188（165 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；291 K；0.2 M (NH4)2SO4 0.1 M NaAcetate pH 4.6 30 %w/w PEG 2000 MME	Resolution 2.01 Å R-free 0.270
9GVO type-I interferons autoantibodies pmab15 and pmab14 in complex with Interferon alpha-2 Deposited 2024-09-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 24–188（165 aa）	Not recorded	GOL GLYCEROL × 6 PO4 PHOSPHATE ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.1 M Hepes pH 7.5 0.8 M Na2H2PO4 0.8 M KH2PO4	Resolution 1.81 Å R-free 0.215
9GW5 type-I interferon autoantibodies pmab3, pmab19 and pmab14 in complex with Interferon alpha-2 Deposited 2024-09-26	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 24–188（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.1 M Hepes pH 7.5 1.9 (NH4)2SO4	Resolution 4.00 Å R-free 0.324

11 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IFNA2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–165； UniProt 24–188

Soluble IFN alpha/beta receptor

Homo sapiens

UniProt Q15467

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 28–239	Not recorded	Interferon alpha-2 × 1 （P01563）	SOLUTION NMR NMR measurement conditions：pH 8；305 K；Ionic strength (raw mmCIF value) 25；Pressure ambient NMR sample composition：0.25 mM [U-99% 2H] Interferon alpha, 0.25 mM [U-99% 2H] Soluble IFN alpha/beta receptor, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 100% D2O \| 100% D2O NMR sample composition：0.25 MM [U-99% 2H, 1H-K,R,L,A,M] INTERFERON ALPHA2, 0.25 MM [U-99% 2H, 1H-H,F,W] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 100% D2O \| 100% D2O NMR sample composition：0.25 MM [U-99% 2H, 1H-L] INTERFERON ALPHA2, 0.25 MM [U-99% 2H, 1H-H,W] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 100% D2O \| 100% D2O NMR sample composition：0.25 MM [15N] INTERFERON ALPHA2, 0.25 MM [1H] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition：0.25 MM [1H] INTERFERON ALPHA2, 0.25 MM [15N] SOLUBLE IFN ALPHA/BETA RECEPTOR, 25 mM [U-2H] TRIS, 0.02 % sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2KZ1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2HYM NMR based Docking Model of the Complex between the Human Type I Interferon Receptor and Human Interferon alpha-2 Deposited 2006-08-07	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–239（212 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 8；308 K；Ionic strength (raw mmCIF value) 20 mM deuterated tris buffer；Pressure ambient NMR sample composition 0.3 mM Interferon-alpha2 (D,15N), 90% D2O, 10% H2O, 20 mM deuterated tris buffer, 0.02% NaN3 \| 90% D2O, 10% H2O NMR sample composition 0.3 mM Interferon-alpha2 (D,15N, 13C), 5% D2O, 95% H2O, 20 mM deuterated tris buffer, 0.02% NaN3 \| 5% D2O, 95% H2O NMR sample composition 0.3 mM Interferon-alpha2 (D,15N), 5% D2O, 95% H2O, 20 mM deuterated tris buffer, 0.02% NaN3 \| 5% D2O, 95% H2O	Resolution not provided

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q15467_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–212； UniProt 28–239

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2kz1
Deposition date deposition_date	2010-06-10
Structure title title	Inter-molecular interactions in a 44 kDa interferon-receptor complex detected by asymmetric back-protonation and 2D NOESY
Keywords keywords	INTERFERON, RECEPTOR, DOCKING, COMPLEX, ANTIVIRAL DEFENSE, CYTOKINE, DISULFIDE BOND, GLYCOPROTEIN, SECRETED, ANTIVIRAL PROTEIN; ANTIVIRAL PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.27 Å
Radius of gyration Rg (electron density) rg_electron	23.19 Å
Forward intensity I(0) i0	2295940000.00
Molecular weight molecular_weight	416340.0 kDa
Excluded volume excluded_volume	524410 Å³
Envelope volume envelope_volume	76156 Å³
Hydration-shell volume shell_volume	27064 Å³
Envelope diameter envelope_diameter	83.3 Å
Shell Rg shell_rg	30.69 Å
Envelope Rg envelope_rg	23.92 Å
Shape Rg shape_rg	23.17 Å
Total Rg total_rg	23.36 Å
Total atoms total_atoms	58230
Residues n_residues	3610
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.2 Å
Rg (real space) rg_real	23.23 Å
Rg uncertainty (real space) rg_real_error	0.71 Å
I(0) (real space) i0_real	2.2960e+09
I(0) uncertainty (real space) i0_real_error	3.0680e+07
Rg (reciprocal space) rg_reciprocal	23.24 Å
I(0) (reciprocal space) i0_reciprocal	2296000000.0000
Solution quality estimate total_estimate	0.7814
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	25.9 Å
Skewness Skewness skewness	0.253
Kurtosis Kurtosis kurtosis	-0.497
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5365000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.748; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.911; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Interferon alpha-2
Molecular weight formula_weight	19264.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	58230

CDLPQTHSLGSRRTLMLLAQMRKISLFSCLKDRHDFGFPQEEFGNQFQKAETIPVLHEMIQQIFNLFSTKDSSAAWDETLLDKFYTELYQQLNDLEACVIQGVGVTETPLMKEDSILAVRKYFQRITLYLKEKKYSPCAWEVVRAEIMRSFSLSTNLQESLRSKE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	Soluble IFN alpha/beta receptor
Molecular weight formula_weight	24323.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SYDSPDYTDESCTFKISLRNFRSILSWELKNHSIVPTHYTLLYTIMSKPEDLKVVKNCANTTRSFCDLTDEWRSTHEAYVTVLEGFSGNTTLFSCSHNFWLAIDMSFEPPEFEIVGFTNHINVMVKFPSIVEEELQFDLSLVIEEQSEGIVKKHKPEIKGNMSGNFTYIIDKLIPNTNYCVSVYLEHSDEQAVIKSPLKCTLLPPGQESEFS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2kz1a_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.3 — Interferons/interleukin-10 (IL-10)

Domain ID domain_id	d2kz1b1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2kz1b2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

CATH v4.4 (3 domains)

Domain ID domain_id	2kz1A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2kz1B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2kz1B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/kz/2kz1/2kz1.fit
pddf	/app/data/pr_computation/kz/2kz1/2kz1.pr.out
profile	/app/data/saxs_computation/kz/2kz1/2kz1.dat

Inter-molecular interactions in a 44 kDa interferon-receptor complex detected by asymmetric back-protonation and 2D NOESY

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon alpha-2

State in the Current Structure

Other States of the Same Protein in the Database

Soluble IFN alpha/beta receptor

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

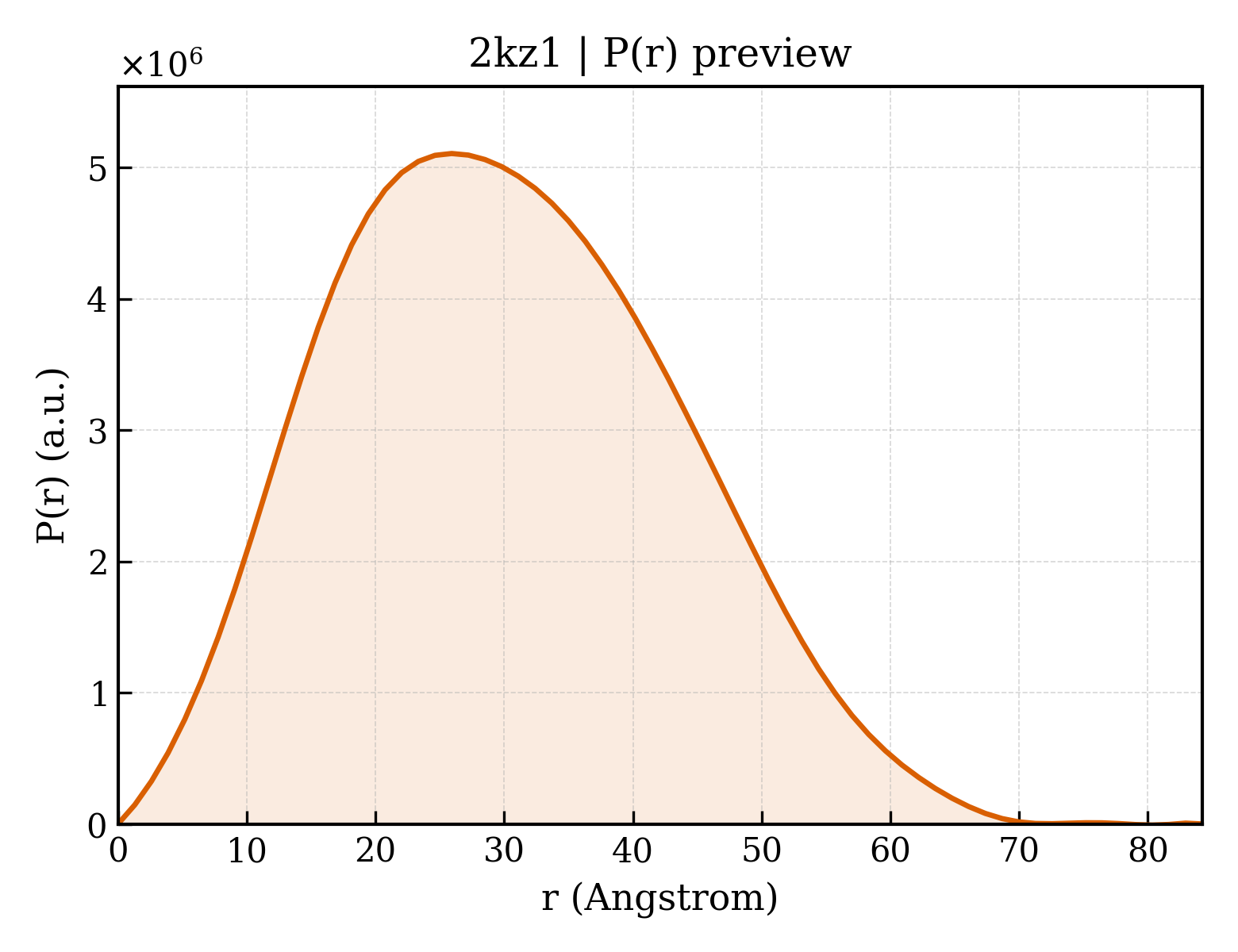

P(r) Distance Distribution P(r) Distribution
