SAXSdb — 2l0y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitochondrial intermembrane space import and assembly protein 40

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	COX17 cytochrome c oxidase assembly homolog (S. cerevisiae) pseudogene (COX17) × 1 （Q5W0Q5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MIA40_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–146； UniProt 1–142

COX17 cytochrome c oxidase assembly homolog (S. cerevisiae) pseudogene (COX17)

Homo sapiens

UniProt Q5W0Q5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Mitochondrial intermembrane space import and assembly protein 40 × 1 （Q8N4Q1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5W0Q5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–67； UniProt 1–63

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l0y
Deposition date deposition_date	2010-07-20
Structure title title	Complex hMia40-hCox17
Keywords keywords	Oxidative Protein Folding, Macromolecular complex, Mitochondrial Import, PROTEIN TRANSPORT-METAL TRANSPORT complex; PROTEIN TRANSPORT/METAL TRANSPORT
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2l0y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

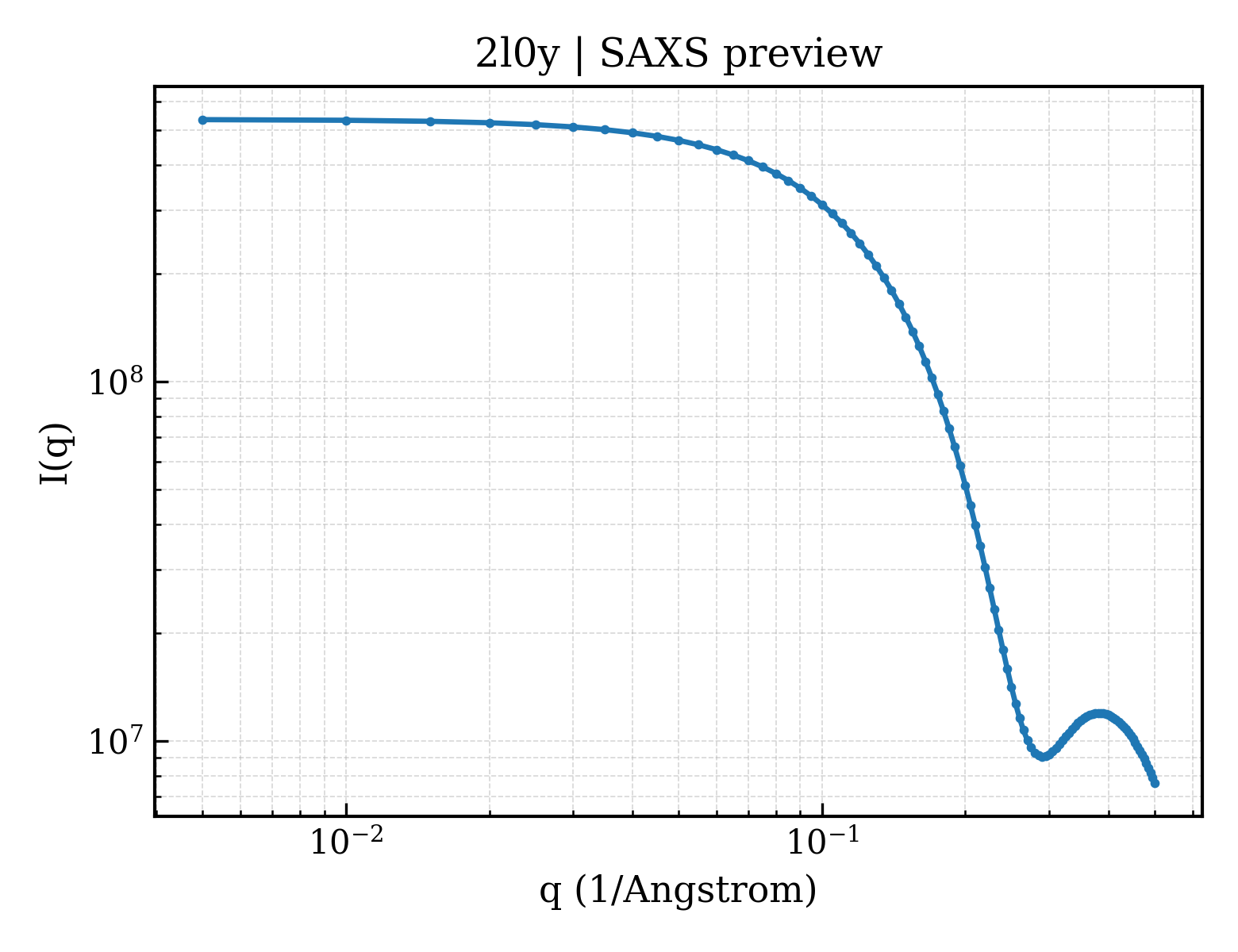

2l0y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

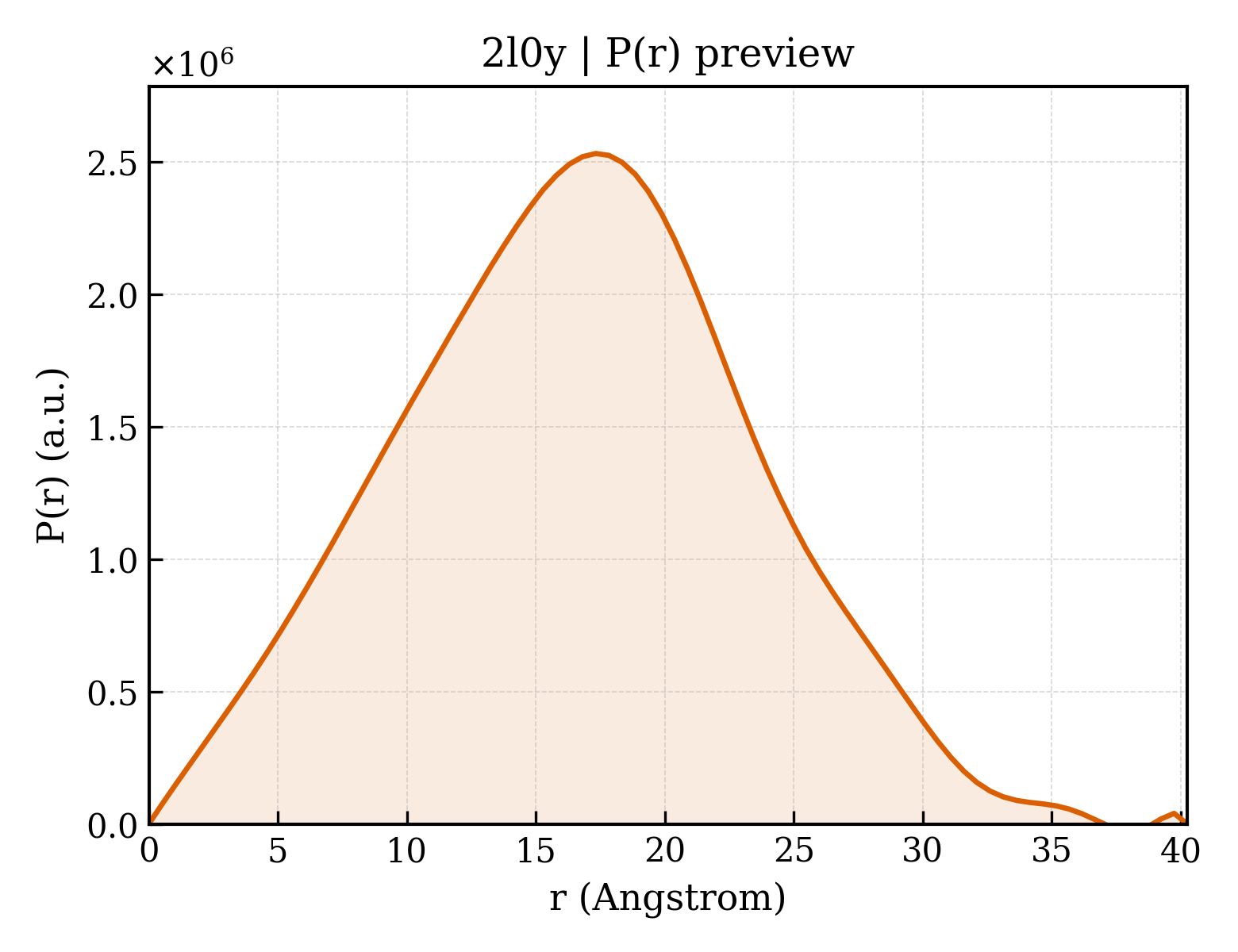

2l0y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.66 Å
Rg (electron density)	12.29 Å
Total Rg	13.54 Å
Atom count	1214
Residues	81
Excluded volume	11089 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2l0y__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`2l0y__assembly_1__model_2`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`2l0y__assembly_1__model_3`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`2l0y__assembly_1__model_4`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`2l0y__assembly_1__model_5`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`2l0y__assembly_1__model_6`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`2l0y__assembly_1__model_7`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`2l0y__assembly_1__model_8`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	9	`2l0y__assembly_1__model_9`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	10	`2l0y__assembly_1__model_10`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	11	`2l0y__assembly_1__model_11`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	12	`2l0y__assembly_1__model_12`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	13	`2l0y__assembly_1__model_13`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	14	`2l0y__assembly_1__model_14`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	15	`2l0y__assembly_1__model_15`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	16	`2l0y__assembly_1__model_16`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	17	`2l0y__assembly_1__model_17`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	18	`2l0y__assembly_1__model_18`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	19	`2l0y__assembly_1__model_19`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	20	`2l0y__assembly_1__model_20`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Mitochondrial intermembrane space import and assembly protein 40
Molecular weight formula_weight	16387.7 kDa
Mutation mutation	C53S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	24280

GSFTMSYCRQEGKDRIIFVTKEDHETPSSAELVADDPNDPYEEHGLILPNGNINWNSPCLGGMASGPCGEQFKSAFSCFHYSTEEIKGSDCVDQFRAMQECMQKYPDLYPQEDEDEEEEREKKPAEQAEETAPIEATATKEEEGSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	COX17 cytochrome c oxidase assembly homolog (S. cerevisiae) pseudogene (COX17)
Molecular weight formula_weight	7378.6 kDa
Mutation mutation	C26S C36S C55S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GSFTMPGLVDSNPALPESQEKRPLKPCCTCPETKKARDACIIEKGEEHCGHLIEAHKESMRALGFKI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2l0yA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	2900 —

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—
