SAXSdb — 2l6j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TPR repeat-containing protein associated with Hsp90

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–111	Not recorded	C-terminus Hsp90 chaperone peptide MEEVD × 1	SOLUTION NMR NMR measurement conditions：pH 8；293 K；Ionic strength (raw mmCIF value) 0.1375；Pressure ambient NMR sample composition：1 mM [U-99% 15N] Tah1-1, 2 mM Ac-MEEVD-2, 25 mM sodium phosphate-3, 100 mM sodium chloride-4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：1 mM [U-99% 13C; U-99% 15N] Tah1-5, 2 mM Ac-MEEVD-6, 25 mM sodium phosphate-7, 100 mM sodium chloride-8, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：800 uM Tah1-9, 1.6 mM Ac-MEEVD-10, 25 mM sodium phosphate-11, 100 mM sodium chloride-12, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：1 mM [U-98% 13C; U-98% 15N] Tah1-13, 2 mM Ac-MEEVD-14, 25 mM sodium phosphate-15, 100 mM sodium chloride-16, 100% D2O \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L6J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LSU The NMR high resolution structure of yeast Tah1 in a free form Deposited 2012-05-07	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–111（110 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；288 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Tah1, 10 mM sodium phosphate, 150 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Tah1, 10 mM sodium phosphate, 150 mM sodium chloride, 100% D2O \| 100% D2O	Resolution not provided
2LSV The NMR high resolution structure of yeast Tah1 in complex with the Hsp90 C-terminal tail Deposited 2012-05-07	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–111（110 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；288 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] protein_1, 1 mM protein_2, 10 mM sodium phosphate, 150 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] protein_1, 1 mM protein_2, 10 mM sodium phosphate, 150 mM sodium chloride, 100% D2O \| 100% D2O	Resolution not provided
2MNJ NMR solution structure of the yeast Pih1 and Tah1 C-terminal domains complex Deposited 2014-04-08	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 93–111（19 aa） Fragment：UNP residues 93-111	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.4；298 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 1.5 mM [U-99% 13C; U-99% 15N] Tah1, 1.5 mM [U-99% 13C; U-99% 15N] Pih1, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
4CGQ Full length Tah1 bound to HSP90 peptide SRMEEVD Deposited 2013-11-26	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–111（111 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7	Resolution 2.00 Å R-free 0.210
4CGU Full length Tah1 bound to yeast PIH1 and HSP90 peptide SRMEEVD Deposited 2013-11-26	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–111（111 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7	Resolution 2.11 Å R-free 0.210

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TAH1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–111； UniProt 1–111

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l6j
Deposition date deposition_date	2010-11-22
Structure title title	Tah1 complexed by MEEVD
Keywords keywords	tetratricopeptide repeat (TPR), Hsp90 co-factor, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.54 Å
Radius of gyration Rg (electron density) rg_electron	16.39 Å
Forward intensity I(0) i0	1024270000.00
Molecular weight molecular_weight	262580.0 kDa
Excluded volume excluded_volume	325570 Å³
Envelope volume envelope_volume	58257 Å³
Hydration-shell volume shell_volume	22095 Å³
Envelope diameter envelope_diameter	68.6 Å
Shell Rg shell_rg	29.29 Å
Envelope Rg envelope_rg	23.67 Å
Shape Rg shape_rg	16.39 Å
Total Rg total_rg	16.67 Å
Total atoms total_atoms	36820
Residues n_residues	2320
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

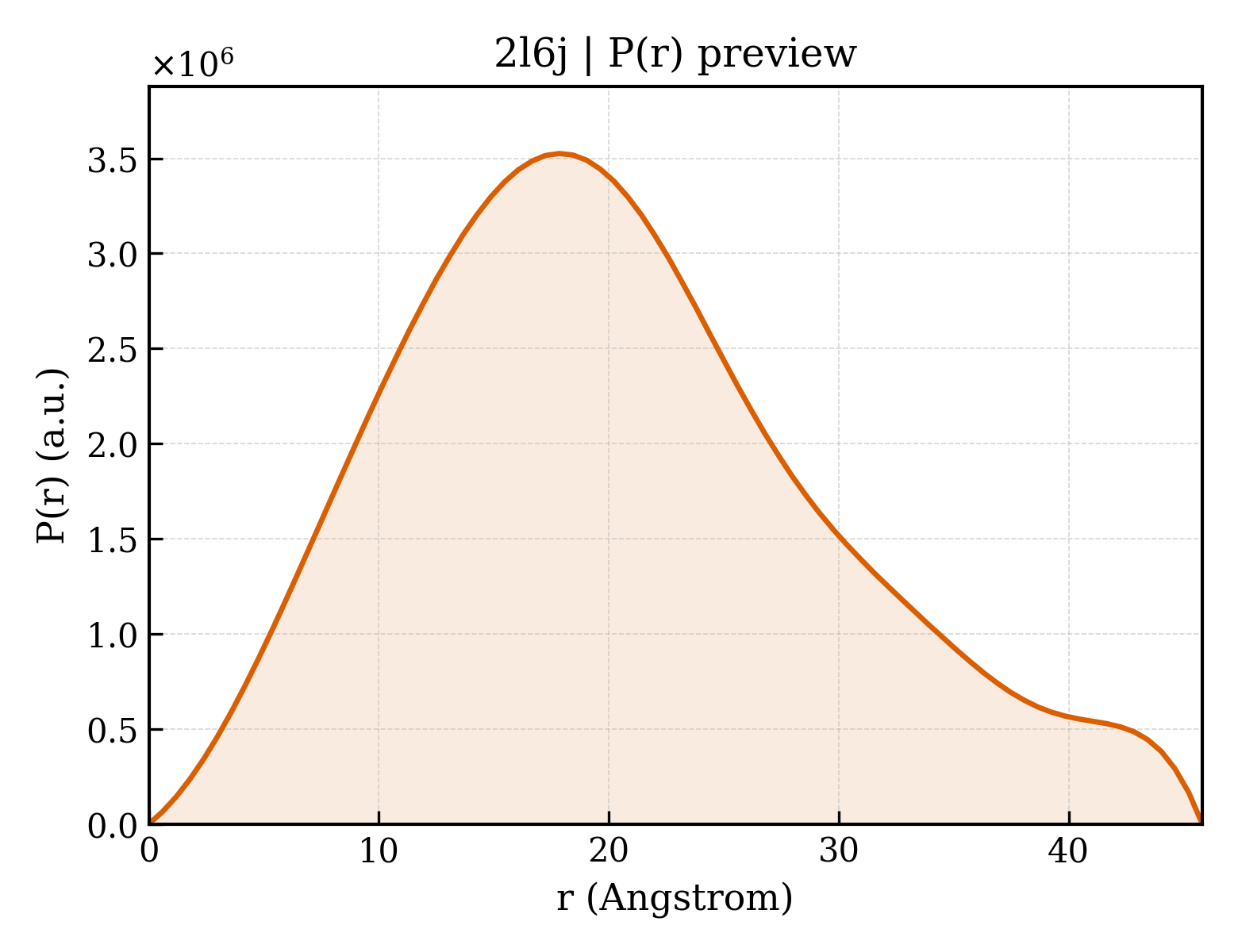

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.8 Å
Rg (real space) rg_real	15.70 Å
Rg uncertainty (real space) rg_real_error	0.08 Å
I(0) (real space) i0_real	9.8060e+08
I(0) uncertainty (real space) i0_real_error	7.7830e+06
Rg (reciprocal space) rg_reciprocal	16.72 Å
I(0) (reciprocal space) i0_reciprocal	1024000000.0000
Solution quality estimate total_estimate	0.6782
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	17.9 Å
Skewness Skewness skewness	0.451
Kurtosis Kurtosis kurtosis	-0.255
Angular range angular_range	— – 0.4800 Å⁻¹
Current regularization parameter α current_alpha	3.8600
Highest regularization parameter α highest_alpha	492300.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.952; Stabil: 0.988; Sysdev: 0.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	TPR repeat-containing protein associated with Hsp90
Molecular weight formula_weight	12524.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	36820

MSQFEKQKEQGNSLFKQGLYREAVHCYDQLITAQPQNPVGYSNKAMALIKLGEYTQAIQMCQQGLRYTSTAEHVAIRSKLQYRLELAQGAVGSVQIPVVEVDELPEGYDRS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	C-terminus Hsp90 chaperone peptide MEEVD
Molecular weight formula_weight	621.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEEVD

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2l6jA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/l6/2l6j/2l6j.fit
pddf	/app/data/pr_computation/l6/2l6j/2l6j.pr.out
profile	/app/data/saxs_computation/l6/2l6j/2l6j.dat
