SAXSdb — 2lah

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitotic checkpoint serine/threonine-protein kinase BUB1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–150	Fragment：N-terminal domain	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7.5；298 K；Pressure ambient NMR sample composition：1.164 mM [U-100% 13C; U-100% 15N] HR5460A, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition：1.033 mM [U-10% 13C; U-100% 15N] HR5460A, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2LAH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4A1G The crystal structure of the human Bub1 TPR domain in complex with the KI motif of Knl1 Deposited 2011-09-15	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–150（150 aa） Fragment：TPR DOMAIN, RESIDUES 1-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.25-1.3 M NA MALONATE, PH 6.0.	Resolution 2.60 Å R-free 0.244
4A1G The crystal structure of the human Bub1 TPR domain in complex with the KI motif of Knl1 Deposited 2011-09-15	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–150（150 aa） Fragment：TPR DOMAIN, RESIDUES 1-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.25-1.3 M NA MALONATE, PH 6.0.	Resolution 2.60 Å R-free 0.244
4A1G The crystal structure of the human Bub1 TPR domain in complex with the KI motif of Knl1 Deposited 2011-09-15	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–150（150 aa） Fragment：TPR DOMAIN, RESIDUES 1-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.25-1.3 M NA MALONATE, PH 6.0.	Resolution 2.60 Å R-free 0.244
4A1G The crystal structure of the human Bub1 TPR domain in complex with the KI motif of Knl1 Deposited 2011-09-15	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–150（150 aa） Fragment：TPR DOMAIN, RESIDUES 1-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.25-1.3 M NA MALONATE, PH 6.0.	Resolution 2.60 Å R-free 0.244
4QPM Structure of Bub1 kinase domain Deposited 2014-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 749–1094（346 aa） Fragment：UNP residues 749-1094	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；20% PEG3350, 1% Tryptone, 10 mM DTT, 0.1 M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.269
4QPM Structure of Bub1 kinase domain Deposited 2014-06-24	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 749–1094（346 aa） Fragment：UNP residues 749-1094	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；20% PEG3350, 1% Tryptone, 10 mM DTT, 0.1 M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.269
4R8Q Structure and substrate recruitment of the human spindle checkpoint kinase bub1 Deposited 2014-09-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 724–1085（362 aa） Fragment：Kinase domain, unp residues 724-1085	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.29；293 K；TO 15 MG/ML BUB1, ATP WAS ADDED TO A FINAL CONCENTRATION OF 10 MM. SITTING DROPS WERE MADE BY MIXING 1.5 MICROLITERS PROTEIN WITH 1.5 MICROLITERS CRYSTALLIZATION SOLUTION (20% W/V PEG 3350, 0.1 M SODIUM FORMATE PH 6.29, 25 MM DTT) AND EQUILIBRATING AGAINST 200 MICROLITERS OF RESERVOIR SOLUTION. LARGE SINGLE CRYSTALS WERE OBTAINED BY REPEATED SEEDING. THE CRYSTALS WERE CRYO-PROTECTED IN RESERVOIR SOLUTION SUPPLEMENTED WITH 18% V/V GLYCEROL AND THEN FLASH-COOLED IN LIQUID PROPANE, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 293K, vapor diffusion, sitting drop	Resolution 2.31 Å R-free 0.264
5DMZ Structure of human Bub1 kinase domain phosphorylated at Ser969 Deposited 2015-09-09	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 726–1085（360 aa） Fragment：UNP residues 726-1085	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；277 K；0.2 M NaCl, 15% PEG 3350	Resolution 2.40 Å R-free 0.245
5DMZ Structure of human Bub1 kinase domain phosphorylated at Ser969 Deposited 2015-09-09	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 726–1085（360 aa） Fragment：UNP residues 726-1085	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；277 K；0.2 M NaCl, 15% PEG 3350	Resolution 2.40 Å R-free 0.245
6F7B Crystal structure of the human Bub1 kinase domain in complex with BAY 1816032 Deposited 2017-12-08	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 726–1085（360 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CVQ 2-[3,5-bis(fluoranyl)-4-[[3-[5-methoxy-4-[(3-methoxypyridin-4-yl)amino]pyrimidin-2-yl]indazol-1-yl]methyl]phenoxy]ethanol × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.26；277 K；200mM MgCl2, 100mM Tris-HCl pH 7.26, 5% glycerol, 20% PEG 3350	Resolution 2.00 Å R-free 0.254
7B1F Orthorhombic P212121 Structure of Human Mad1 C-terminal Domain in Complex with Phosphorylated Bub1 CD1 Domain Deposited 2020-11-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 455–479（25 aa） Chain D 455–479（25 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 4000, 0.1 M Hepes pH 7.5, 10% isopropanol	Resolution 1.75 Å R-free 0.287
7B1H Monoclinic P21 Structure of Human Mad1 C-terminal Domain in Complex with Phosphorylated Bub1 CD1 Domain Deposited 2020-11-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 455–479（25 aa） Chain D 455–479（25 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；8% Isopropanol, 20% PEG 4000, 0.1 M Na HEPES, pH 7.5	Resolution 2.40 Å R-free 0.281
7B1H Monoclinic P21 Structure of Human Mad1 C-terminal Domain in Complex with Phosphorylated Bub1 CD1 Domain Deposited 2020-11-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 455–479（25 aa） Chain H 455–479（25 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；8% Isopropanol, 20% PEG 4000, 0.1 M Na HEPES, pH 7.5	Resolution 2.40 Å R-free 0.281
7B1J Orthorhombic P21212 Structure of Human Mad1 C-terminal Domain in Complex with Phosphorylated Bub1 CD1 Domain Deposited 2020-11-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 455–479（25 aa） Chain D 455–479（25 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；10% Isopropanol, 0.1 M Na HEPES, pH 7.5, 20% PEG 4000	Resolution 2.90 Å R-free 0.296

8 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BUB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–160； UniProt 1–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2lah
Deposition date deposition_date	2011-03-14
Structure title title	Solution NMR Structure of Mitotic checkpoint serine/threonine-protein kinase BUB1 N-terminal domain from Homo sapiens, Northeast Structural Genomics Consortium Target HR5460A (Methods Development)
Keywords keywords	;Structural Genomics, Protein NMR, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM (NESG), Target HR5460A, PSI-Biology, Protein Structure Initiative, CELL CYCLE, APOPTOSIS, Methods Development ;; CELL CYCLE, APOPTOSIS
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.77 Å
Radius of gyration Rg (electron density) rg_electron	19.05 Å
Forward intensity I(0) i0	2097530000.00
Molecular weight molecular_weight	383470.0 kDa
Excluded volume excluded_volume	475720 Å³
Envelope volume envelope_volume	57535 Å³
Hydration-shell volume shell_volume	20439 Å³
Envelope diameter envelope_diameter	90.3 Å
Shell Rg shell_rg	30.33 Å
Envelope Rg envelope_rg	27.07 Å
Shape Rg shape_rg	19.02 Å
Total Rg total_rg	19.30 Å
Total atoms total_atoms	52840
Residues n_residues	3200
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.3 Å
Rg (real space) rg_real	18.53 Å
Rg uncertainty (real space) rg_real_error	0.09 Å
I(0) (real space) i0_real	1.9980e+09
I(0) uncertainty (real space) i0_real_error	1.9370e+07
Rg (reciprocal space) rg_reciprocal	20.00 Å
I(0) (reciprocal space) i0_reciprocal	2097000000.0000
Solution quality estimate total_estimate	0.6847
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	19.5 Å
Skewness Skewness skewness	0.342
Kurtosis Kurtosis kurtosis	-0.530
Angular range angular_range	— – 0.4000 Å⁻¹
Current regularization parameter α current_alpha	3.2830
Highest regularization parameter α highest_alpha	917000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.002; Oscil: 0.989; Stabil: 0.986; Sysdev: 0.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2lahA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	430 —

▶

8. Citations (1)

▶

Description description	Mitotic checkpoint serine/threonine-protein kinase BUB1
Molecular weight formula_weight	19209.5 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	52840

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/la/2lah/2lah.fit
pddf	/app/data/pr_computation/la/2lah/2lah.pr.out
profile	/app/data/saxs_computation/la/2lah/2lah.dat

Solution NMR Structure of Mitotic checkpoint serine/threonine-protein kinase BUB1 N-terminal domain from Homo sapiens, Northeast Structural Genomics Consortium Target HR5460A (Methods Development)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitotic checkpoint serine/threonine-protein kinase BUB1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

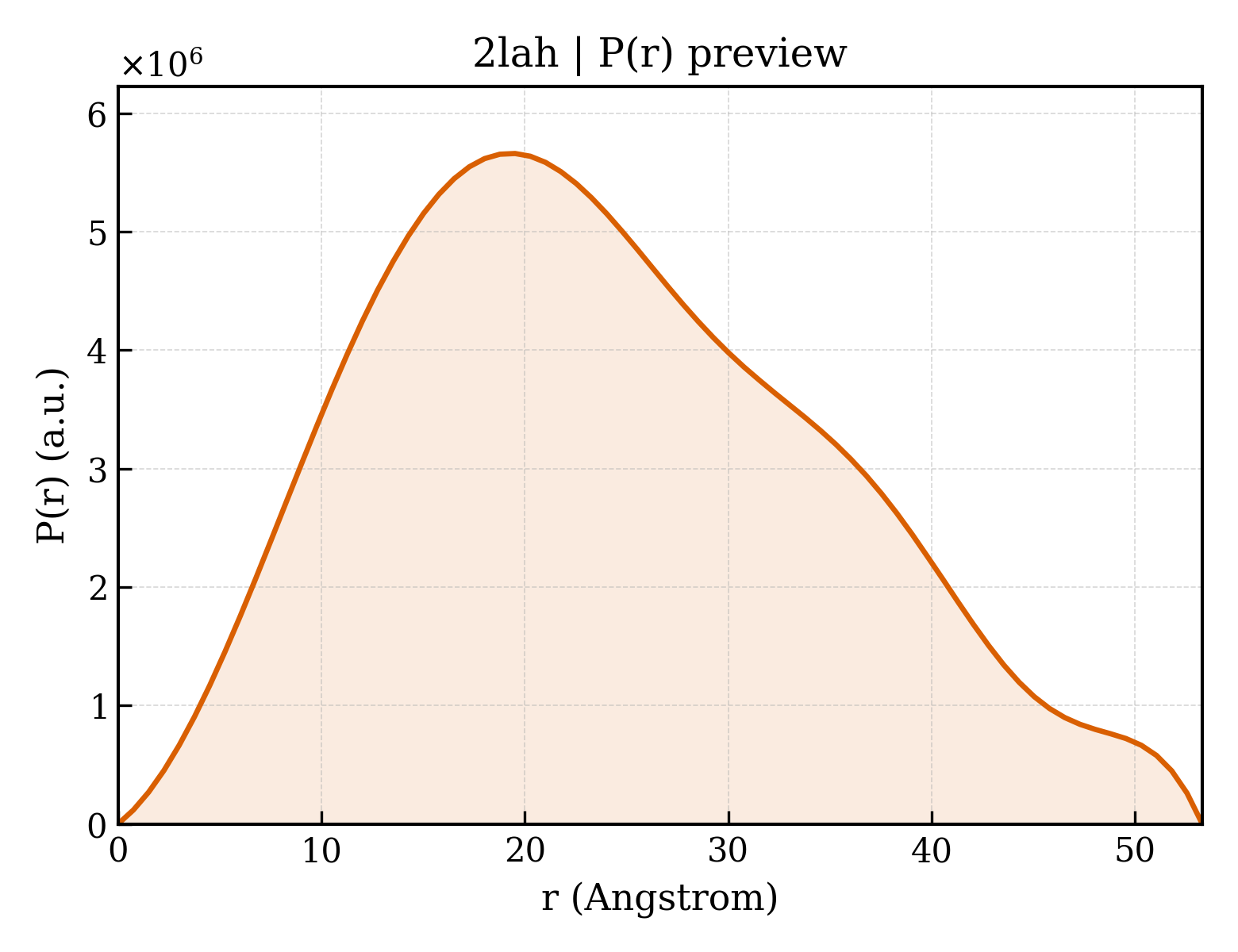

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
