SAXSdb — 2lo3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SAGA-associated factor 73

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 59–102	Fragment：UNP residues 59-102	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) 0.175；Pressure ambient NMR sample composition：0.2 mM [U-98% 15N] sgf73, 50 mM sodium phosphate, 100 mM sodium chloride, 0.05 mM TCEP, 10 % D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：1 mM [U-99% 13C; U-98% 15N] sgf73, 20 mM sodium phosphate, 75 mM sodium chloride, 1 mM DTT, 10 % D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.2 mM [U-98% 15N] sgf73, 50 mM sodium phosphate, 100 mM sodium chloride, 0.05 mM TCEP, 100 % D2O, 100% D2O \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2LO3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3M99 Structure of the Ubp8-Sgf11-Sgf73-Sus1 SAGA DUB module Deposited 2010-03-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–104（104 aa） Fragment：UNP RESIDUES: 1-104	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；0.2M ammonium citrate, 18% PEG 3,350, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.300
3MHH Structure of the SAGA Ubp8/Sgf11/Sus1/Sgf73 DUB module Deposited 2010-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–96（96 aa） Fragment：residues 1-96	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1 M Na Citrate (5.2), 16% (w/v) PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.45 Å R-free 0.273
3MHS Structure of the SAGA Ubp8/Sgf11/Sus1/Sgf73 DUB module bound to ubiquitin aldehyde Deposited 2010-04-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–96（96 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M Hepes pH 6.5, 10% (w/v) PEG 8000, 20% (v/v) Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.89 Å R-free 0.208
4FIP Structure of the SAGA Ubp8(S144N)/Sgf11(1-72, Delta-ZnF)/Sus1/Sgf73 DUB module Deposited 2012-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain D 1–96（96 aa） Fragment：UNP Residues 1-96 Chain H 1–96（96 aa） Fragment：UNP Residues 1-96	Not recorded	ZN ZINC ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；14% PEG3350, 0.18-0.22 M Tri-ammonium citrate, 8-14% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.69 Å R-free 0.264
4FJC Structure of the SAGA Ubp8/Sgf11(1-72, Delta-ZnF)/Sus1/Sgf73 DUB module Deposited 2012-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain D 1–96（96 aa） Fragment：UNP Residues 1-96 Chain H 1–96（96 aa） Fragment：UNP Residues 1-96	Not recorded	ZN ZINC ION × 14 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；14% PEG3350, 0.18-0.22 M tri-ammonium citrate, 8-14% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.83 Å R-free 0.276
4FK5 Structure of the SAGA Ubp8(S144N)/Sgf11/Sus1/Sgf73 DUB module Deposited 2012-06-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–96（96 aa） Fragment：UNP Residues 1-96	Not recorded	ZN ZINC ION × 8 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；291 K；sodium citrate pH 5.2, 16% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.03 Å R-free 0.212
4W4U Structure of yeast SAGA DUBm with Sgf73 Y57A mutant at 2.8 angstroms resolution Deposited 2014-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–96（96 aa）	Mutation：Y57A	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris,18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.80 Å R-free 0.241
4W4U Structure of yeast SAGA DUBm with Sgf73 Y57A mutant at 2.8 angstroms resolution Deposited 2014-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–96（96 aa）	Mutation：Y57A	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris,18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.80 Å R-free 0.241
4WA6 Structure of yeast SAGA DUBm with Sgf73 N59D mutant at 2.36 angstroms resolution Deposited 2014-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–96（96 aa）	Mutation：N59D	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris, 18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.36 Å R-free 0.244
4WA6 Structure of yeast SAGA DUBm with Sgf73 N59D mutant at 2.36 angstroms resolution Deposited 2014-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–96（96 aa）	Mutation：N59D	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris, 18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.36 Å R-free 0.244
4WA6 Structure of yeast SAGA DUBm with Sgf73 N59D mutant at 2.36 angstroms resolution Deposited 2014-08-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–96（96 aa） Chain H 1–96（96 aa）	Mutation：N59D Mutation：N59D	ZN ZINC ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；100mM Bis Tris, 18% PEG3350, 100mM Ammonium Sulfate	Resolution 2.36 Å R-free 0.244
4ZUX SAGA DUB module Ubp8/Sgf11/Sus1/Sgf73 bound to ubiqitinated nucleosome Deposited 2015-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain Y 1–104（104 aa） Chain d 1–104（104 aa）	Not recorded	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50 mM Tris-acetate pH 7.4, 50 mM sodium acetate, 5 mM Mg-acetate, 5% sucrose and 5% 2-propanol	Resolution 3.82 Å R-free 0.256
4ZUX SAGA DUB module Ubp8/Sgf11/Sus1/Sgf73 bound to ubiqitinated nucleosome Deposited 2015-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain i 1–104（104 aa） Chain n 1–104（104 aa）	Not recorded	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50 mM Tris-acetate pH 7.4, 50 mM sodium acetate, 5 mM Mg-acetate, 5% sucrose and 5% 2-propanol	Resolution 3.82 Å R-free 0.256
6AQR SAGA DUB module Ubp8(C146A)/Sgf11/Sus1/Sgf73 bound to monoubiquitin Deposited 2017-08-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–96（96 aa）	Not recorded	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1 M HEPES pH 7.0 17% PEG3350 0.1 M ammonium sulfate	Resolution 2.10 Å R-free 0.249
6T9I cryo-EM structure of transcription coactivator SAGA Deposited 2019-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain Q 1–657（657 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solution were made from stock solution cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds before plunging	Resolution 3.90 Å
6T9K SAGA Core module Deposited 2019-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain Q 1–657（657 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solution were made from stock solution cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds before plunging	Resolution 3.30 Å
6T9L SAGA DUB module bound to a ubiqitinated nucleosome Deposited 2019-10-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric	Chain N 1–657（657 aa）	Not recorded	ZN ZINC ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solution were made from stock solution cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds before plunging	Resolution 3.60 Å

13 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SGF73_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–44； UniProt 59–102

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2lo3
Deposition date deposition_date	2012-01-10
Structure title title	Solution structure of Sgf73(59-102) zinc finger domain
Keywords keywords	ZINC-FINGER, DEUBIQUITINATION, TRANSCRIPTION FACTOR, SAGA COMPLEX, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.28 Å
Radius of gyration Rg (electron density) rg_electron	16.91 Å
Forward intensity I(0) i0	154246000.00
Molecular weight molecular_weight	96997.0 kDa
Excluded volume excluded_volume	119090 Å³
Envelope volume envelope_volume	49475 Å³
Hydration-shell volume shell_volume	18432 Å³
Envelope diameter envelope_diameter	72.8 Å
Shell Rg shell_rg	29.11 Å
Envelope Rg envelope_rg	24.90 Å
Shape Rg shape_rg	16.95 Å
Total Rg total_rg	17.43 Å
Total atoms total_atoms	13320
Residues n_residues	880
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	68.5 Å
Rg (real space) rg_real	17.85 Å
Rg uncertainty (real space) rg_real_error	0.88 Å
I(0) (real space) i0_real	1.5420e+08
I(0) uncertainty (real space) i0_real_error	2.1410e+06
Rg (reciprocal space) rg_reciprocal	17.78 Å
I(0) (reciprocal space) i0_reciprocal	154200000.0000
Solution quality estimate total_estimate	0.6243
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	10.8 Å
Skewness Skewness skewness	0.684
Kurtosis Kurtosis kurtosis	-0.300
Angular range angular_range	— – 0.4600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	49290.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.039; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.001; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2lo3A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

▶

8. Citations (1)

▶

Description description	SAGA-associated factor 73
Molecular weight formula_weight	4792.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	13320

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/lo/2lo3/2lo3.fit
pddf	/app/data/pr_computation/lo/2lo3/2lo3.pr.out
profile	/app/data/saxs_computation/lo/2lo3/2lo3.dat

Solution structure of Sgf73(59-102) zinc finger domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

SAGA-associated factor 73

State in the Current Structure

Other States of the Same Protein in the Database

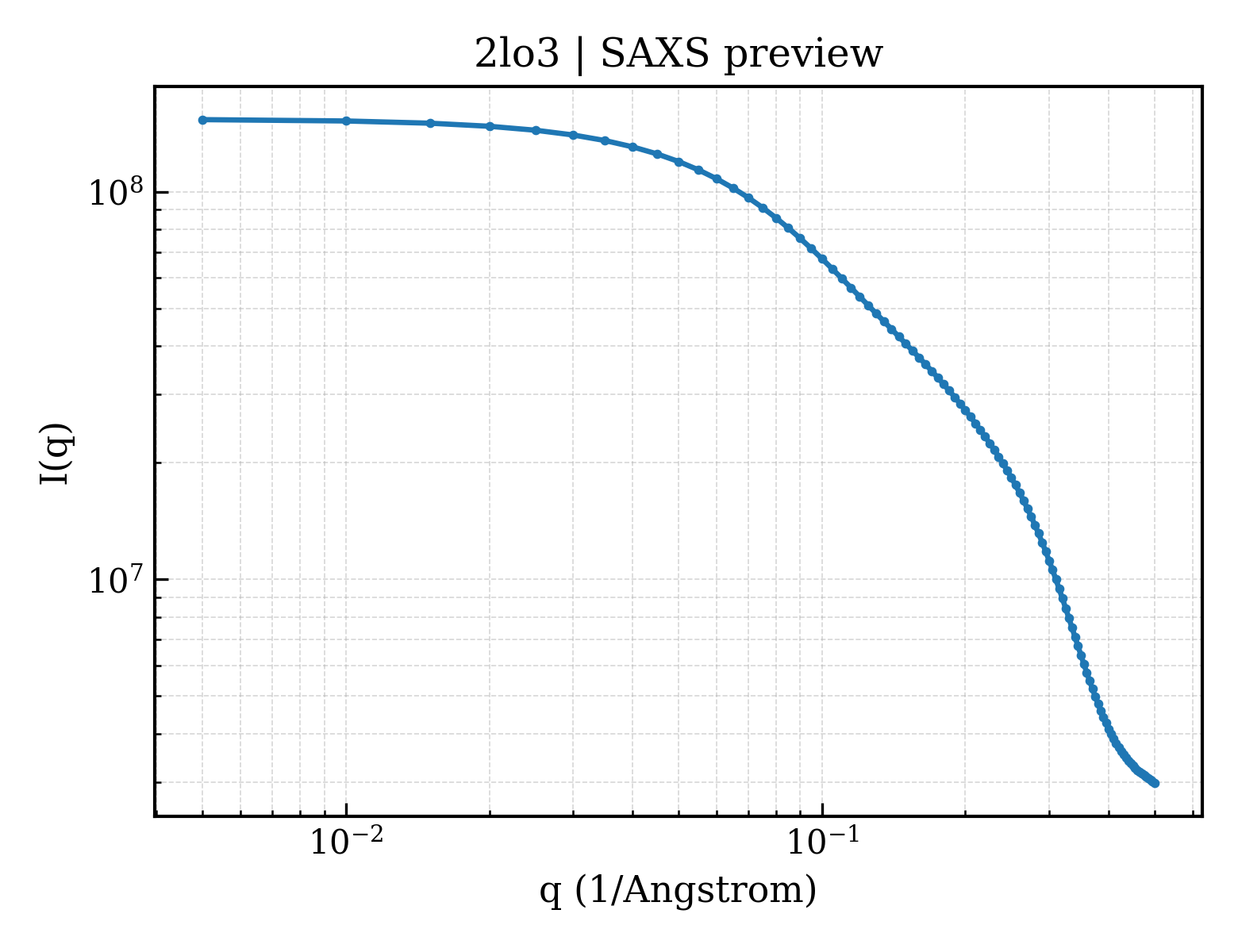

SAXS scattering curve SAXS Profile

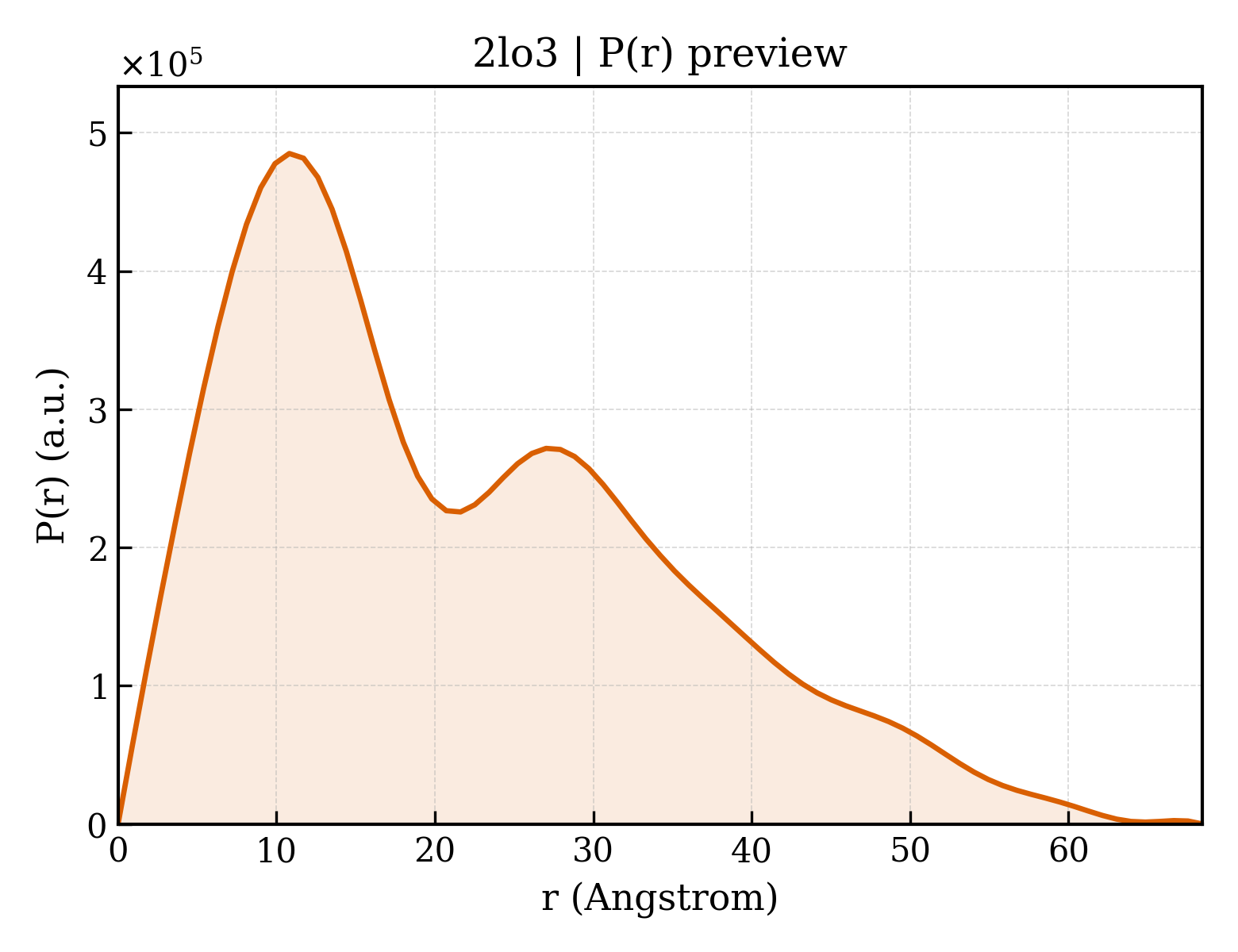

P(r) Distance Distribution P(r) Distribution
