SAXSdb — 4fip

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin carboxyl-terminal hydrolase 8

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Protein SUS1 × 2 （Q6WNK7） SAGA-associated factor 11 × 2 （Q03067） SAGA-associated factor 73 × 2 （P53165） ZINC ION × 14 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBP8_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–476； UniProt 1–471 Author chain E； PDBConstruct 6–476； UniProt 1–471

Protein SUS1

Saccharomyces cerevisiae

UniProt Q6WNK7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Ubiquitin carboxyl-terminal hydrolase 8 × 2 （P50102） SAGA-associated factor 11 × 2 （Q03067） SAGA-associated factor 73 × 2 （P53165） ZINC ION × 14 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SUS1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–96； UniProt 1–96 Author chain F； PDBConstruct 1–96； UniProt 1–96

SAGA-associated factor 11

Saccharomyces cerevisiae

UniProt Q03067

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Ubiquitin carboxyl-terminal hydrolase 8 × 2 （P50102） Protein SUS1 × 2 （Q6WNK7） SAGA-associated factor 73 × 2 （P53165） ZINC ION × 14 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SGF11_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–72； UniProt 1–72 Author chain G； PDBConstruct 1–72； UniProt 1–72

SAGA-associated factor 73

Saccharomyces cerevisiae

UniProt P53165

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Ubiquitin carboxyl-terminal hydrolase 8 × 2 （P50102） Protein SUS1 × 2 （Q6WNK7） SAGA-associated factor 11 × 2 （Q03067） ZINC ION × 14 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SGF73_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–96； UniProt 1–96 Author chain H； PDBConstruct 1–96； UniProt 1–96

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4fip
Deposition date deposition_date	2012-06-10
Structure title title	Structure of the SAGA Ubp8(S144N)/Sgf11(1-72, Delta-ZnF)/Sus1/Sgf73 DUB module
Keywords keywords	Domain-swapping, Deubiquitination, Transcription, Nucleosomes, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4fip__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4fip__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

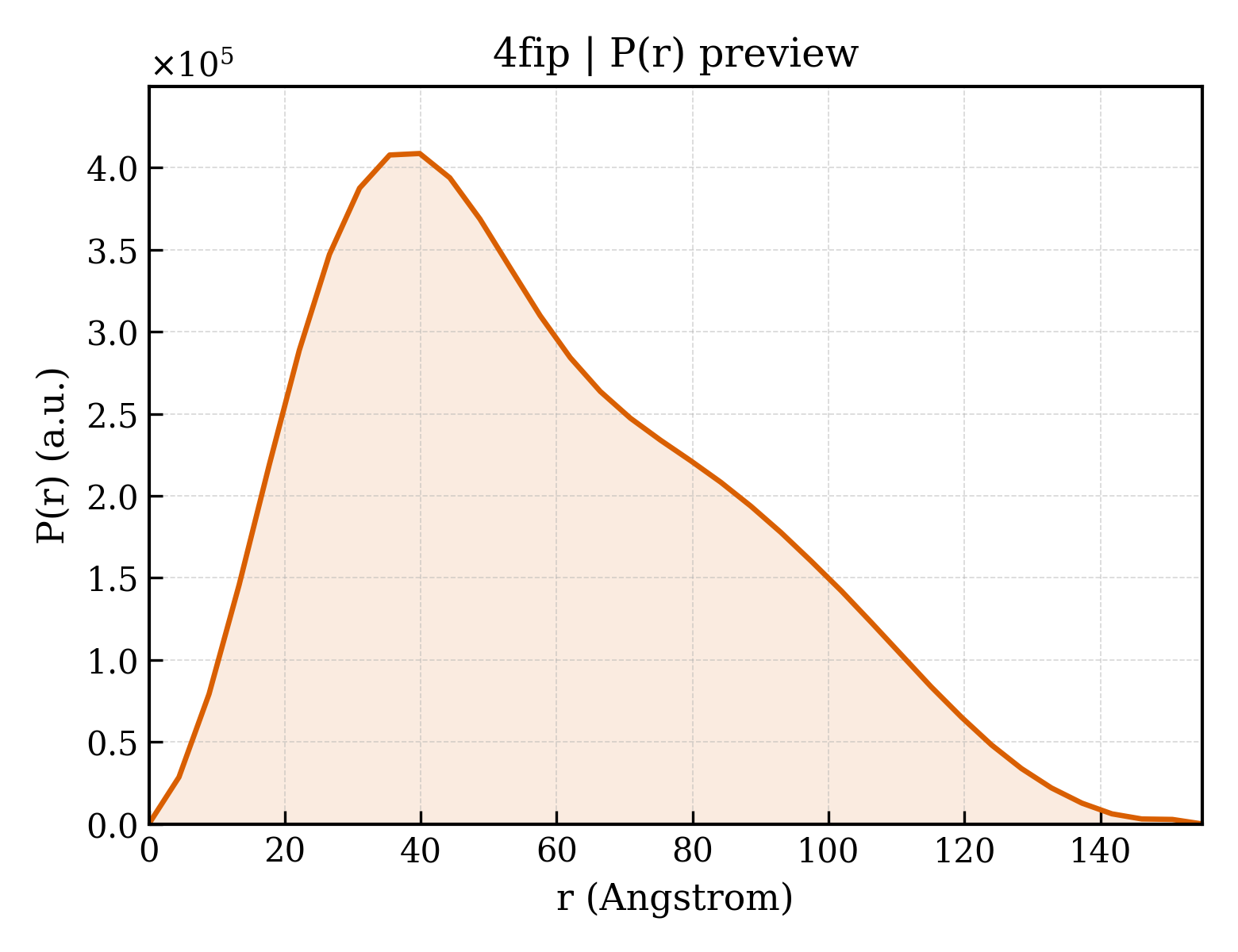

4fip__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.97 Å
Rg (electron density)	45.13 Å
Total Rg	45.33 Å
Atom count	10630
Residues	1326
Excluded volume	189760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4fip__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Ubiquitin carboxyl-terminal hydrolase 8
Molecular weight formula_weight	54060.7 kDa
EC 编号 ec_number	3.4.19.12
Mutation mutation	S144N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	10730

GAAAAMSICPHIQQVFQNEKSKDGVLKTCNAARYILNHSVPKEKFLNTMKCGTCHEINSGATFMCLQCGFCGCWNHSHFLSHSKQIGHIFGINSNNGLLFCFKCEDYIGNIDLINDAILAKYWDDVCTKTMVPSMERRDGLSGLINMGNTCFMSSILQCLIHNPYFIRHSMSQIHSNNCKVRSPDKCFSCALDKIVHELYGALNTKQASSSSTSTNRQTGFIYLLTCAWKINQNLAGYSQQDAHEFWQFIINQIHQSYVLDLPNAKEVSRANNKQCECIVHTVFEGSLESSIVCPGCQNNSKTTIDPFLDLSLDIKDKKKLYECLDSFHKKEQLKDFNYHCGECNSTQDAIKQLGIHKLPSVLVLQLKRFEHLLNGSNRKLDDFIEFPTYLNMKNYCSTKEKDKHSENGKVPDIIYELIGIVSHKGTVNEGHYIAFCKISGGQWFKFNDSMVSSISQEEVLKEQAYLLFYTIRQVN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Protein SUS1
Molecular weight formula_weight	11094.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MTMDTAQLKSQIQQYLVESGNYELISNELKARLLQEGWVDKVKDLTKSEMNINESTNFTQILSTVEPKALEMVSDSTRETVLKQIREFLEEIVDTQ

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	SAGA-associated factor 11
Molecular weight formula_weight	8295.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MTEETITIDSISNGILNNLLTTLIQDIVARETTQQQLLKTRYPDLRSYYFDPNGSLDINGLQKQQESSQYIH

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	SAGA-associated factor 73
Molecular weight formula_weight	10824.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MRSGDAEIKGIKPKVIEEYSLSQGSGPSNDSWKSLMSSAKDTPLQYDHMNRESLKKYFNPNAQLIEDPLDKPIQYRVCEKCGKPLALTAIVDHLEN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	92

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4fipb_
Class class	a — All alpha proteins
Fold Fold fold	a.301 — Sus1-like
Superfamily Superfamily superfamily	a.301.1 — Sus1-like
Family Family family	a.301.1.1 — Sus1-like

Domain ID domain_id	d4fipf_
Class class	a — All alpha proteins
Fold Fold fold	a.301 — Sus1-like
Superfamily Superfamily superfamily	a.301.1 — Sus1-like
Family Family family	a.301.1.1 — Sus1-like

CATH v4.4 (8 domains)

Domain ID domain_id	4fipA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	4fipA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	4fipB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	140 — ENY2/SUS1

Domain ID domain_id	4fipC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	210 —

Domain ID domain_id	4fipE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	10 — Zinc/RING finger domain, C3HC4 (zinc finger)

Domain ID domain_id	4fipE02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	4fipF00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	140 — ENY2/SUS1

Domain ID domain_id	4fipG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	210 —

▶

Unit-cell length a length_a	75.973 Å
Unit-cell length b length_b	79.975 Å
Unit-cell length c length_c	274.259 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.686 Å
Low-resolution limit resolution_low	47.180 Å
R factor r_factor	0.1872
R_work r_work	0.1833
R_free r_free	0.2636

Structure of the SAGA Ubp8(S144N)/Sgf11(1-72, Delta-ZnF)/Sus1/Sgf73 DUB module
